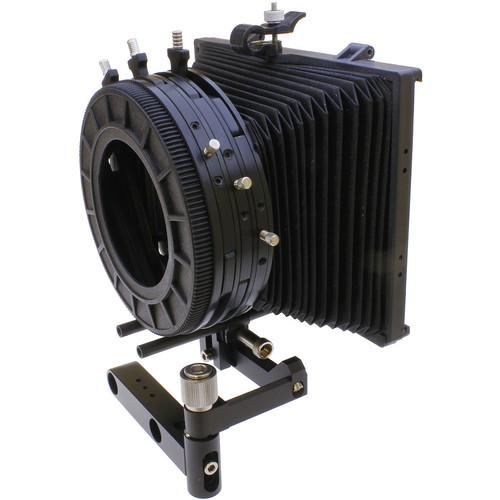

User Manual for Cavision 4x4 Bellows Matte Box and Swing-Away Component Kit Click to enlarge the picture
Contents of the user manual for the Cavision 4x4 Bellows Matte Box and
- Product category: Matte Boxes & Sunshades Cavision
- Brand: Cavision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cavision Matte Boxes & Sunshades
|
User manual for the Cavision 4x4 Bellows Matte Box and contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cavision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cavision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cavision product will considerably shorten its lifespan!
|
Product description The 4x4 Bellows Matte Box and Swing-Away Component Kit from Cavision includes the 4x4 Bellows Matte Box with three filter stages, and a Swing-Away Component for 15mm rods. The Matte Box controls light better than a regular lens shade, and offers the user the ability to use better 4x4 glass filters. The Swing-Away Component allows you to swing the matte box away from the lens by simply loosening one knob. - MB413B-3 4x4 Bellows Matte Box - 3 Filter Stages, 2 Rotating The Cavision 4 x 4" Bellows Matte Box provides three filter stages, two of which are rotating. The matte box controls light better than a regular lens shade, and offers the user the ability to use high-quality 4 x 4" glass filters. Included are a 15mm rod connection bracket and the Cavision ARR1385 rubber adapter ring. Note: Does NOT include top French flap, side flaps, rod support system, or step-down rings. It requires the Cavision 15mm rod support system. For a complete listing of all components required for your camera setup, please contact Cavision.
- Bellows System
- Bellows adjustment allows for maximum flare protection, and adjusts from 35 to 150mm.
- 4 x 4" Filters
- Glass 4 x 4" filters are utilized with this device, offering one stationary holder and two rotating for polarizers and gradient filters.
- Swing Away Component for MB413B Series Matte Boxes
- Key Features
-
- Allows you to swing the matte box away from the lens by simply loosening one knob
- Provides fast and easy access to the lens
- Stops at 90 degree angle to the lens
- Includes front bracket/rods connection part
- Height adjustable
In the Box Bundle Items MB413B-3 4x4 Bellows Matte Box - 3 Filter Stages, 2 Rotating etzsrvrysvudbrzctcfctewevy - 15mm Rod Connection Bracket
- ARR1385 Rubber Adapter Ring
Swing Away Component for MB413B Series Matte Boxes Table of Contents
|
Upload User Manual
Have you got an user manual for the Cavision 4x4 Bellows Matte Box and Swing-Away Component Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - MB413B-3 4x4 Bellows Matte Box - 3 Filter Stages, 2 Rotating
| Lens Fit and Mount | 15 mm rod support only (not included) | | Type | Bellows | | Filter Type | 4 x 4" / 10.2 x 10.2 cm glass filters | | Total Filter Stages | 3 | | Rotating Stages | 2 | | Degree of Rotation | 360° | | Materials | Aluminum and ABS plastic | | Dimensions (WxHxD) | 11.4 x 7.9 x 5.9" / 29.0 x 20.0 x 15.0 cm | | Weight | 0.6 lb / 259 g | | | | Box Dimensions (LxWxH) | 13.0 x 9.5 x 4.25" | - Swing Away Component for MB413B Series Matte Boxes
| | | Accessory Type | Swing away component | | | | Box Dimensions (LxWxH) | 1.0 x 1.0 x 1.0" |
