User Manual for Cavision 4x4 Bellows Matte Box with Swing Away Component Click to enlarge the picture
Contents of the user manual for the Cavision 4x4 Bellows Matte Box with
- Product category: Matte Boxes & Sunshades Cavision
- Brand: Cavision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cavision Matte Boxes & Sunshades
|
User manual for the Cavision 4x4 Bellows Matte Box with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cavision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cavision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cavision product will considerably shorten its lifespan!
|

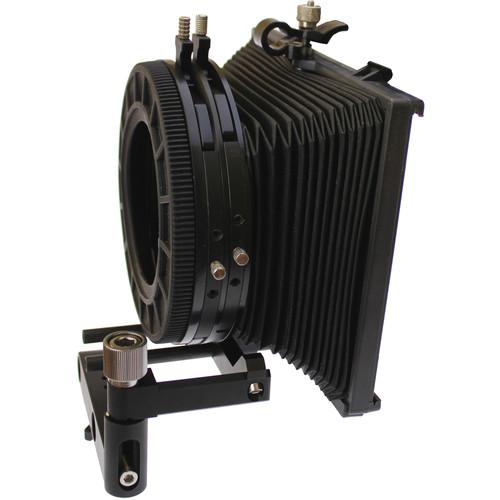

Product description The Cavision 4x4 Bellows Matte Box with Swing Away Component mounts onto 15mm rods and provides superior light blocking than a standard lens hood, utilizing a nylon bellows that can be adjusted depending on the focal length of your lens. The matte box is suitable for use with lenses up to 120mm in diameter and features two 4x4 filter stages, with one of the stages offering 360° of rotation for use with polarizing and graduated filters. Two metal filters trays come included.
The Swing Away Component mounts the matte box onto a pair of 15mm rods and allows you to swing the matte box away from the lens by simply loosening one knob. This makes it easier to access the lens, useful for changing lenses without having to remove or slide the matte box forward on your rods. The Swing Away Component is also height adjustable, letting you properly align the matte box with your lens. -
- Mounts to 15mm rods
- Swing away design
- Height adjustable
- Adjustable nylon bellows
- Two 4x4 filter stages, one with 360° rotation
- Two metal filter trays included
- Filter tray security lock
- Fits Lens Outside Diameter: 120mm and under (with appropriate optional adapter rings)
In the Box Cavision 4x4 Bellows Matte Box with Swing Away Component MB413B-2 4x4 Bellows Matte Box - 2 Filter Stages, 1 Rotating rbrccbctcddcrqfbfycftbfyydrzwef RS1560-SA Swing Away Component for MB4169H Series Matte Boxes Limited 3-Month Warranty (For Commercial, Rental, Business, or Industrial Use) Limited 6-Month Warranty (For Personal Use) Table of Contents
|
Upload User Manual
Have you got an user manual for the Cavision 4x4 Bellows Matte Box with Swing Away Component in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCavision MB413B Specs | Materials | ABS plastic
Aluminum
Nylon bellows | | Mount Type | 15 mm rods | | Bellows Extension | 1.38 to 5.91" (35 to 150 mm) | | Filter Type | 4x4, up to 0.16" (4 mm) thickness | | Total Filter Stages | 2 | | Rotating Stages | 1 | | Degree of Rotation | 360° | | Dimensions (WxHxD) | 11.4 x 7.9 x 5.9" (29 x 20 x 15 cm) | | Weight | Without Swing Away Component: 9.14 oz (259 g) | | | | Package Weight | 2.6 lb | | Box Dimensions (LxWxH) | 12.1 x 9.2 x 6.8" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 44 owners. Add your rating and experience with the product.
