Product description

• 5.65 x 5.65" Linear Polarizer Filter The Cavision 5.65 x 5.65" Linear Polarizer Filter is compatible with filter holders that can accommodate 3mm-thick, 5.65 x 5.65" rectangular filters. It helps to reduce reflections and glare by filtering out light that has become polarized due to reflection from a non-metallic surface. The light from the sun naturally becomes partially polarized due to reflecting off electrons in air molecules, causing the light to scatter into what appears as haze. A polarizing filter arranges, and filters, this directionally polarized light perpendicularly to the reflected light, allowing for the absorption of much of this light. This results in a noticeable reduction of glare and reflections from non-metallic surfaces and an increase in the saturation of skies and foliage.

  A linear polarizer differs from a circular polarizer in that it does not contain an additional quarter wave plane. The addition of a quarter wave plane is to circularly polarize linearly polarized light for the use of auto focus and exposure functions. Due to how the light is broken down and filtered with a linear polarizer, in-camera auto focus and exposure accuracy become skewed during use. When the light becomes circularly polarized, it permits the use of these functions. This filter is recommended when not using in-camera exposure metering or autofocus.
  • Helps to reduce reflections and glare by filtering out light that has become polarized due to reflection from a non-metallic surface.
  • Polarizing filters arrange, and filter, directionally polarized light perpendicularly to the reflected light, allowing for the absorption of much of the light.
  • Clears up haze in distant landscapes and provides more saturated, vivid colors.
  • Strongest effect when used at a 90° angle from the sun.
  • Recommended when not using in-camera exposure metering or autofocus.
  • Non-coated.
  • 1.5 to 6x filter factor reduces exposure by 0.6 to 2.6 stops.
  • Glass construction.
  • Microfiber filter cloth included for filter maintenance as well as a soft pouch for storage and transport.
• 5.65 x 5.65" Soft Mist Black 1/4 Filter The Cavision 5.65 x 5.65" Soft Mist Black 1/4 Filter can be applied to purposely reduce sharpness and soften highlights. This can be useful for reducing the appearance of glare on a subject while creating a general soft-focus effect. When applied to digital cinematography or digital photography, the soft-focus effect provides results that emulate the appearance of recording with the grain structure and emulsion of film. Additionally, as highlights within a frame are diffused, ambient illumination is distributed to darker areas within the exposure, helping to balance the tonal range among highlights and shadows.

  This filter constructed from glass, is compatible with filter holders that can accommodate 4mm-thick rectangular filters, and has a grade of 1/4. Grades of 1/8 or 1/2 are also available where this filter type's effect becomes approximately twice as strong with each grade number increase.
  • • Reduces sharpness and softens highlights
    • Diminishes the appearance of glare on a subject
    • Softens contrast by helping to balance the tonal range among highlights and shadows
    • Provides results that emulate the appearance of recording with the grain structure and emulsion of film
    • Microfiber wrap included for filter maintenance as well as soft-pouch for storage and transport
• 5.65 x 5.65" Graduated Neutral Density 0.6 Filter Helping to balance the overall exposure within a high-contrast scene, this 5.65 x 5.65" Graduated Neutral Density 0.6 Filter from Cavision neutralizes the exposure between a dark foreground and a bright sky. Half of this filter has a 2 stop, 0.6 neutral density area and the other half is clear, with a medium-soft-edged transition between the two for a natural appearance when photographing uneven or undulating horizon lines. By reducing the exposure in selective areas, you can balance the overall exposure of the scene in order to gain detail in both bright and dark areas.

  This filter is constructed from 4mm-thick optical glass to maintain image clarity and it measures 5.65 x 5.65".
  • Medium soft-edged 0.6 ND graduated filter for darkening skies and other bright areas of the image.
  • Neutral density filters do not affect the overall coloration of the image.
  • Provides a 2 stop exposure reduction for holding back bright regions of the image.
• 5.65 x 5.65" Soft-Edge Graduated Orange 0.3 Filter (1-Stop) The Cavision 5.65 x 5.65" Soft-Edge Graduated Orange 0.3 Filter is compatible with filter holders that can accommodate 4mm-thick, 5.65 x 5.65" rectangular filters. This filter can be used to enhance an existing sunset within a scene or to simulate a sunset in order to enhance a hazy or colorless sky. The filter is densest at the edge and tapers to clear by the middle, with a soft-edged line of transition between the dense and clear areas. This filter has up to a 0.3 density and reduces light from entering a lens by up to one stop.
  • • Enhances an existing sunset within a scene or simulates a sunset in order to enhance a hazy or colorless sky
    • Soft-edged line of transition between the dense and clear areas
    • 0.3 density and 2x filter factor provides up to a one-stop reduction of light in selective areas
    • Glass construction
    • Microfiber filter cloth included for filter maintenance as well as a soft pouch for storage and transport

• Filter Wrap

• Filter Pouch

• Limited 3-Month Warranty

• Filter Wrap

• Filter Pouch

• Limited 3-Month Warranty

• Limited 6-Month Warranty for Personal Use

• Limited 3-Month Warranty for Commercial Use

• Filter Wrap

• Filter Pouch

• Limited 3-Month Warranty

Also Includes

• 5.65 x 5.65" Graduated Blue 0.3 Filter

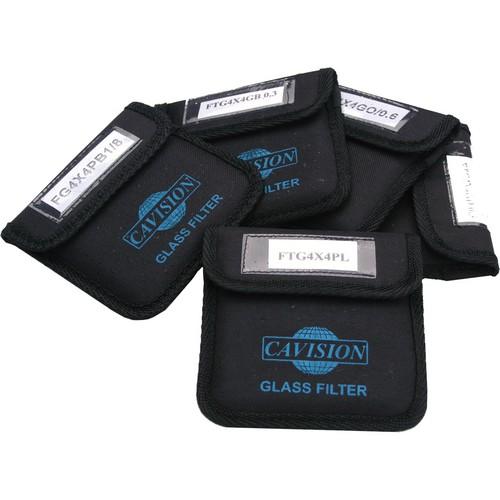

• 5 x Soft Filter Pouches

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 5.65 x 5.65" Linear Polarizer Filter

  Filter Type	Linear Polarizer
  Filter Factor	1.5 - 6 (0.6 - 2.6 Stop)
  Shape	Rectangle
  Rectangular Size	5.65 x 5.65" / 143.5 x 143.5 mm
  Filter Thickness	0.12" / 3 mm
  Filter Material	Glass
  Coatings	None

  Box Dimensions (LxWxH)	7.0 x 7.0 x 1.0"

• 5.65 x 5.65" Soft Mist Black 1/4 Filter

  Type	Soft focus and diffusion
  Size	5.65 x 5.65" (143.5 x 143.5 mm)
  Thickness	0.2" (4.0 mm)
  Grade	1/4
  Effect	Reduces sharpness, softens highlights, reduces glare as well as contrast, emulates the appearance of recording with the grain structure and emulsion of film
  Construction	Glass

  Box Dimensions (LxWxH)	8.0 x 7.9 x 1.0"

• 5.65 x 5.65" Graduated Neutral Density 0.6 Filter

  Filter Type	Graduated ND
  Graduation Type	Soft Edge
  Density	0.6 (2 Stops)
  Shape	Rectangle
  Rectangular Size	5.65 x 5.65" / 143.5 x 143.5 mm
  Filter Thickness	0.16" / 4 mm
  Filter Material	Glass

  Box Dimensions (LxWxH)	7.0 x 5.0 x 1.0"

• 5.65 x 5.65" Soft-Edge Graduated Orange 0.3 Filter (1-Stop)

  Graduation Color	Orange
  Shape	Rectangle
  Rectangular Size	5.6 x 5.6" / 142.0 x 142.0 mm
  Graduation Type	Soft Edge
  Filter Factor	2 (1 Stop)
  Filter Thickness	0.2" / 4 mm
  Filter Material	Glass

  Box Dimensions (LxWxH)	6.95 x 6.55 x 0.45"
