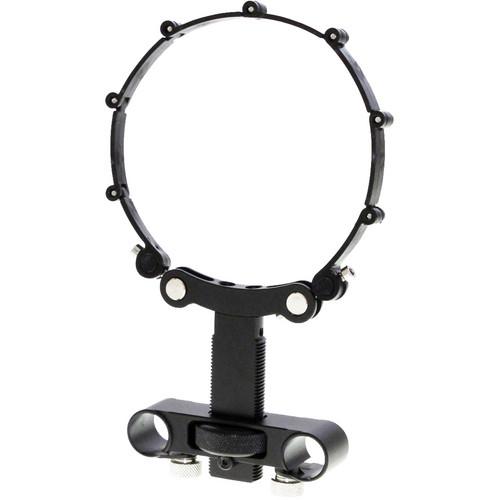

User Manual for Cavision Adjustable Height Lens Support with Locking Lens Belt for 15mm LWS Rods Click to enlarge the picture
Contents of the user manual for the Cavision Adjustable Height Lens Support with
- Product category: Rod Brackets & Clamps Cavision
- Brand: Cavision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cavision Rod Brackets & Clamps
|
User manual for the Cavision Adjustable Height Lens Support with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cavision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cavision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cavision product will considerably shorten its lifespan!
|
Product description The Cavision Adjustable Height Lens Support with Locking Lens Belt for 15mm LWS Rods provides up to 60mm of vertical adjustment, enabling it to support lenses with a wide variety of outer diameters. The support sits in a bridge between two rod supports that support the LWS (lightweight standard) distance 60mm on center. Rotating a knurled ring adjusts the height of the support, and a screw stop prevents the support from coming out of the rod support bridge.
In normal use the support rests against a non-rotating section of your lens; however, for VFX shots or when your camera is moving and subject to vibration, it can be desirable to prevent the focus or zoom from shifting. Positioning the support against the zoom or focus ring and attaching the included lens locking belt allows you to secure that ring against movement. The belt in composed of ABS plastic links and can be adjusted between 50 and 200mm in diameter by removing or adding links. The support is made from anodized aluminum providing strength, durability, corrosion, and wear resistance. - The lens support features 60mm of vertical adjustment
- Includes lens belt with multiple ABS sections that can be added or removed, using a simple small flat head screwdriver (not included). this allows the belt to work with lenses with an outer diameter of 50 to 200mm.
- The included Allen wrench is used to attach and tighten the lens locking belt.
In the Box Cavision Adjustable Height Lens Support with Locking Lens Belt for 15mm LWS Rods Limited 3-Month Warranty when the Product is used for Commercial, Rental, Business or Industrial Purposes Limited 6-Months Warranty when the Product is employed for Personal Use Table of Contents
|
Upload User Manual
Have you got an user manual for the Cavision Adjustable Height Lens Support with Locking Lens Belt for 15mm LWS Rods in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCavision R1560-LS06U Specs | Height Adjustment | 2.4" / 60.0 mm | | Lens Diameter | 2 to 7.9" / 50 to 200 mm | | Rod Clamps | 15 mm LWS (60 mm on center) | | | | Package Weight | 0.35 lb | | Box Dimensions (LxWxH) | 5.9 x 4.3 x 1.2" |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 70 owners. Add your rating and experience with the product.
