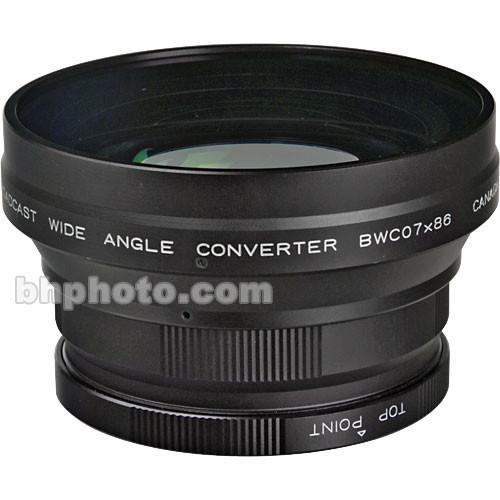

User Manual for Cavision BWC0786B-HVX200 0.7x Broadcast Wide Angle Converter Lens - Bayonet for HVX-200, 9586 Clamp Click to enlarge the picture
Contents of the user manual for the Cavision BWC0786B-HVX200 0.7x Broadcast Wide Angle
- Product category: Lens Attachments & Converters Cavision
- Brand: Cavision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cavision Lens Attachments & Converters
|
User manual for the Cavision BWC0786B-HVX200 0.7x Broadcast Wide Angle contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cavision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cavision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cavision product will considerably shorten its lifespan!
|
Product description The Cavision BWC0786B-HVX200 is a 0.7x Wide Angle Converter Lens. This is a broadcast class converter lens for cameras with a 82-83mm filter thread on their existing lens. The wide angle coefficient is 0.7x, which delivers a 27% wider angle than your stock lens. This adapter lens comes with a clamp-on mount and a bayonet mount for the Panasonic HVX-200. - Application
- Provides a 27% wider angle of view than main camera lens alone; this optimizes the image in small spaces and will add more to image when reproducing wide vistas.
- Mount Options
- The 9586 Clamp-on mount provides easy and quick attachment to your existing camera lens with an 85 to 86mm outside diameter.
- Zoom Through
- This device allows for zoom through focus capabilities; this allows for the user to critical focus on subject and maintain focus at all points within the lenses zoom capabilities.
In the Box Cavision BWC0786B-HVX200 0.7x Broadcast Wide Angle Converter Lens - Bayonet for HVX-200, 9586 Clamp Clamp-on Adapter HVX-200 Bayonet Mount 6 Month Personal or 3 Month Commercial Use Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cavision BWC0786B-HVX200 0.7x Broadcast Wide Angle Converter Lens - Bayonet for HVX-200, 9586 Clamp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCavision BWC0786B-HVX200 Specs | Type | Wide angle adapter lens | | Application | Wide angle shooting with broadcast lens | | Format | 16:9 and 4:3 for All chip sizes | | Lens Mount | 9586 Clamp-on mount
Bayonet Mount for HVX-200
82mm Screw-on | | Zoom Through | Yes | | Magnification | 0.73x | | Converted Focal Length | Not applicable, depends on camera lens | | Minimum Object Distance (M.O.D.) | 12.0" (0.3m) | | Filter Size | 117mm | | Dimensions (LxDiameter) | 4.7 x 2.5"
120 x 69mm | | Weight | 1.9 lbs
865 grams |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 16 owners. Add your rating and experience with the product.
