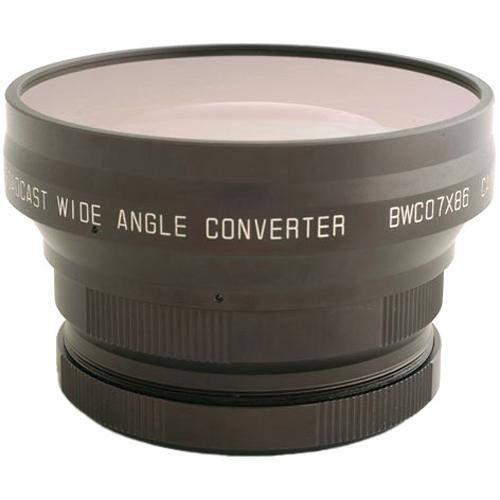

Product description The Cavision BWC07X86B-EX1 0.7x Wide Angle Converter Lens is a full zoom-through, multi-coated broadcast class converter lens featuring a bayonet mount compatible with the Sony PMW-EX1, EX3, PMW-200, and Z7, or the PMW S270 and PMW-300 with the standard Fujinon lens attached. It also features a clamp-on design that's designed to work with cameras featuring an 85/86mm outside diameter on their existing lens (requires optional pressure ring). In addition, the wide-angle coefficient is 0.73x, which delivers a 27% wider angle than your stock lens. - Application
- Provides a 27% wider angle of view than the main camera lens alone, optimizing the image in small spaces and adding more to the image when reproducing wide vistas.
- Full Zoom-Through
- This broadcast device allows for zoom-through focus capabilities, allowing the user to focus on a subject and maintain focus at all points within the lens' zoom capabilities.
- Mount Options
- The 9586 clamp-on mount provides easy and quick attachment to your existing camera lens with an 85 to 86mm outside diameter (requires optional pressure ring - model CR95-85). For fast and secure attachment capabilities, it also comes with a bayonet adapter for the Sony PMW-EX1.
- Back Mount
- Back mount: combination EX1 bayonet clamp and 9586 clamp-on mount.
- Other Notables
- • Multi-coated
• Aperture: No light loss
• Angle of view for 2/3" at 8mm: 75°/1' x 63°/33'
• Focus: Same as usual
• 0.15 MOD
• Format: 1/2 or 2/3" SD/HD
• Construction: 3 groups, 3 elements In the Box Cavision BWC07X86B-EX1 0.7x Broadcast Wide Angle Converter Lens Lens Bayonet Mount Limited 6-Month Personal or 3-Month Commercial Use Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cavision BWC07X86B-EX1 0.7x Broadcast Wide Angle Converter Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCavision BWC07X86B-EX1 Specs | Type | Wide angle converter lens | | Application | Wide-angle adaptation | | Class | Broadcast | | Format | 16:9 and 4:3 for all chip sizes | | Lens Mount | Combination EX1 bayonet clamp and 9586 clamp-on mount | | Mounting | 85/86 mm clamp-on (requires optional pressure ring - model# CR95-85)
Bayonet mount for PMW-EX1 | | Zoom Through | Yes | | Magnification | 0.73x | | Aperture | No light loss | | Suitable Focal Length | 2/3": 8mm and up | | Converted Focal Length | Not applicable; depends on camera lens | | Angle of View | 2/3" at 8mm: 75°/1' x 63°/33' | | Minimum Object Distance (M.O.D.) | 12" / 0.3 m | | Construction | 3 x Groups
3 x Elements | | Filter Size | 117 mm | | Dimensions (LxDiameter) | 4.7 x 2.5" / 120 x 69 mm | | Weight | 1.9 lb / 865 g | | | | Package Weight | 3.2 lb | | Box Dimensions (LxWxH) | 6.5 x 6.5 x 6.2" | Note: Note: This adapter causes a small amount of vignetting at corners of frame at full wide (outside 90% safety zone)
