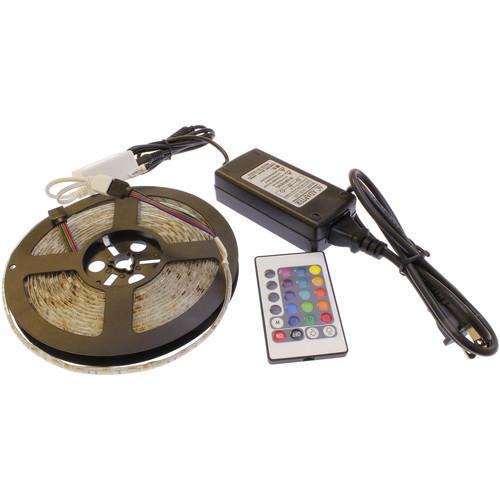

User Manual for Cavision Color LED Strip and Remote RGB Controller Package Click to enlarge the picture
Contents of the user manual for the Cavision Color LED Strip and Remote
- Product category: DJ & Effect Lights Cavision
- Brand: Cavision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cavision DJ & Effect Lights
|
User manual for the Cavision Color LED Strip and Remote contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cavision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cavision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cavision product will considerably shorten its lifespan!
|
Product description The Cavision Color LED Strip and Remote RGB Controller Package includes the ELSWP5560C Waterproof LED Strip (RGB Color), ELSRCC12V5A-PA RGB Controller with Remote, and BAP12V5A 12 VDC Power Adapter. This allows for the LED strip's color to be set via the remote control. - Waterproof RGB LED Strip (16.4') Suitable for events on or near the water, this 16.4' Waterproof RGB LED Strip from Cavision stores on a reel and has a total of 300 bulbs. Using a dimmer-like device you can dial in red, green, blue, or any intermediary color.
- RGB Controller with Remote The Cavision RGB Controller with Remote is a remote control system for the ELSWP5560C Waterproof LED Strip (RGB Color). It provides numerous color types and functions. The controller comes with the BAP12V5A 12 VDC power adapter.
- Static Colors: Red, orange, dark yellow, yellow, straw yellow, green, pea green, cyan, light blue, sky blue, blue, dark blue, brown, pink, purple, and white
- On, Off, Brightness + (speed up), and Brightness - (speed down)
In the Box Bundle Items Waterproof RGB LED Strip (16.4') dreytzvxecutzedruczbxxcsubrsbxaqbbwas RGB Controller with Remote - BAP12V5A 12 VDC Power Adapter
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the Cavision Color LED Strip and Remote RGB Controller Package in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Waterproof RGB LED Strip (16.4')
| Length | 16.4' (5 m) | | Light Source | 300 LEDs, 60 per 3.28' (1.0 m) | | Color Temperature | Red, Green, Blue | | Power Consumption | Single bulb: 0.2 W
Entire strip: 60 W (12 W per 3.28'/1.0 m) | | Voltage | Input: 12 V DC via optional 12 V battery or separately purchased transformer | | Coating | Waterproof | | | | Box Dimensions (LxWxH) | 8.0 x 8.0 x 0.5" | - RGB Controller with Remote
| | | Connection | Common anode | | Output | Three CMOS drain - open output | | Working Temperature | -4 to 140°F (-20 to 60°C) | | Supply Voltage | 12 VDC | | Current | Load Current: 2 A each color | | Dimensions (L x W x H) | 2.4 x 1.3 x 0.9" (62 x 35 x 23 mm) | | Weight | 1.7 oz (50 g) | | | | Power Adapter Input | 100 to 240 VAC, 50/60 Hz, 1.5 A | | Output | 12 VDC/5 A | | | | Box Dimensions (LxWxH) | 9.2 x 7.3 x 4.5" |
