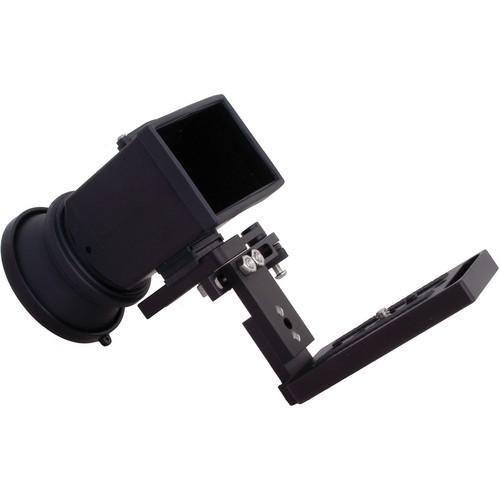

User Manual for Cavision LCD Viewfinder Set with Plate for Canon 5D Mark II with Battery Grip Click to enlarge the picture
Contents of the user manual for the Cavision LCD Viewfinder Set with Plate
- Product category: LCD Hoods & Shades Cavision
- Brand: Cavision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cavision LCD Hoods & Shades
|
User manual for the Cavision LCD Viewfinder Set with Plate contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cavision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cavision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cavision product will considerably shorten its lifespan!
|
Product description The Cavision LCD Viewfinder Set with Plate for Canon 5D Mark II with Battery Grip is a simple way to bring the professional video viewfinder experience to your DSLR camera. While designed for the 5D Mark II, the viewfinder set has some height adjustability, so it should work for many DSLRs, including the Canon 7D. Please note that the use of a battery grip is required. The set includes an LCD Viewfinder for DSLR, a new quick release swing connection piece and a mini-DV plate allowing the viewfinder to be attached directly to the camera's battery grip via screw. The plate features horizontal and forwards/backwards adjustment, as well as a swing away function for easy access to LCD / buttons & camera viewfinder (note: swings to the right). - Allows LCD Viewfinder to attach directly to camera's battery grip via 1/4" thread
- Works with a 3.0" LCD, specifically designed for Canon 5D Mark II DSLR but features some height adjustability, so should work for many DSLR's, including Canon 7D -- please note that the use of a battery grip is required
- Virtually transforms LCD screen into viewfinder
- Create professional-quality HD video with your Canon 5D Mark II DSLR camera
- Viewfinder eye-piece as large as those on broadcast cameras like F900
- Ideal for daylight situations when LCD difficult to view
- Enhances ability to focus image by eye and enables more accurate composition of scene
- Viewfinder mini-DV plate features horizontal and forwards/backwards adjustment, as well as swing away function for easy access to LCD / buttons and camera viewfinder (note: swings to the right)
In the Box Cavision LCD Viewfinder Set with Plate for Canon 5D Mark II with Battery Grip LCD Viewfinder for DSLR - MHE3-6X Mini-DV Camera Plate Plate Connection Piece with Swing Action - MHE52C-SA-R Eyepiece Lens Cap 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cavision LCD Viewfinder Set with Plate for Canon 5D Mark II with Battery Grip in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCavision MHE3Q-PBG Specs | Applications | HD video: 3.0" LCD size, daylight situations | | Magnification | Approx 600% (6X) | | Materials | Lens: Glass
Eye-cup: Rubber | | Dimensions | Lens O.D. / Outside Diameter: 2.05" (52mm)
Eye-cup O.D : 2.50" (63mm)
Inside Front Dimensions (WxH): 2.68 x 1.77" (68 x 45mm)
Outside Dimensions (WxHxL): 2.91 x 1.97 x 4.09" (74 x 50 x 104mm)
Plate: Screw / Thread: 0.25" (0.64cm) and 0.38" (0.97cm) | | Weight | 2.6 oz (75.0 g) | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 9.2 x 6.3 x 4.9" |
