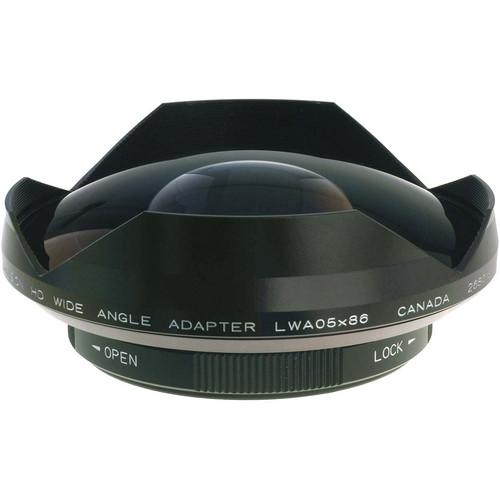

User Manual for Cavision LWA05X86B-EX1 0.5x Broadcast Wide Angle Adapter Lens Click to enlarge the picture
Contents of the user manual for the Cavision LWA05X86B-EX1 0.5x Broadcast Wide Angle
- Product category: Lens Attachments & Converters Cavision
- Brand: Cavision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cavision Lens Attachments & Converters
|
User manual for the Cavision LWA05X86B-EX1 0.5x Broadcast Wide Angle contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cavision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cavision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cavision product will considerably shorten its lifespan!
|
Product description This Cavision LWA05X86B-EX1 0.5x Wide Angle Adapter Lens is a broadcast class adapter lens designed to work with cameras featuring an 85/86mm outside diameter on their existing lens (requires optional pressure ring). It also features a bayonet adapter that's compatible with the Sony PMW-EX1, EX3, PMW-200, and Z7, or the PMW S270 and PMW-300 with the standard Fujinon lens attached. The wide-angle coefficient is 0.5x, which delivers a 50% wider angle than your stock lens. - Wide Angle
- This attachment provides a 50% wider angle of view than the master lens.
- Clamp-On Option
- The optional pressure ring clamp-on connection (model CR95-85) allows for internal focus lenses with an outside diameter of 85 or 86mm to work with this attachment.
- Back Mount
- Back mount combination of EX1 bayonet clamp and 9586 clamp-on mount.
- For PMW-EX1
- This model comes with an adapter allowing bayonet connection to the Sony PMW-EX1.
In the Box Cavision LWA05X86B-EX1 0.5x Broadcast Wide Angle Adapter Lens Lens Bayonet Mount Limited 6-Month Personal or 3-Month Commercial Use Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cavision LWA05X86B-EX1 0.5x Broadcast Wide Angle Adapter Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCavision LWA05X86B-EX1 Specs | Type | Wide angle adapter lens | | Application | Wide-angle adaptation | | Format | 2/3", 1/2", or 1/3" | | Lens Mount | Combination EX1 bayonet clamp and 9586 clamp-on mount | | Mounting | 85/86 mm clamp-on (requires optional pressure ring/model# CR95-85)
Bayonet mount for PMW-EX1 | | Zoom Through | No, fixed focal | | Magnification | 0.5x | | Aperture | No light loss | | Suitable Focal Length | 2/3": 8.5mm and up | | Converted Focal Length | Not applicable; depends on camera lens | | Minimum Object Distance (M.O.D.) | 7.9" / 20 cm | | Coating | Multi-coated | | Filter Size | N/A | | Dimensions (LxW) | 1.9 x 5.2" / 50 x 133 mm | | Weight | 1.3 lb / 590 g | | | | Package Weight | 2.15 lb | | Box Dimensions (LxWxH) | 6.3 x 6.2 x 4.7" |
