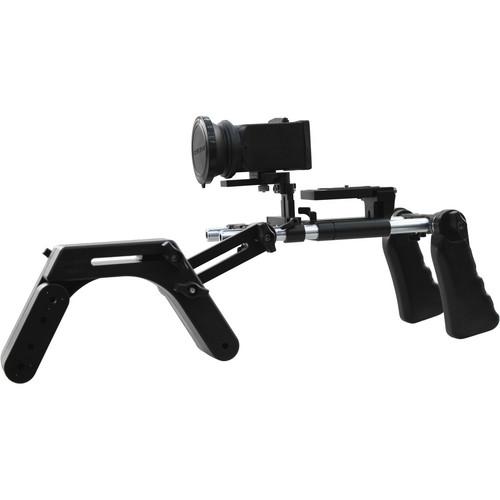

User Manual for Cavision MH3Q-RSD-U Universal Shoulder Pad Package for DSLR Click to enlarge the picture
Contents of the user manual for the Cavision MH3Q-RSD-U Universal Shoulder Pad Package
- Product category: DSLR Video Supports & Rigs Cavision
- Brand: Cavision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cavision DSLR Video Supports & Rigs
|
User manual for the Cavision MH3Q-RSD-U Universal Shoulder Pad Package contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cavision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cavision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cavision product will considerably shorten its lifespan!
|
Product description The Cavision MH3Q-RSD-U Universal Shoulder Pad Package for DSLR includes the MHE3-6X LCD Viewfinder, MHE52C-SA-U Quick Release Swing Connection, Vertically Adjustable Rods Connection Bracket, RQ1580R Reversed Version Quick Release Plate, Riser, Bracket, RS15SP-2 Shoulder Pad, and RHD1560 Dual Handgrips.
The MHE3-6X LCD Viewfinder for DSLR is specifically designed for DSLR cameras 3” LCD size. Viewfinder height adjustment allows this system to be used on most DSLRs with standard type camera body (bottom of the LCD must be between 8 and 25mm from the camera base; distance from the center of the camera's 1/4" thread to the back of the camera should be at least 35mm; only suitable for 3.0" LCD).
The RS15SP-2 Shoulder Pad features rods connector that includes 2 tilt adjustments.
The RHD1560 Dual Handgrips offer swivel adjustment. It is suitable for use in conjunction with a shoulder pad system. Note: Due to the viewfinder being attached to the rods system, it cannot be used / attached on the camera separately. - MH3Q-RSD-U Universal Shoulder Pad Package for DSLR
-
- Standard 15mm rods allow the use of additional accessories such as a matte box or follow focus (sold separately)
- Shoulder support system greatly enhances handheld operation and vastly reduces camera jitter
- Viewfinder greatly enhances the use of LCD in brightly lit conditions
- MHE3-6X LCD Viewfinder for DSLR
-
- Virtually transforms the LCD screen into a viewfinder
- Create professional quality HD video with your compact, lightweight DSLR camera
- Viewfinder eye-piece as large as those on broadcast cameras like the F900
- Suitable for daylight situations when the LCD is difficult to view
- Greatly enhances the ability to focus the image by eye and allows for more accurate composition of the scene
- Includes eyepiece lens cap
1 Please Note: - Does not contain fastening mechanism; must be used as part of a DSLR package.
- The lens on the viewfinder, like all optical elements, by its nature magnifies light and thus will also magnify the sun's rays; therefore, leaving the viewfinder on the camera in direct sunlight may cause damage to the LCD.
close In the Box Cavision MH3Q-RSD-U Universal Shoulder Pad Package for DSLR MHE3-6X LCD Viewfinder for DSLR MHE52C-SA-U Quick Release Swing Connection Piece and Vertically Adjustable Rods Connection Bracket RQ1580R Reversed Version Quick Release Plate, Riser & Bracket fwwudybuzqcwscfxettuyycwcvu RS15SP-2 Shoulder Pad Dual Handgrips for 15mm Rods Limited 3-Month Warranty for Commercial, Rental, Business, or Industrial Purposes Limited 6-Month Warranty for Personal Use Table of Contents
|
Upload User Manual
Have you got an user manual for the Cavision MH3Q-RSD-U Universal Shoulder Pad Package for DSLR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCavision MH3Q-RSD-U Specs | | | Elements | MHE3-6X LCD Viewfinder for DSLR
Number of Lens Elements: 1 | | Lens | Magnification: 6x | | Lens Material | Glass | | Material | Eye-Cup: Rubber | | Adapter | For Use On: 3.0" (76.2 mm) LCD's | | Outer Diameter | Eye-Cup: 2.4" (63.0 mm)
Lens: 2.0" (52.0 mm) | | Dimensions (W x H) | Inside Front: 2.6 x 1.7" (68.0 x 45.0 mm) | | Outside Dimensions | W x H x L: 2.9 x 1.9 x 4.0" (74.0 x 50.0 x 104.0 mm) | | Weight | 2.6 oz (75.0 g) |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 68 owners. Add your rating and experience with the product.
