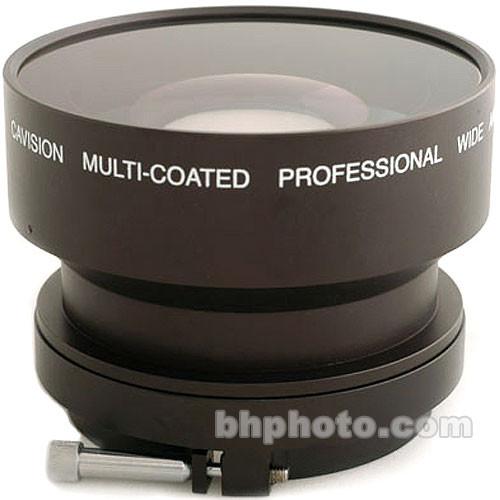

User Manual for Cavision PWC06X72C 0.6x Industrial Wide Angle Converter - for Lenses with a 75mm Outside Diameter Click to enlarge the picture
Contents of the user manual for the Cavision PWC06X72C 0.6x Industrial Wide Angle
- Product category: Lens Attachments & Converters Cavision
- Brand: Cavision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cavision Lens Attachments & Converters
|
User manual for the Cavision PWC06X72C 0.6x Industrial Wide Angle contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cavision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cavision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cavision product will considerably shorten its lifespan!
|
Product description The Cavision PWC06X72C is a 0.6x Wide Angle Converter Lens. It is an industrial class adapter lens for cameras with a 75mm outside diameter on their existing lens. The wide angle coefficient is 0.6x which delivers a 40% wider angle and offers full zoom through capability.
The lens supports cameras with 1/3", 1/2" and 2/3" image sensors, and may be used with lenses designed for interchangeable lens cameras that are 5.5mm and longer. The lens also provides zoom through capability from approximately 7 to 120mm on zoom lenses for the supported frame format. - Application
- This adapter provides a 40% wider angle of view for small areas and wide vistas.
- Compatibility
- Fits directly onto any lens with a 75mm outside diameter. Ideal for 1/2" broadcast lenses with 75mm front outside diameter
- Zoom Through
- A large zoom through range allows operation with lenses like the 14x lens used with the Canon XL-2.
In the Box Cavision PWC06X72C 0.6x Industrial Wide Angle Converter - for Lenses with a 75mm Outside Diameter 6 Month Personal or 3 Month Commercial Use Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cavision PWC06X72C 0.6x Industrial Wide Angle Converter - for Lenses with a 75mm Outside Diameter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCavision PWC06X72C Specs | Type | Wide angle converter lens | | Application | wide angle situations for lenses with a 75mm outside diameter | | Format | 1/2 or 1/3" chips
16:9 and 4:3 | | Lens Mount | 75mm Clamp-on mount | | Zoom Through | Yes, Zoom-through range: ~ 7mm to 120mm focal lengths | | Magnification | 0.6x | | Converted Focal Length | Not applicable, depends on camera lens | | Minimum Object Distance (M.O.D.) | 20.0" (0.5 m) | | Filter Size | None | | Dimensions (LxDiameter) | 3.9 x 0.9"
98 x 25mm | | Weight | 1.0 lbs
471 grams |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 69 owners. Add your rating and experience with the product.
