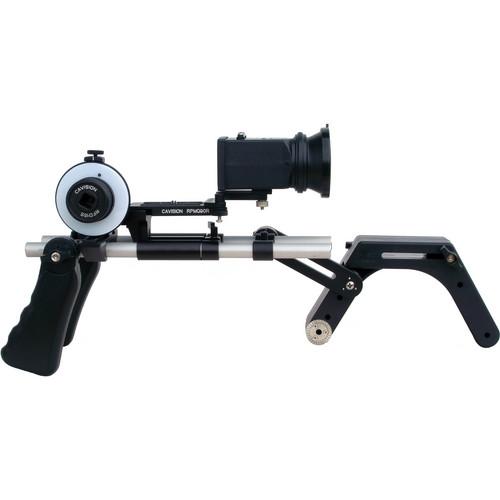

User Manual for Cavision Shoulder Pad Package w Follow Focus & Viewfinder for DSLR Cameras Click to enlarge the picture
Contents of the user manual for the Cavision Shoulder Pad Package w Follow
- Product category: DSLR Video Supports & Rigs Cavision
- Brand: Cavision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cavision DSLR Video Supports & Rigs
|
User manual for the Cavision Shoulder Pad Package w Follow contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cavision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cavision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cavision product will considerably shorten its lifespan!
|
Product description The Cavision Standard Shoulder Pad Package w/ Viewfinder allows you to use your Canon 5D Mk II or other video-enabled DSLR in a manner that approximates the shoulder-mounted style of traditional videography. Shoulder-mounted operation will increase your endurance and reduces the jitter of your shooting, for smooth operation over long days on set or on location. The addition of the viewfinder allows finer control over critical focus and scene framing. The aluminum follow focus device puts smooth control over your lens's focus ring in a position that's much easier to access than the lens barrel itself. The included Cavision MHE52 Viewfinder magnifies the LCD image by 6x, employing a single glass element and a comfortable rubber eyecup. The eyepiece is a similar size to those found on high-end digital-cinema cameras such as the Sony F900. The combination of the quick-release plate and the swing-away viewfinder connector piece allows you to remove the camera from the rig easily, enabling a quick switch from shoulder-mounted to handheld shooting. Two pistol-style handgrips attach to the front of the 12 in (30 cm) standard 15mm rods. Four included spacers allow you to adjust the height of the MHE52 Viewfinder to fit almost any DSLR camera. The Standard Shoulder Pad Package puts your camera on rods, it's easy to expand the system if you want to add, for instance, a zoom-control device or a matte box. Note: Height alignment of LCD Viewfinder is intended for Canon 5D MII. May not align properly with other cameras. (Can also be used on Canon 7D or Canon T2i / 550D with swing away piece flipped upside down). - Shoulder pad is adjustable to fit different shoulder sizes, and features two tilt adjustments
- Both handgrips offer swivel adjustment
- Swing-away piece features horizontal and forward/backward adjustment, as well as swing-away function for easy access to buttons and camera viewfinder
- Follow Focus Device
- Constructed of aluminum, the basic single-wheel follow focus features entirely geared transmission for smooth control over the focus ring with minimal backlash. With a horizontal adjustment, it accommodates different lens types and sizes. The follow focus includes Fujinon gear type.
Note:For the follow focus, additional gears and gear rings are required depending on the lens you use. In the Box Cavision Shoulder Pad Package w/ Follow Focus & Viewfinder for DSLR Cameras MHE52 Monitor Hood/Viewfinder dexdtsabeaydrccb MHE52C-SA-R Quick-Release Swing Connection Piece w/ Rods Connection Bracket RFD15BF Basic Mini Single Wheel Follow Focus for Fujinon Lens MHE52-R3 Rubber Adapter for 3" LCD 2 x 12 in (30 cm) 15mm Mini-DV rods Quick-Release Camera Plate/Bracket RS15SP-2 Shoulder Pad Dual Handgrips for 15mm Rods 4 x Spacers 3 Month Warranty for Professional/Industrial/Rental Use or 6 Month Warranty for Personal Use Table of Contents
|
Upload User Manual
Have you got an user manual for the Cavision Shoulder Pad Package w Follow Focus & Viewfinder for DSLR Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCavision MH3Q-RSD-F Specs | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Package Weight | 5.0 lb | | Box Dimensions (LxWxH) | 12.3 x 9.4 x 6.7" |
Rating86% users recommend this product to others. And what about you?
This product has already been rated by 18 owners. Add your rating and experience with the product.
