User Manual for Cavision Shoulder Pad Package with Viewfinder and Follow Focus for Canon EOS 5D Mark III Click to enlarge the picture
Contents of the user manual for the Cavision Shoulder Pad Package with Viewfinder
- Product category: DSLR Video Supports & Rigs Cavision
- Brand: Cavision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cavision DSLR Video Supports & Rigs
|
User manual for the Cavision Shoulder Pad Package with Viewfinder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cavision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cavision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cavision product will considerably shorten its lifespan!
|

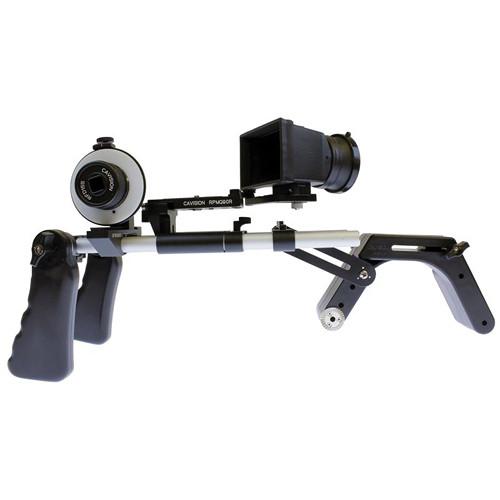

Product description Make your Canon EOS 5D Mark III much easier to work with for handheld shooting with this Shoulder Pad Package with Viewfinder and Follow Focus from Cavision. This setup is built around a rod support base with 11.8" long 15mm aluminum rods that hold everything in place. At the center of it all is a quick release base that holds the camera along with a 6x LCD viewfinder with a swing-out connection piece. Also, a basic mini follow focus is included for making smooth adjustments during a shoot. Additionally, it features both dual hand grips and a shoulder pad for maximum comfort and ergonomics. - LCD Viewfinder Set for Canon 5D Mark III This Cavision LCD Viewfinder Set provides 6x magnification for your Canon 5D Mark III DSLR camera's 3.2" LCD screen. It includes a specially-designed plate connection piece to ensure compatibility with this camera. This type of viewfinder is generally used in video applications and will also act as a shade in bright daylight while shooting stills. Additionally, the rubber eye cup provides comfortable viewing.
The swing away function allows it to quickly be moved away from the display when needed. Also, the base plate features a screw for mounting to the camera's 1/4"-20 tripod socket and a 1/4"-20 thread for use with a tripod. - Rods Support for Mini-DV or DSLR Camera with Quick Release Button The Cavision Rods Support is suitable for use with small cameras with short lenses such as mini-DV, 5DMII, or other DSLR cameras. It features a height adjustable front bracket for connecting a matte box.
- Height adjustable front Bracket for connecting a matte box
- Balance bracket (with tripod connection thread at the bottom) and heavy duty riser
- Quick release plate with quick release button and a locating pin for enhanced stability
- Ideal ideal for small cameras with short lenses (such as mini-DV, 5DMII, or other DSLR cameras)
- Plate quick release function
- RS15SP-2 Shoulder Pad The Cavision RS15SP-2 is a shoulder pad accessory for 15mm rod support systems. This device connects to the lightweight support system and offers a shoulder support for camera stability.
- Convenience
-
- Adjustable to fit different shoulder widths
- Includes two tilt controls
- Constructed primarily out of ABS material to reduce weight
- Compatibility
- The Universal design allows this device to work with most handheld sized camcorders.
- Dual Handgrips for 15mm Rods The Cavision Dual Handgrips for 15mm Rods is great for use with hand held shots as camera stability and smooth movement is enhanced.
- Both handgrips offer swivel adjustment
- Compatible with 15mm diameter rods (60mm r.c. to r.c. spacing)
- Ideal for use in conjunction with a shoulder pad system
- RFD15BC Basic Mini Single Wheel Follow Focus for Canon Lens The Cavision RFD15BC is a Basic Mini Single Wheel Follow Focus mechanism for your mini-DV / prosumer camera. It provides you with a convenient, quick and precise method for controlling the focus on your camera using a knob on the side of the camera without the need to constantly reach over to the front of the lens. Follow focus systems have become a staple of professional photographers and videographers needing to frequently adjust a camera's focus according to changing scenes; hence the name "follow" focus. Note: Rods support not included
- Optional Dual Focus/Zoom Control
- You can mount two RD15Bs on the same rods support, and then use one for focus control and the other to control zoom.
- Removable Marking Plate (Spring Loaded)
- A removable marking plate will allow you to mark focus points during rehearsal and then use those points as guides during the actual shoot.
- Compact & Lightweight
- Like your camcorder, the RFD15BC is designed to be compact and lightweight for easy transport and storage.
In the Box Bundle Items LCD Viewfinder Set for Canon 5D Mark III bzxxszyxvdcrbwvbfyfbqztfweuvvba - MHE52 Monitor Hood/Viewfinder
- Plate Connection Piece for 5D Mark III
- Limited 6-Month Personal Warranty
- Limited 3-Month Commercial Warranty
Rods Support for Mini-DV or DSLR Camera with Quick Release Button - Limited 3-Month Warranty for Commercial, Rental, Business, or Industrial Use
- Limited 6-Month Warranty for Personal Use
RS15SP-2 Shoulder Pad Dual Handgrips for 15mm Rods RFD15BC Basic Mini Single Wheel Follow Focus for Canon Lens
Also Includes - Limited 3-Month Warranty for Commercial, Rental, Business, or Industrial Use
- Limited 6-Month Warranty for Personal Use
Table of Contents
|
Upload User Manual
Have you got an user manual for the Cavision Shoulder Pad Package with Viewfinder and Follow Focus for Canon EOS 5D Mark III in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - LCD Viewfinder Set for Canon 5D Mark III
| Compatibility | 5D Mark III | | Magnification | 6x | | Materials | Lens: Glass
Eye Cup: Rubber | | Thread Size | 1/4"-20 Screw
1/4"-20 Thread | | Dimensions | Lens Outside Diameter: 2.05" (5.2 mm)
Eye Cup Outside Diameter: 2.50" (6.3 mm)
Inside Front Dimensions: 2.8 x 1.9" (7.2 x 4.8 mm)
Outside Dimensions: 3.1 x 2.1 x 4.1" (7.8 x 5.4 x 10.4 mm) | | Weight | 2.6 oz (75 g) | | | | Box Dimensions (LxWxH) | 6.4 x 6.3 x 4.7" | - Rods Support for Mini-DV or DSLR Camera with Quick Release Button
| Rod Spacing | 60 mm (r.c. to r.c.) | | Rod Material | Carbon fiber | | Height Adjustment | Front Bracket: 25 mm | | Adjustable Length | Back and Forwards: 200 mm | | Fits Devices | Most centered mini-DV / HDV / DSLR cameras | | Mounting Hole | 1/4" & 3/8" thread | | Fits On | Consumer, Miller, Cartoni, Vinten, and Sachtler ENG tripod heads | | Material | Aluminum | | Rod Diameter | 15 mm | | Rod Length | Rail: 10" (250 mm) | | Thickness | 1.8 mm | | | | Box Dimensions (LxWxH) | 10.2 x 3.75 x 3.45" | - RS15SP-2 Shoulder Pad
| Connectivity | Attaches to 15mm Rod System via 60mm Spacer | | | | Box Dimensions (LxWxH) | 9.0 x 6.3 x 4.8" | - Dual Handgrips for 15mm Rods
| | | Box Dimensions (LxWxH) | 8.2 x 5.7 x 2.4" | - RFD15BC Basic Mini Single Wheel Follow Focus for Canon Lens
| Construction | Aluminum | | Adjustments | Gear Position Adjustment: horizontal slide
Dial Index Adjustment: 360°
Dial Outside Diameter: 60mm
Fit Rail Diameter: 15mm
Fit Rail Distance (center to center): 60mm | | Weight | 11.9 oz (338g) | | | | Box Dimensions (LxWxH) | 5.4 x 4.9 x 3.3" |
