User Manual for Celestron 10x42 Outland X Binocular Click to enlarge the picture
Contents of the user manual for the Celestron 10x42 Outland X Binocular
- Product category: Binoculars Celestron
- Brand: Celestron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Celestron Binoculars
 |
User manual for the Celestron 10x42 Outland X Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Celestron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Celestron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Celestron product will considerably shorten its lifespan!
|

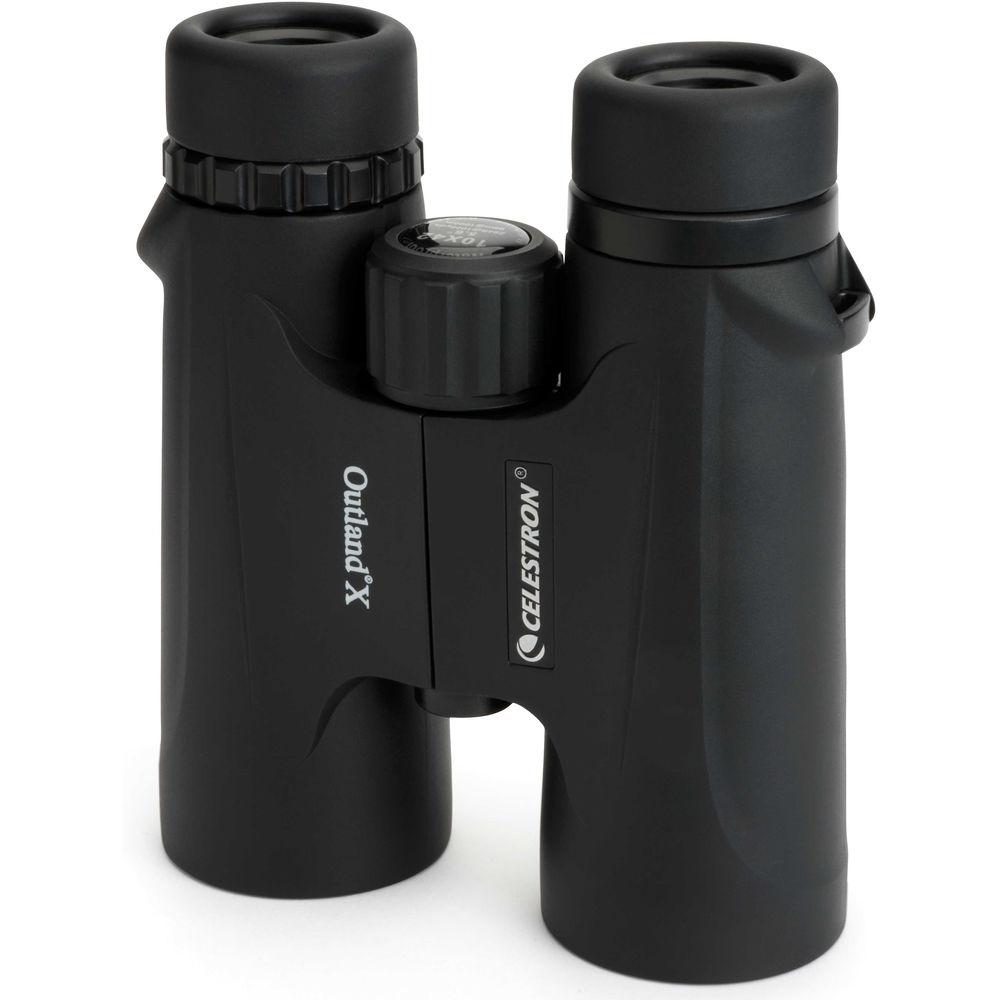

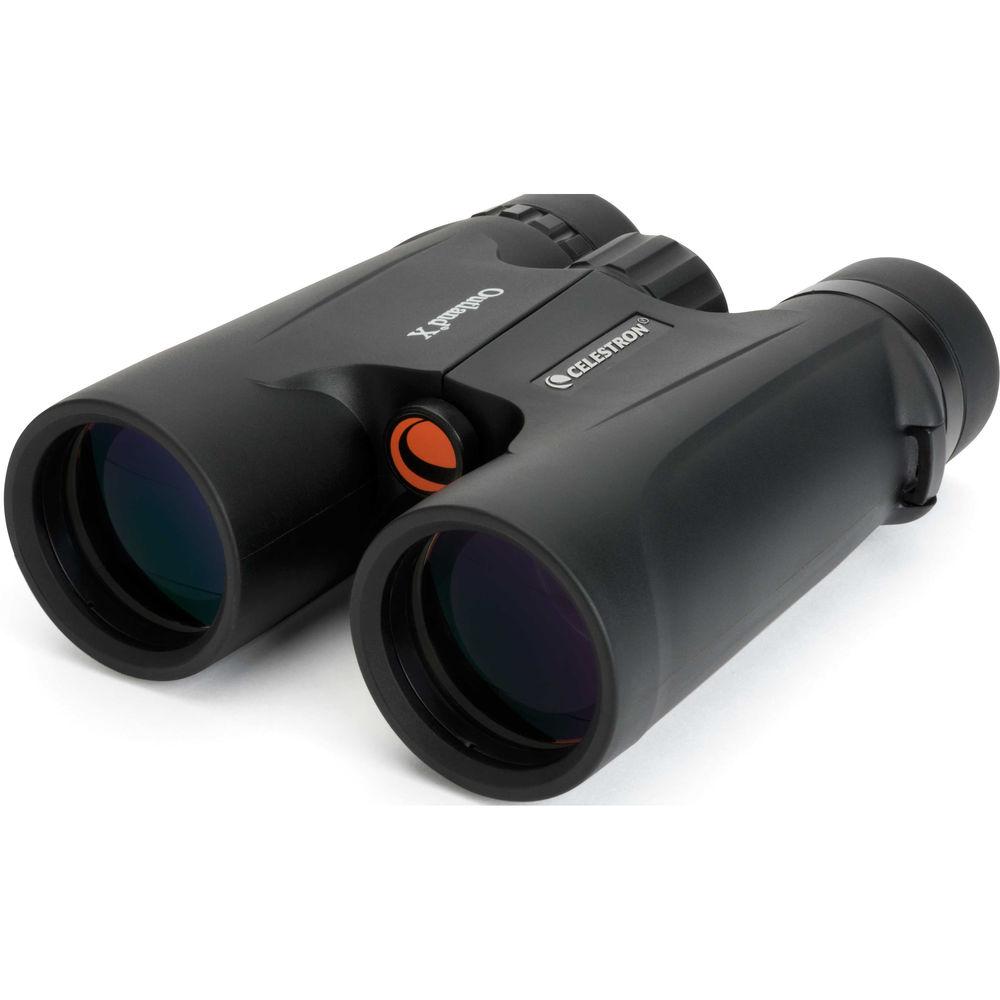

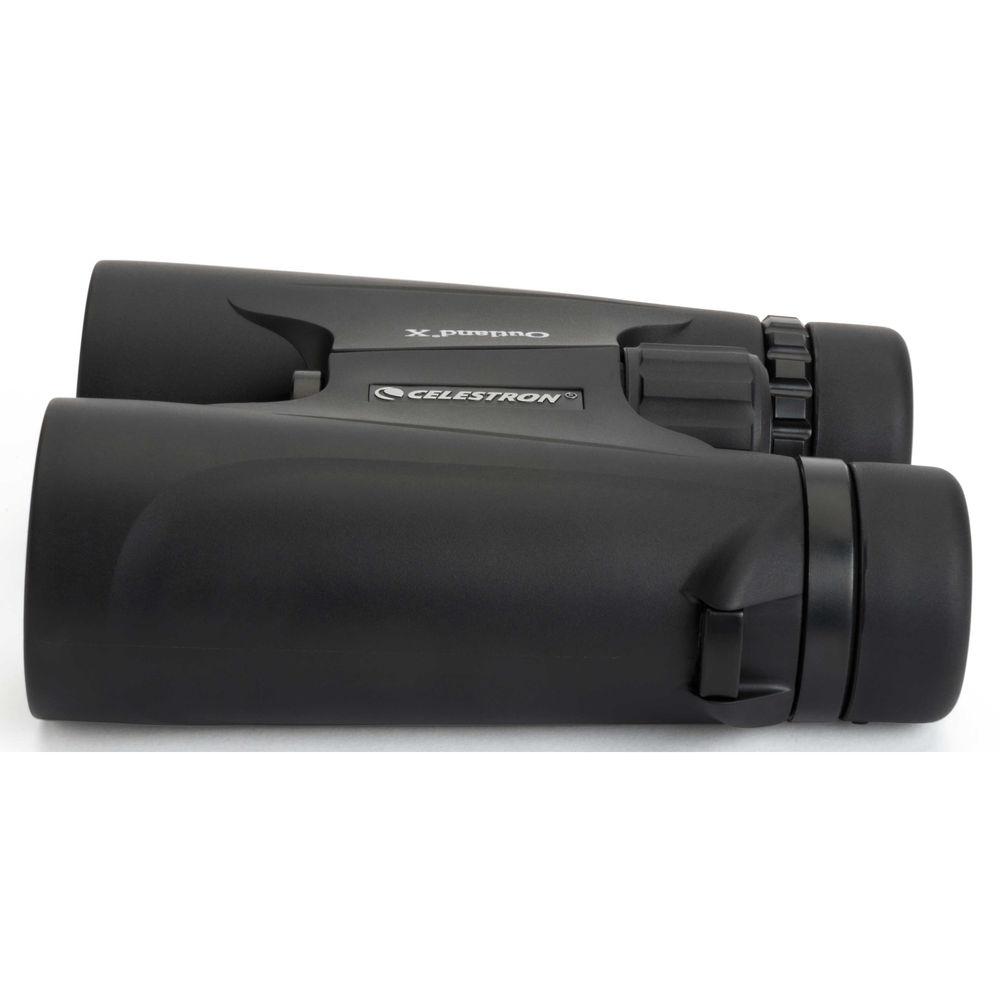

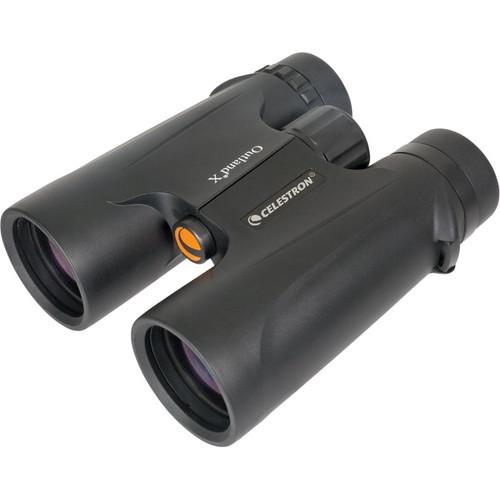

Product description The B&H Binocular Buying Guide Read More The black 10x42 Outland X Binocular from Celestron features multicoated optics, BAK4 Roof Prisms, a wide angle of view, and weather-proof construction with rubber armoring. While the multicoated lenses increase transmission and image brightness, the Roof Prisms made of BAK4 optical glass preserve true colors. The wide 5.6° angular field of view allows you to see a linear field of 293' at a distance of 1000 yards, and the center focus with a diopter allow seeing crisp details as close as 14.8'. The binocular also has a 56-74 mm interpupillary adjustment range, a 4.2 mm exit pupil and 14 mm eye relief.

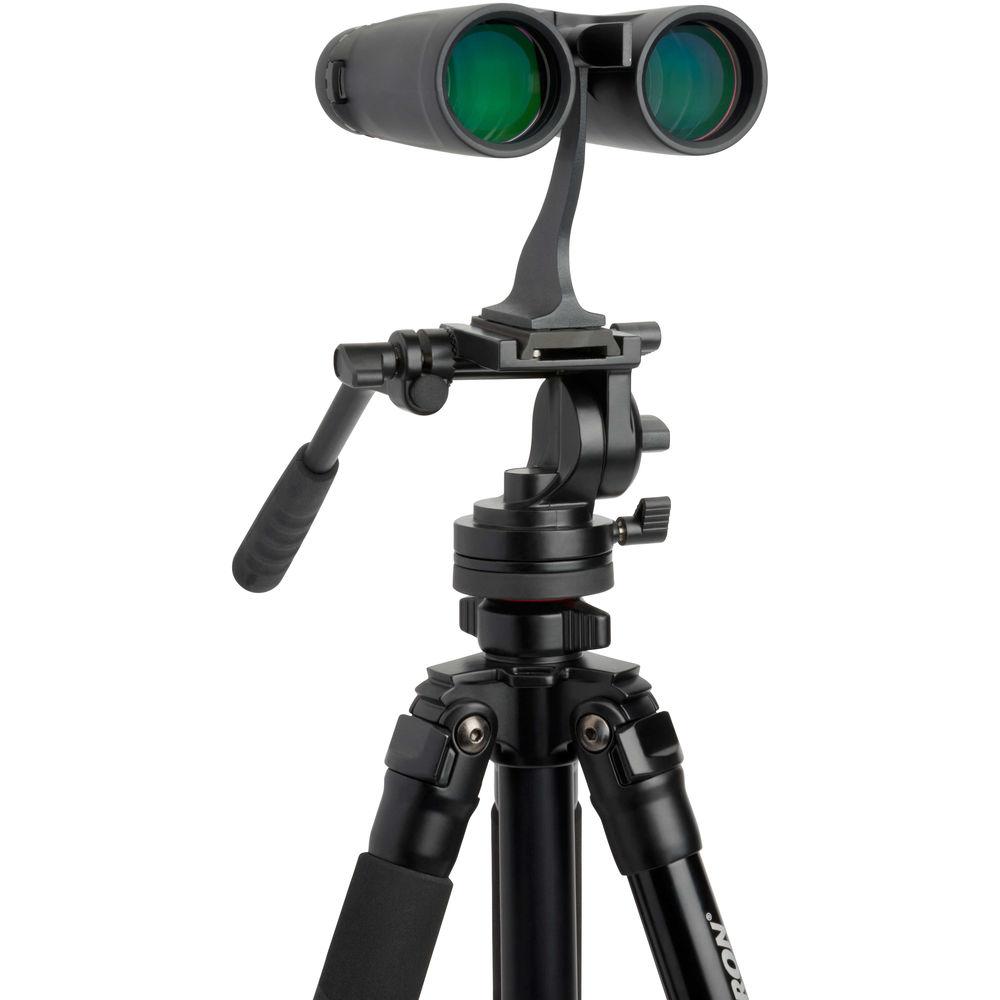

In addition to optical performance features, the Outlander X presents a number of convenience and construction highlights. The binocular housing is nitrogen-purged water and fogproof, with a smooth black rubberized armoring to ensure a non-slip grip. For easy focusing, there is a large knurled center focus knob and a ribbed diopter ring on the right eyepiece. To accommodate anyone with glasses, the eyepieces have twist-up eyecups. If you want to attach the binocular to a tripod, use the threaded hole under the front center cup with an optional adapter.

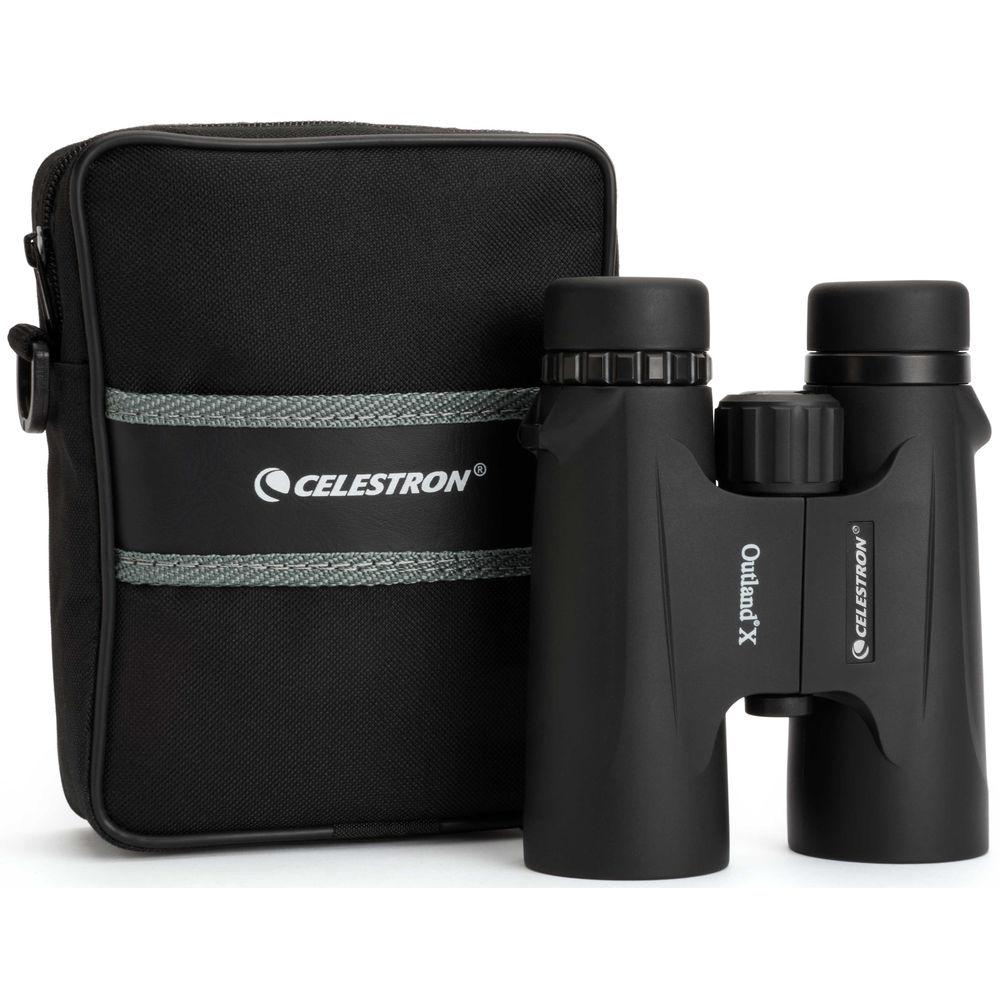

Also included with the binocular are a soft neoprene carry pouch, a strap, and protective objective lens cups. Optical Performance -
- 42mm objective diameter
- Multicoated elements improve image brightness
- BAK4 Roof Prisms preserve true color
- Wide angle viewing: 5.6°
Use and Handling -
- Center focusing adjustment
- Diopter adjustment: ±4
- Interpupillary range: 56 - 74 mm
- Eye relief: 14 mm
Construction -
- Nitrogen-purged water and fogproof
- Smooth rubberized armoring provides sure grip
- Tripod adaptable with an optional tripod mount

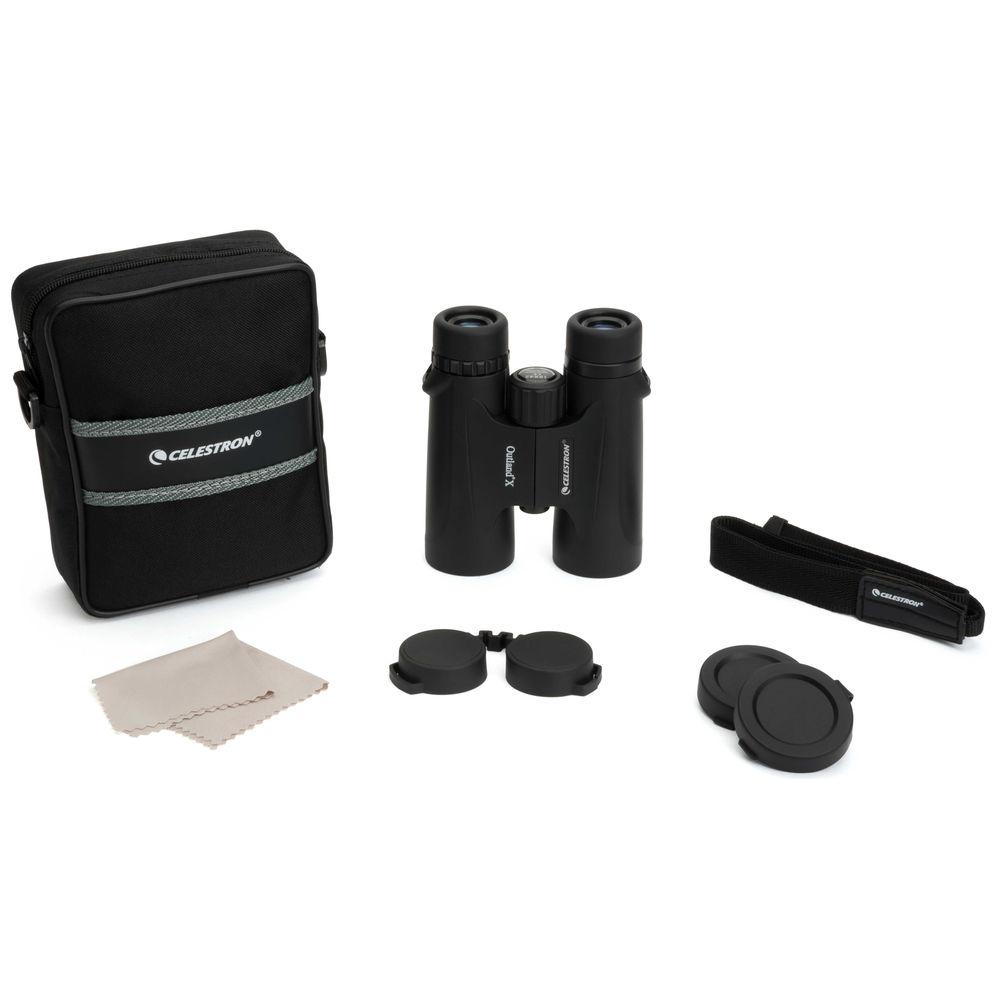

UPC: 050234713474 In the Box Celestron 10x42 Outland X Binocular (Black) - Strap
- 2 x Objective Lens Cups
- Soft Neoprene Carrying Case
- Limited Lifetime Warranty
Summer Binocular Buying Guide Christopher Witt 07/14/2016 xbryvedbsufwstqqvtyvebybfuzxuwxfzccx A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 User Manual PDF 744.9kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Celestron 10x42 Outland X Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCelestron 71347 Specs | Prism Type | Roof | | Magnification | 10 x | | Objective Lens Diameter | 42 mm | | Angle of View | 5.6° (actual) | | Field of View | 294.0' @ 1000 yd / 98.0 m @ 1000 m | | Minimum Focus Distance | 14.8' / 4.5 m | | Exit Pupil Diameter | 4.2 mm | | Eye Relief | 14 mm | | Interpupillary Adjustment | 8.7 to 11.5 mm / 22 to 29.1" | | Dioptric Correction | ±4 | | Focus Type | Center | | Tripod Mount | Yes | | Dimensions | 5.8 x 5.0 x 2.1" / 147.3 x 127.0 x 53.3 mm | | Weight | 22.00 oz / 623.70 g | | | | Package Weight | 2.06 lb | | Box Dimensions (LxWxH) | 7.3 x 6.4 x 3.1" |
