Product description

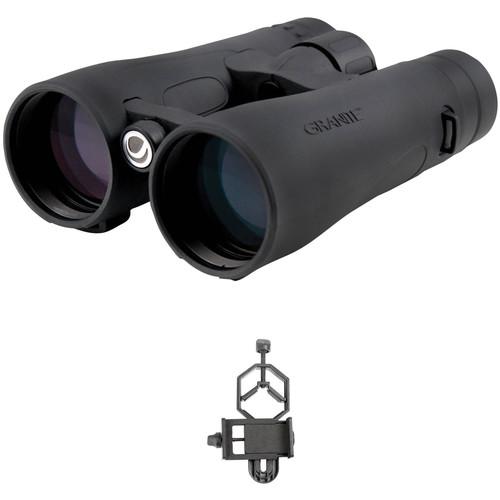

• Celestron 10x50 Granite Binoculars
  • Granite ED Binoculars Tour
  The 10x50 Granite Binoculars from Celestron are full-feature binoculars with optical offerings usually found only in very high-end optics. Extra low-dispersion (ED) glass creates edge-to-edge sharpness with near-exact color fidelity and virtually no curvature or image distortion. Full broadband multi-coatings allow for maximum light transmission and vivid color saturation. The BAK-4 prisms have dielectric high-reflectivity coatings, contributing to the brightest possible images, while phase coatings correct out-of-phase light for the highest possible contrast.The stylishly modern, open frame hinge design is comfortable to hold and adds to the light weight. Nitrogen purged, this Granite scope is fogproof and waterproof. A rubber-covered magnesium body protects the optical investment. The focus knob, diopter ring, and twist-up eyecups are all made of metal, ensuring rugged longevity. To add some glaze to this already frosted cake, they are lead- and arsenic-free, making them eco friendly.
  Optical Performance
  • • 10x magnification allows for detailed observations of distant subjects
    • Large 50mm objective lenses improve light-gathering ability to ensure bright and clear images, even in challenging light such as during the predawn and late evening hours
    • Compact roof prisms maintain a slim form factor for easier handling
    • BAK4 prism glass delivers a round exit pupil and a crisp and clear image with limited edge distortion
    • Extra low-dispersion glass reduces chromatic and spherical aberrations for increased contrast, improved color rendition, and sharpness without distortion across the entire field of view
    • Phase-corrected prism coatings reduce internal interference to improve light transmission, contrast, and resolution
    • Broadband anti-reflection fully multi-coated optics maximize light transmission across the entire visible spectrum for accurate color rendition and improved contrast and clarity
    • Highly reflective dielectric prism coatings boost internal reflection to >99% to maintain image brightness and improve contrast and clarity
    • Wide 65° apparent angle of view minimizes the appearance of distracting hand shake while presenting a spacious field of view
    • 342-foot field of view at 1000 yards
  Use and Handling
  • • Open-bridge/dual-hinge configuration reduces weight without sacrificing strength or stability
    • Large slip-resistant center focusing wheel is easy to manipulate, even while wearing gloves
    • Right-eye dioptric correction allows users to compensate for optical prescription
    • Broad 56-73mm interpupillary distance adjustment range enables easy use by a wide variety of people
    • Twist-up rubber eyecups for comfortable use with or without eyewear
    • Tripod mountable with optional adapter for hands-free use to eliminate vibrations and arm fatigue
    • Long 17mm eye relief improves viewing comfort and reduces eye strain
    • Comfortable 5mm exit pupil will cover pupils as they open and dilate in low light to keep the entire scene in view at all times
  Construction Details
  • • Bridge design provides more surface area for hands to improve grip security
    • Eco-friendly glass is made without lead or arsenic
    • Lightweight and durable magnesium alloy chassis
    • Nitrogen-filled and O-ring sealed to be waterproof and resistant to internal fogging in all weather conditions
    • Slip-resistant rubber armoring protects against bumps and impacts while providing a sure grip
    • One-piece tethered ocular rainguard protects eyecups from water pooling in them from rain or spraying water when hanging from the neck
    • Tethered fold-down objective lens caps prevent losing them during observation sessions
    • Harness strap included to reduce neck fatigue by distributing the weight to the shoulders, while keeping the binoculars close at hand
    • Weight: 30 ounces
  UPC: 050234713740
• Celestron Basic Smartphone Digiscoping Adapter (1.25")
  • Granite ED Binoculars Tour
  Capture still images and videos of celestial and terrestrial objects with virtually any smartphone through almost any 1.25" eyepiece with Celestron's Basic Smartphone Digiscoping Adapter. Ideal for telescopes, binoculars, spotting scopes, monoculars, microscopes, and any other type of optic with an eyepieces, the design allows it to be used on most oculars with outside diameters between 29mm (1.14") and 45mm (1.77"). The rigid frame is made of sturdy and lightweight aluminum with non-slip padding on clamping points to secure it to your eyepiece and mount your smartphone without marking or marring its surfaces. A clamping system holds the adapter securely on the eyepiece and locks in place, while an adjustment system allows for precise phone camera alignment. UPC: 050234810357

• 10x50 Granite Binoculars ufqyufbrrasrbwxat
• Lens Cloth
• Neck Strap
• Harness Strap
• Carrying Case
• One-Piece Ocular Rainguard
• 2 x Objective Lens Cap
• Limited Lifetime Warranty

• Basic Smartphone Digiscoping Adapter (1.25")

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Celestron 10x50 Granite Binoculars

  Prism Type	Roof
  Magnification	10 x
  Objective Lens Diameter	50 mm
  Angle of View	6.5° (Actual)
  Field of View	342.0' @ 1000 yd / 113.5 m @ 1000 m
  Minimum Focus Distance	9.8' / 3 m
  Exit Pupil Diameter	5 mm
  Eye Relief	17 mm
  Interpupillary Adjustment	56 to 73 mm / 2.2 to 2.9"
  Focus Type	Center
  Tripod Mount	Yes (Adapter Optional)
  Dimensions	6.6 x 5.2 x 2.4" / 16.8 x 13.2 x 6.1 cm
  Weight	28.3 oz / 802.3 g

  Box Dimensions (LxWxH)	9.0 x 8.2 x 3.65"

• Celestron Basic Smartphone Digiscoping Adapter (1.25")

  Material of Construction	Aluminum Alloy
  Dimensions	7.0 x 4.0 x 1.5" / 177.8 x 101.6 x 38.1 mm
  Weight	6.0 oz / 170.7 g

  Box Dimensions (LxWxH)	6.45 x 3.3 x 1.55"
