User Manual for Celestron 10x50 Granite Binoculars Click to enlarge the picture
Contents of the user manual for the Celestron 10x50 Granite Binoculars
- Product category: Binoculars Celestron
- Brand: Celestron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Celestron Binoculars
 |
User manual for the Celestron 10x50 Granite Binoculars contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Celestron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Celestron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Celestron product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More - Granite ED Binoculars Tour

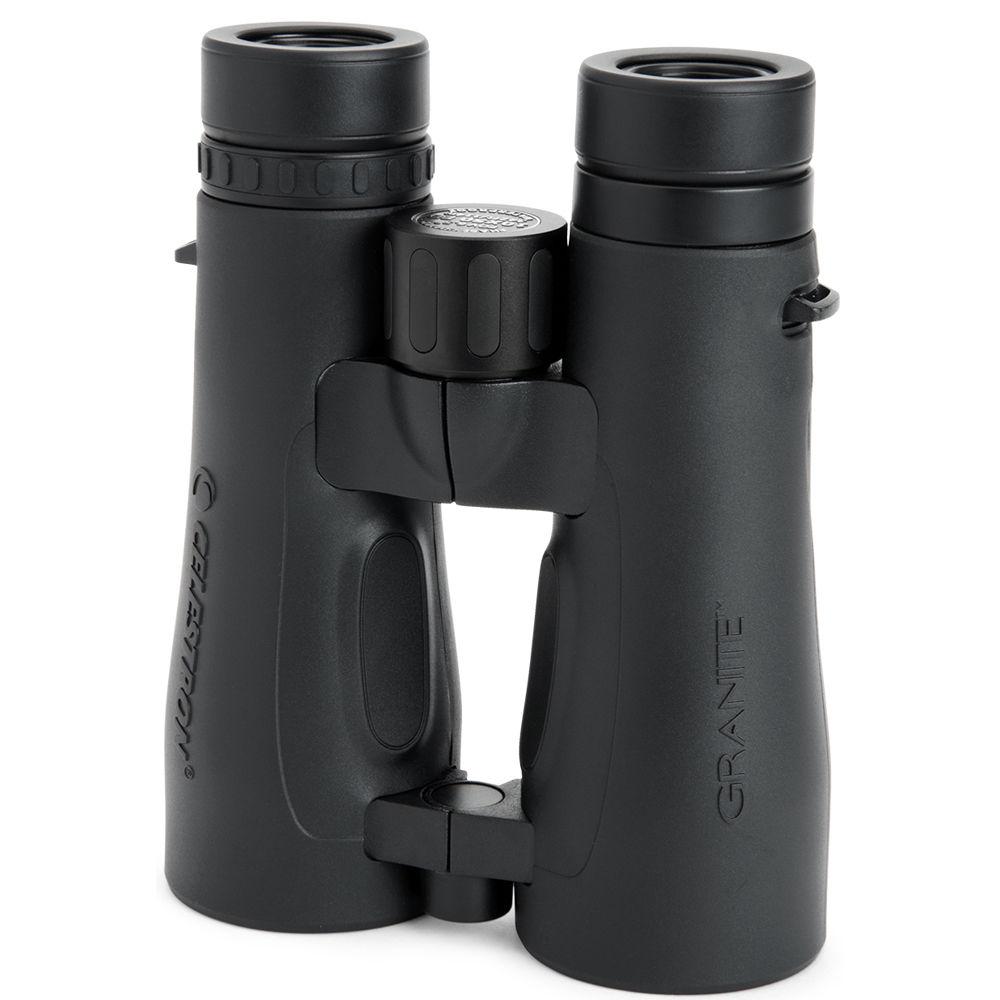

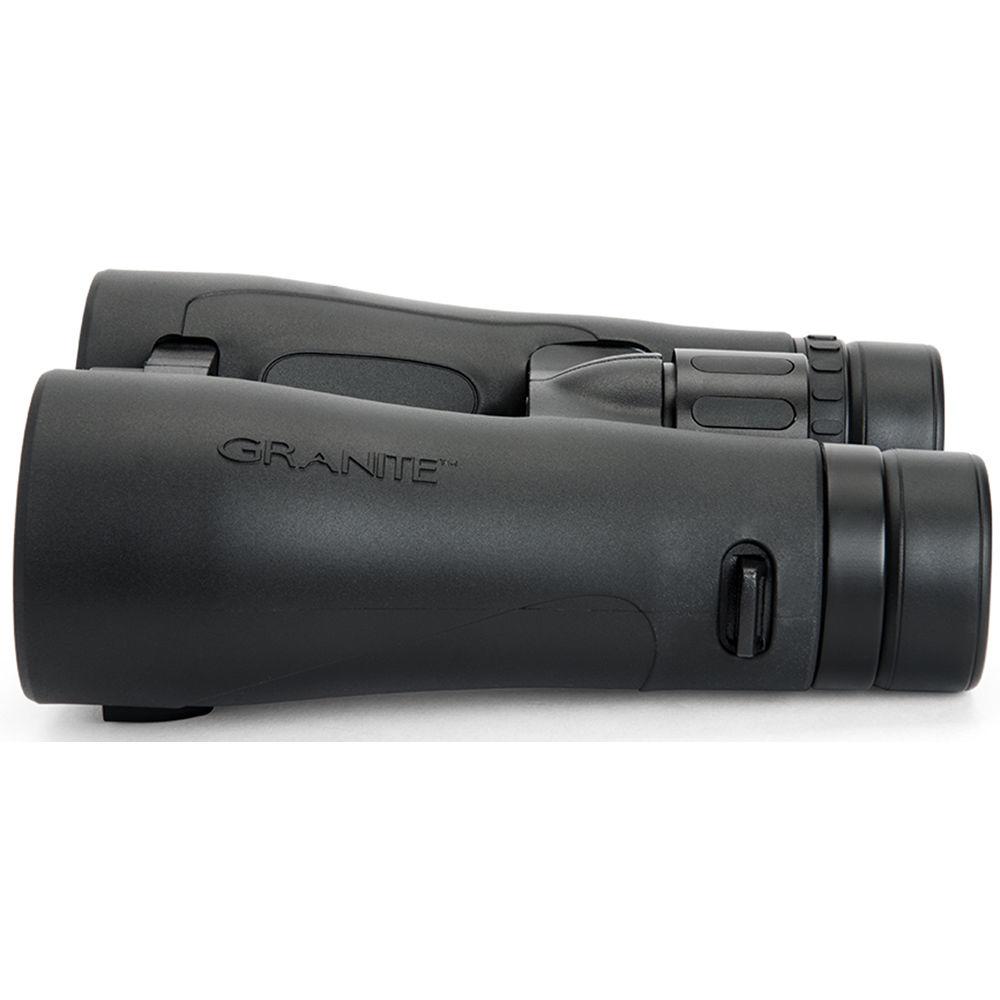

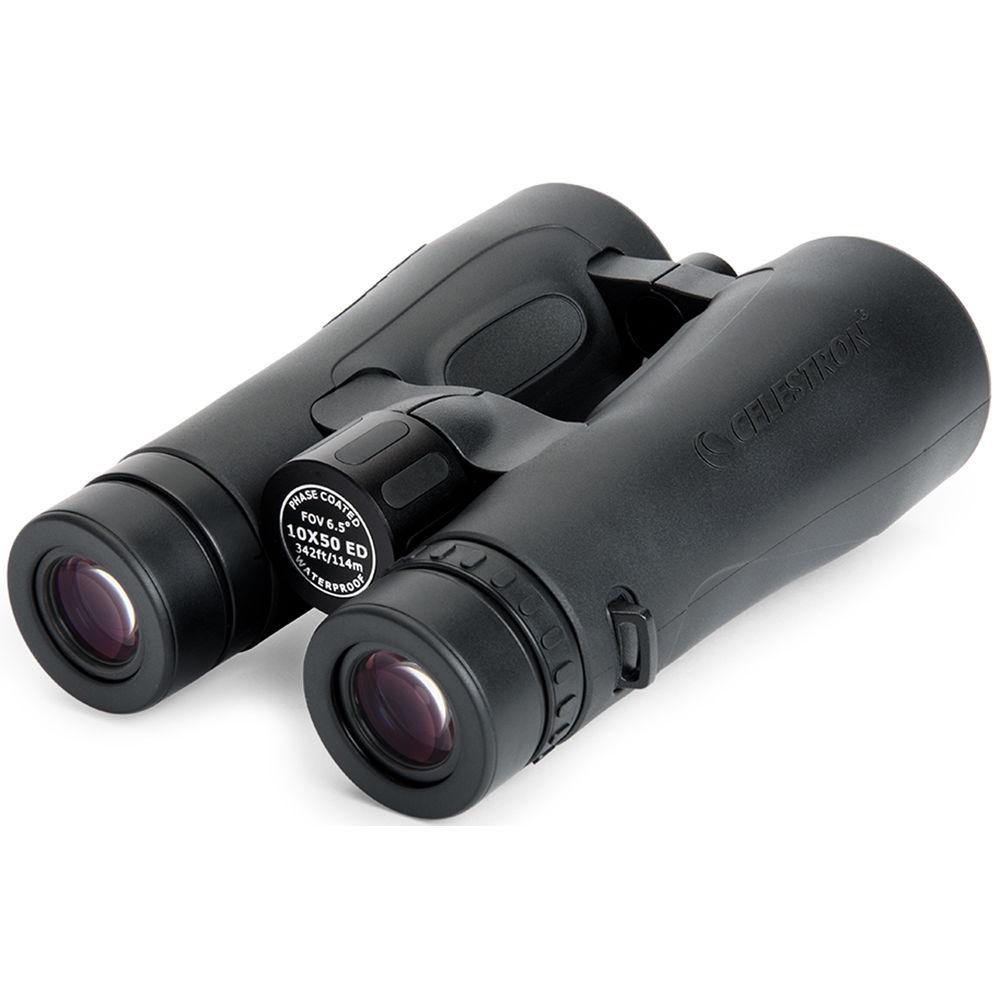

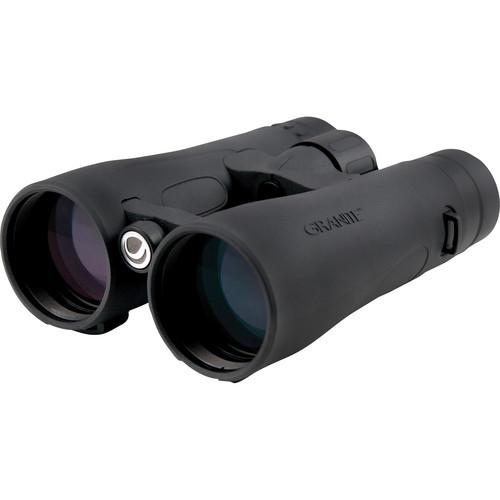

The 10x50 Granite Binoculars from Celestron are full-feature binoculars with optical offerings usually found only in very high-end optics. Extra low-dispersion (ED) glass creates edge-to-edge sharpness with near-exact color fidelity and virtually no curvature or image distortion. Full broadband multi-coatings allow for maximum light transmission and vivid color saturation. The BAK-4 prisms have dielectric high-reflectivity coatings, contributing to the brightest possible images, while phase coatings correct out-of-phase light for the highest possible contrast.The stylishly modern, open frame hinge design is comfortable to hold and adds to the light weight. Nitrogen purged, this Granite scope is fogproof and waterproof. A rubber-covered magnesium body protects the optical investment. The focus knob, diopter ring, and twist-up eyecups are all made of metal, ensuring rugged longevity. To add some glaze to this already frosted cake, they are lead- and arsenic-free, making them eco friendly. - Optical Performance
-
- 10x magnification allows for detailed observations of distant subjects
- Large 50mm objective lenses improve light-gathering ability to ensure bright and clear images, even in challenging light such as during the predawn and late evening hours
- Compact roof prisms maintain a slim form factor for easier handling
- BAK4 prism glass delivers a round exit pupil and a crisp and clear image with limited edge distortion
- Extra low-dispersion glass reduces chromatic and spherical aberrations for increased contrast, improved color rendition, and sharpness without distortion across the entire field of view
- Phase-corrected prism coatings reduce internal interference to improve light transmission, contrast, and resolution
- Broadband anti-reflection fully multi-coated optics maximize light transmission across the entire visible spectrum for accurate color rendition and improved contrast and clarity
- Highly reflective dielectric prism coatings boost internal reflection to >99% to maintain image brightness and improve contrast and clarity
- Wide 65° apparent angle of view minimizes the appearance of distracting hand shake while presenting a spacious field of view
- 342-foot field of view at 1000 yards
- Use and Handling
-
- Open-bridge/dual-hinge configuration reduces weight without sacrificing strength or stability
- Large slip-resistant center focusing wheel is easy to manipulate, even while wearing gloves
- Right-eye dioptric correction allows users to compensate for optical prescription
- Broad 56-73mm interpupillary distance adjustment range enables easy use by a wide variety of people
- Twist-up rubber eyecups for comfortable use with or without eyewear

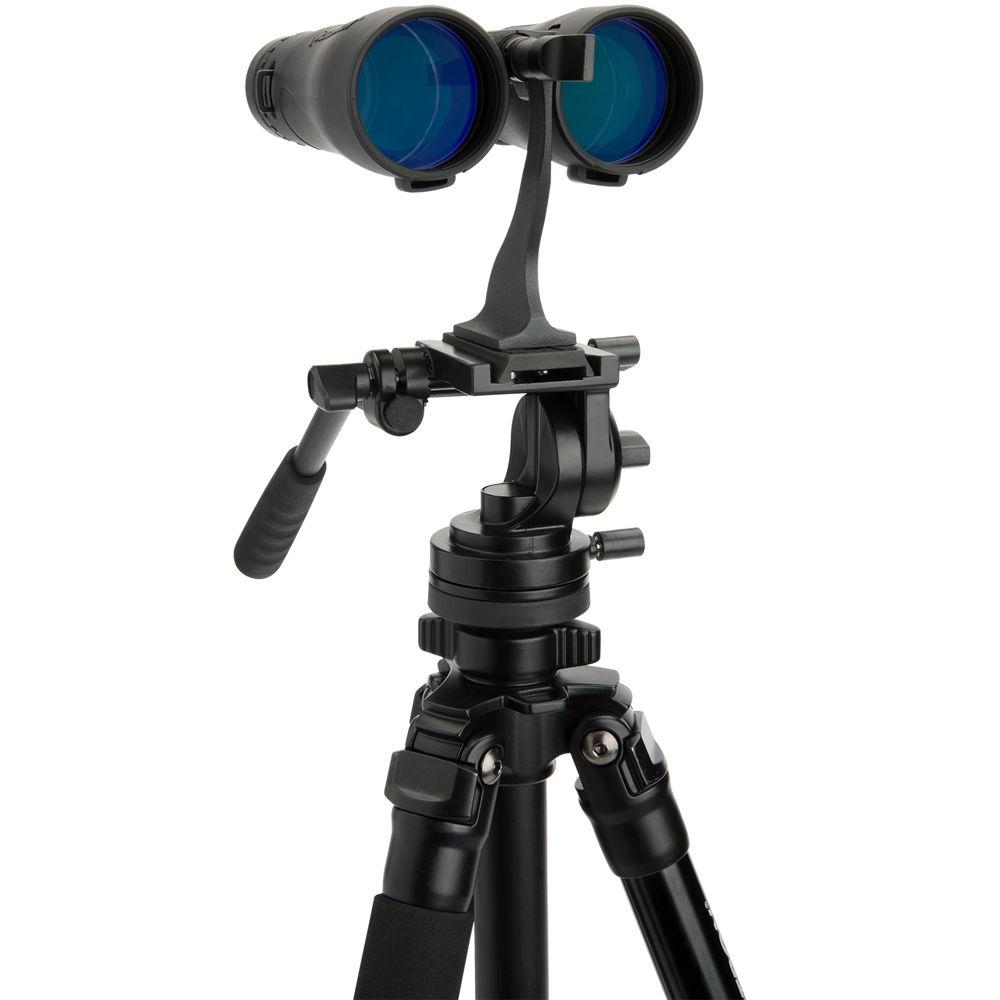

- Tripod mountable with optional adapter for hands-free use to eliminate vibrations and arm fatigue
- Long 17mm eye relief improves viewing comfort and reduces eye strain
- Comfortable 5mm exit pupil will cover pupils as they open and dilate in low light to keep the entire scene in view at all times
- Construction Details
-
- Bridge design provides more surface area for hands to improve grip security
- Eco-friendly glass is made without lead or arsenic
- Lightweight and durable magnesium alloy chassis
- Nitrogen-filled and O-ring sealed to be waterproof and resistant to internal fogging in all weather conditions
- Slip-resistant rubber armoring protects against bumps and impacts while providing a sure grip
- One-piece tethered ocular rainguard protects eyecups from water pooling in them from rain or spraying water when hanging from the neck
- Tethered fold-down objective lens caps prevent losing them during observation sessions
- Harness strap included to reduce neck fatigue by distributing the weight to the shoulders, while keeping the binoculars close at hand
- Weight: 30 ounces

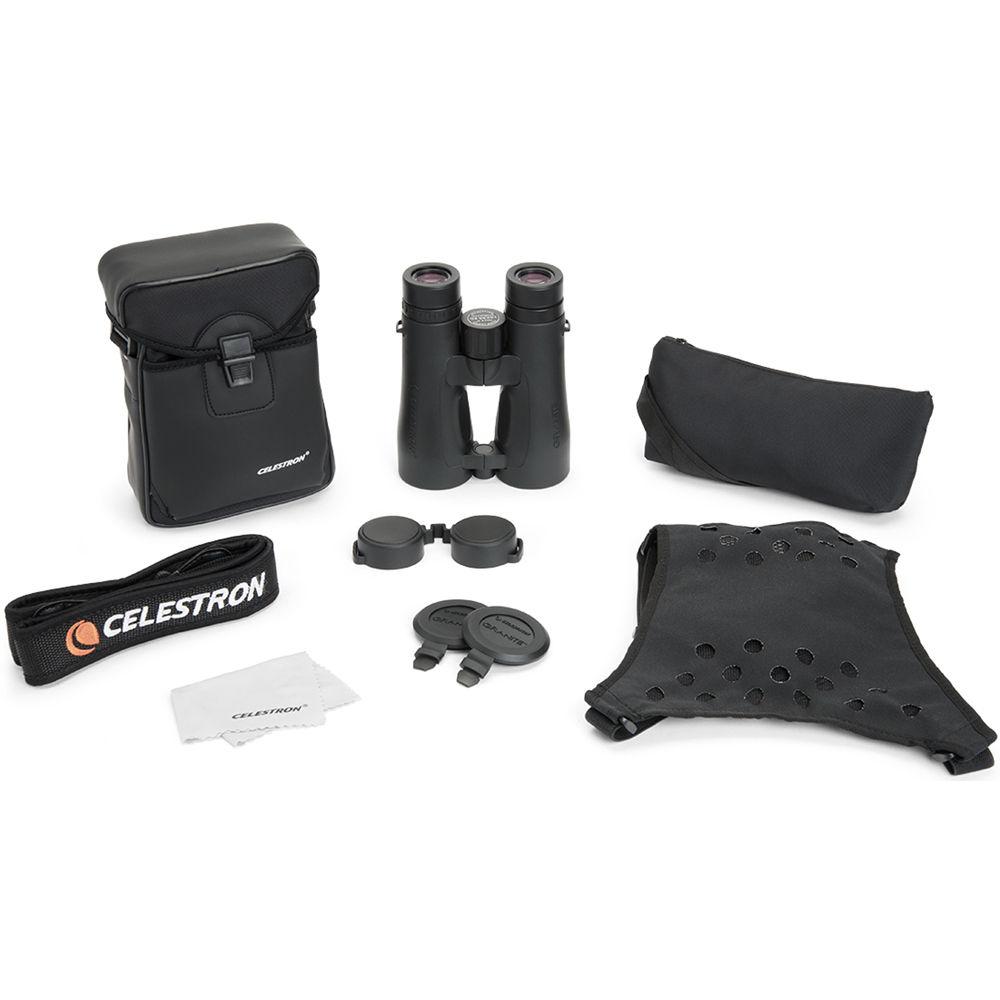

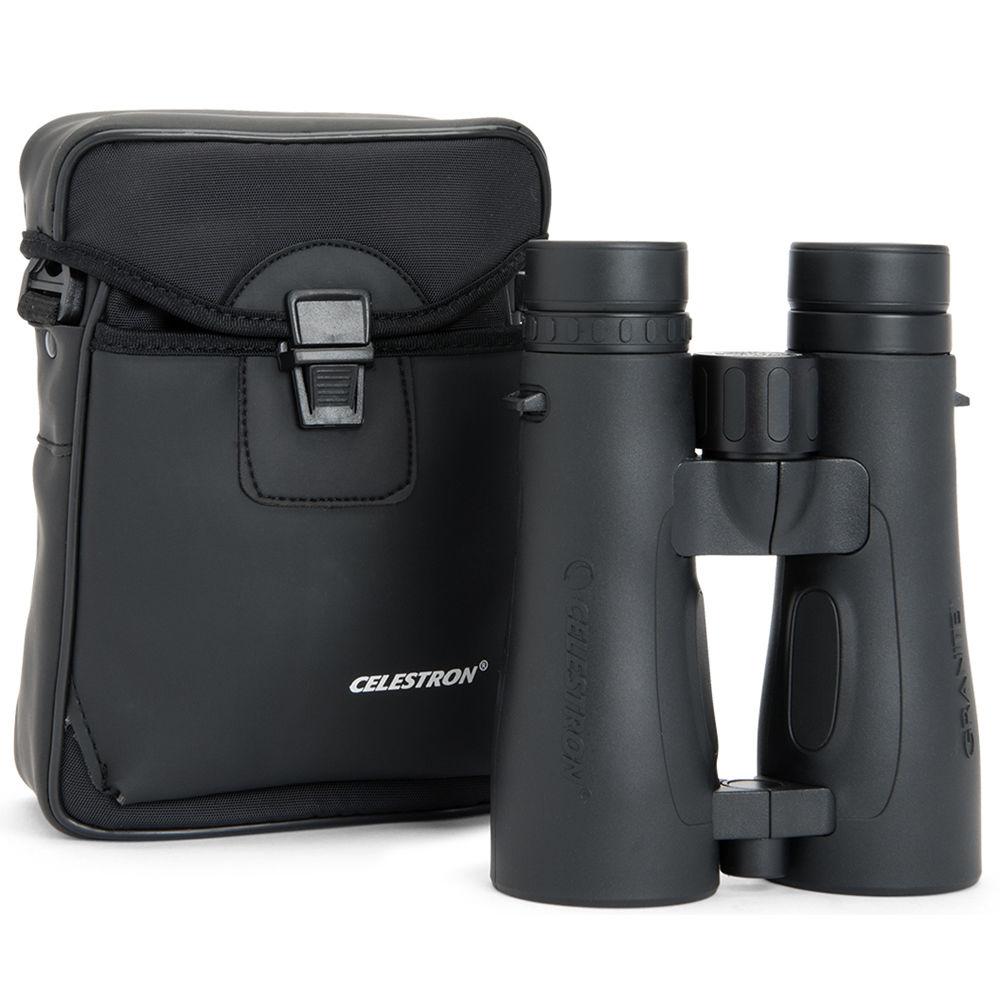

UPC: 050234713740 In the Box Celestron 10x50 Granite Binoculars Lens Cloth Neck Strap Harness Strap Carrying Case One-Piece Ocular Rainguard 2 x Objective Lens Cap Limited Lifetime Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 User Manual PDF 1009.6kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Celestron 10x50 Granite Binoculars in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCelestron 71374 Specs | Prism Type | Roof | | Magnification | 10 x | | Objective Lens Diameter | 50 mm | | Angle of View | 6.5° (Actual) | | Field of View | 342.0' @ 1000 yd / 113.5 m @ 1000 m | | Minimum Focus Distance | 9.8' / 3 m | | Exit Pupil Diameter | 5 mm | | Eye Relief | 17 mm | | Interpupillary Adjustment | 56 to 73 mm / 2.2 to 2.9" | | Focus Type | Center | | Tripod Mount | Yes (Adapter Optional) | | Dimensions | 6.6 x 5.2 x 2.4" / 16.8 x 13.2 x 6.1 cm | | Weight | 28.3 oz / 802.3 g | | | | Package Weight | 3.24 lb | | Box Dimensions (LxWxH) | 9.0 x 8.2 x 3.65" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 58 owners. Add your rating and experience with the product.
