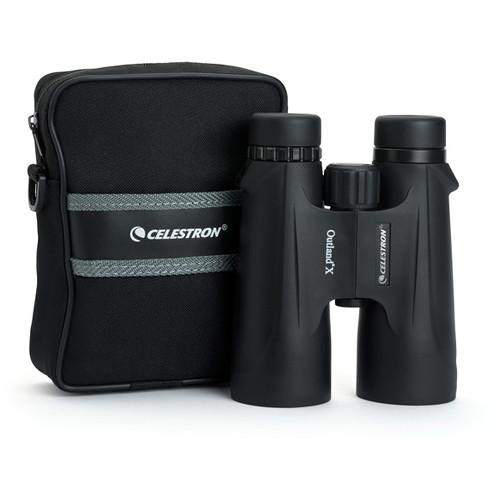

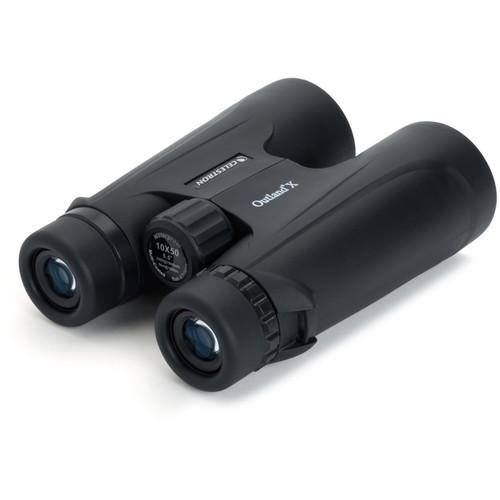

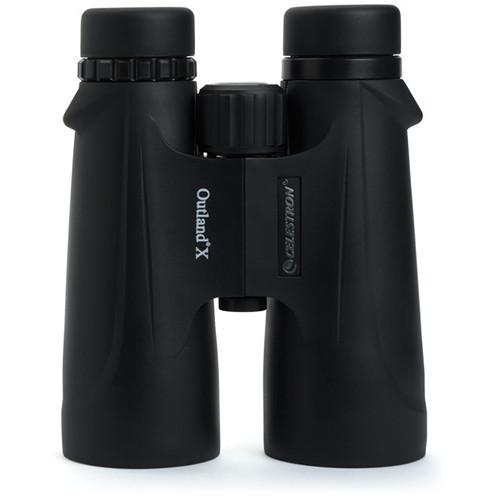

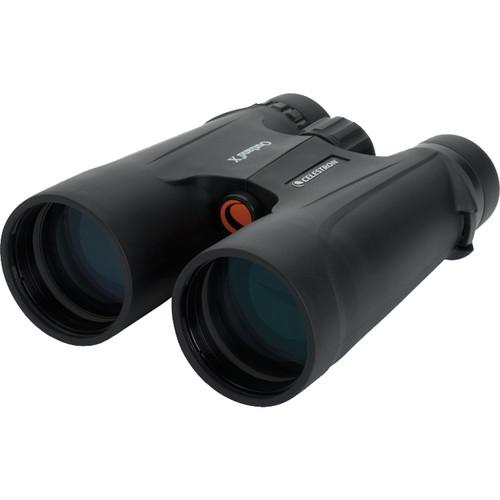

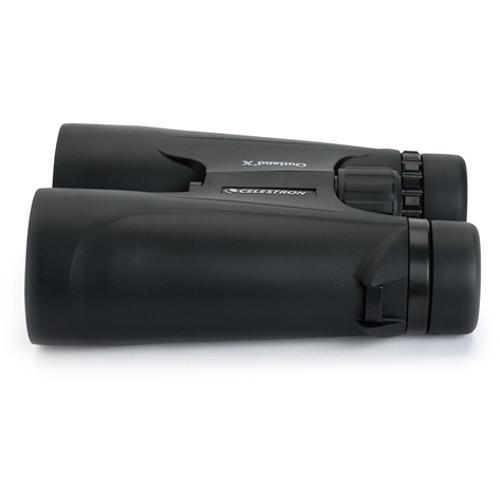

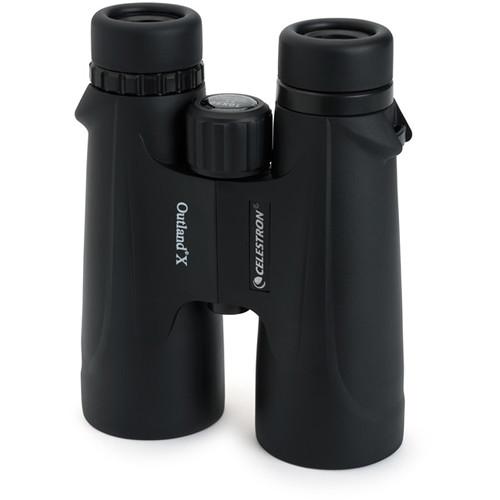

User Manual for Celestron 10x50 Outland X Binocular Click to enlarge the picture
Contents of the user manual for the Celestron 10x50 Outland X Binocular
- Product category: Binoculars Celestron
- Brand: Celestron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Celestron Binoculars
 |
User manual for the Celestron 10x50 Outland X Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Celestron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Celestron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Celestron product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More Designed for medium-range observations, ultra-low-light conditions, and even stargazing, the black 10x50 Outland X Binocular from Celestron offers features well beyond its class. With the multi-coated optics and BAK4 Roof Prisms, you will get excellent transmission, resolution, and contrast when viewing landscapes, wildlife, or night skies. The wide 50mm objectives will make the most of available light in low-light conditions, like dusk or dawn, to provide the brightest image possible. And whether you focus on a close-up or faraway scenery, the wide 55° apparent angle of view will deliver a complete picture. Beyond optical highlights, the binocular provides a convenient center focusing, diopter adjustment, a generous interpupillary range, and a 17.4 mm eye relief.
With its lightweight and durable polycarbonate housing, you don't have to worry about accidentally exposing the binocular to moisture or even dropping it into a water reservoir because it is waterproof and nitrogen-purged fogproof. Its slender body design, with smooth rubber armoring and a closed bridge configuration, offers a comfortable and non-slip grip. To help you with focusing and correcting for dioptric differences, the binocular features oversized knurled knobs that are easily adjustable even when wearing gloves. The twist-up rubber eyecups allow anyone to find a comfortable viewing position. To allow for extended observation, this optic can be mounted on a tripod using an optional adapter. Also included are a strap, lens cloth, soft carry case, and lens caps for objectives and eyepieces. Optical Performance -
- Wide 50mm objectives provide bright images in low-light conditions
- Multi-coated optics enhance transmission, image brightness, and resolution
- BAK4 Roof Prisms promote contrast and resolution
- Wide apparent angle of view: 55°
Use and Handling -
- Center focusing adjustment
- Diopter adjustment: +3 to -3
- Interpupillary range: 56-74mm
- Eye relief: 17.4mm
Construction -
- Ergonomic and comfortable polycarbonate body
- Smooth rubberized armoring provides a sure grip
- Oversized knurled center focus knob and diopter ring
- Twist-up rubber eyecups
- Closed bridge configuration
- Waterproof, fogproof, nitrogen-purged

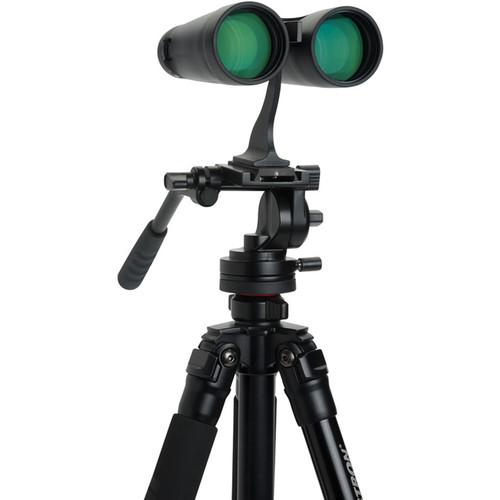

- Tripod adaptable with an optional adapter

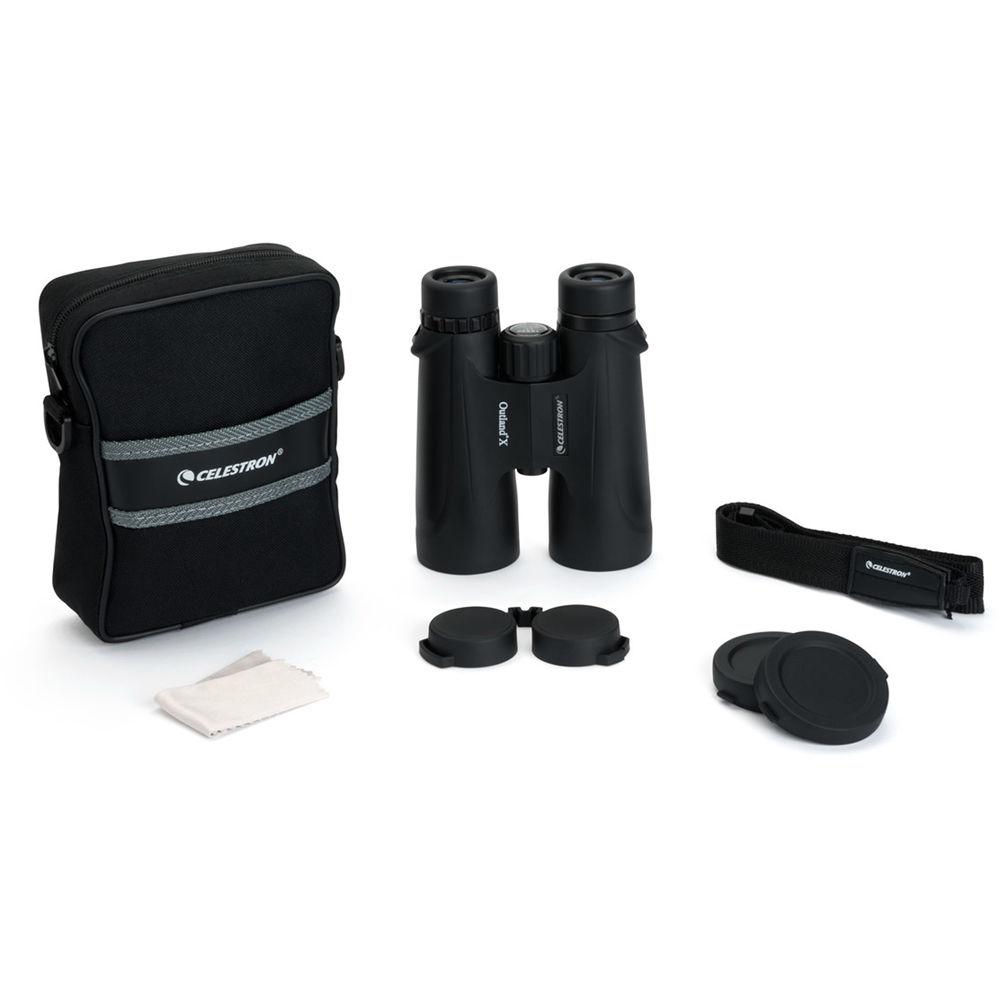

UPC: 050234713481 In the Box Celestron 10x50 Outland X Binocular (Black) - Strap
- 2 x Eyepiece Lens Caps
- 2 x Objective Lens Caps
- Soft Carrying Case
- Lens Cloth
- Limited Lifetime Warranty
Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Celestron 10x50 Outland X Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCelestron 71348 Specs | Prism Type | Roof | | Magnification | 10 x | | Objective Lens Diameter | 50 mm | | Angle of View | 5.5° (actual) | | Field of View | 288.7' @ 1000 yd / 96.2 m @ 1000 m | | Minimum Focus Distance | 9.8' / 3 m | | Exit Pupil Diameter | 5 mm | | Eye Relief | 17.4 mm | | Interpupillary Adjustment | 56 to 74 mm / 2.2 to 2.9" | | Dioptric Correction | ±3 | | Focus Type | Center | | Tripod Mount | Yes | | Dimensions | 6.4 x 5.2 x 2.3" / 162.6 x 132.1 x 58.4 mm | | Weight | 27.1 oz / 768.3 g | | | | Package Weight | 2.35 lb | | Box Dimensions (LxWxH) | 9.45 x 8.1 x 3.65" |
