User Manual for Celestron 15x70 Cavalry Binocular Click to enlarge the picture
Contents of the user manual for the Celestron 15x70 Cavalry Binocular
- Product category: Binoculars Celestron
- Brand: Celestron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Celestron Binoculars
 |
User manual for the Celestron 15x70 Cavalry Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Celestron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Celestron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Celestron product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More - Calvary Series Binoculars

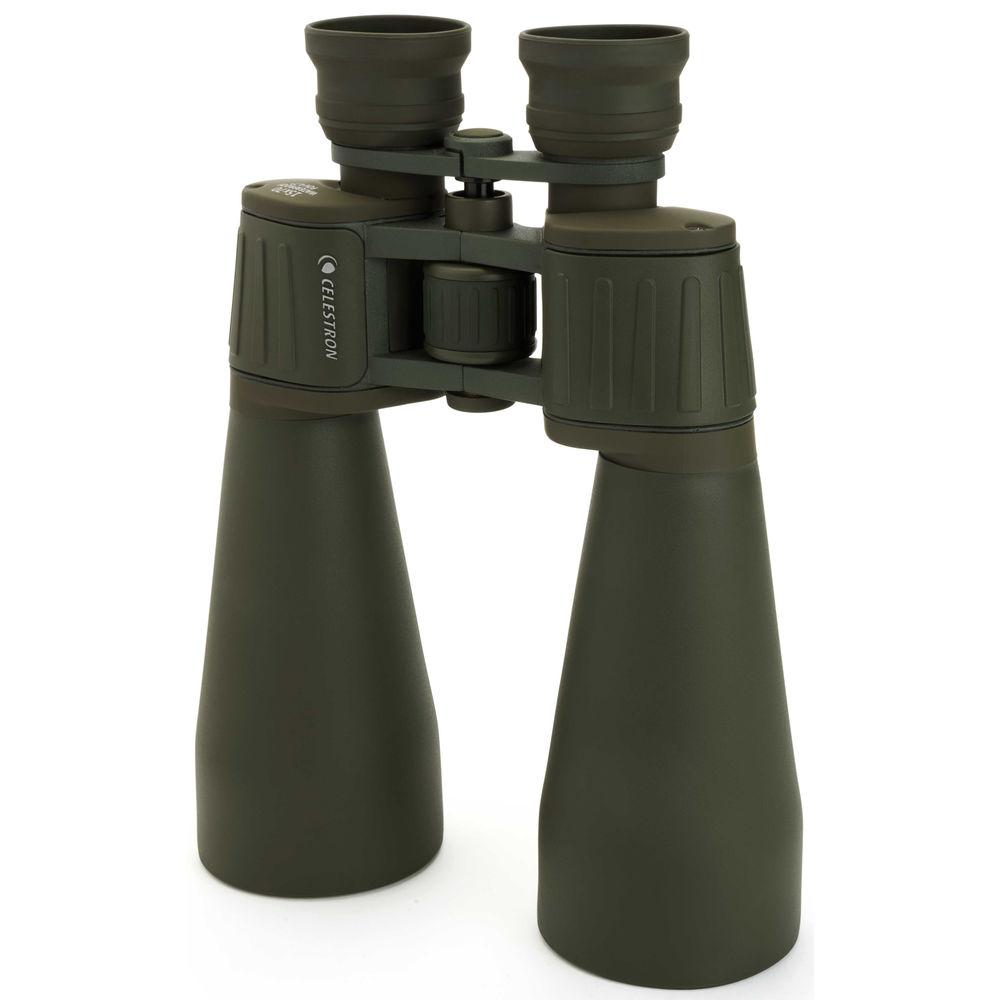

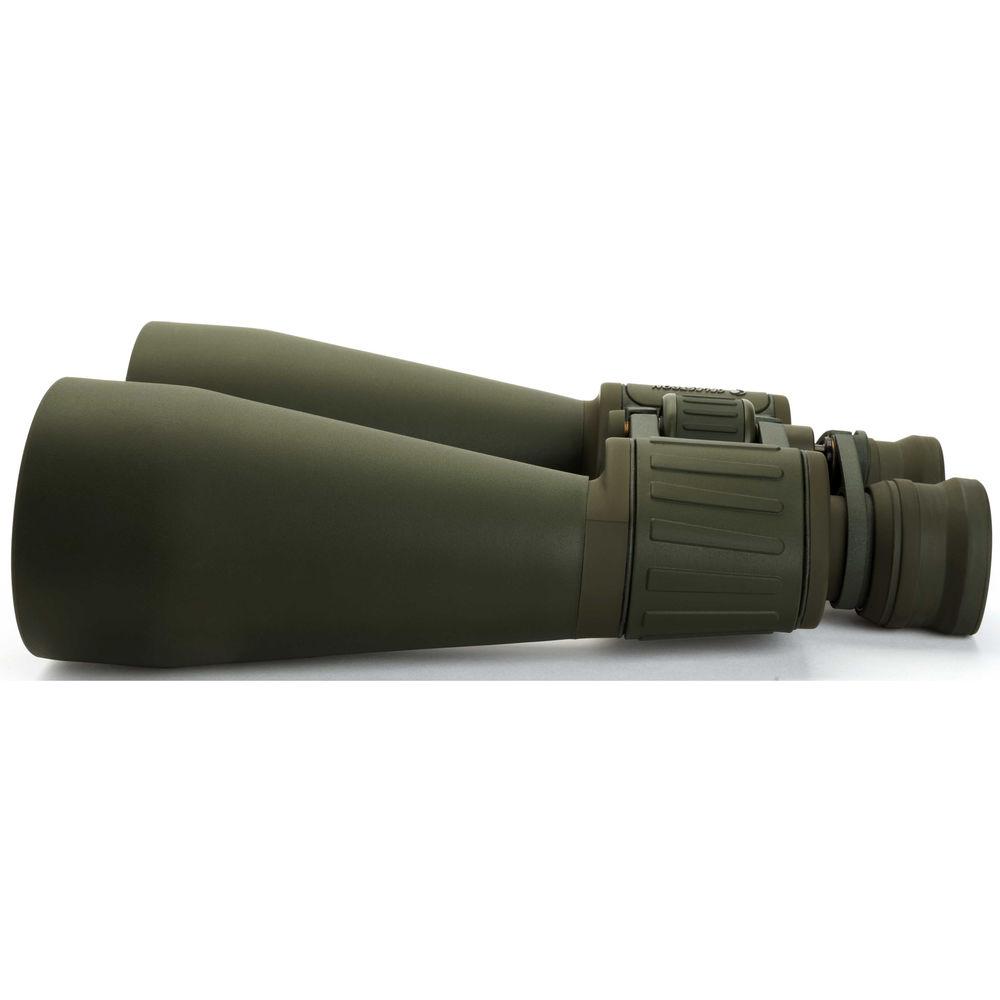

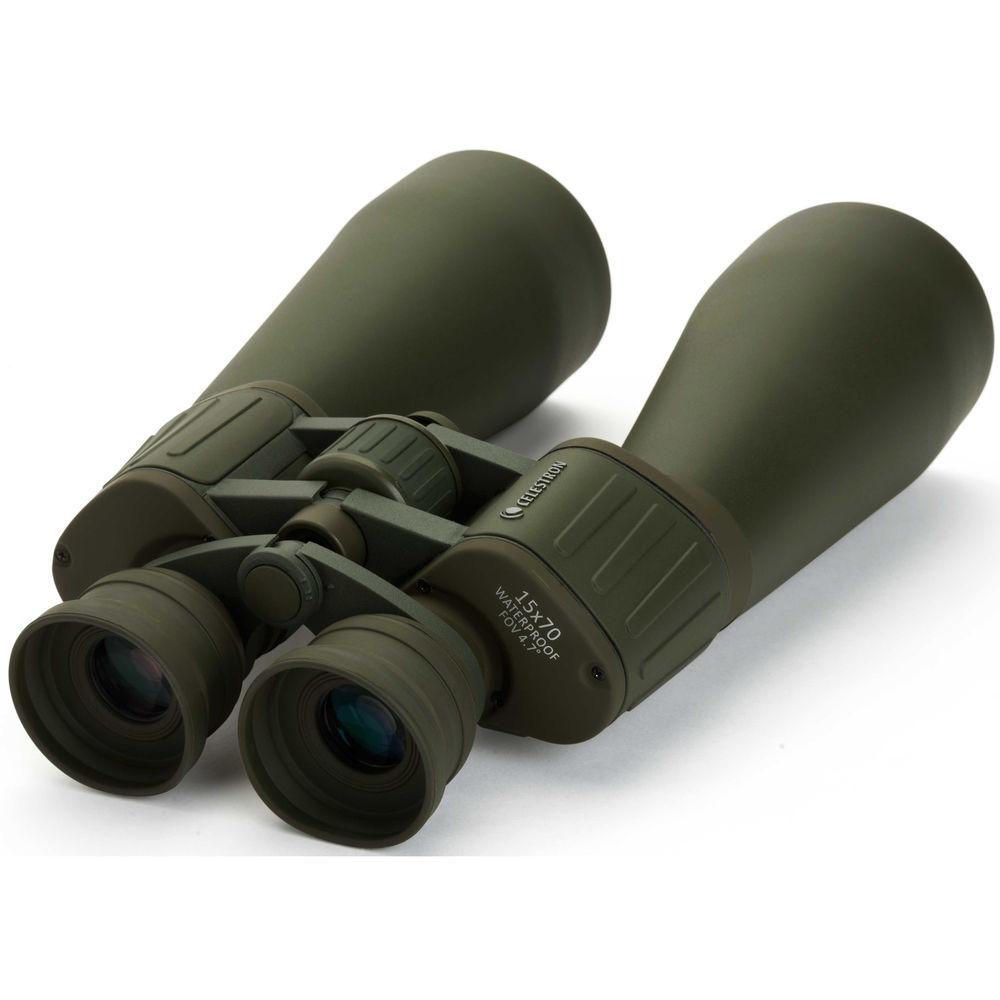

The 15x70 Cavalry Binocular from Celestron is a weather-sealed optic designed for long-range observations. This fixed-magnification binocular features fully multicoated optics, 70mm objectives and BaK-4 prisms that render enhanced brightness and clarity. An ultra-wide 70° apparent viewing angle, included tripod mount, and non-slip rubber armoring complement the 15x70 lens system and help provide a user-friendly glassing experience. The Cavalry binocular has a nitrogen-filled housing that is built to withstand heavy rain and deliver fogproof performance, making this Celestron optic ready for a wide range of outdoor glassing activities. - Optical Performance
-
- 15x magnification, 70mm objectives
- Fully multicoated optics, BaK-4 Porro prisms
- 4.7° angle of view, 70° apparent viewing angle
- 72 ft (22m) close focusing distance, 18mm eye relief
- Use and Handling
-
- Center focus wheel with ridges for improved grip
- Fold-down rubber eyecups
- 56-72mm interpupillary adjustment range
- Tripod mountable
- Construction Details
-
- Nitrogen-filled housing for fogproof/waterproof performance
- Rubber armored exterior
- 48.7 oz (1.4kg) weight

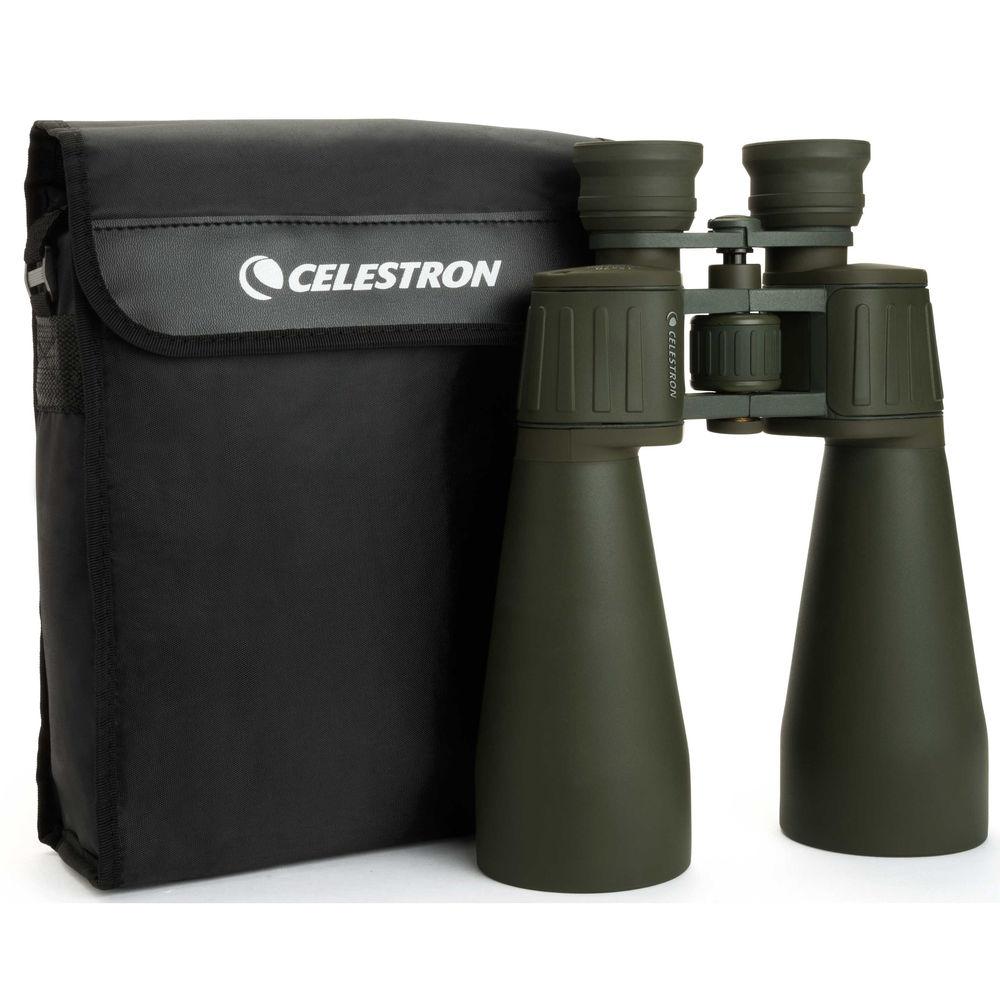

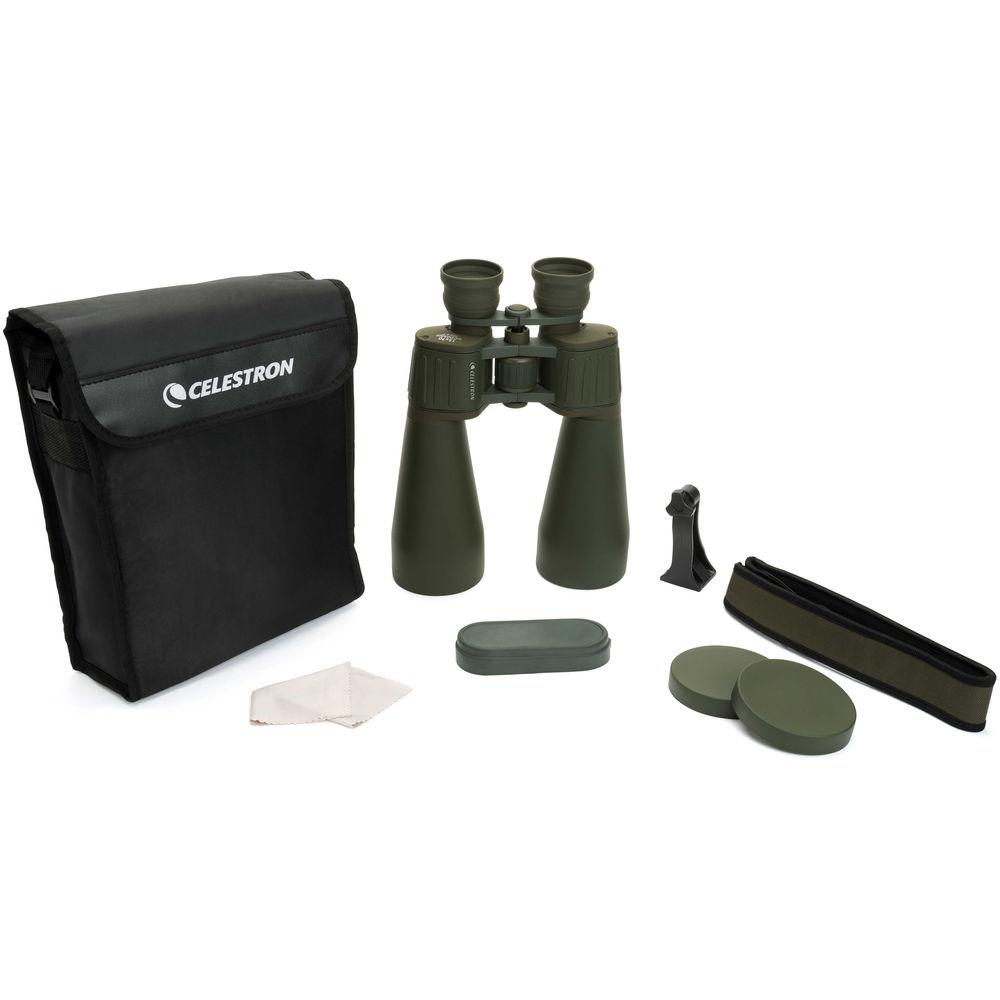

In the Box Celestron 15x70 Cavalry Binocular Tripod Adapter Carrying Case Neck Strap Objective Caps Rainguard Lens Cloth Instruction Manual Limited Lifetime Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 User Manual PDF 3.1mb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Celestron 15x70 Cavalry Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCelestron 71426 Specs | Prism Type | Porro | | Magnification | 15.0 x | | Objective Lens Diameter | 70 mm | | Angle of View | 4.7° (Actual) | | Field of View | 246.7' @ 1000 yd / 82.2 m @ 1000 m | | Minimum Focus Distance | 464.6' / 141.6 m | | Exit Pupil Diameter | 4.6 mm | | Eye Relief | 18 mm | | Interpupillary Adjustment | 8.7 to 11.1 mm / 22 to 28.3" | | Focus Type | Center | | Tripod Mount | Yes (Adapter Included) | | Weight | 48.7 oz / 1.4 kg | | | | Package Weight | 5.2 lb | | Box Dimensions (LxWxH) | 13.6 x 11.0 x 5.1" |
Rating94% users recommend this product to others. And what about you?
This product has already been rated by 49 owners. Add your rating and experience with the product.
