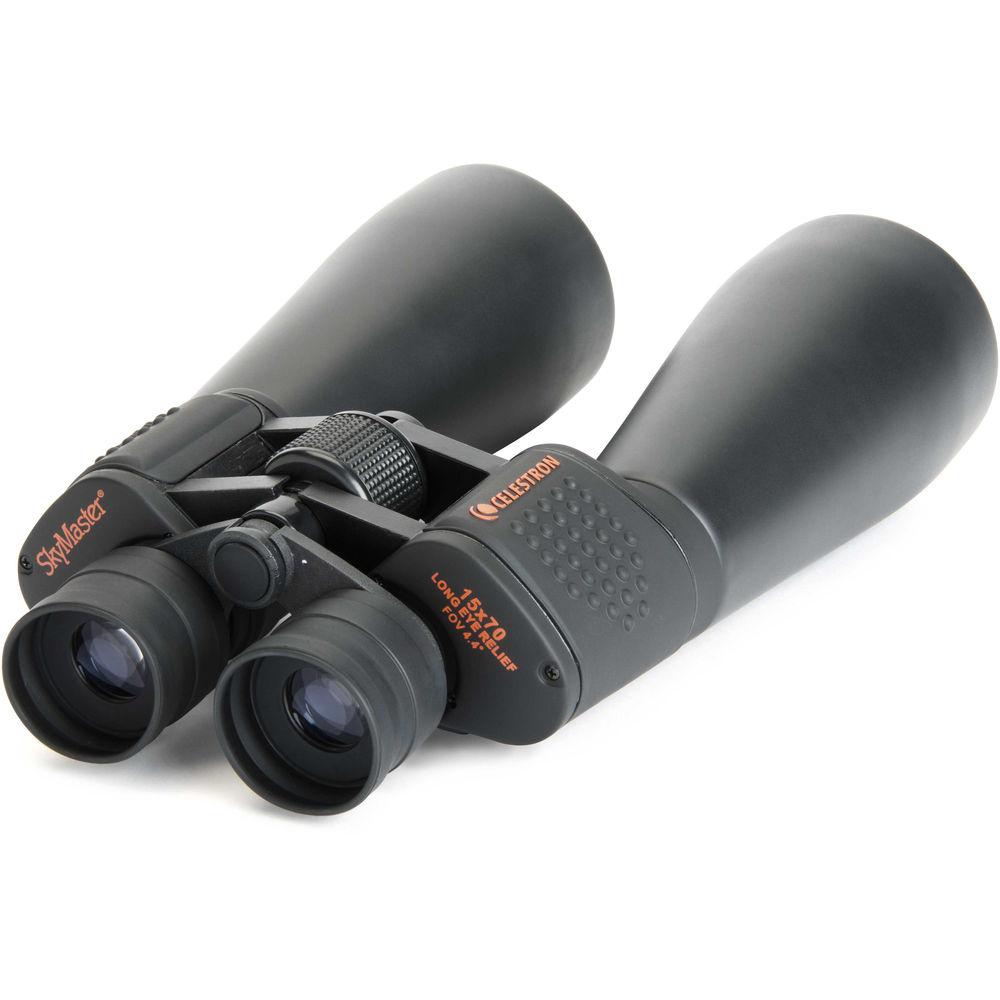

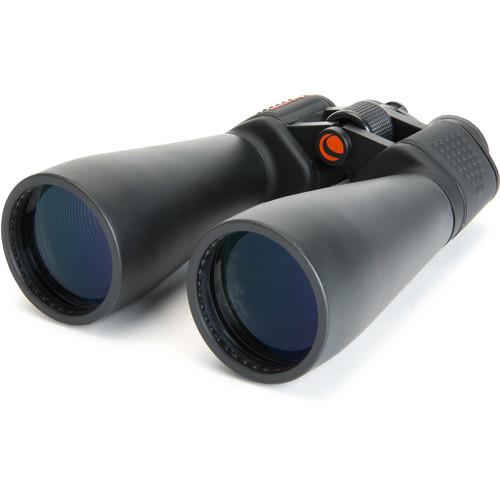

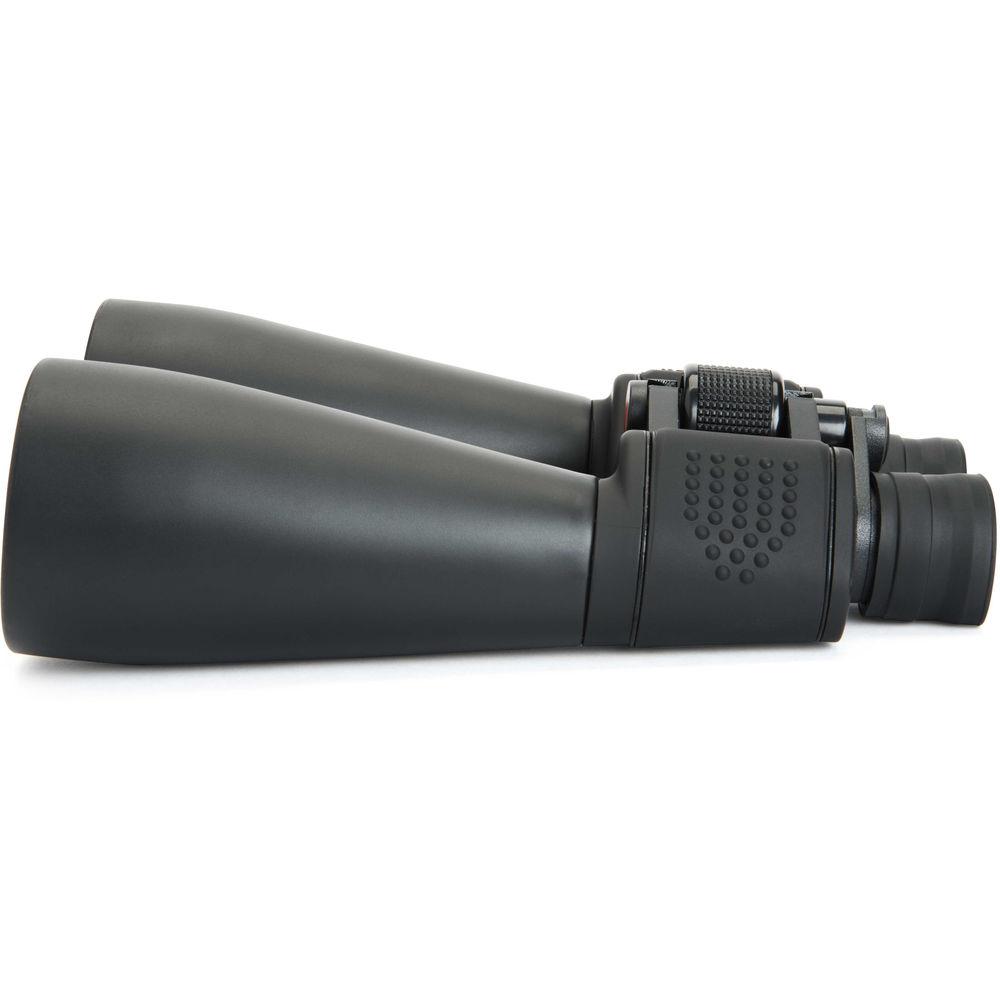

Celestron 15x70 SkyMaster Binocular

Search your instruction manual in PDF to download

User Manual for Celestron 15x70 SkyMaster Binocular

Click to enlarge the picture
Celestron 15x70 SkyMaster Binocular Contents of the user manual for the Celestron 15x70 SkyMaster Binocular
  • Product category: Binoculars Celestron
  • Brand: Celestron
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Celestron Binoculars

Celestron 15x70 SkyMaster Binocular Celestron 15x70 SkyMaster Binocular Celestron 15x70 SkyMaster Binocular Celestron 15x70 SkyMaster Binocular Celestron 15x70 SkyMaster Binocular
User manual for the Celestron 15x70 SkyMaster Binocular contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Celestron product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Celestron user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Celestron product will considerably shorten its lifespan!



Product description

The B&H Binocular Buying Guide Read More
  • Skymaster Binoculars Tour
Make long-range observations or explore the night sky using the 15x70 SkyMaster Binocular from Celestron. This optic is specifically designed for those tasks and possesses two distinct characteristics that set it apart from many other binoculars and make it a good fit for the purpose. First is the extra-wide 70mm objective aperture, which allows lots of light and delivers good visibility in low-light conditions. Second is its high 15x magnification power, which enables you to have good close-ups on distant objects, even the moon and the stars. This binocular configuration allows you to observe celestial objects with both eyes, an advantage over regular telescopes. Also, it is fully assembled and ready to be mounted on a tripod using the included adapter. To ensure that you get clear images, without glare, the lenses are anti-reflection multi-coated. Other highlights of the optic are its center focusing, interpupillary adjustment, and diopter corrector. To protect this instrument while not in use, also included are objective lens covers, a rainguard for the eyepieces, and a carry case.
    Optical Performance
    • 15x magnification
    • BAK4 porro prisms
    • 70mm objective lenses deliver bright images in low light and allow stargazing
    • Multi-coated optics increase transmission of light and reduce glare
    • 231' field of view at 1000 yards
    • 66° wide apparent angle of view
    • 18mm eye relief
      Use and Handling
      • Diopter correction ring is located on the right ocular
      • 56-72mm interpupillary adjustment range
      • Fold-down eyecups for comfortable use with or without eyewear
        Construction Details
        • Lightweight and durable polymer
        • Rubber armor protects against impacts and provides slip-resistant grip

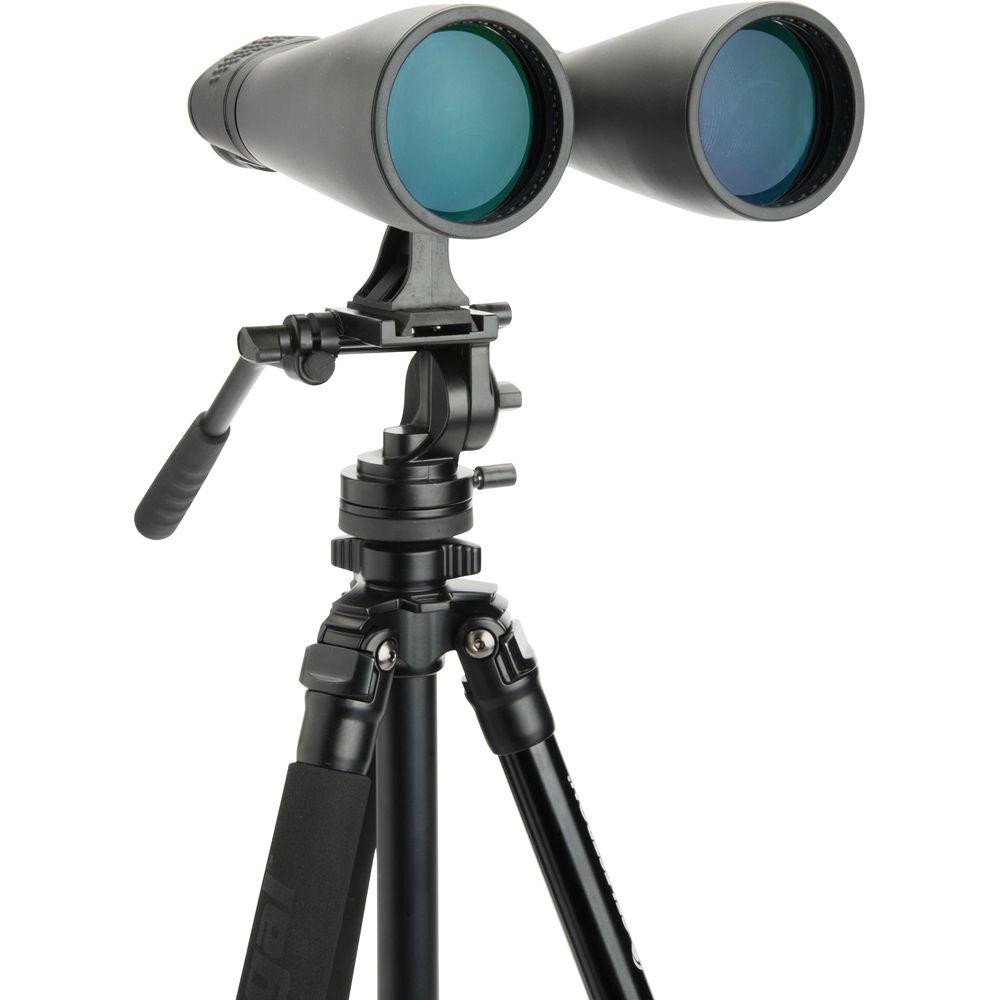

        • Tripod mountable using included adapter
        • Weather resistant

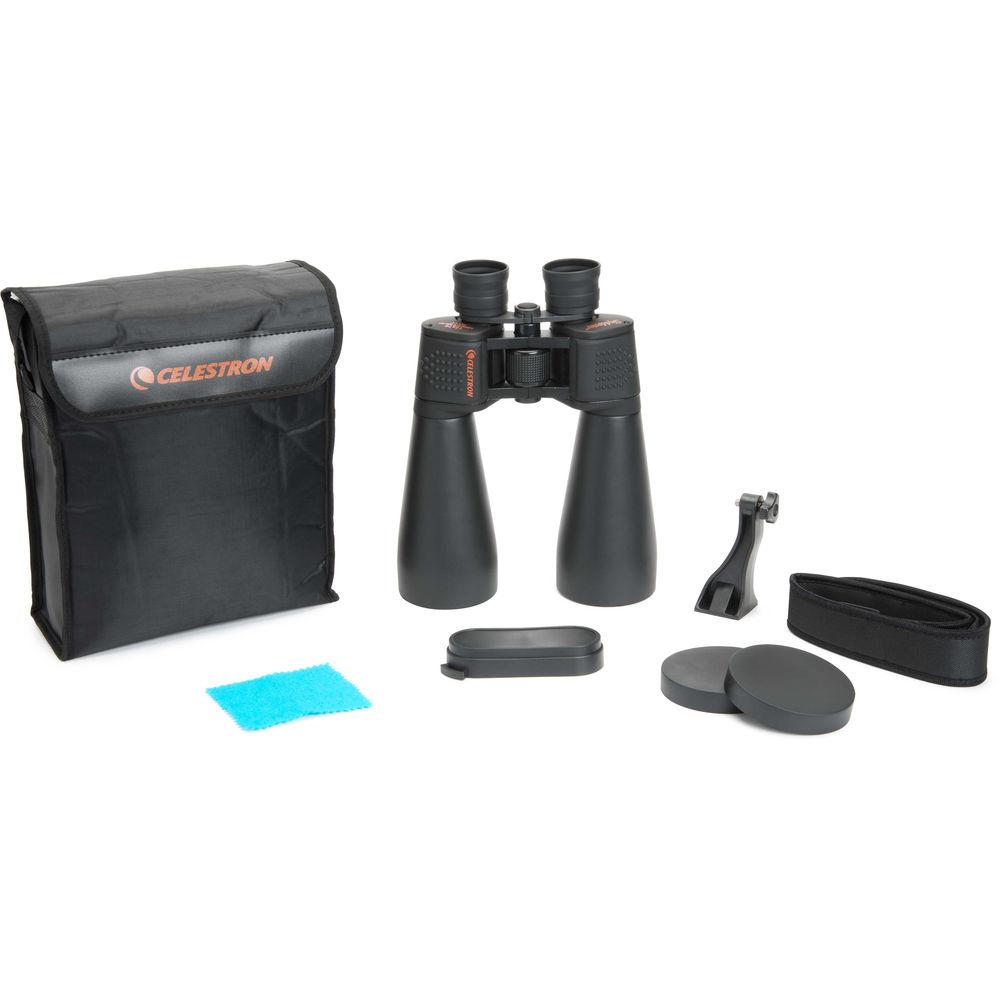

        UPC: 050234710091 In the Box Celestron 15x70 SkyMaster Binocular (Black)

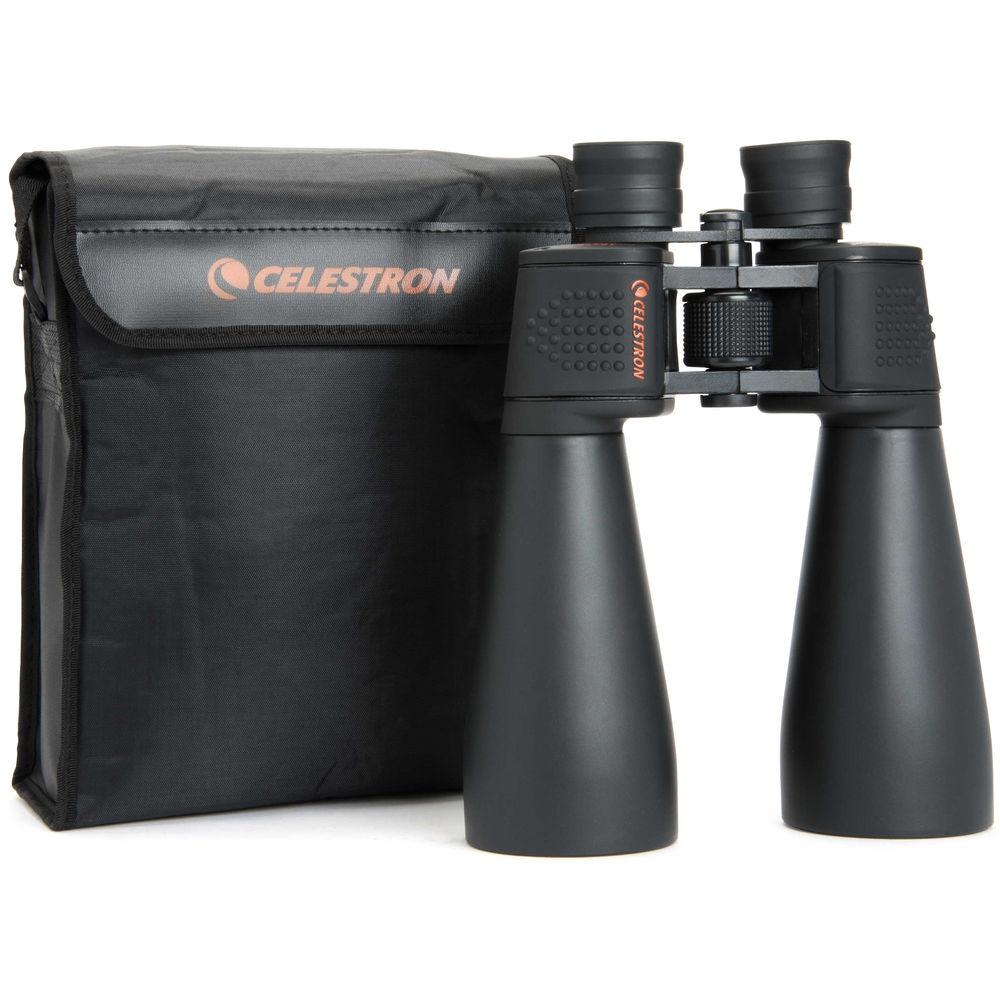

      • Carry Case
      • Cleaning Cloth
      • Neck Strap
      • Tripod Adapter
      • Rainguard
      • 2 x Lens Covers
      • Limited Lifetime Warranty
      Summer Binocular Buying Guide Christopher Witt 07/14/2016 xarfawzevcbxsxff A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 User Manual PDF 441.2kb Table of Contents




Upload User Manual

Have you got an user manual for the Celestron 15x70 SkyMaster Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Upload PDF user manual Upload DOC user manual
Please enter here the link to the user manual of this product:





OR

Enter here the file with the user manual of this product from your computer/phone:
(60MB max; Permitted formats: pdf, docx, jpg)

0%


Download User Manual

The user manual for the Celestron 15x70 SkyMaster Binocular can be downloaded in PDF format at the link stated below.
Download PDF user manual - Celestron 15x70 SkyMaster BinocularDownload PDF User Manual - https://www.search-manual.com/ upload/ celestron-15x70-skymaster-binocular-9242-user-manual.pdf
(PDF file, 0.45 MB)


Technical parameters

Celestron 71009 Specs

Prism Type Porro
Magnification 15 x
Objective Lens Diameter 70 mm
Angle of View 4.4° (Actual)
Field of View 231' @ 1000 yd / 76.692 m @ 1000 m
Minimum Focus Distance 42.6' / 13 m
Exit Pupil Diameter 4.7 mm
Eye Relief 18 mm
Interpupillary Adjustment 56 to 72 mm / 2.2 to 2.8"
Focus Type Center
Tripod Mount Yes (Adapter Included)
Weight 48.00 oz / 1.36 kg
Package Weight 4.1 lb
Box Dimensions (LxWxH) 12.75 x 10.15 x 4.1"

Rating

90% users recommend this product to others. And what about you?
Rating: 4.5 of 5

This product has already been rated by 42 owners. Add your rating and experience with the product.

Discussion

Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems.

Post new comment to Celestron 15x70 SkyMaster Binocular

Subject: Focusing the Skymaster 15x70
Date: 26.07.2020 00:49:08Name: Larry Wilson
I just got the Celestron Skymaster 15x70. After attaching it to a tripod, I looked up at the moon. After 15 minutes or so, I gave up because I simply could not get clear focus despite trying numerous combinations of turning the right eye piece and the larger adjustment knob between the two eye pieces. What am I doing wrong with focusing? The above user guide is in Spanish which I am unable to read.
Post reply
