User manual

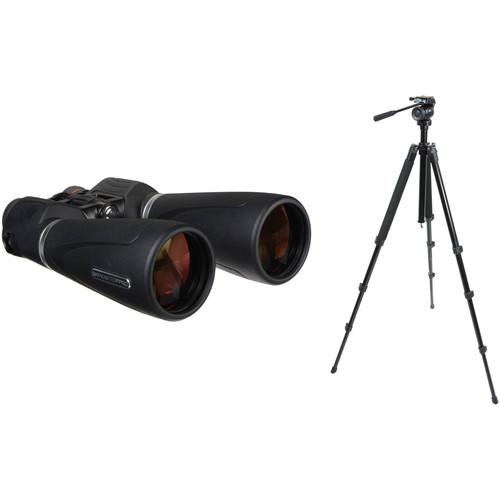

Celestron 15x70 SkyMaster Pro Binocular Kit

User Manual for Celestron 15x70 SkyMaster Pro Binocular Kit

• Product category: Binoculars Celestron
• Brand: Celestron
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Celestron Binoculars

Product description

• Celestron 15x70 SkyMaster Pro Binocular
  • Celestron SkyMaster Pro Product Overview
  Designed as an ideal optic for wide-view astronomical or long-range terrestrial observation, the Celestron 15x70 SkyMaster Pro Binocular features their proprietary XLT multi-coating system to reduce reflection and increase light transmission through the entire optical system. The porro prism configuration provides a rich depth of view and high contrast to draw users into an immersive observational experience. The combination of optical coatings, prism, and oversized 70mm objectives produces high-contrast views that are bright and crisp with accurate color fidelity.To help reduce weight, the binocular housing is made from a combination of polycarbonate polymer and aluminum. The aluminum provides strength in key areas, while the polycarbonate is temperature resistant to limit expansion and contraction in extreme temperatures, which can cause the optical components to move out of collimation and prevent the ability to achieve sharp focus. Large objectives and long optical tubes make the SkyMaster Pro fairly heavy with a center of gravity biased forward, so hand-holding it may cause fatigue and noticeable hand shake. A center stabilizer bar has a built-in 1/4"-20 tripod adapter to mount the instrument, with a detachable rail for a red-dot finderscope. To handle a wide range of environments, the optical tubes are nitrogen filled and O-ring sealed to be water and fogproof.
  Optical Performance
  • • 15x magnification
    • 70mm objective lenses
    • BAK4 porro prism optical path
    • Proprietary XLT fully multi-coated optics increase light transmission for bright high-contrast images
    • 231' field of view at 1000 yards
    • 66° wide-angle viewing
    • 17mm eye relief, 4.7mm exit pupil
  Use and Handling
  • • ±4 dioptric correction
    • 56-72mm interpupillary adjustment range
    • Detachable RSR (Reflex Sight Ready) rail for attaching an optional red-dot finderscope
    • Traditional fold-down eyecups for comfortable use with or without eyewear
    • Includes winged eyecups to block stray peripheral light that can affect vision
  Construction Details
  • • Lightweight and durable polycarbonate and aluminum chassis
    • Nitrogen filled for water and fogproof performance
    • Rubber armor protects against impacts and provides slip-resistant grip
    • Built-in tripod adapter for easy mounting
  UPC: 050234720304
• Celestron TrailSeeker Tripod with Fluid Pan Head
  • Celestron SkyMaster Pro Product Overview
  The TrailSeeker Tripod with Fluid Pan Head from Celestron is a 4-section aluminum tripod with a two-way fluid pan/tilt head. It extends from a minimum working height of 18.9" to a maximum of 70.5". Weighing 3.9 lb, the tripod can hold up to 9 lb, whether that be a spotting scope, binocular, camera, small telescope, or other equipment.

  The legs can be independently set to three different angles for shooting on an uneven surface. Flip locks allow you to adjust the height of each leg, and a foam grip on two of the legs adds comfort when carrying the tripod, especially in extreme temperatures. The Center column has a ballast hook for adding a counterweight, which will lower the center of gravity, adding stability to the tripod.

  The tripod features a 2-way pan/tilt fluid head with one large knob that both controls the tension and locks the head in place. A quick-release plate with a 1/4"-20 threaded stud makes attaching and detaching your equipment quick and easy. Bubble levels help ensure that your camera will be level to the horizon.

  Included with the TrailSeeker is a case and shoulder strap to protect your tripod and make transport easier. UPC: 050234820509

• 15x70 SkyMaster Pro Binocular dqsaxrevfuya
• Removable Finder Rail
• 2 x Winged Eyecups
• Ocular Rainguard
• 2 x Objective Caps
• Neck Strap
• Lens Cloth
• Case
• Limited Lifetime Warranty

• TrailSeeker Tripod with Fluid Pan Head

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Celestron 15x70 SkyMaster Pro Binocular

  Prism Type	Porro
  Magnification	15x
  Objective Lens Diameter	70 mm
  Angle of View	4.4° (Actual)
  Field of View	231.0' @ 1000 yd / 77.0 m @ 1000 m
  Minimum Focus Distance	49.2' / 15 m
  Exit Pupil Diameter	4.7 mm
  Eye Relief	17.0 mm
  Interpupillary Adjustment	56 to 72 mm / 2.2 to 2.8"
  Dioptric Correction	±4
  Focus Type	Center
  Tripod Mount	Yes
  Dimensions	10.9 x 8.7 x 3.4" / 27.7 x 22.1 x 8.6 cm
  Weight	3.5 lb / 1.6 kg

  Box Dimensions (LxWxH)	15.8 x 12.1 x 8.2"

• Celestron TrailSeeker Tripod with Fluid Pan Head

  Load Capacity	9 lb / 4.1 kg
  Maximum Working Height	70.5" / 179.1 cm
  Max Height without Center Column	58" / 147.3 cm
  Materials	Aluminum (Legs)
  Weight	3.9 lb / 1.8 kg

  Head Type	Pan & Tilt Head
  Quick Release	Yes

  Leg Lock Type	Flip Lock
  Independent Leg Spread	Yes
  Leg Sections	4
  Feet Features	Rubber

  Center Column Features	Ballast Hook
  Center Column Sections	1
  Center Column Extension Type	Rapid

  Box Dimensions (LxWxH)	24.2 x 5.2 x 4.7"
