Celestron 20-60x60 Zoom Refractor Spotting Scope

User Manual for Celestron 20-60x60 Zoom Refractor Spotting Scope and Smartphone Adapter Kit

• Product category: Spotting Scopes Celestron
• Brand: Celestron
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Celestron Spotting Scopes

Product description

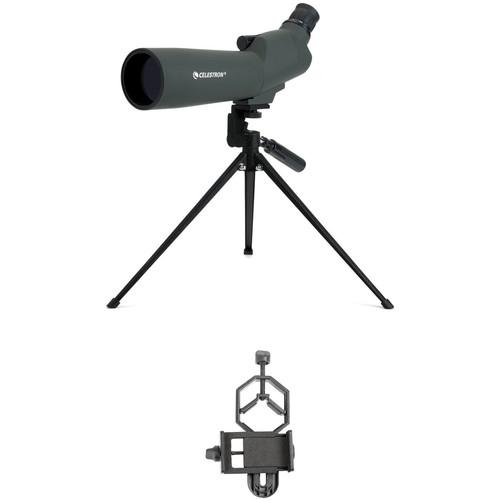

• Celestron 20-60x60 45° Zoom Refractor Spotting Scope Kit (Angled Viewing) The 20-60x60 45° Zoom Refractor Spotting Scope from Celestron is a prismatic refractor spotting scope at a great price, with an externally sealed, waterproof housing that's also rubber armored. Viewing is angled at a comfortable 45°. The permanent zoom eyepiece with a soft rubber eyecup for eyeglass wearers provides extra comfort. It has 20-60x magnification and comes with a tabletop tripod along with both a soft and a hard carrying case. Because the scope's so compact and light, it is an ideal choice for using on a vehicle's window (with an optional window mount).
  • 45° angled viewing with a Porro prism refractor optical design for comfortable and clear seeing
  • Waterproof for all-weather use
  • Fully coated optics provide clarity and minimum color aberration
  • Compact, light body perfectly suited to use upon window or the included tripod
  • Convenient metal tabletop tripod with simple pan/tilt movement
  • Durable hard aluminum case and a soft field case are included
  UPC: 050234522236
• Celestron Basic Smartphone Digiscoping Adapter (1.25") Capture still images and videos of celestial and terrestrial objects with virtually any smartphone through almost any 1.25" eyepiece with Celestron's Basic Smartphone Digiscoping Adapter. Ideal for telescopes, binoculars, spotting scopes, monoculars, microscopes, and any other type of optic with an eyepieces, the design allows it to be used on most oculars with outside diameters between 29mm (1.14") and 45mm (1.77"). The rigid frame is made of sturdy and lightweight aluminum with non-slip padding on clamping points to secure it to your eyepiece and mount your smartphone without marking or marring its surfaces. A clamping system holds the adapter securely on the eyepiece and locks in place, while an adjustment system allows for precise phone camera alignment. UPC: 050234810357

• 20-60x60 45° Zoom Refractor Spotting Scope Kit (Angled Viewing) ufqyufbrrasrbwxat
• Metal Tabletop Tripod
• Soft Carrying Case
• Aluminum Carrying Case
• Limited Lifetime Warranty

• Basic Smartphone Digiscoping Adapter (1.25")

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Celestron 20-60x60 45° Zoom Refractor Spotting Scope Kit (Angled Viewing)

  Viewing Angle	Angled

  Magnification	20 to 60x
  Objective Lens Diameter	60 mm
  Angle of View	20x: 2.5° (Actual) 60x: 1.3° (Actual)
  Field of View	20x: 130.0' @ 1000 yd / 43.0 m @ 1000 m 60x: 65.0' @ 1000 yd / 22.0 m @ 1000 m
  Minimum Focus Distance	29.0' / 8.8 m
  Exit Pupil Diameter	20x: 3 mm 60x: 1 mm
  Eye Relief	15.0 to 11.0 mm

  Water Resistance	Waterproof

  Dimensions	L: 13.0" / L: 330.0 mm
  Weight	1.3 lb / 595.0 g

  Box Dimensions (LxWxH)	20.1 x 11.0 x 6.6"

• Celestron Basic Smartphone Digiscoping Adapter (1.25")

  Material of Construction	Aluminum Alloy
  Dimensions	7.0 x 4.0 x 1.5" / 177.8 x 101.6 x 38.1 mm
  Weight	6.0 oz / 170.7 g

  Box Dimensions (LxWxH)	6.45 x 3.3 x 1.55"
