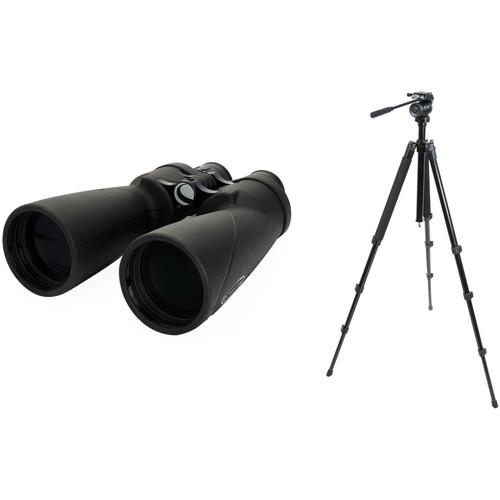

User Manual for Celestron 20x70 Echelon Binocular Kit Click to enlarge the picture
Contents of the user manual for the Celestron 20x70 Echelon Binocular Kit
- Product category: Binoculars Celestron
- Brand: Celestron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Celestron Binoculars
|
User manual for the Celestron 20x70 Echelon Binocular Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Celestron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Celestron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Celestron product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More evbrvwxyywxwtxyd put together this Celestron 20x70 Echelon Binocular Kit to give you a complete observational platform for terrestrial or astronomical use. The kit includes a pair of Celestron's powerful binoculars that feature a strong magnification and wide exit pupil, and a highly portable yet stable tripod with fluid head. - Celestron 20x70 Echelon Binocular The 20x70 Echelon Binocular from Celestron is a large-objective set of glasses featuring a fully multicoated optical path and a weather-resistant housing. Celestron's XLT lens coating helps maximize light transmission and improve image contrast. Individual focus eyepieces allow the viewer to set the focus depending on their eyesight. A nitrogen-filled aluminum alloy housing provides fogproof and waterproof performance and non-slip rubber armoring help maintain a secure grip in wet conditions or while wearing gloves.
- Optical Performance
-
- Magnification: 20x
- Objective lenses: 70mm
- Porro prism optical pat
- BAK4 prism glass renders improved image brightness and clarity
- Fully multicoated optics, XLT lens coating enhances image contrast and sharpness
- Eye relief of 19.5mm allows comfortable viewing distance while wearing eyeglasses
- Apparent angle of view: 60° wide angle
- Use and Handling
-
- Individual focus eyepieces
- Threaded mount for tripod adapter
- Fold-down rubber eyecups
- Construction Details
-
- Lightweight and durable aluminum alloy housing
- Nitrogen-filled for fogproof and waterproof performance
- Rubber armoreing provides slip-resistant grip
- Waterproof hard carrying case with die-cut foam insert included
- Hand-assembled in the USA
UPC: 050234714549 Celestron TrailSeeker Tripod with Fluid Pan Head The TrailSeeker Tripod with Fluid Pan Head from Celestron is a 4-section aluminum tripod with a two-way fluid pan/tilt head. It extends from a minimum working height of 18.9" to a maximum of 70.5". Weighing 3.9 lb, the tripod can hold up to 9 lb, whether that be a spotting scope, binocular, camera, small telescope, or other equipment.
The legs can be independently set to three different angles for shooting on an uneven surface. Flip locks allow you to adjust the height of each leg, and a foam grip on two of the legs adds comfort when carrying the tripod, especially in extreme temperatures. The Center column has a ballast hook for adding a counterweight, which will lower the center of gravity, adding stability to the tripod.
The tripod features a 2-way pan/tilt fluid head with one large knob that both controls the tension and locks the head in place. A quick-release plate with a 1/4"-20 threaded stud makes attaching and detaching your equipment quick and easy. Bubble levels help ensure that your camera will be level to the horizon.
Included with the TrailSeeker is a case and shoulder strap to protect your tripod and make transport easier. UPC: 050234820509 In the Box - 20x70 Echelon Binocular evbrvwxyywxwtxyd
- Neck Strap
- Lens Cloth
- Eyepiece Cover
- 2 x Objective Lens Covers
- Waterproof Hard Case
- Limited Lifetime Warranty
- TrailSeeker Tripod with Fluid Pan Head evbrvwxyywxwtxyd
Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Celestron 20x70 Echelon Binocular Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Celestron 20x70 Echelon Binocular
| Prism Type | Porro | | Magnification | 20.0 x | | Objective Lens Diameter | 70 mm | | Angle of View | 3.0° (Actual) | | Field of View | 157.5' @ 1000 yd / 52.5 m @ 1000 m | | Minimum Focus Distance | 2734.3' / 833.4 m | | Exit Pupil Diameter | 3.5 mm | | Eye Relief | 19.5 mm | | Interpupillary Adjustment | 9 to 11.1 mm / 22.8 to 28.3" | | Dioptric Correction | ±4 | | Focus Type | Individual | | Tripod Mount | Yes (Adapter Optional) | | Dimensions | 10.2 x 8.7 x 3.3" / 25.9 x 22.1 x 8.4 cm | | | | Box Dimensions (LxWxH) | 16.4 x 12.05 x 4.9" | - Celestron TrailSeeker Tripod with Fluid Pan Head
| | | Load Capacity | 9 lb / 4.1 kg | | Maximum Working Height | 70.5" / 179.1 cm | | Max Height without Center Column | 58" / 147.3 cm | | Materials | Aluminum (Legs) | | Weight | 3.9 lb / 1.8 kg | | | | Head Type | Pan & Tilt Head | | Quick Release | Yes | | | | Leg Lock Type | Flip Lock | | Independent Leg Spread | Yes | | Leg Sections | 4 | | Feet Features | Rubber | | | | Center Column Features | Ballast Hook | | Center Column Sections | 1 | | Center Column Extension Type | Rapid | | | | Box Dimensions (LxWxH) | 24.2 x 5.2 x 4.7" |
