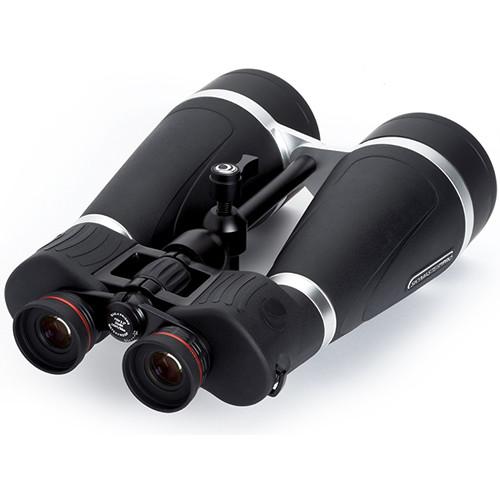

User Manual for Celestron 20x80 SkyMaster Pro Binocular Click to enlarge the picture
Contents of the user manual for the Celestron 20x80 SkyMaster Pro Binocular
- Product category: Binoculars Celestron
- Brand: Celestron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Celestron Binoculars
 |
User manual for the Celestron 20x80 SkyMaster Pro Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Celestron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Celestron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Celestron product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More - Celestron SkyMaster Pro Product Overview

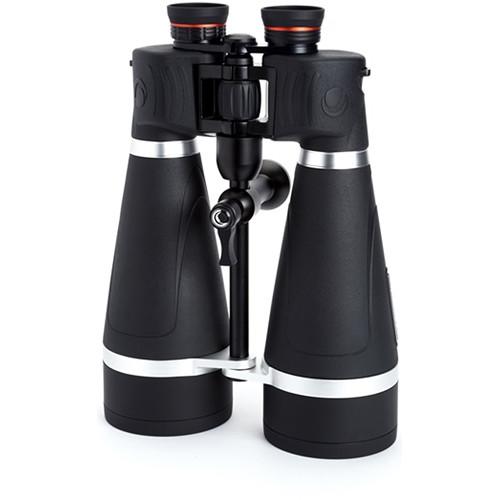

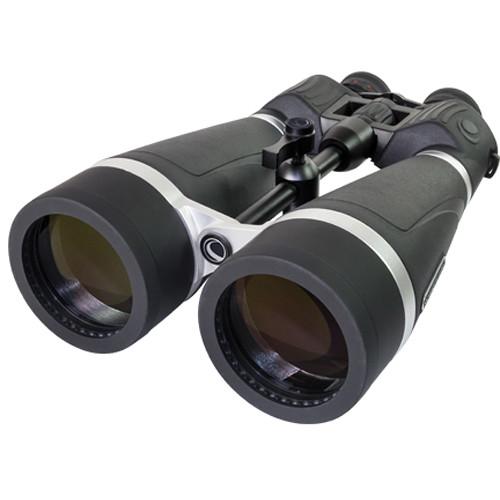

Designed as an ideal optic for wide-view astronomical or long-range terrestrial observation, the Celestron 20x80 SkyMaster Pro Binocular features their proprietary XLT multi-coating system to reduce reflection and increase light transmission through the entire optical system. The porro prism configuration provides a rich depth of view and high contrast to draw users into an immersive observational experience. The combination of optical coatings, prism, and oversized 80mm objectives produces high-contrast views that are bright and crisp with accurate color fidelity.To help reduce weight, the binocular housing is made from a combination of polycarbonate polymer and aluminum. The aluminum provides strength in key areas, while the polycarbonate is temperature resistant to limit expansion and contraction in extreme temperatures, which can cause the optical components to move out of collimation and prevent the ability to achieve sharp focus. Large objectives and long optical tubes make the SkyMaster Pro fairly heavy with a center of gravity biased forward, so hand-holding it may cause fatigue and noticeable hand shake. A center stabilizer bar has a built-in 1/4"-20 tripod adapter to mount the instrument, with a detachable rail for a red-dot finderscope. To handle a wide range of environments, the optical tubes are nitrogen filled and O-ring sealed to be water and fogproof. - Optical Performance
-
- 20x magnification
- 80mm objective lenses
- BAK4 porro prism optical path
- Proprietary XLT fully multi-coated optics increase light transmission for bright high-contrast images
- 168' field of view at 1000 yards
- 64° wide-angle viewing
- 15.5mm eye relief, 4.0mm exit pupil
- Use and Handling
-
- ±4 dioptric correction
- 56-72mm interpupillary adjustment range

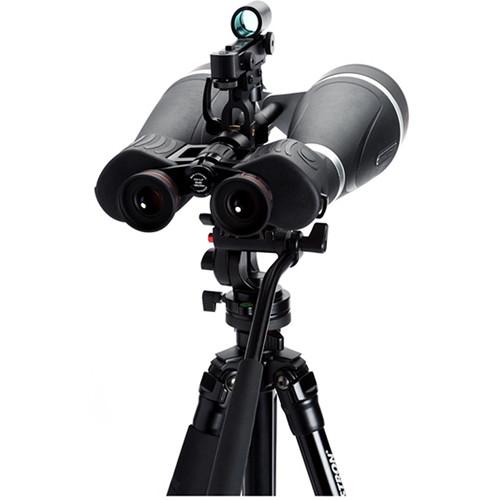

- Detachable RSR (Reflex Sight Ready) rail for attaching an optional red-dot finderscope
- Traditional fold-down eyecups for comfortable use with or without eyewear
- Includes winged eyecups to block stray peripheral light that can affect vision
- Construction Details
-
- Lightweight and durable polycarbonate and aluminum chassis
- Nitrogen filled for water and fogproof performance
- Rubber armor protects against impacts and provides slip-resistant grip

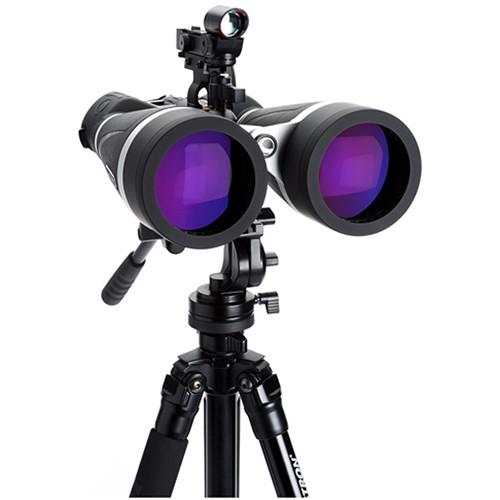

- Built-in tripod adapter for easy mounting
UPC: 050234720311 In the Box Celestron 20x80 SkyMaster Pro Binocular Removable Finder Rail 2 x Winged Eyecups Ocular Rainguard 2 x Objective Caps Neck Strap Lens Cloth Case Limited Lifetime Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Celestron 20x80 SkyMaster Pro Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCelestron 72031 Specs | Prism Type | Porro | | Magnification | 20x | | Objective Lens Diameter | 80 mm | | Angle of View | 3.2° (Actual) | | Field of View | 168.0' @ 1000 yd / 56.0 m @ 1000 m | | Minimum Focus Distance | 65.6' / 20 m | | Exit Pupil Diameter | 4 mm | | Eye Relief | 15.5 mm | | Interpupillary Adjustment | 56 to 72 mm / 2.2 to 2.8" | | Dioptric Correction | ±4 | | Focus Type | Center | | Tripod Mount | Yes | | Dimensions | 13.0 x 9.5 x 4.0" / 33.0 x 24.1 x 10.2 cm | | Weight | 5.4 lb / 2.4 kg | | | | Package Weight | 8.175 lb | | Box Dimensions (LxWxH) | 17.0 x 13.1 x 7.5" |
