User Manual for Celestron 2MP Digital Microscope Imager Click to enlarge the picture
Contents of the user manual for the Celestron 2MP Digital Microscope Imager
- Product category: Microscope Accessories Celestron
- Brand: Celestron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Celestron Microscope Accessories
 |
User manual for the Celestron 2MP Digital Microscope Imager contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Celestron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Celestron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Celestron product will considerably shorten its lifespan!
|

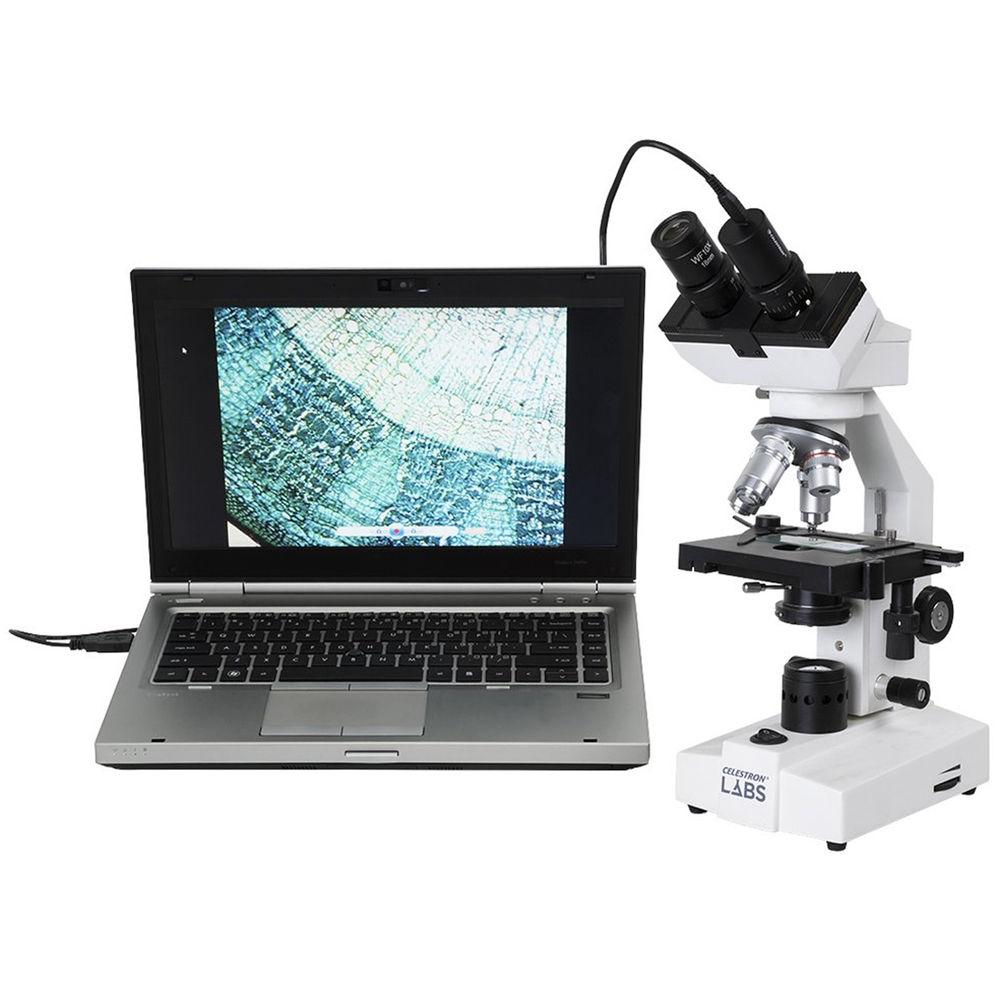

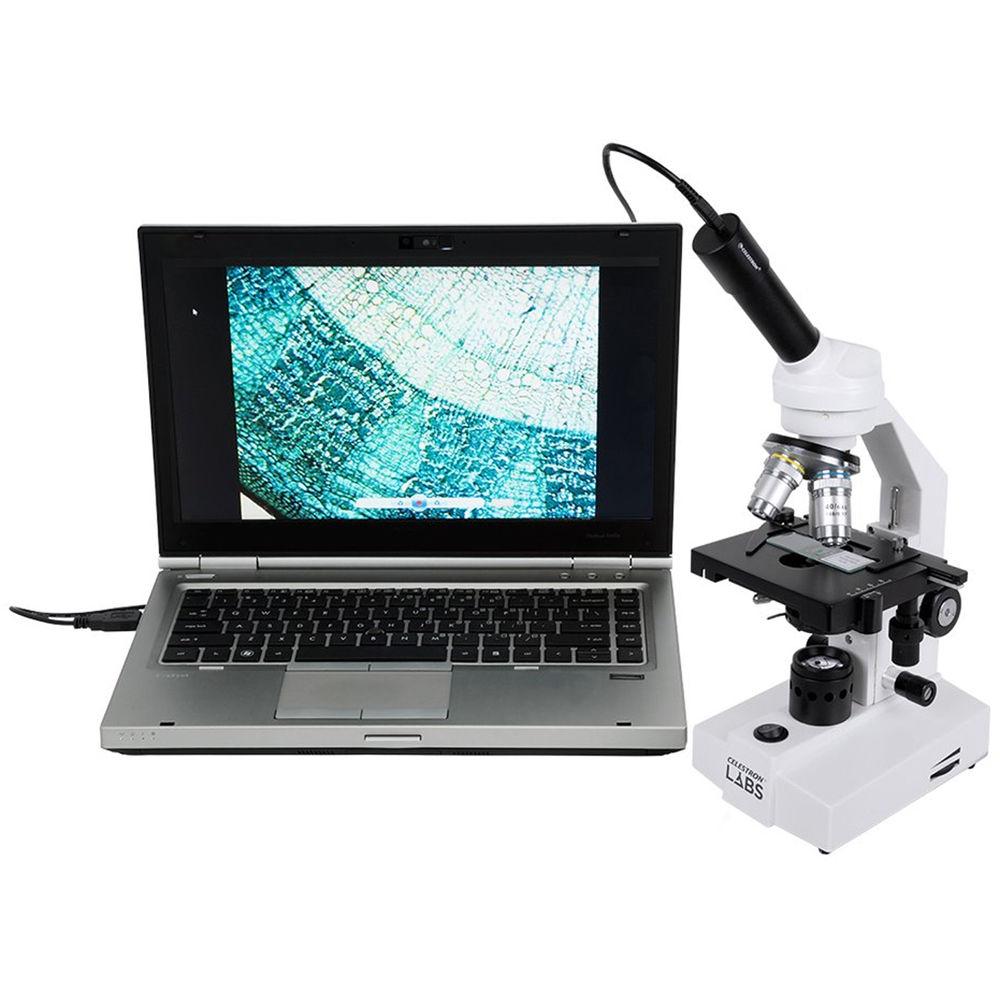

Product description For users ranging from students to forensics specialists, the Celestron 2MP Digital Microscope Imager provides an easy way to view specimens and capture images to your computer.Using the included adapter ring, installation is as fast as removing the eyepiece (just one for stereo microscopes) and dropping the imager into the holder. By itself, the imager has a 100x power when viewing on a monitor, and its magnification can be increased by using different objectives on the microscope. For example, a 10x objective would yield a 1000x power while a 4x objective would produce 400x power.The imager is powered by your computer's USB port via the permanently attached cable. The included software suite for Windows operating systems includes the device driver and control/capture S-Viewer program that features built-in measurement and marker tools so you can measure and make annotations of your specimen. If you're running Mac, the imager can be used as an external camera without the S-Viewer in conjunction with the Photo Booth or Quick Camera apps. - Camera Performance
-
- Yields approximates 100x by itself and increases with different microscope objectives
- 2MP 1/3.2" color CMOS imaging sensor
- 2.8x2.8μm pixel size
- Frame rates: 15 fps (1600x1200 resolution); 15 fps (1280x960 resolution); 30 fps (640x480 resolution)
- Manual and automatic settings: Exposure, Gain, White balance
- Use and Handling
-

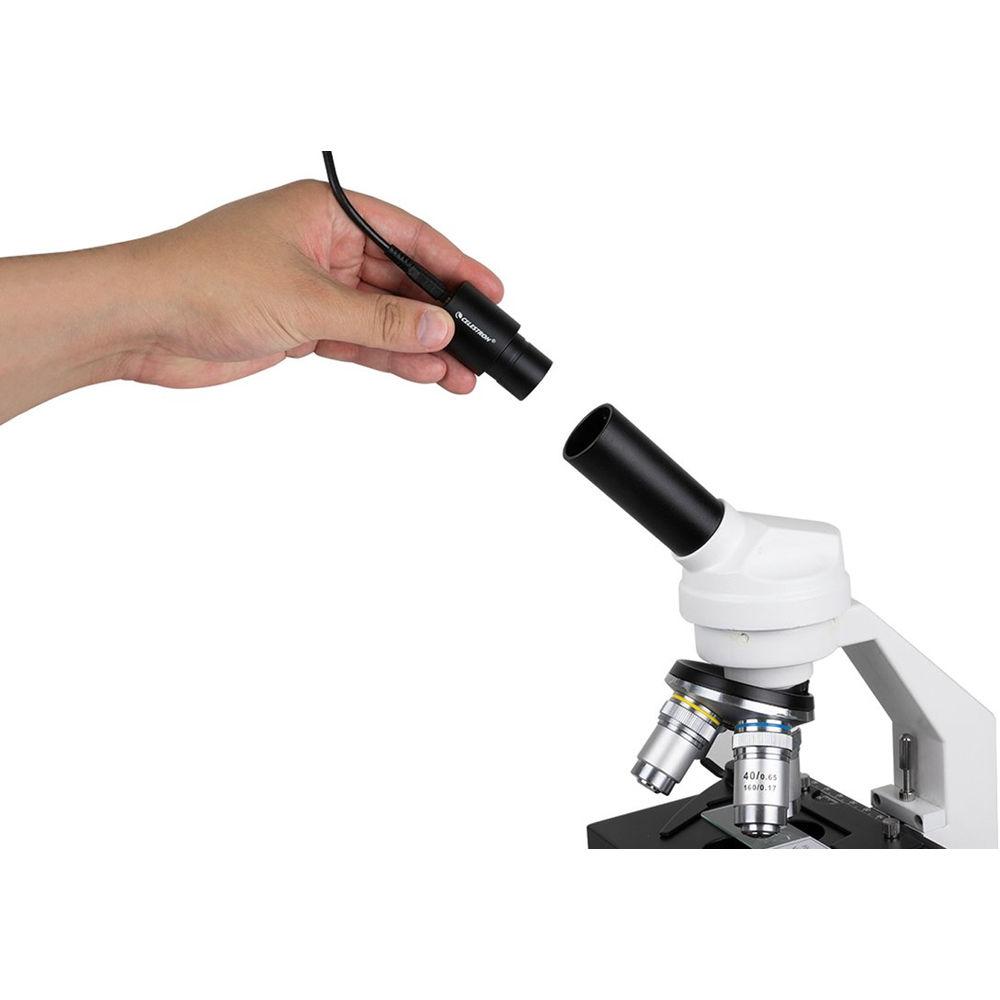

- Camera installs in place of the eyepiece
- Permanently attached USB cable
- Adapter ring included to fit onto 23.2 and 30mm eyepiece holders
- Powered by computer USB 2.0 port
- Operating temperature: 32 to 122°F
- Compact and lightweight design
- Computer Requirements
-
- CD/DVD player to load included software
- S-Viewer software allows you to control the camera and capture/save images to your computer, with built-in measurement and marking/annotation tools
- Windows XP
- Windows Vista
- Windows 7
- Windows 8
- Windows 10
- S-Viewer software only for Windows systems; can be used on Mac as an external camera with Photo Booth or Quick Camera apps

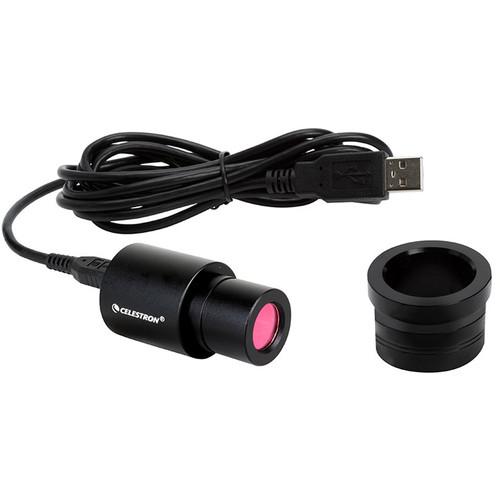

UPC: 050234444231 In the Box Celestron 2MP Digital Microscope Imager Eyepiece Adapter Ring Control Software S-Viewer and Driver CD Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Celestron 2MP Digital Microscope Imager in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCelestron 44423 Specs | Sensor Type | 2MP color CMOS | | Sensor Size | 1/3.2" | | Pixel Size | 2.8 x 2.8 μm | | Resolution | 1600 x 1200, max | | Frame Rate | 15 fps @ 1600 x 1200
15 fps @ 1280 x 960
30 fps @ 640 x 480 | | Power Requirement | 5.0 VDC from computer USB port | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Dimensions | 2.5 x 0.9" / 64.0 x 22.0 mm | | Weight | 1.5 oz / 42.0 g | | | | Package Weight | 0.355 lb | | Box Dimensions (LxWxH) | 5.1 x 3.8 x 1.85" |
