Product description - Celestron Micro Fi Wifi Microscope Product Overview

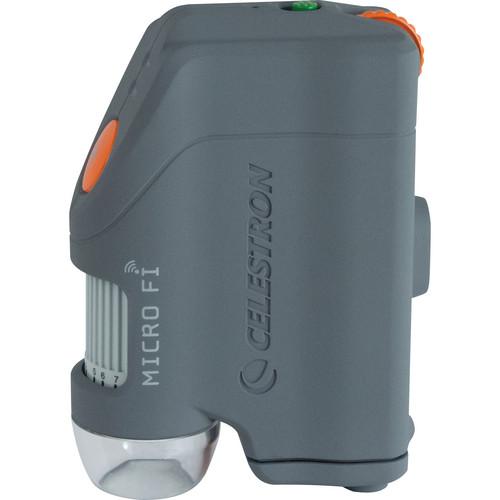

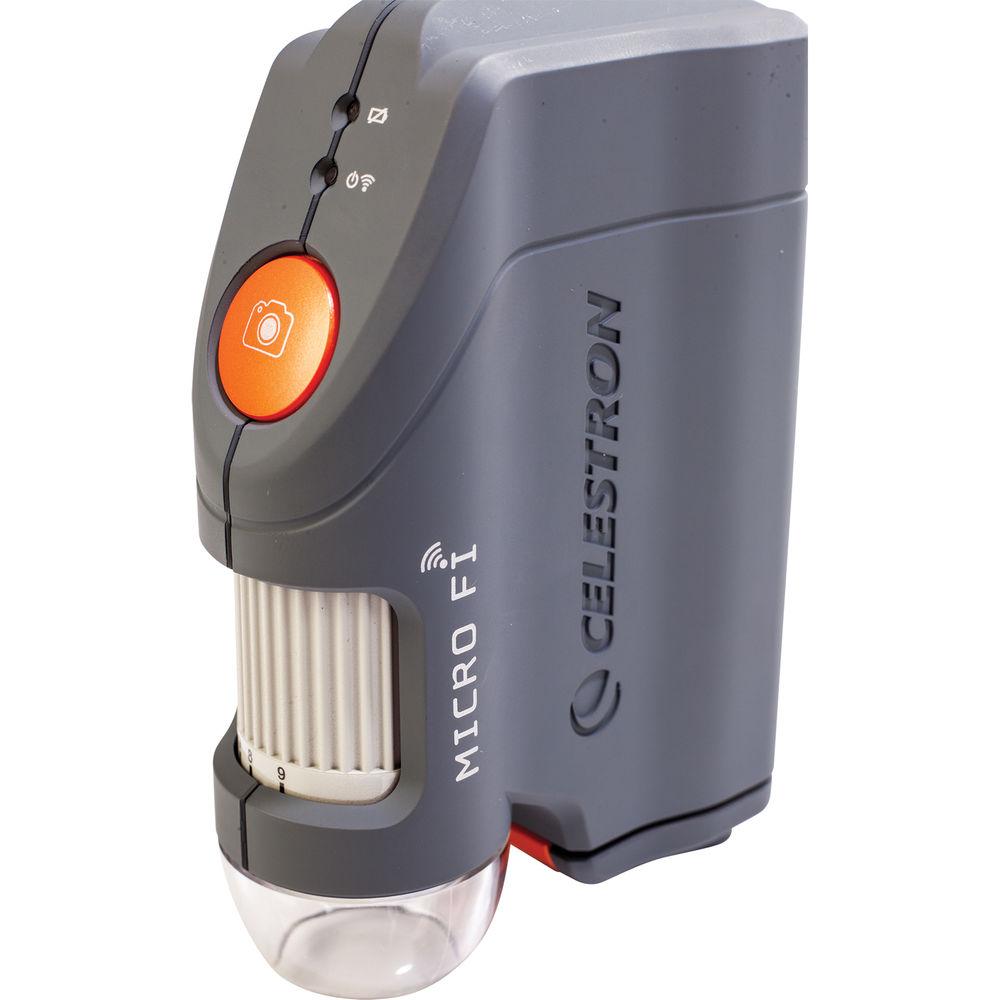

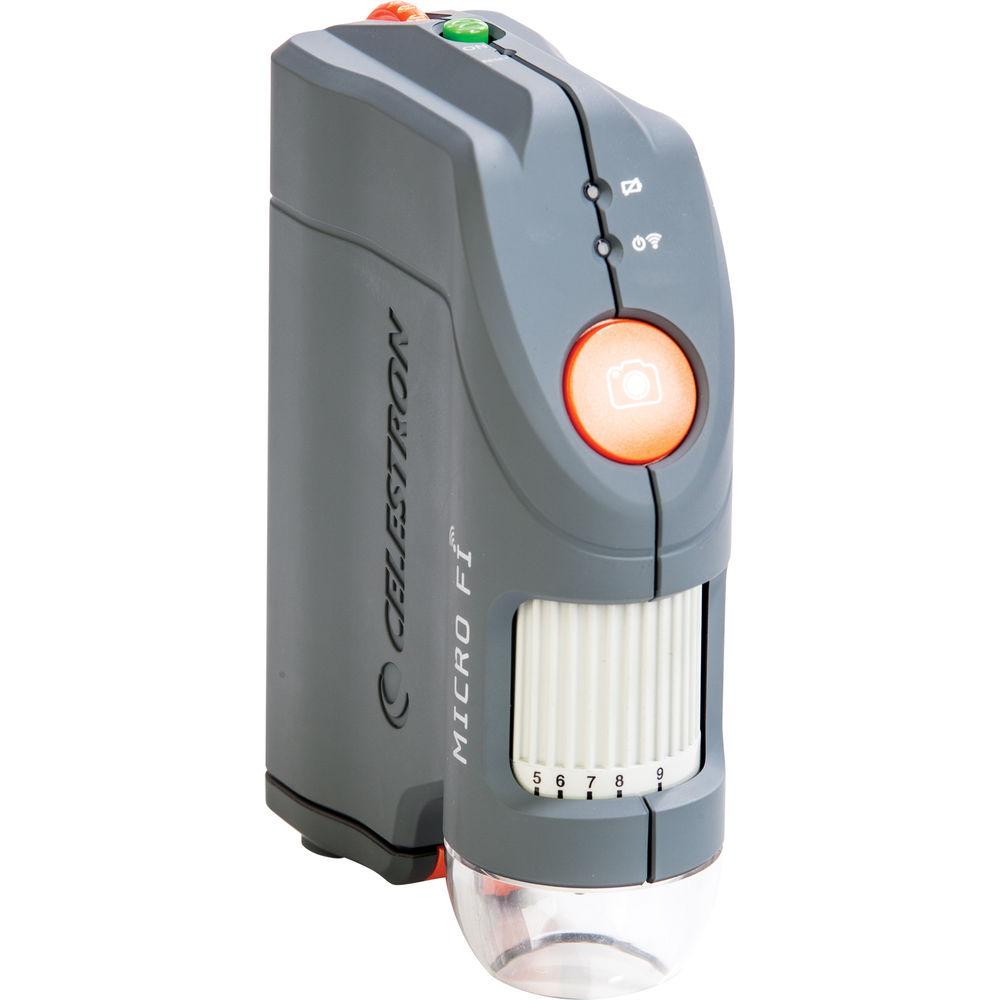

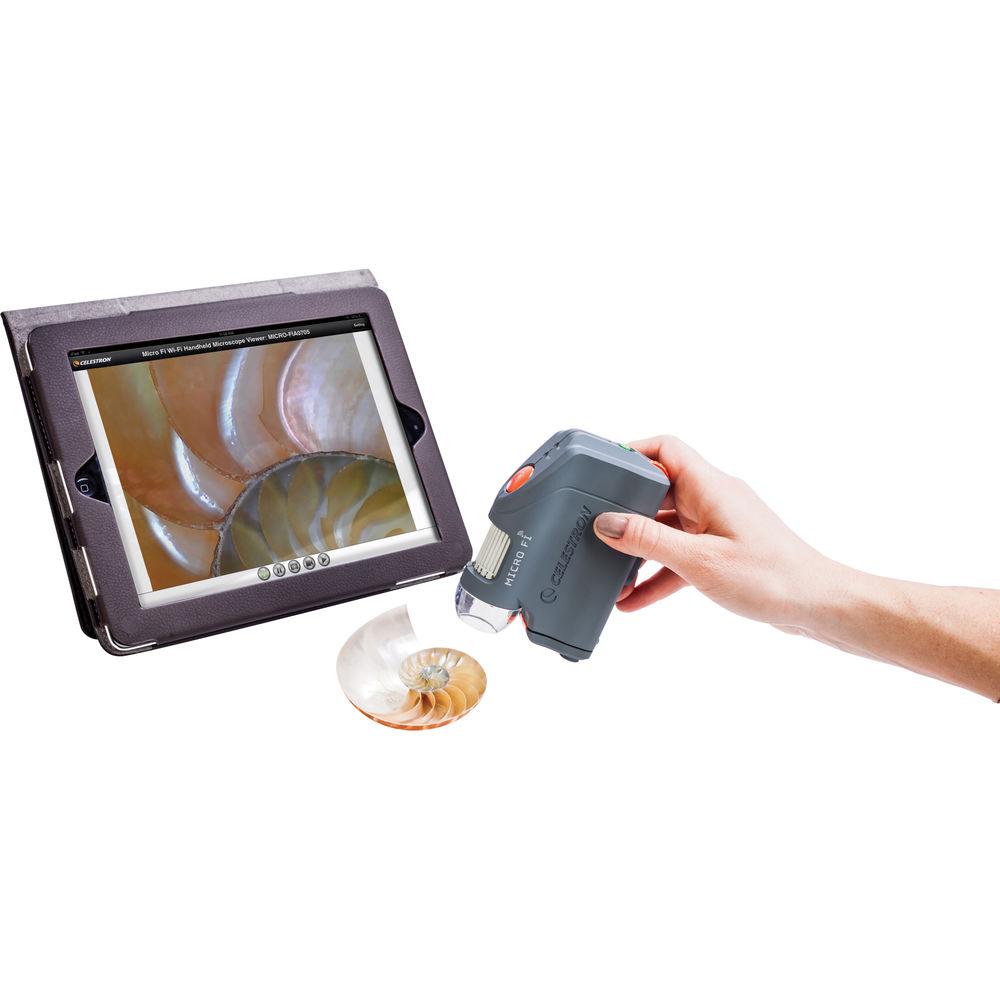

Celestron's 44313 Micro Fi Wi-Fi Microscope is an ergonomic, handheld microscope that features a CMOS imaging sensor for capturing digital imagery and a Wi-Fi transmitter for delivering images and videos wirelessly to a mobile Apple iOS or Android device of your choice. The 0.3MP, 1/4" imager delivers clear and bright images and videos with 15 fps frame rates. Powered by three user-supplied AA batteries, the microscope provides you with freedom of movement in your laboratory, class, or conference room. This optic features a built-in 2.4 GHz Wi-Fi transmitter that can connect to up to three mobile devices simultaneously at a range of up to 30'. To reveal the microworld, the optical system offers a 2-element lens with an infrared-reducing reflective coating and up to 80x magnification. With a focusing wheel located on the side, you have a focusing range from 0.4" to infinity in microscope mode. You can also use this optic as a surveillance camera if you set its focus to infinity. To ensure bright and clear images, the imaging system aided by 6 bright white LEDs that are arrange in a ring configuration. The polymer housing offers contoured shape for a comfortable grip, conveniently located control buttons near your thumb and index finger. If your application requires, a built-in metal 1/4"-20 tripod socket will provide a secure and stable connection to most standard tripods. -
- 80x digital microscope
- Becomes a surveillance camera with focus at infinity
- 0.3MP, 1/4" CMOS sensor
- Captures images and 15 fps videos
- Wi-Fi transmitter broadcast at 2.4 GHz
- 30' transmission range

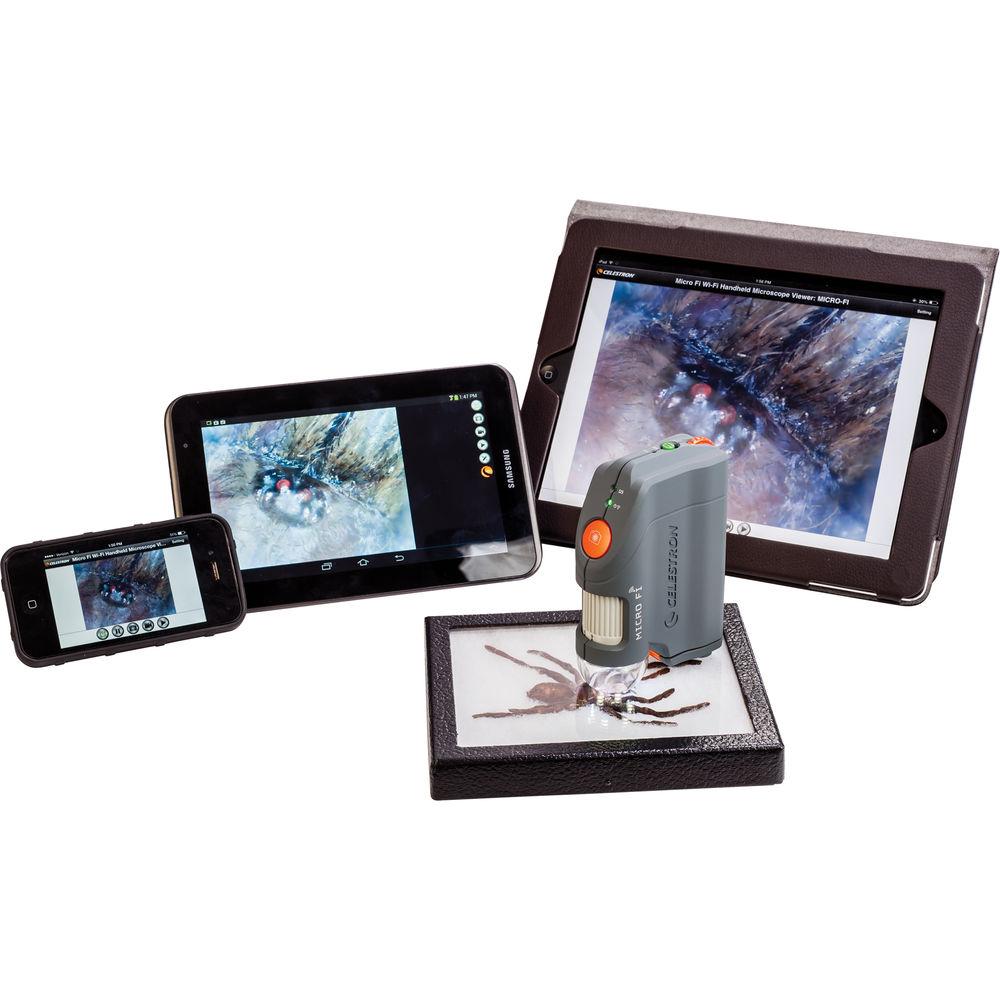

- Connectivity up to 3 mobile devices
- 2-element lens system infrared-reflection coating
- 6-LED illumination with adjustable brightness
- Two green LED function indicators
- Coarse focusing 0.4" to infinity
- Power: 3 x AA batteries
- Polycarbonate construction
- Ergonomic and compact body design
UPC: 050234443135 In the Box Celestron 44313 Micro Fi Wi-Fi Microscope (Gray) - Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Celestron 44313 Micro Fi Wi-Fi Microscope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCelestron Micro Fi Specs | | | Optical Magnification | 1x to 80x | | Max Resolution | 0.3 MP | | Sensor | 1/4" CMOS | | Working Distance | 0.4" to Infinity / 10 mm to Infinity | | | | Frame Rate | 15 fps | | File Format | MPEG-4 | | | | Illumination Type | 6 x LED | | | | Wireless Connectivity | Wi-Fi | | | | Operating Temperature | 32 to 122°F / 0 to 50°C | | | | Battery | 3 x AA Alkaline, NiMH (2-Hour Runtime) | | Mounting Thread | 1/4"-20 | | Dimensions | L: 3.2 x W: 1.4 x H: 4.4" / L: 80.1 x W: 34.5 x H: 111.6 mm | | | | Package Weight | 0.645 lb | | Box Dimensions (LxWxH) | 8.25 x 6.45 x 2.3" |
