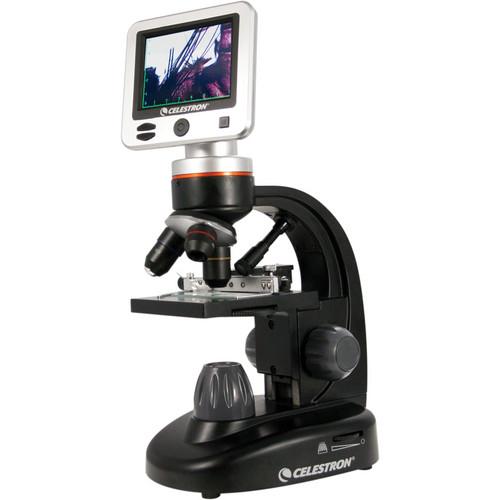

User Manual for Celestron 44341 LCD Digital Microscope II Click to enlarge the picture
Contents of the user manual for the Celestron 44341 LCD Digital Microscope II
- Product category: Digital Microscopes Celestron
- Brand: Celestron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Celestron Digital Microscopes
 |
User manual for the Celestron 44341 LCD Digital Microscope II contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Celestron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Celestron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Celestron product will considerably shorten its lifespan!
|
Product description - LCD Digital Microscope II Tour
- Digital Microscope Kit Tour

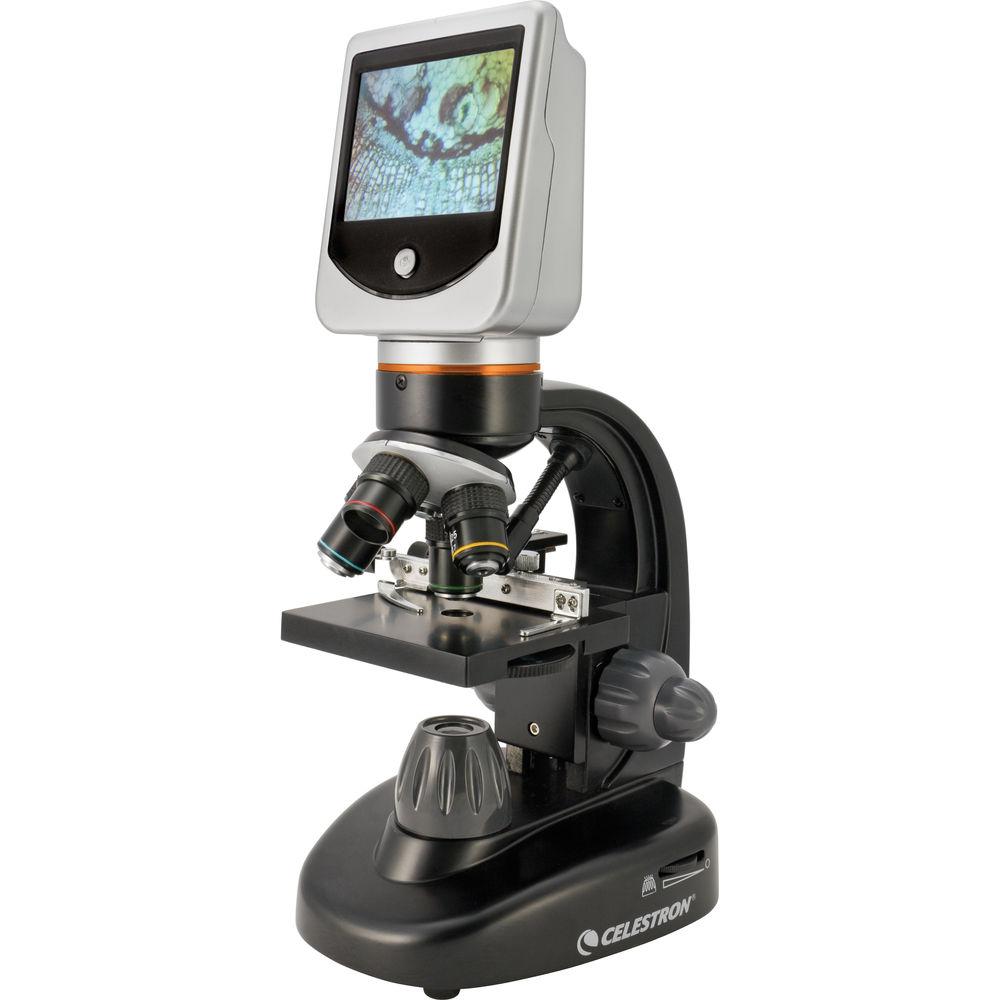

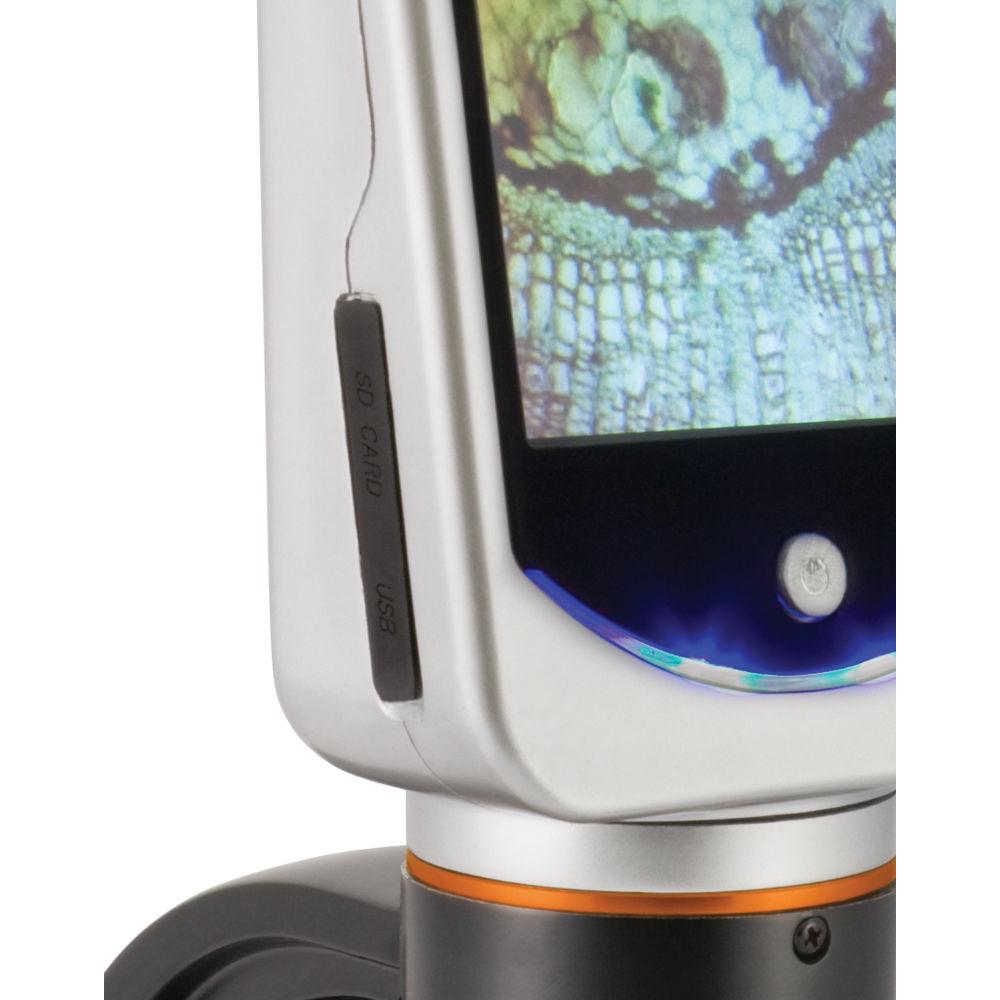

Built around its 5.0MP CMOS sensor, Celestron's 44341 LCD Digital Microscope II is capable of capturing high-resolution color images and videos at 30 fps. You can view them on the built-in 3.5" color LCD display with an effective magnification of up to 400x or (with additional 4x digital zoom) on an external monitor with magnifying power of up 1600x. Also noteworthy is the 3.5 x 3.5" mechanical stage. The stage features a full X-Y motion control using two precision Vernier micrometers and offers a metal bracket for holding your specimens. To make saving your findings a seamless experience, the LCD module offers an easy-to-use control panel, a 32GB microSD memory slot, and a mini-USB data port. To provide vivid and crisp images, the optics feature achromatic objectives and bright 8-LED illumination system with adjustable brightness. In addition to digital output, this scope features an AV video out port.
Its construction features an arched frame to serve as a carry handle and a 4 x AA battery compartment for cordless operation in the field. Using four alkaline AA batteries will allow you 3 hours of uninterrupted, cordless operation. - Digital Sensor, Display, and Illumination
-
- 5.0MP CMOS sensor
- Captures images and 30 fps videos
- Effective magnifying power: 10x
- 3.5" TFT LCD color display
- 320 x 240 display resolution
- Onscreen 4x digital zoom
- 32GB external memory card slot
- Top and bottom LED illumination with adjustable brightness
- 0.65NA bottom condenser lens
- Power: AC adapter or 4 x AA batteries
- Optical System
-
- 4x, 10x, 40x achromatic objectives
- 40x, 100x, 400x magnification
- 160x, 400x, 1600x total magnification with 4x digital zoom
- Single motion coarse focusing
- Mechanical Stage
-
- 3.5 x 3.5" mechanical metal stage
- X-Y Vernier precision motion controls
- 6-position filter wheel
- Filters: red, blue, and green
- Aperture diaphragms: 1mm, 3mm, and 6mm
- Construction Details
-
- Metal frame
- 180° display module rotation
- 3-hole click-stop objective turret
- Arched back serves as a carry handle
- Constructed for cordless operation
- Battery compartment for four AA batteries
- Dust cover and carry case included
UPC: 050234443418 In the Box Celestron 44341 LCD Digital Microscope II - 1.0GB SD Card
- 5 x Prepared Slides
- Canvas Carrying Case
- Dust Cover
- AC Adapter with 4 International Plugs
- Limited 2-Year Warranty
More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Celestron 44341 LCD Digital Microscope II in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCelestron 44341 Specs | | | Optical Magnification | 40x, 100x, 400x | | Digital Magnification | 160x, 400x, 1600x | | Objective | 4x, 10x, 40x | | Max Resolution | 5 MP | | Sensor | CMOS | | Focusing | Coarse | | | | Illumination Type | LED | | Condenser | 0.65 Numerical Aperture (NA) | | | | Wired Connectivity | USB 2.0 | | Memory Card Type | SDHC (Up to 32 GB) | | | | Battery | 4 x AA (3-Hour Runtime) | | Power | 120 to 240 VAC, 50 / 60 Hz | | Display | Yes, 3.5" / 89 mm Color | | Dimensions | L: 6.7 x W: 5.5 x H: 13.0" / L: 170.0 x W: 140.0 x H: 330.0 mm (Microscope)
L: 3.5 x W: 3.5" / L: 88.0 x W: 88.0 mm (Specimen Stage) | | Weight | 56 oz / 1.6 kg | | | | Package Weight | 7.05 lb | | Box Dimensions (LxWxH) | 16.0 x 9.3 x 7.5" |
