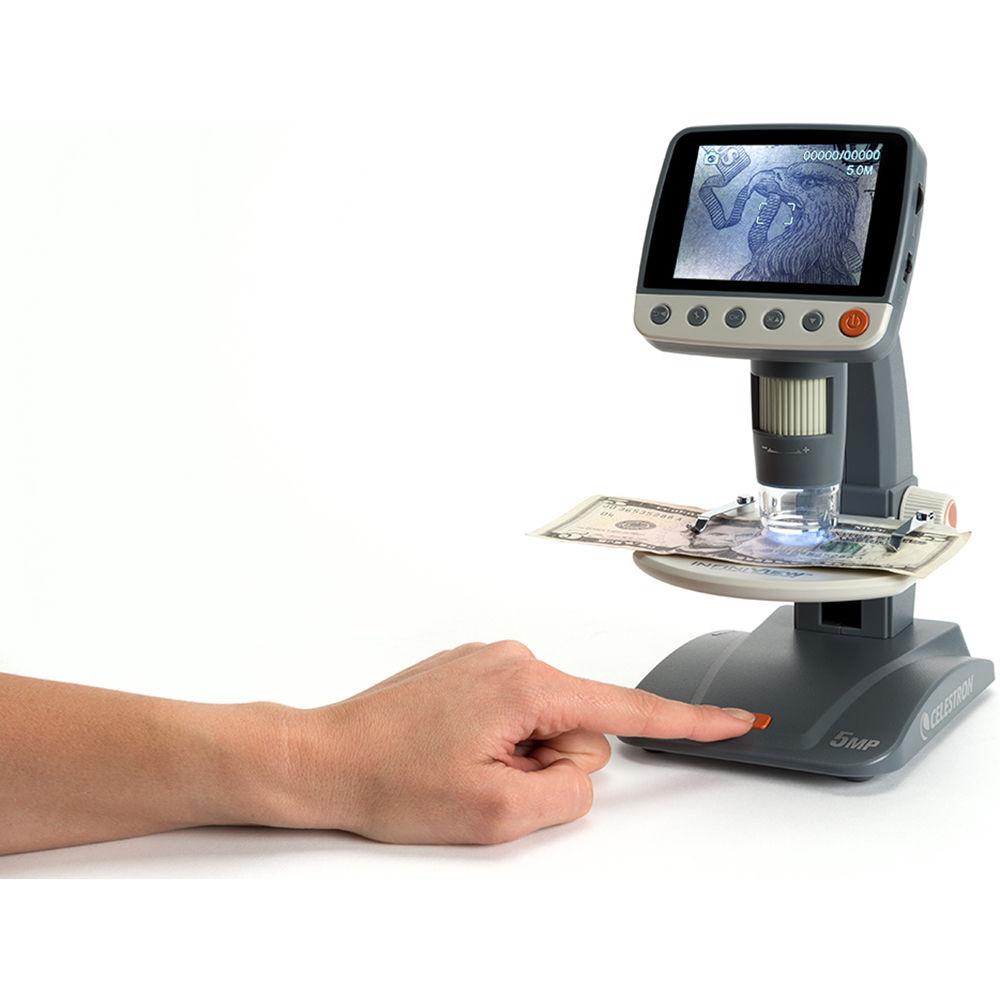

User Manual for Celestron 44360 Infiniview LCD Digital Cordless Microscope Click to enlarge the picture
Contents of the user manual for the Celestron 44360 Infiniview LCD Digital Cordless
- Product category: Digital Microscopes Celestron
- Brand: Celestron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Celestron Digital Microscopes
 |
User manual for the Celestron 44360 Infiniview LCD Digital Cordless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Celestron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Celestron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Celestron product will considerably shorten its lifespan!
|

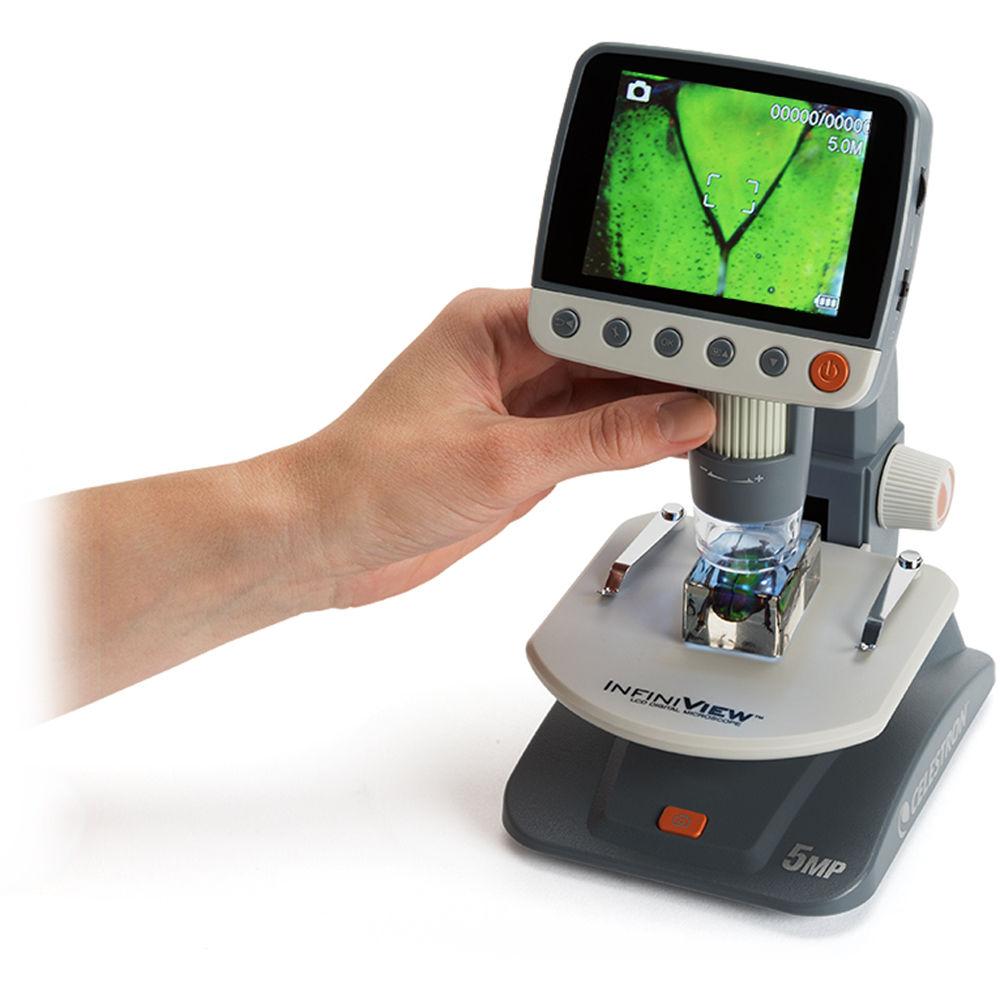

Product description - Celestron Infiniview Microscope Product Overview

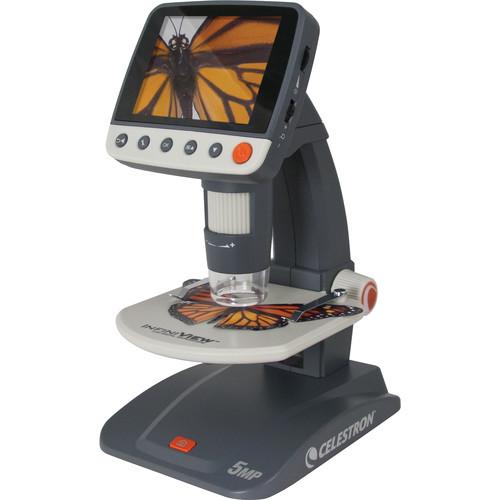

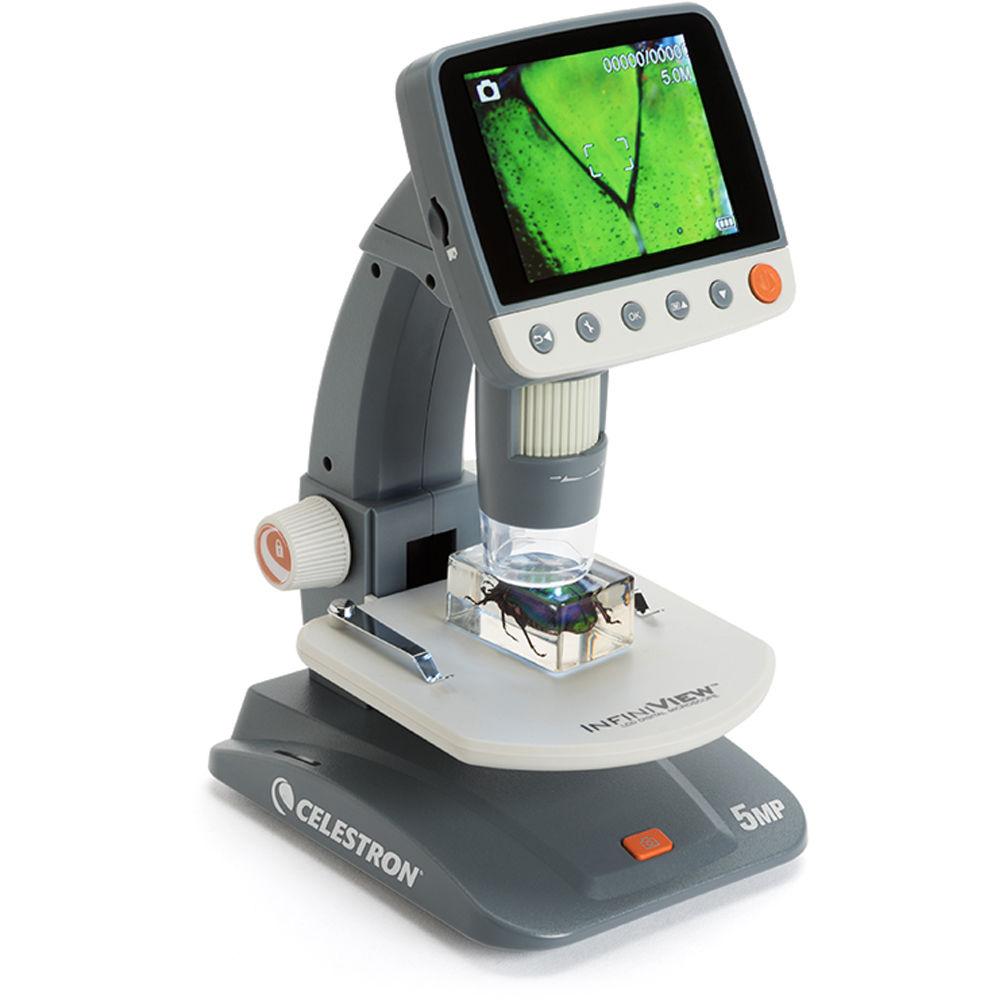

Rock your field trip, lab, or classroom with Celestron's 44360 Infiniview LCD Digital Cordless Microscope. This full-size digital microscope is built around its 5.0MP digital CMOS sensor, capable of capturing high-resolution color images and videos at 30 frames per second and with a variable shutter speed. You can view them on the built-in 3.5" color LCD display with the effective magnification of 160x or on an external monitor with a magnifying power of 800x, which even allows you to study cellular structures. To make saving your findings and observations a seamless experience, the LCD module offers an easy-to-use control panel, a 32GB microSD memory slot, and a mini-USB data port. To provide vivid and crisp images, the optics feature an infrared-reducing 5-element glass lens system and an 8-LED illumination system with adjustable brightness. You are also empowered by the generous focusing range to ensure that no details will be left unseen. In addition to digital output, this scope features an AV video out port in the back.

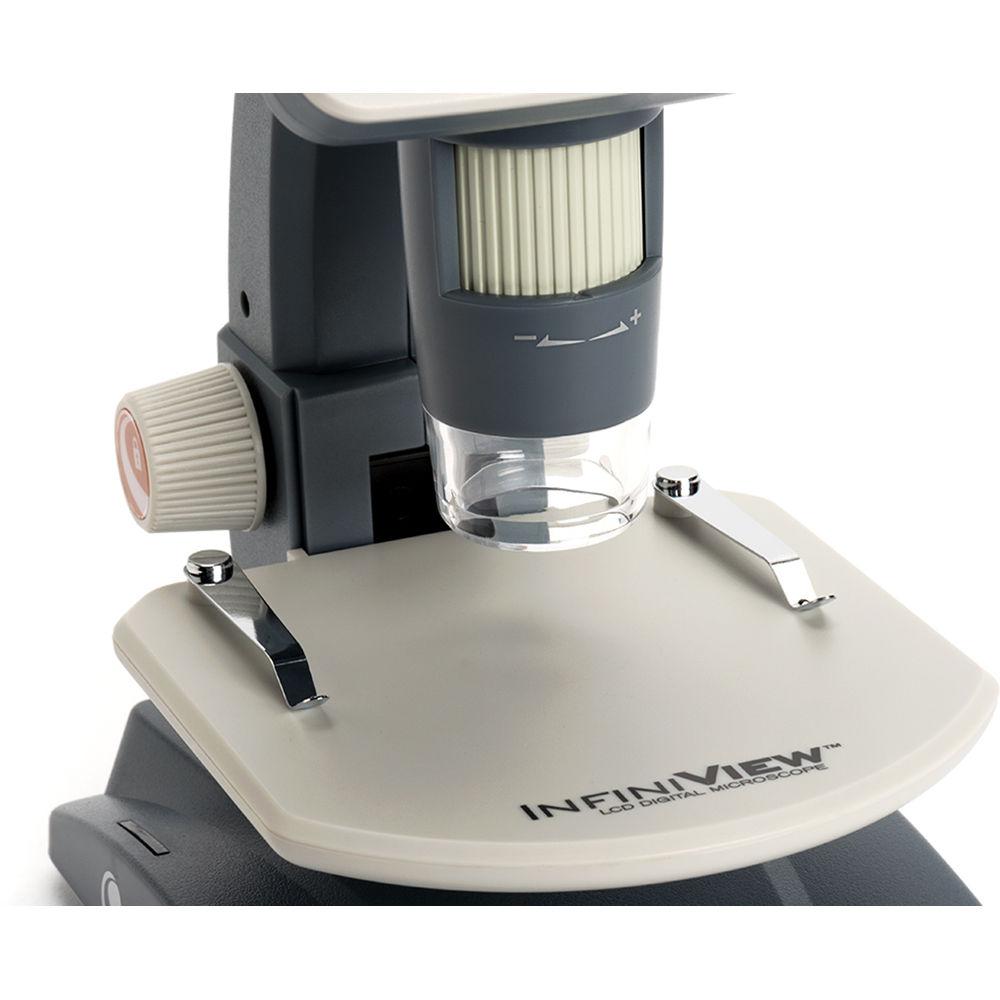

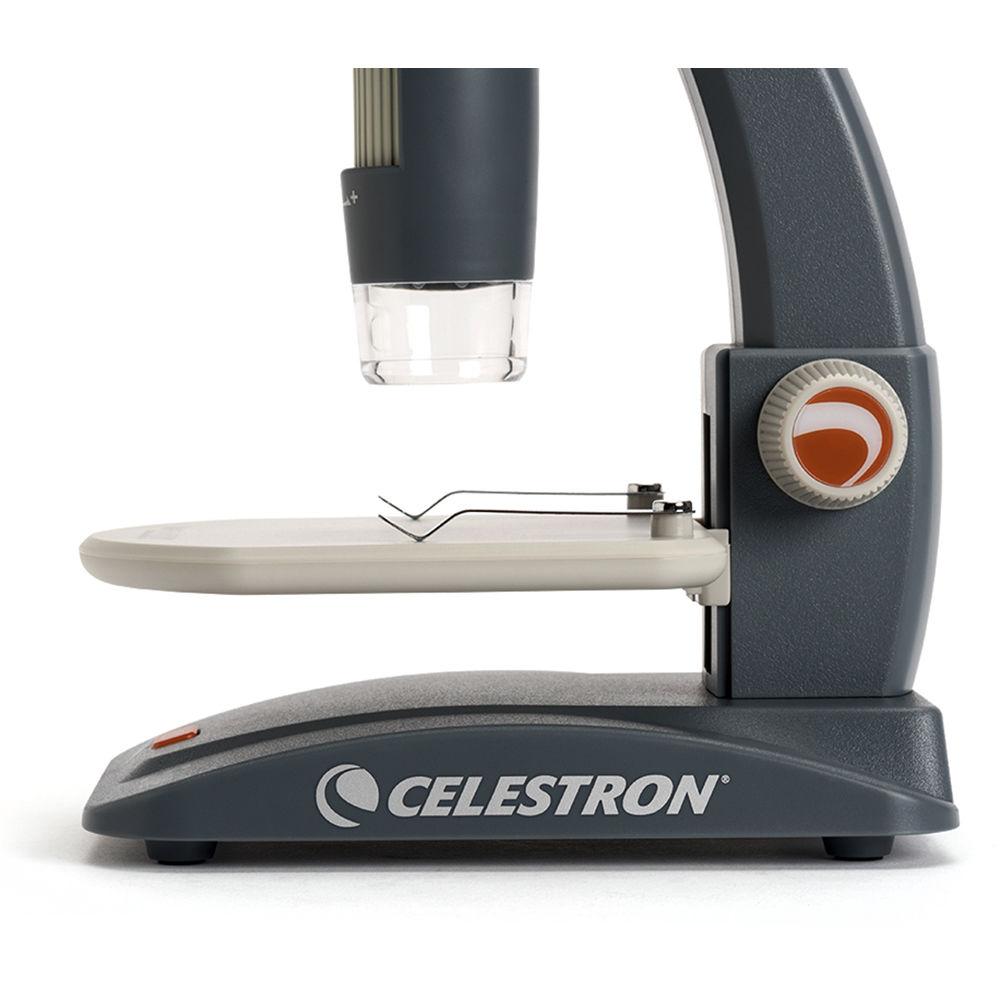

This versatile device also does not cut short on comfort and ergonomics. It features an arched frame to serve as a carry handle and packs a 1050mAh rechargeable battery for 2 hours of uninterrupted cordless operation. To provide enough room for movement, its sturdy polymer stage is extra wide (4.4 x 4.4") and offers two pre-loaded metal clips for securing your specimens. Using the knob on the right, you can move the stage up or down to reach an ideal sharpness of focus and then lock it with the left knob. - CMOS Sensor
-
- 5.0MP CMOS sensor
- Captures 5.0, 3.0, and 1.3MP images, and 12.0MP interpolated images
- Records 5.0MP videos at 30 fps
- Shutter speed from 1/1000 to 1 seconds

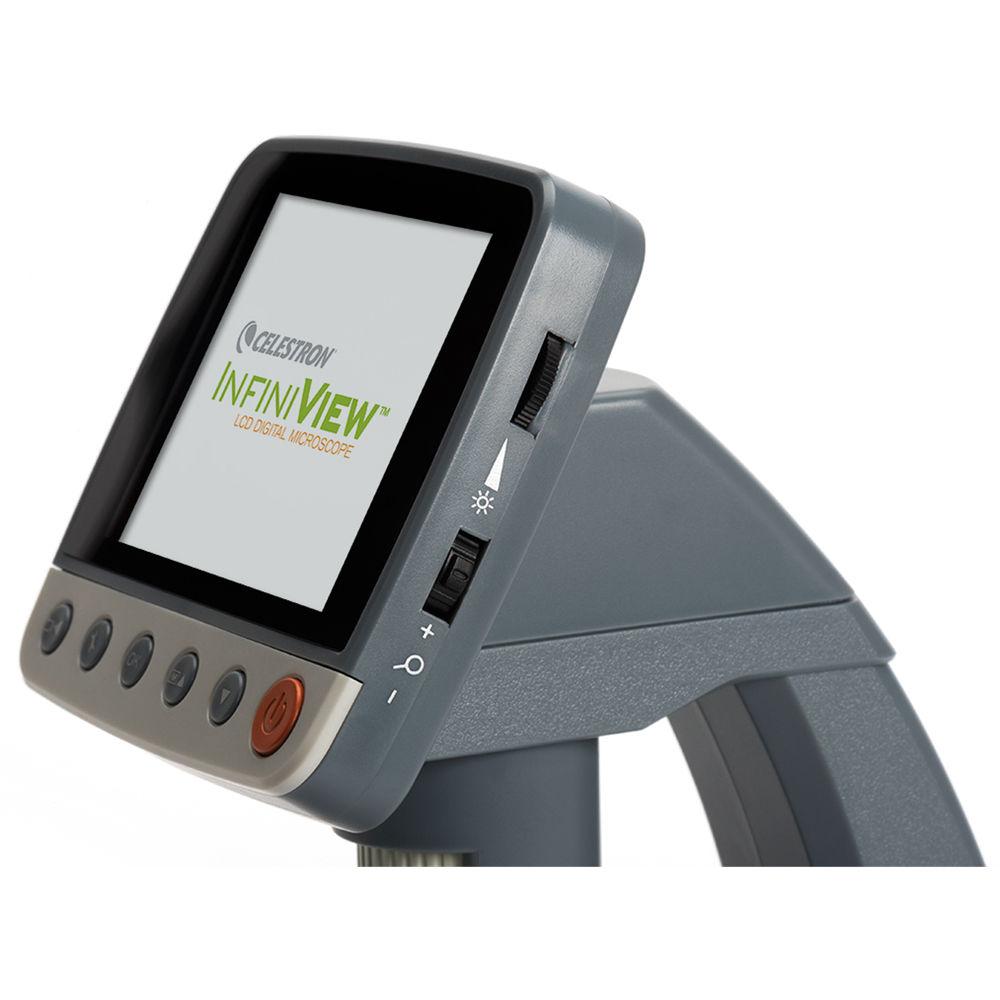

- TFT LCD Display
-
- 3.5" color LCD display
- 320 x 240 resolution
- 4x onscreen digital zoom
- Optical System & Illumination
-
- 2 - 160x optical magnification
- 800x magnification using digital zoom
- 5-element infrared-reducing glass lens system
- Effective focal length is 15.8mm
- Focusing range of 0.4" to infinity
- Low 0.1% image distortion
- Top 8-LED illumination ring with adjustable brightness
- Construction Details
-
- Full-sized polymer frame
- Ergonomic body design
- Focusing wheel is located on the optics module
- Stage lock knob is located on the left side of the frame
- Stage height knob is located on the right side of the frame
- Arched frame can serve as a handle
- Specimen stage allows 0.4" height adjustment
- Two pre-loaded metal clips for holding slides
- Built-in shutter control on base
- Rechargeable 1050mAh battery allows cordless operation for 2 h
- Mini-USB port for PC connectivity

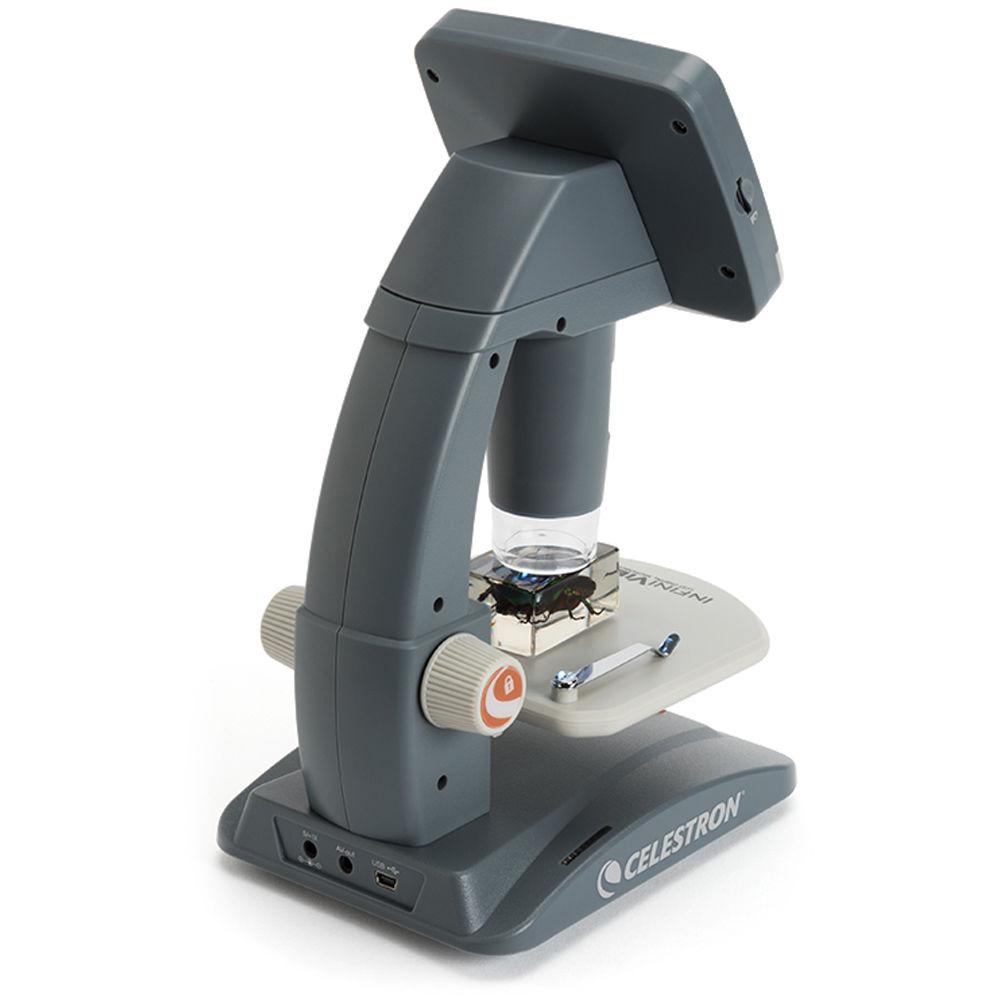

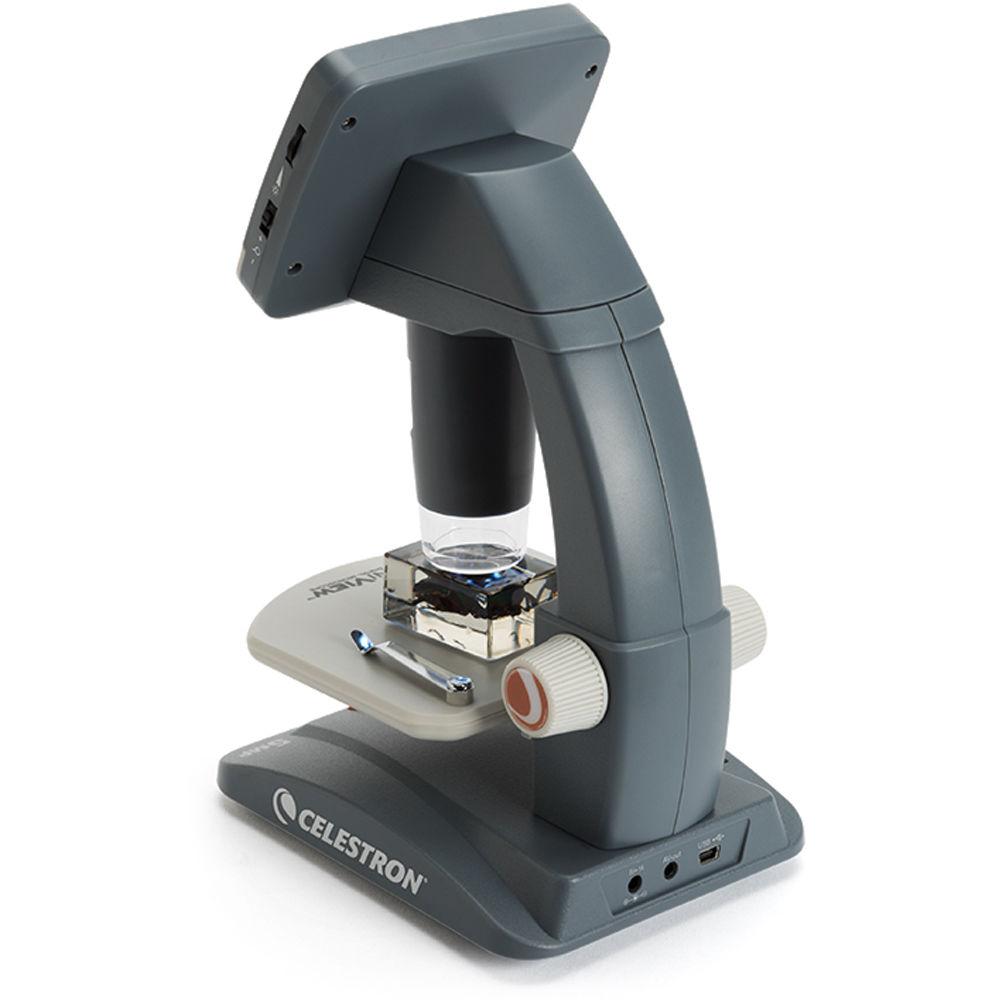

- Video out AV port

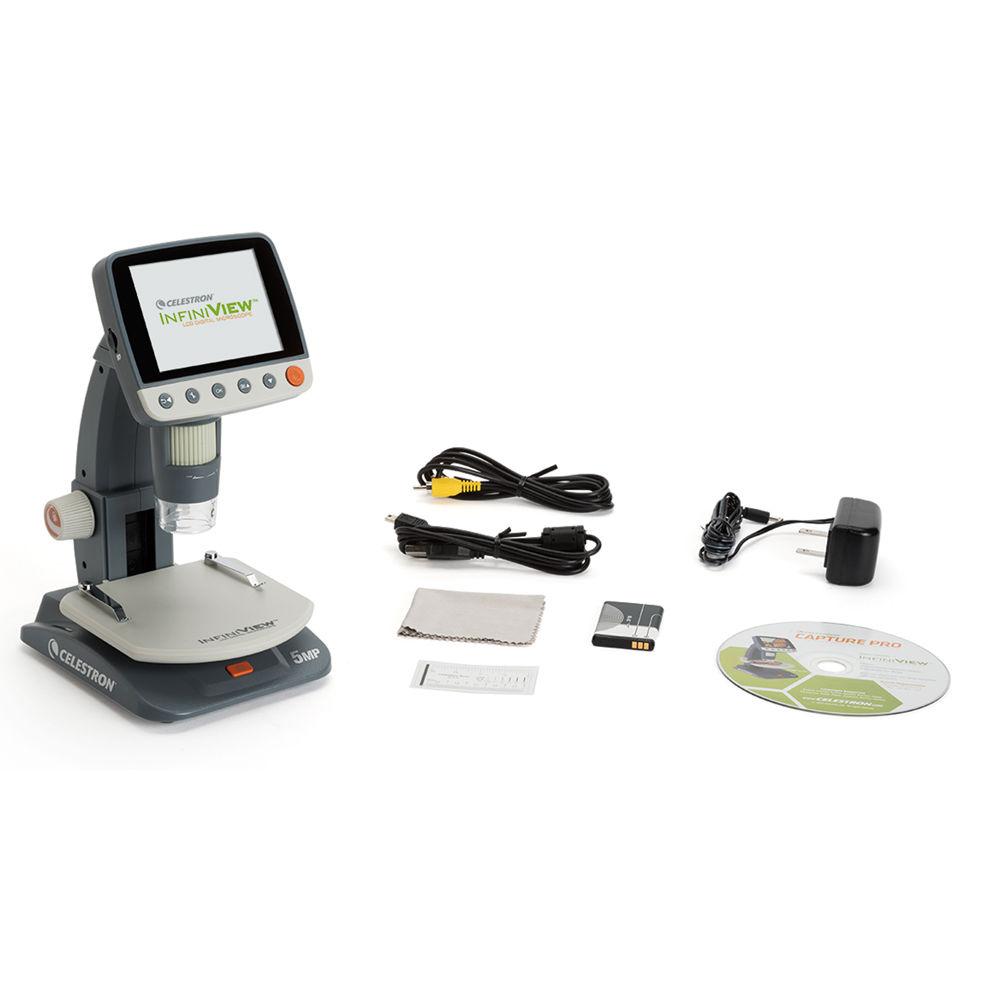

UPC: 050234443609 In the Box Celestron 44360 Infiniview LCD Digital Cordless Microscope (110 V, Gray) - AC Adapter
- Rechargeable Battery
- Video Out AV Cable
- USB 2.0 Cable
- Calibration Ruler
- Capture Pro Software
- Cleaning Cloth
- Limited 2-Year Warranty
More from Manufacturer ectbzytuzdewxzttwurzfarxcw Table of Contents
|
Upload User Manual
Have you got an user manual for the Celestron 44360 Infiniview LCD Digital Cordless Microscope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCelestron 44360 Specs | | | Optical Magnification | 20x to 200x | | Digital Magnification | 80x to 800x | | Max Resolution | 5 MP: 320 x 240 | | Additional Resolutions | 3 MP (Interpolated)
1.3 MP (Interpolated)
12 MP (Interpolated) | | Sensor | CMOS | | Working Distance | 0.4" to Infinity / 10 mm to Infinity | | | | Video Format | 640 x 480 at 30 fps | | | | Illumination Type | 8 x LED | | | | Wired Connectivity | Mini-USB | | Memory Card Type | microSD (Up to 32 GB) | | Compatible Operating Systems | Windows XP or Later
Mac OS X 10.6 | | | | Battery | 1 x Rechargeable (2-Hour Runtime) | | Power | USB Power | | Display | Yes, 3.5" / 89 mm Color | | Dimensions | L: 5.8 x W: 4.1 x H: 8.9" / L: 14.9 x W: 10.4 x H: 22.7 cm | | Weight | 56 oz / 1.6 kg | | | | Package Weight | 2.555 lb | | Box Dimensions (LxWxH) | 14.95 x 7.8 x 5.6" |
