Product description - FlipView LCD Digital Handheld Microscope

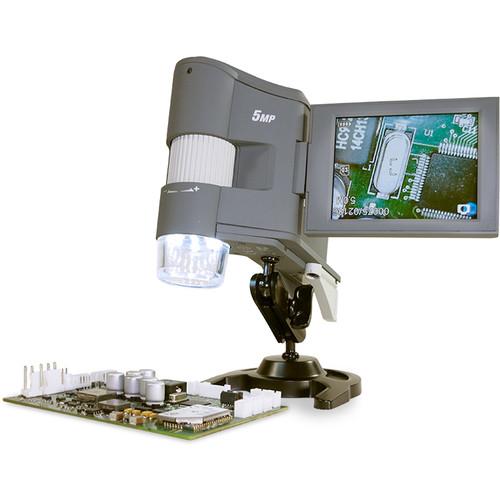

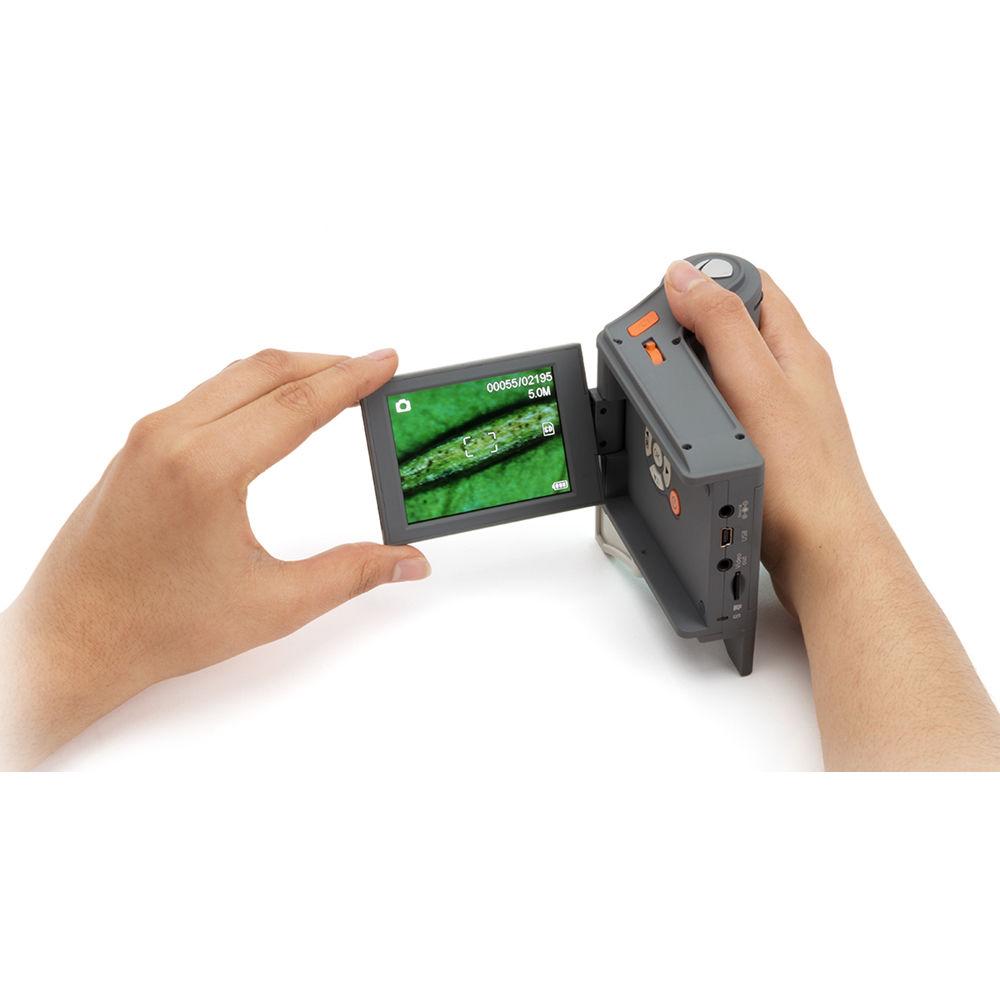

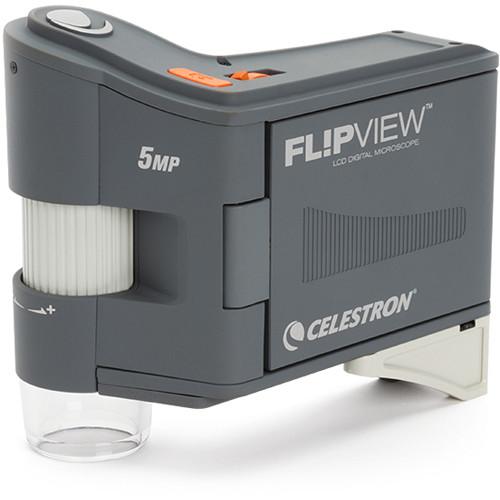

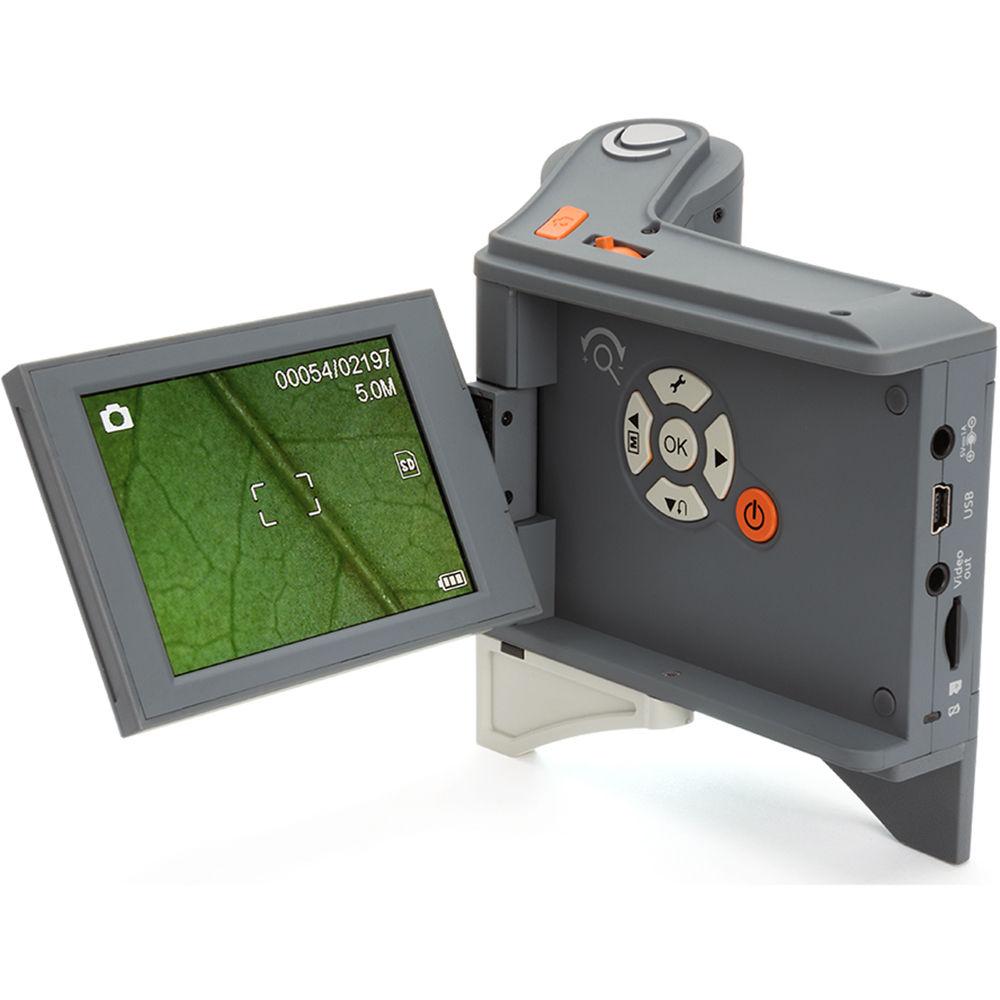

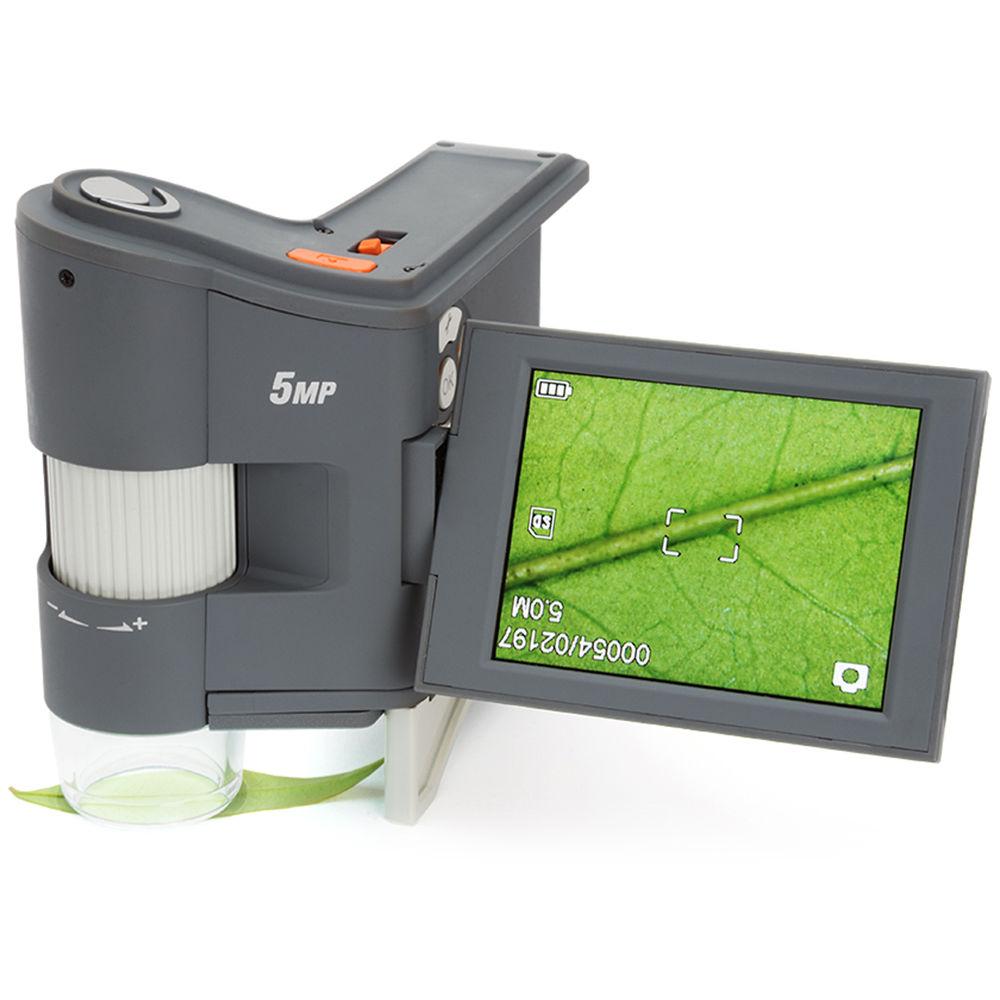

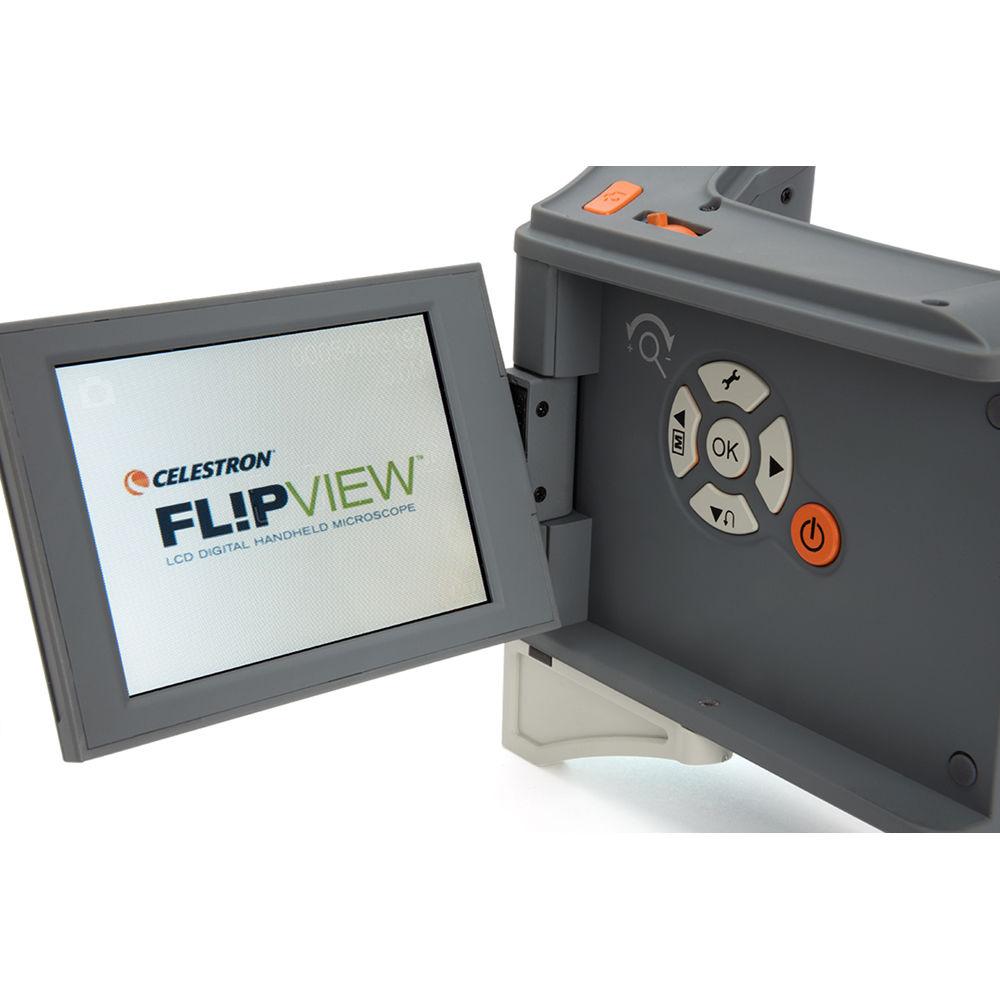

Celestron's 5.0MP FlipView LCD Digital Handheld Microscope can be used as as a handheld or tabletop magnification tool that can be a great portable companion in your home, lab, school, work, or in the field. The device and combines a 1/4" 5.0MP CMOS sensor with an infrared-reducing optical system to provide high resolution images and videos with a magnification range from 10x to 120x. To provide bright and clear images, it offers an 8-LED illumination system with adjustable bright white output. To offer flexibility in viewing visual data, the scope features a deployable 3" color TFT LCD screen, which can be rotated 90 by 180° to provide most convenient viewing position. Deploying the LCD screen allows you to access a menu pad, which offers control over the operating modes, functions, and connectivity to your PC.

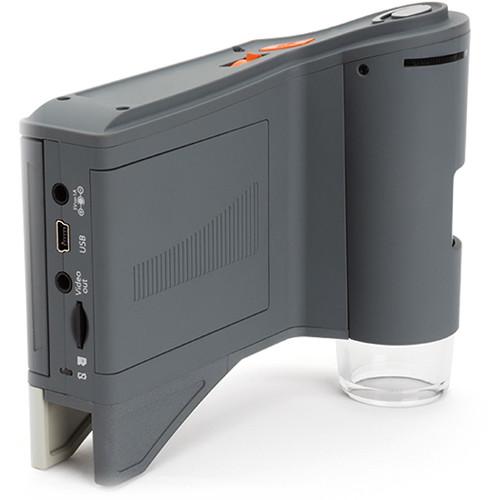

The microscope is compatible with both Windows and Mac operating systems and offers an integrated mini-USB port, an AV video output port, and a 32GB micro-SD memory slot. In cordless operation mode, it is powered by a 1050 mAh rechargeable lithium-ion battery. It comes with an articulating stand, charging adapter, carry case, USB cable, mini-USB and AV video cables, CD with MicroCapture Pro, calibration tool, and cleaning cloth. - Imager, Optics, Illumination
-
- 5.0MP, 1/4" CMOS color imager
- Captures VGA videos at 30 fps
- 10 - 120x magnification on built-in LCD
- Up to 300x magnification on a PC monitor
- Maximum magnification with digital 4x zoom: 1200x
- Lens system contains 5 IR-cut elements
- Effective focal length: 15.8mm
- FOV: 13°
- 8 LED illumination system with controllable brightness
- 6-positon filter wheel with red, green, blue filters and 1mm, 3mm, and 6mm apertures
- Display
-
- TFT 3" color LCD display
- Deployable and retractable
- 90 by 180° rotation
- Manual focusing
- Use and Handling
-
- Menu pad can be reached when the screen is deployed
- Handheld, tabletop, or mounted operation options
- Flicker correction system: 50 - 60 Hz
- microSD memory card slot with 32GB maximum storage capacity
- Compatible with Windows and Mac
- Construction
-
- AV video output
- USB 2.0 PC connectivity
- Micro-USB port allows connection to a PC
- Powered by an external power supply or a internal rechargeable battery
- 1/4"-20 socket for tripod adaptability
- Stand included

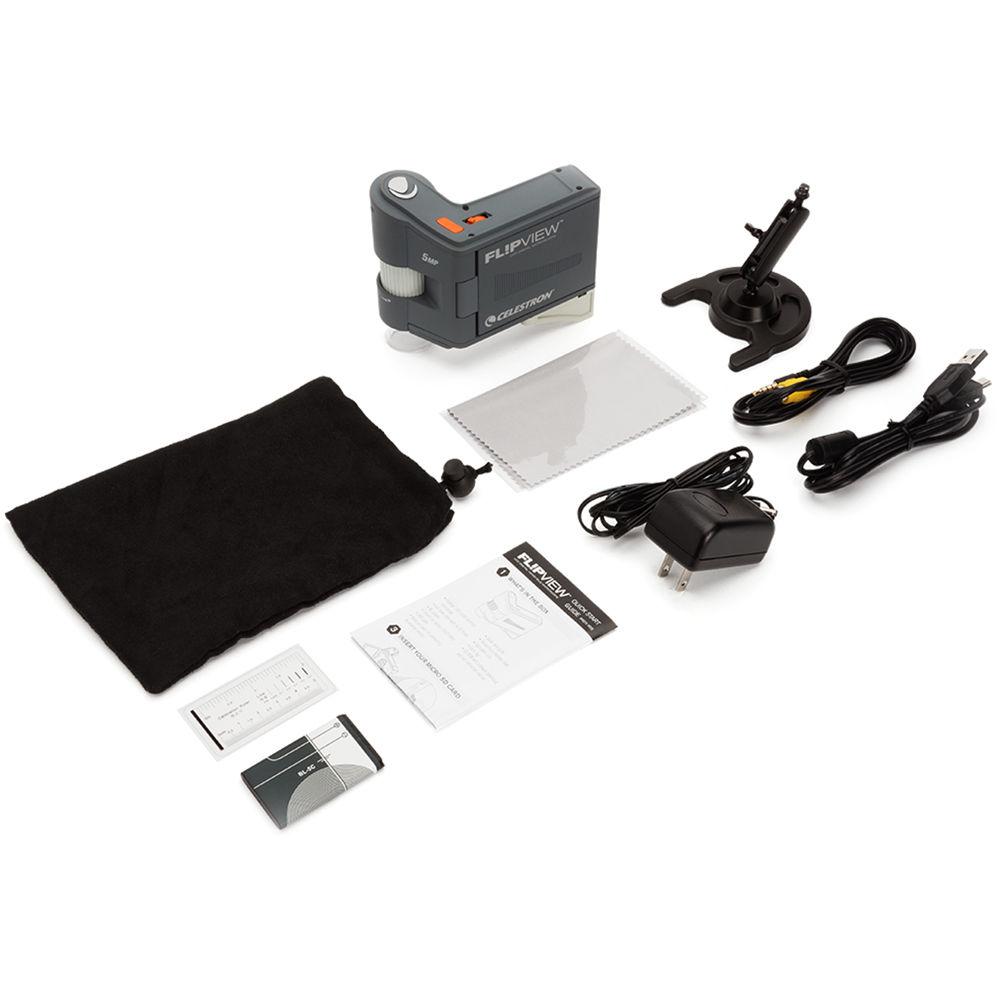

UPC: 050234443142 In the Box Celestron 5.0MP FlipView LCD Digital Handheld Microscope - Calibration Tool
- Articulating Metal Stand
- Cleaning Cloth
- USB Cable
- Mini-USB Cable
- AV Out Cable
- CD with MicroCapture Pro
- Carry Bag
- AC Adapter
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Celestron 5.0MP FlipView LCD Digital Handheld Microscope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCelestron 44314 Specs | | | Optical Magnification | 3" Monitor: 10x to 120x | | Digital Magnification | Monitor: 300x (Max) | | Max Resolution | 5 MP | | Additional Resolutions | 3 MP (Interpolated)
1.3 MP (Interpolated)
0.3 MP (Interpolated)
12 MP (Interpolated) | | Sensor | 1/4" CMOS | | Working Distance | 0.4" to Infinity / 10 mm to Infinity | | | | Video Format | 640 x 480 at 30 fps | | | | Illumination Type | 8 x LED | | | | Wired Connectivity | AV Port, USB 2.0 | | Memory Card Type | microSD (Up to 32 GB) | | Compatible Operating Systems | Windows XP or Later
Mac OS X 10.6 | | Supported Languages | Dutch
English
French
German
Italian
Japanese
Korean
Polish
Portuguese
Russian
Simplified Chinese
Spanish | | | | Battery | 1 x Built-In (2.5-Hour Runtime) | | Power | 100 to 240 VAC, 50 / 60 Hz | | Display | Yes, 3" / 76.2 mm Color | | Dimensions | L: 4.6 x W: 4.3 x H: 2.5" / L: 118.0 x W: 108.0 x H: 64.0 mm (Microscope)
L: 3.0 x W: 2.8 x H: 1.8" / L: 76.0 x W: 70.0 x H: 44.5 mm (Stand) | | Weight | 7.4 oz / 212 g (Microscope)
11.2 oz / 317 g (Microscope, Stand) | | | | Package Weight | 1.59 lb | | Box Dimensions (LxWxH) | 8.95 x 6.95 x 5.35" |
