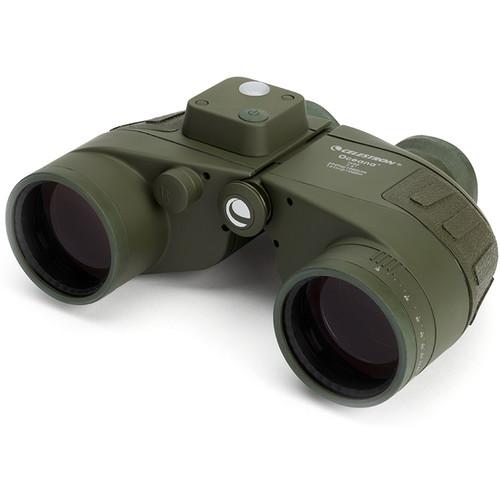

User Manual for Celestron 7x50 Oceana Porro WP IF and RC Military Camouflage Click to enlarge the picture
Contents of the user manual for the Celestron 7x50 Oceana Porro WP IF
- Product category: Binoculars Celestron
- Brand: Celestron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Celestron Binoculars
 |
User manual for the Celestron 7x50 Oceana Porro WP IF contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Celestron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Celestron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Celestron product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More - Oceana 7x50 Military Binoculars Tour

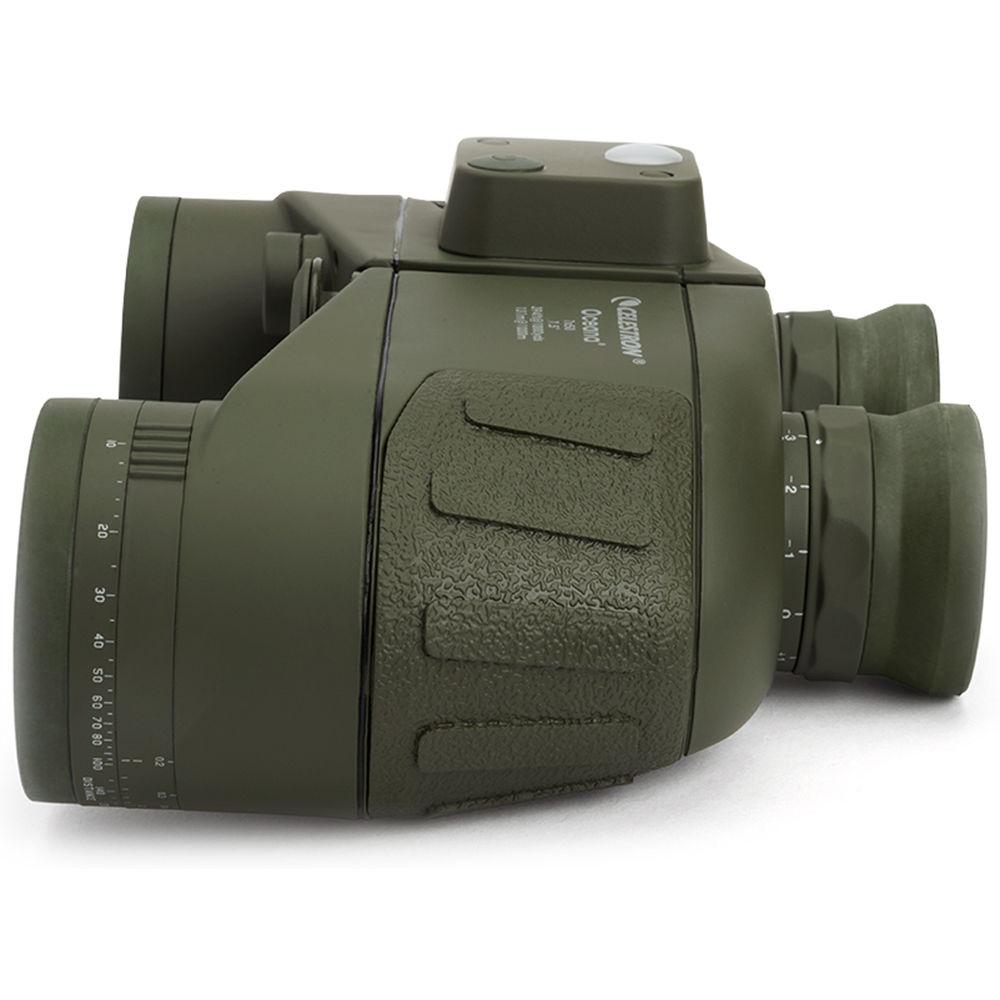

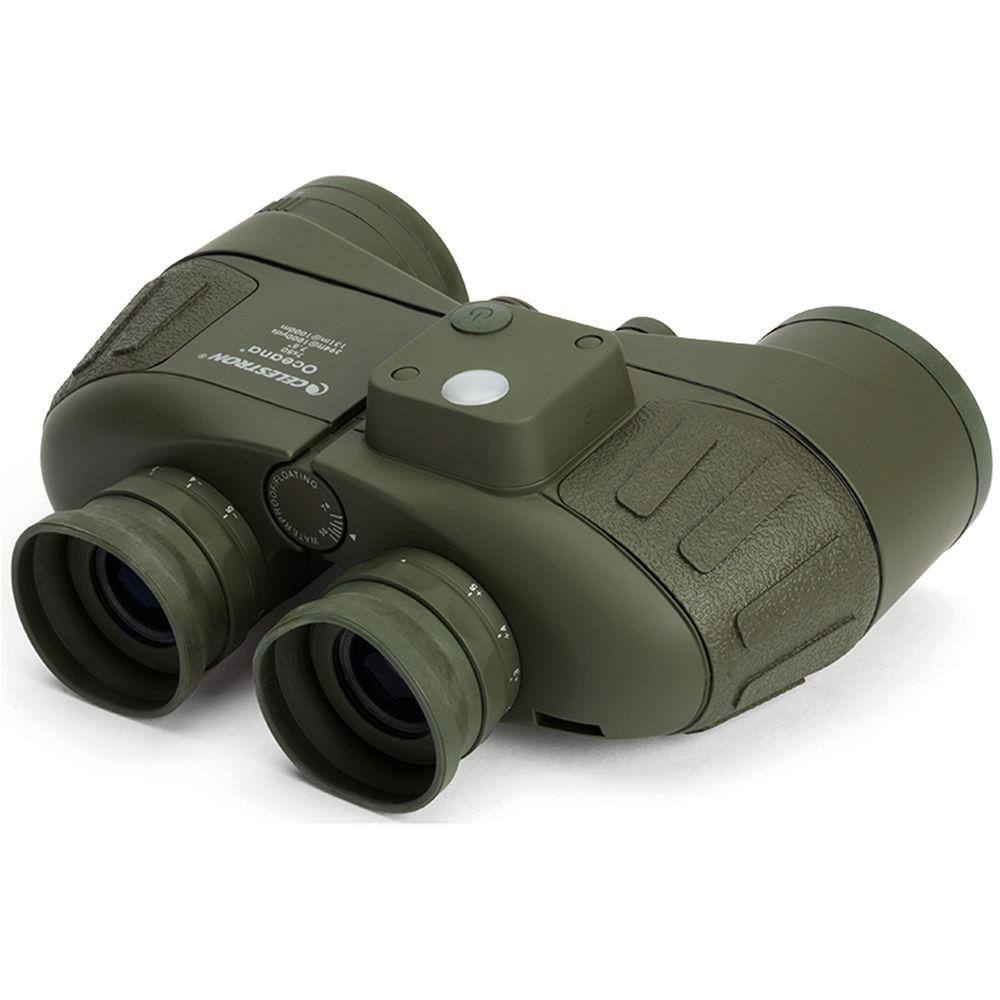

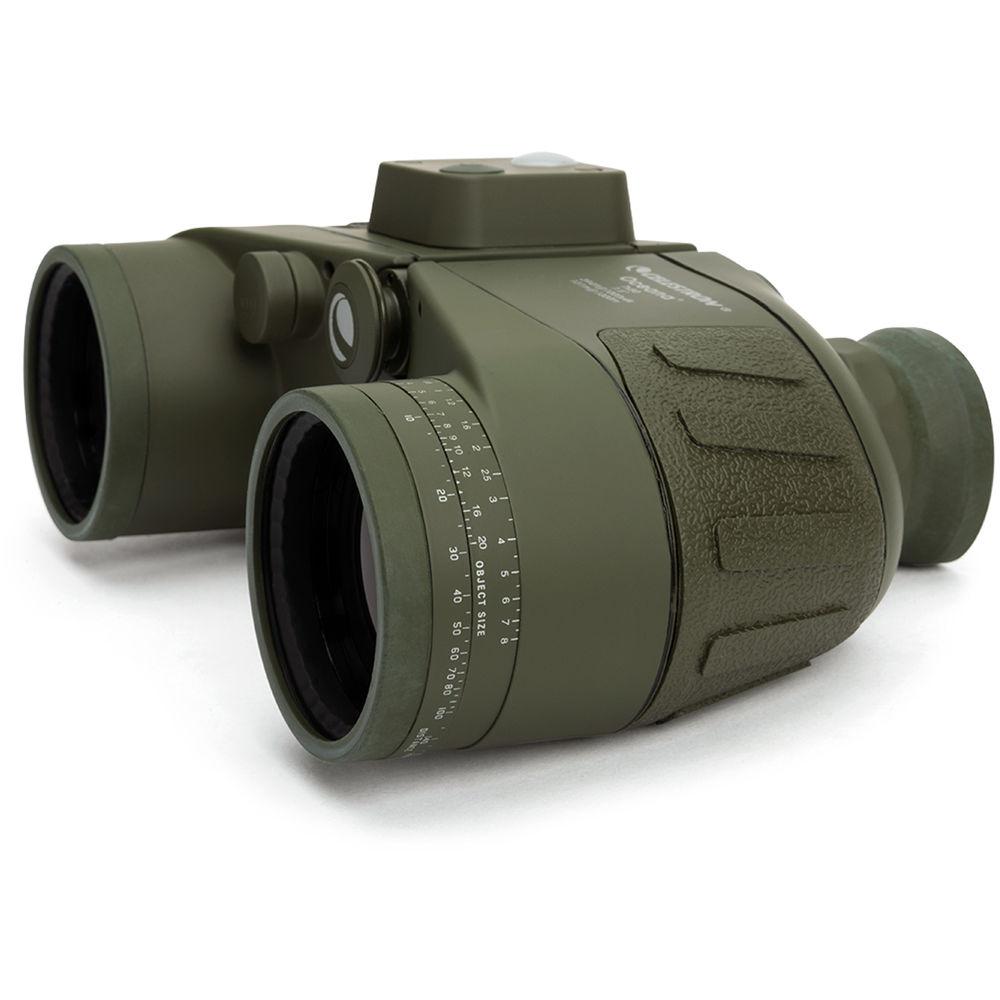

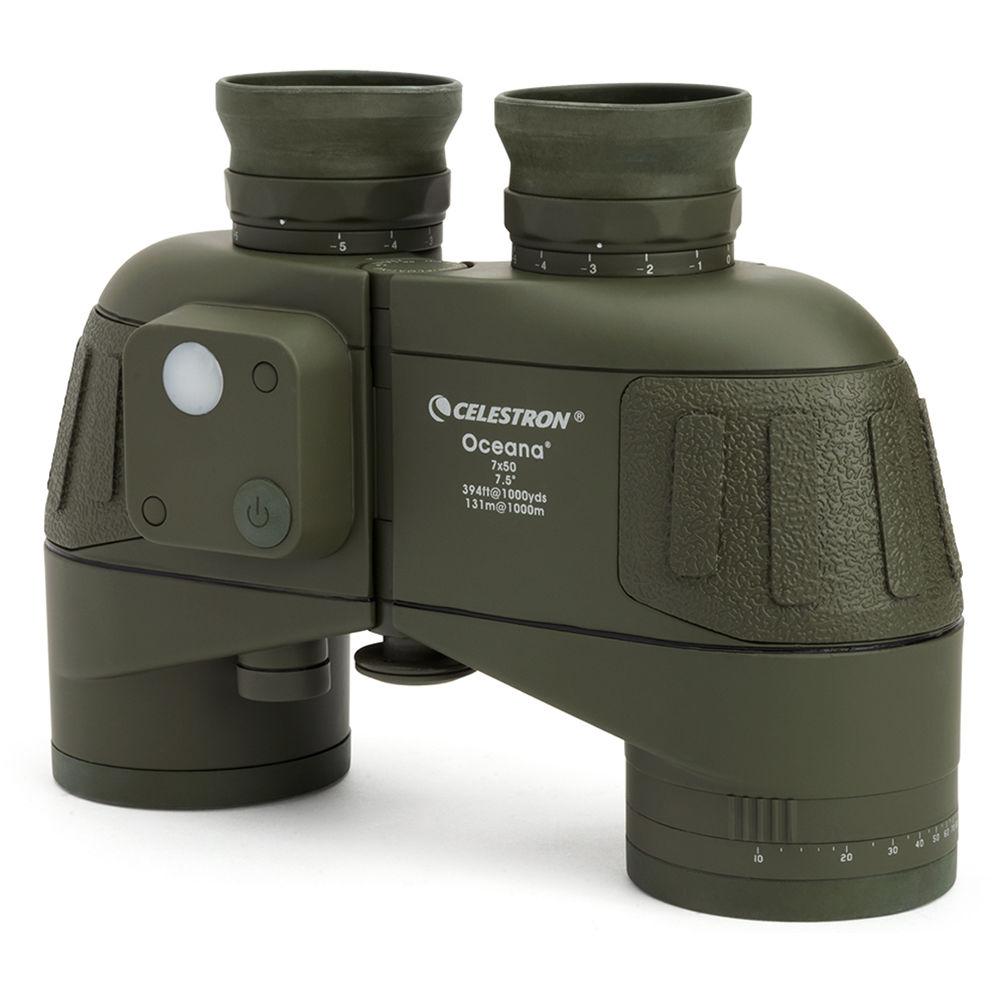

The 7x50 Oceana Porro WP IF and RC Military / Camouflage from Celestron is a waterproof binocular designed for marine use with rubber covering and nitrogen purged for all weather protection. An illuminated compass for direction finding, a reticle for distance measurement, a calculator dial for quick distance measurement and a convenient center focus system make this a very practical binocular. BAK-4 prisms and fully multi-coated optics provide ultra sharp images with high contrast and resolution. The internal reticle can be used to calculate the view angle, the horizontal view angle, the vertical view angle and the distance. The reticle uses 10 mils for each number. It consists of a vertical and horizontal scale intersecting above the compass degree scale. A calculator dial for quick distance measurement is located at the end of the left objective tube. Used in tandem with the reticle the distance to an object is determined quickly and easily. This binocular has an aluminum body and is fitted with a threaded mount for use with a tripod. - Peel-down rubber eyecups for eye/sunglass wearers
- Rubber covering provides added protection and a firm grip
- Individual focus provides customized viewing for each eye
- Tethered objective caps won't fall into the brink or the brine
- Large 22 mm of eye relief accommodates all types of users with glasses
- Nitrogen-purged waterproof & fogproof lenses for marine and all weather use
- Aluminum body with olive drab finish for a military / camouflage color scheme
- All air-to-glass surfaces are fully multicoated providing sharp, high contrast views
- Illuminated LCD compass, mil reticle and a calculator dial for distance and location assistance

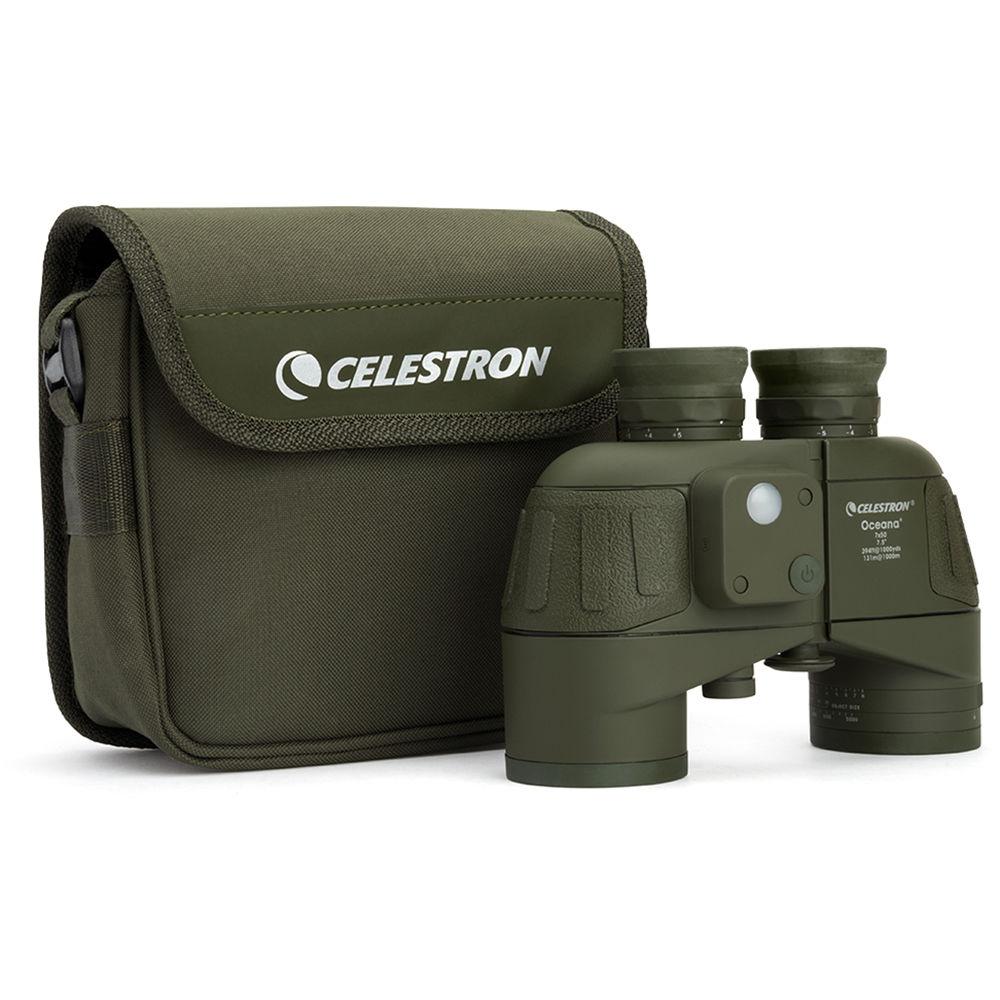

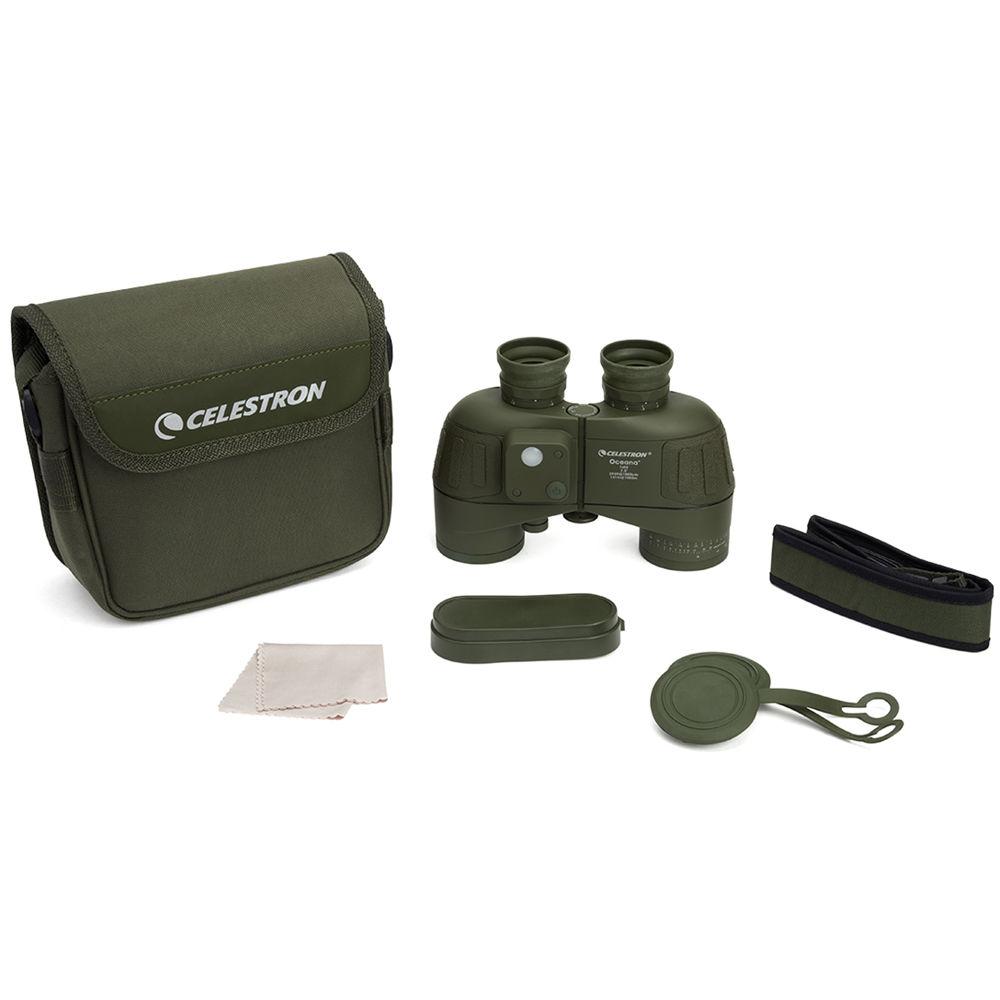

UPC: 050234011891 In the Box Celestron 7x50 Oceana Porro WP IF and RC Military / Camouflage Soft Carrying Case Single Piece Eyepiece Protective Cap 2 x Tethered Objective Lenscaps 2 x LR1142 Button Cell Batteries No Fault Lifetime Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 zewuttweaczrcfvsdbvzuf A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 User Manual PDF 15.6mb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Celestron 7x50 Oceana Porro WP IF and RC Military Camouflage in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCelestron 71189-B Specs | Prism Type | Porro | | Magnification | 7 x | | Objective Lens Diameter | 50 mm | | Angle of View | 7.5° (actual) | | Field of View | 393.7' @ 1000 yd / 131.2 m @ 1000 m | | Minimum Focus Distance | 212.9' / 64.9 m | | Exit Pupil Diameter | 7.1 mm | | Eye Relief | 22 mm | | Interpupillary Adjustment | 8.7 to 11.1 mm / 22 to 28.3" | | Dioptric Correction | ±5 | | Focus Type | Individual | | Tripod Mount | Yes | | Dimensions | 8.0 x 6.5 x 3.0" / 20.3 x 16.5 x 7.6 cm | | Weight | 41.00 oz / 1.16 kg | | | | Package Weight | 2.98 lb | | Box Dimensions (LxWxH) | 8.95 x 8.05 x 4.35" |
Rating86% users recommend this product to others. And what about you?
This product has already been rated by 66 owners. Add your rating and experience with the product.
