User Manual for Celestron 8x32 Nature DX Binocular Click to enlarge the picture
Contents of the user manual for the Celestron 8x32 Nature DX Binocular
- Product category: Binoculars Celestron
- Brand: Celestron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Celestron Binoculars
 |
User manual for the Celestron 8x32 Nature DX Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Celestron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Celestron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Celestron product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More - Nature DX Binoculars Tour

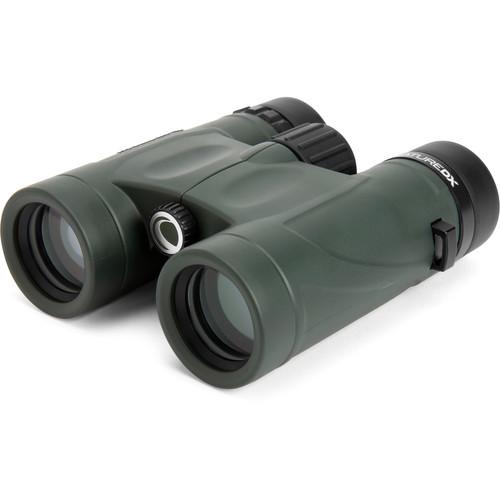

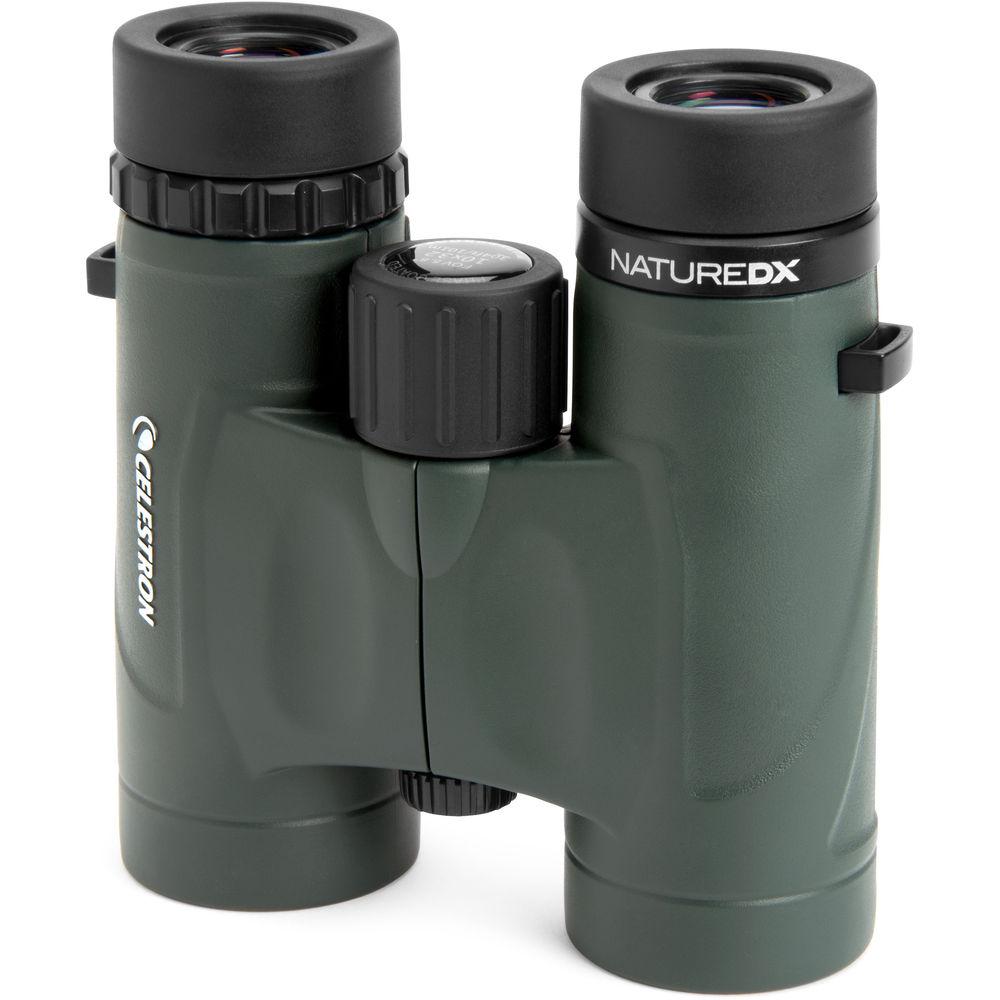

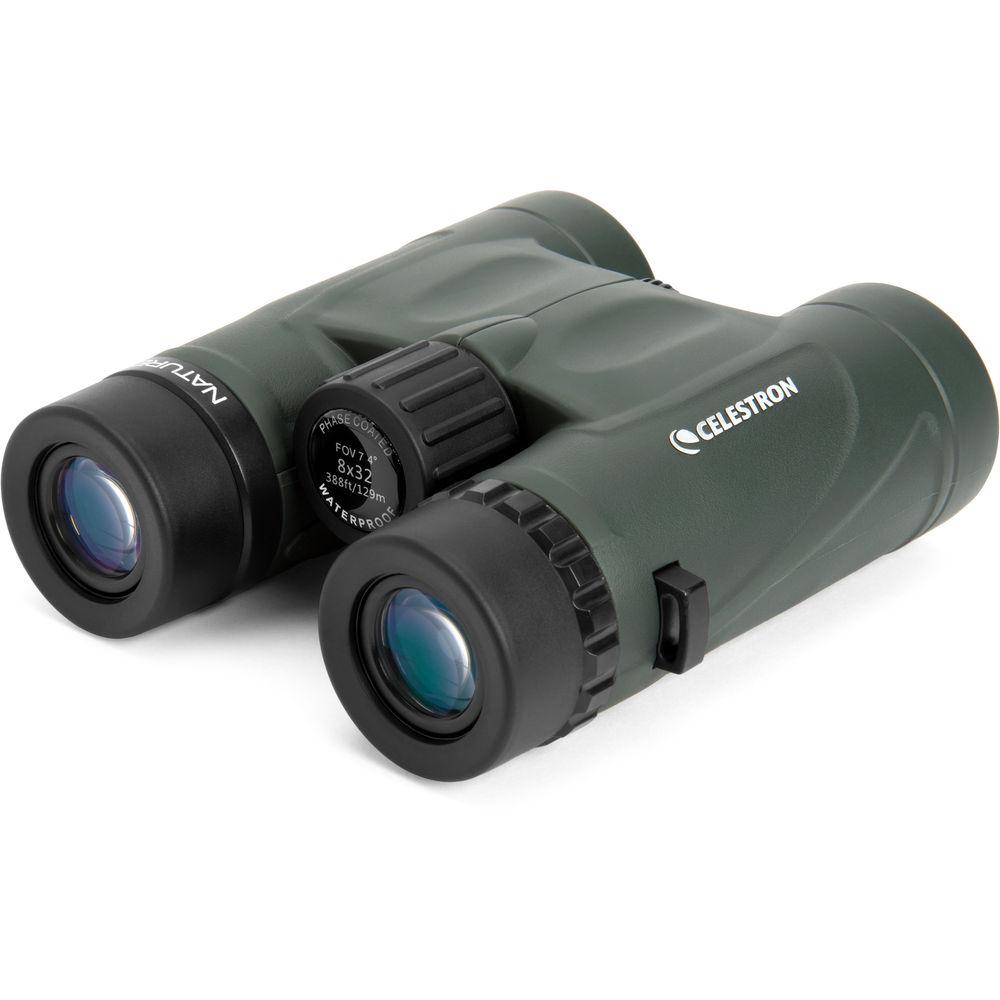

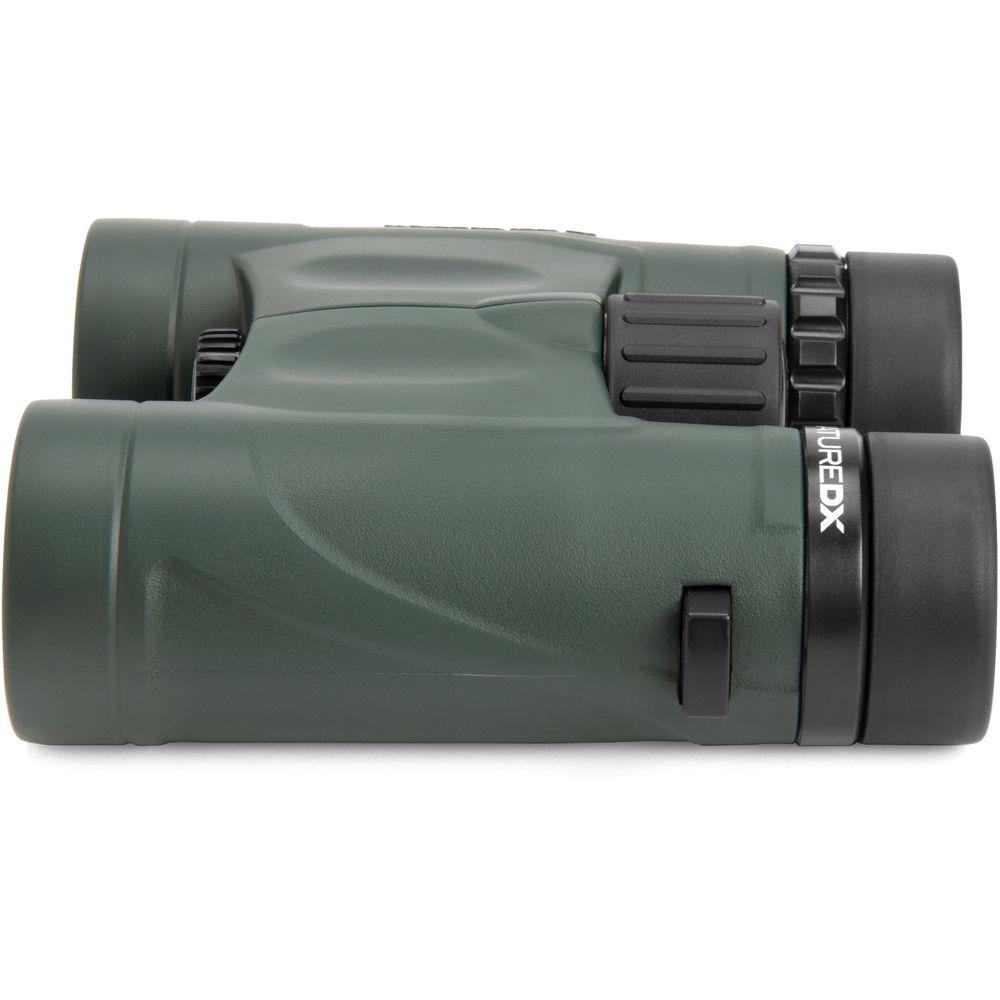

The 8x32 Nature DX Binocular from Celestron is a weather-sealed optic designed for close to mid-range observations. This lightweight binocular weighs less than 2 lbs and is compact enough to fit in a cargo pocket. In addition to the Nature DX series' streamlined form factor, this fixed-magnification binocular also features fully multicoated optics and phase-corrected BaK-4 prisms that render enhanced clarity and color fidelity. An immersive 59° apparent viewing angle and impressive 6.5 ft minimum focus distance complement the 8x32 lens system and help provide a user-friendly glassing experience. The Nature DX binocular has a nitrogen-filled polycarbonate housing that is built to withstand heavy rain and deliver fogproof performance, making this Celestron optic ready for a wide range of outdoor glassing activities. - Optical Performance
-
- 8x magnification, 32mm objectives
- Fully multicoated optics
- BaK-4 roof prisms with phase-corrective coating
- 7.4° angle of view, 59° apparent viewing angle
- 6.5 ft (2m) close focusing distance, 17.5mm eye relief
- Use and Handling
-
- Center focus wheel with ridges for improved grip
- Twist-up eyecups with multiple position stops
- 56-74mm interpupillary adjustment range
- Construction Details
-
- Nitrogen-filled housing for fogproof/waterproof performance
- Polycarbonate construction
- 18 oz (510g) weight

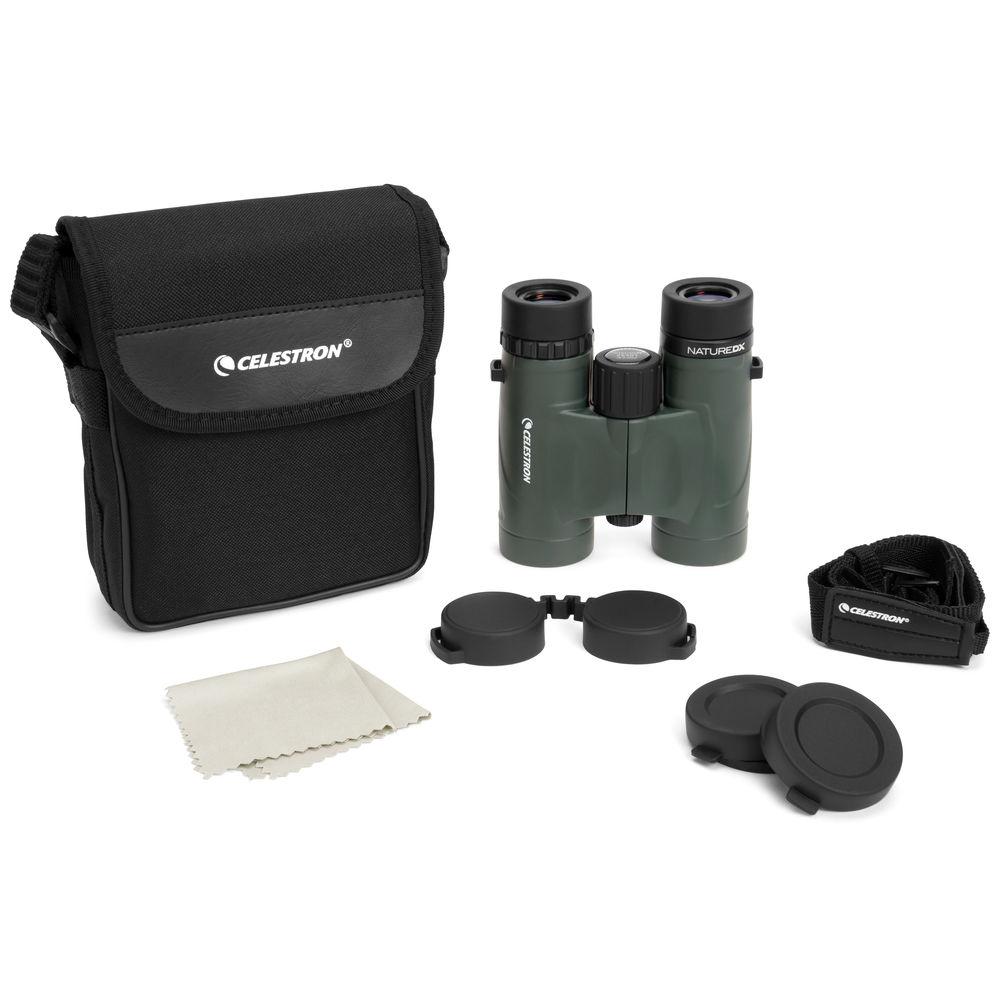

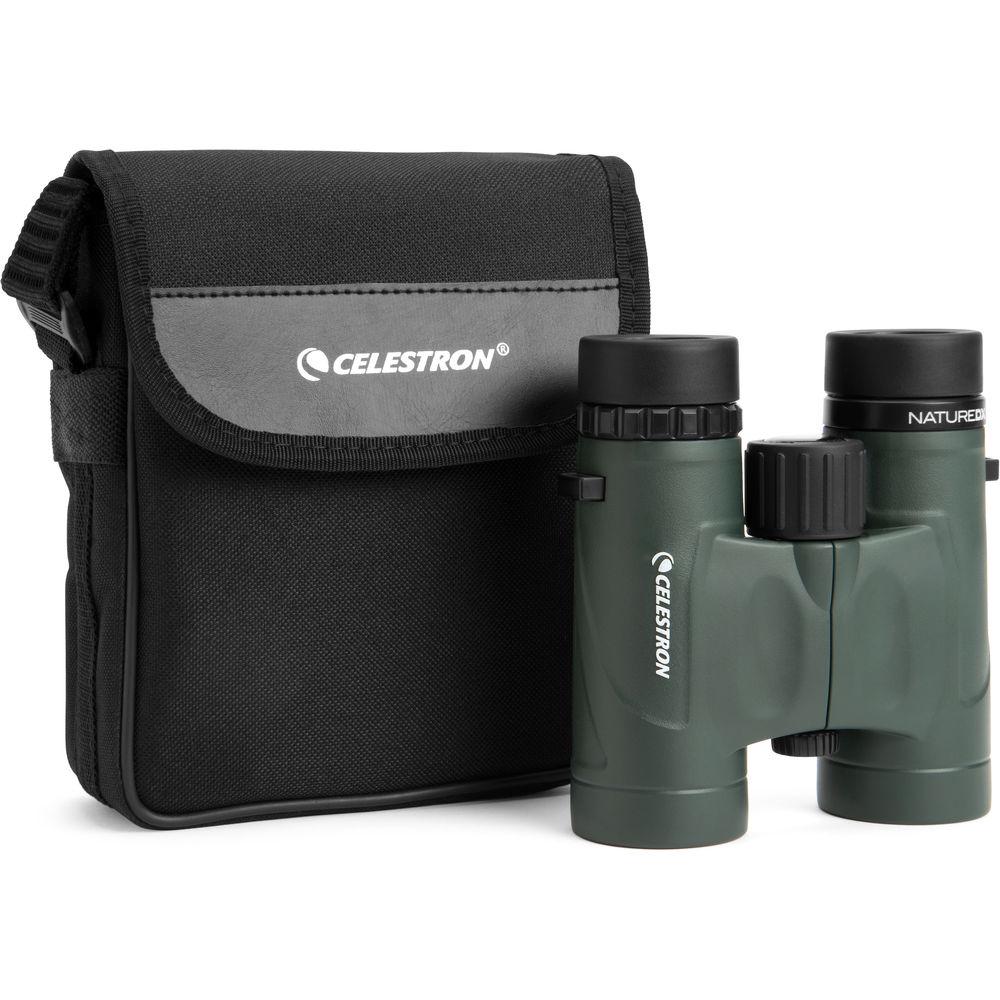

UPC: 050234713306 In the Box Celestron 8x32 Nature DX Binocular Carrying Case Neck Strap Objective Caps Rainguard Lens Cloth Instruction Manual Limited Lifetime Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 ectbzytuzdewxzttwurzfarxcw A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 User Manual PDF 1.6mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Celestron 8x32 Nature DX Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCelestron 71330 Specs | Prism Type | Roof | | Magnification | 8.0 x | | Objective Lens Diameter | 32 mm | | Angle of View | 7.4° (Actual) | | Field of View | 388.5' @ 1000 yd / 129.5 m @ 1000 m | | Minimum Focus Distance | 41.9' / 12.8 m | | Exit Pupil Diameter | 4 mm | | Eye Relief | 17.5 mm | | Interpupillary Adjustment | 8.7 to 11.5 mm / 22 to 29.1" | | Focus Type | Center | | Dimensions | 5.0 x 4.9 x 1.8" / 12.7 x 12.4 x 4.6 cm | | Weight | 18.00 oz / 510.30 g | | | | Package Weight | 1.825 lb | | Box Dimensions (LxWxH) | 7.3 x 6.45 x 3.15" |
Rating86% users recommend this product to others. And what about you?
This product has already been rated by 88 owners. Add your rating and experience with the product.
