User Manual for Celestron 8x56 SkyMaster DX Binocular Click to enlarge the picture
Contents of the user manual for the Celestron 8x56 SkyMaster DX Binocular
- Product category: Binoculars Celestron
- Brand: Celestron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Celestron Binoculars
 |
User manual for the Celestron 8x56 SkyMaster DX Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Celestron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Celestron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Celestron product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More - Skymaster Binoculars Tour

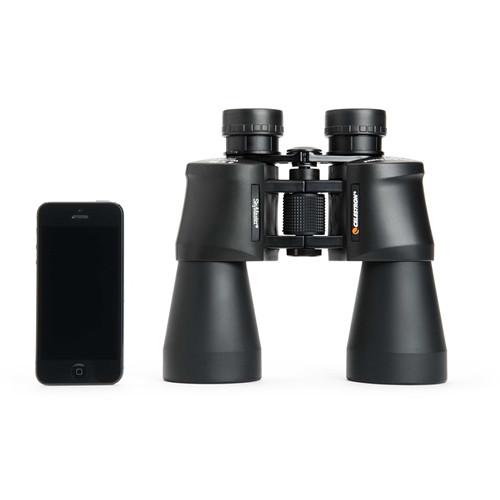

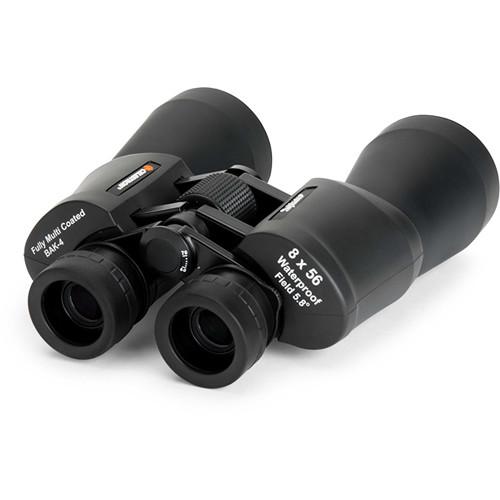

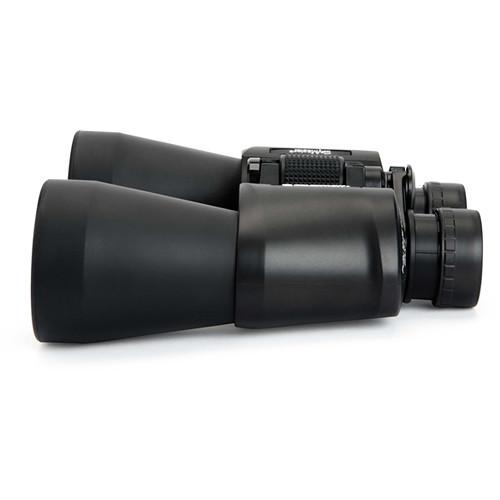

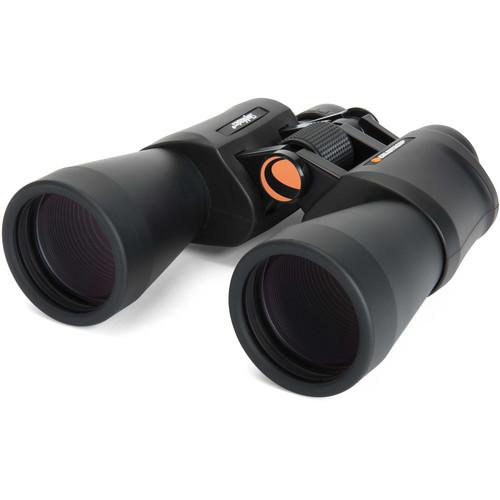

Explore the night sky using the 8x56 SkyMaster DX Binocular from Celestron. This waterproof and fully multi-coated optic is specifically designed for those tasks and possesses two distinct characteristics that set it apart from many other binoculars and make it a good fit for the purpose: first is its wide 56mm objective apertures that allow lots of light and deliver good visibility in low-light conditions; second is its 8x magnification power that enables you to have good close-ups of the moon and stars without introducing much image jitter due to shaking hands. This binocular configuration allows you to observe celestial objects with both eyes, which is an option that not every telescope has. Also, it is fully assembled and mountable to a tripod using an optional adapter. To ensure that you get clear images, without glare, the lenses are anti-reflection multi-coated. Other highlights of the optic are its center focusing, interpupillary adjustment, and diopter corrector. To protect this instrument while not in use, objective lens covers, a rainguard for the eyepieces, and a carry case are included. - Optical Performance
-
- 8x magnification
- 56mm objective lenses deliver bright images in low light and allow stargazing
- BAK4 Porro prisms
- Fully multi-coated optics increase transmission of light and reduce glare
- 305' field of view at 1000 yards
- 5.8° angular field of view
- Use and Handling
-
- Center focus wheel
- Closed-bridge configuration
- 58 - 72mm interpupillary adjustment range
- Diopter correction ring is located on the right ocular
- Fold-down eyecups for comfortable use with or without eyewear
- 18mm eye relief
- 7mm exit pupil
- Construction Details
-
- Aluminum chassis
- Lightweight and durable polymer body
- Rubber armor protects against impacts and provides slip-resistant grip
- Tripod mountable with optional adapter
- Nitrogen-purged fogproof
- Waterproof

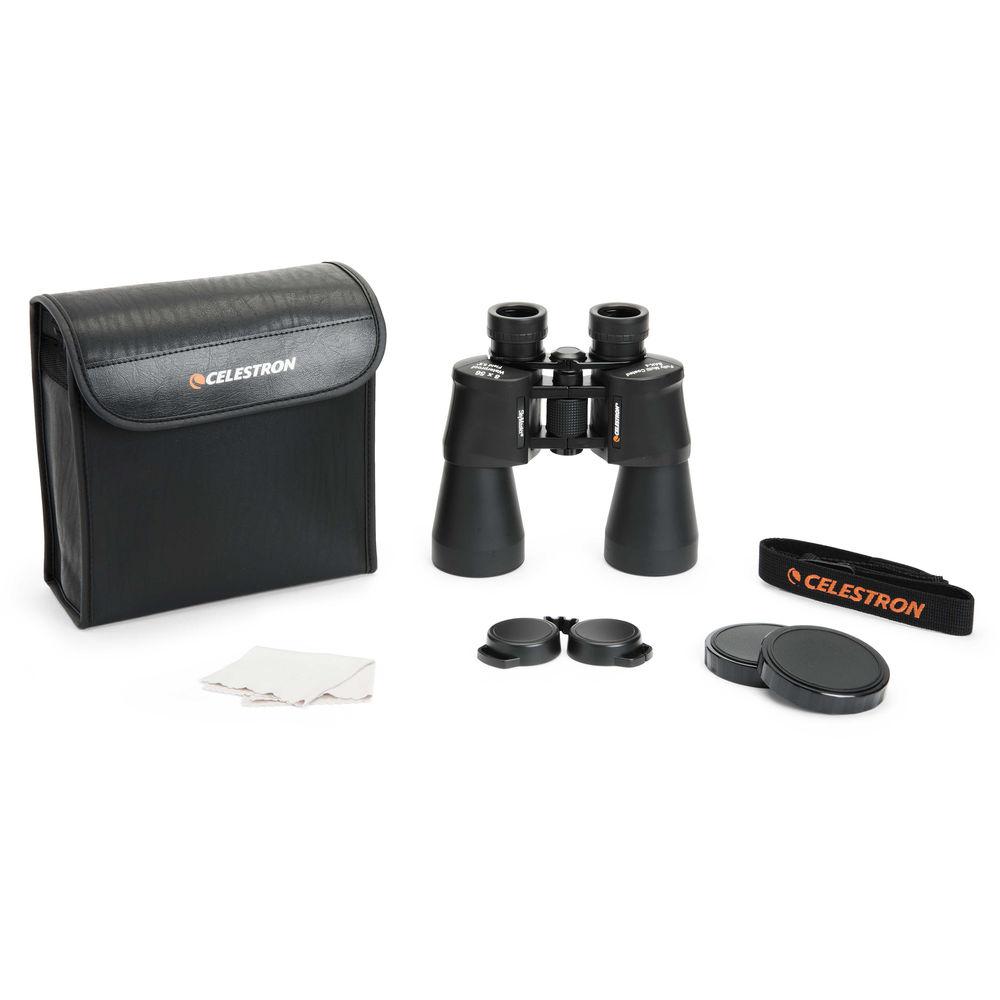

UPC: 050234720229 In the Box Celestron 8x56 SkyMaster DX Binocular (Black) - Case
- Cleaning Cloth
- Strap
- 2 x Lens Caps
- Rainguard
- Limited Lifetime Warranty
Summer Binocular Buying Guide Christopher Witt 07/14/2016 vzwaasccwrvvawrzvydbdcy A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 vzwaasccwrvvawrzvydbdcy A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 User Manual PDF 440.5kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Celestron 8x56 SkyMaster DX Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCelestron 72022 Specs | Prism Type | Porro | | Magnification | 8 x | | Objective Lens Diameter | 56 mm | | Angle of View | 5.8° (Actual) | | Field of View | 304.8' @ 1000 yd / 101.2 m @ 1000 m | | Minimum Focus Distance | 25' / 7.6 m | | Exit Pupil Diameter | 7 mm | | Eye Relief | 18 mm | | Interpupillary Adjustment | 58 to 72 mm / 2.3 to 2.8" | | Focus Type | Center | | Tripod Mount | Yes (Adapter Optional) | | Weight | 38.00 oz / 1.08 kg | | | | Package Weight | 3.44 lb | | Box Dimensions (LxWxH) | 10.2 x 9.2 x 4.0" |
