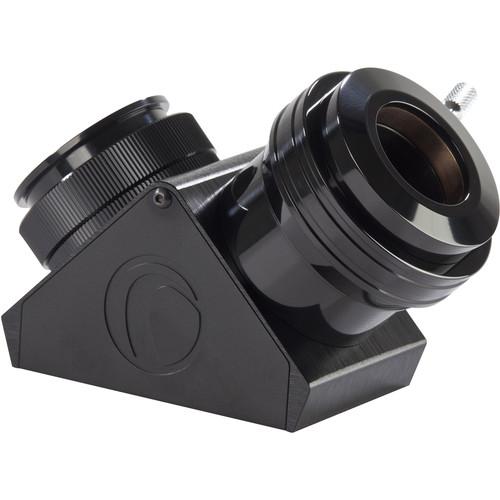

User Manual for Celestron 90-Degree Mirror Diagonal for SCT Scopes Click to enlarge the picture
Contents of the user manual for the Celestron 90-Degree Mirror Diagonal for SCT
- Product category: Diagonals & Prisms Celestron
- Brand: Celestron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Celestron Diagonals & Prisms
|
User manual for the Celestron 90-Degree Mirror Diagonal for SCT contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Celestron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Celestron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Celestron product will considerably shorten its lifespan!
|
Product description The Celestron 90-Degree Mirror Diagonal (2") is a star diagonal with StarBright XLT coating, for use with Schmidt-Cassegrain telescopes with the 2"-18 threaded device. Star diagonal is the term commonly associated with 90° mirror diagonals such as this, which let you view objects that are at a 90° angle from the direction the telescope is pointing. This allows quite comfortable viewing when the telescope is at or near the zenith (directly overhead), and is fairly comfortable when observing terrestrial imagery as well-albeit a bit unorthodox at first. Celestron's erect image diagonals are Amici prism designs, meaning that images are upright and laterally correct. This design, however, instead renders images which are laterally reversed but are brighter than erect image diagonals. This diagonal is used with 2" focusers and can be used with either 2.00" or 1.25" eyepieces, thanks to the included adapter which reduces the eyepiece barrel diameter to accept the smaller size. - StarBright XLT coating system offers multi-layer enhanced mirror coatings, which shift the peak reflectance to the center of the visible spectrum. The coating process uses state-of-the-art thin film vacuum deposition technology. To ensure consistent optical coatings of the highest quality the process is tightly monitored and controlled by highly trained coating technicians.
- Improved attachment design features a brass clamping ring which does not mar, and provides a more secure connection.
- Accepts 2" filters for astronomical applications.
UPC: 050234935272 In the Box Celestron 90-Degree Mirror Diagonal (2") for SCT Scopes 2" to 1.25" Eyepiece Barrel Diameter Reducer Padded Aluminum Case Dust Caps Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Celestron 90-Degree Mirror Diagonal for SCT Scopes in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCelestron 93527 Specs | Weight | Body: 0.88 lb (400g)
Eyepiece Adapter: 0.19 lb (85g) | | | | Package Weight | 2.75 lb | | Box Dimensions (LxWxH) | 8.3 x 7.3 x 7.0" |
Rating98% users recommend this product to others. And what about you?
This product has already been rated by 72 owners. Add your rating and experience with the product.
