User Manual for Celestron Advanced VX 6" 150mm f 8 Go-To Refractor Telescope Click to enlarge the picture
Contents of the user manual for the Celestron Advanced VX 6" 150mm f
- Product category: Refractors Celestron
- Brand: Celestron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Celestron Refractors
 |
User manual for the Celestron Advanced VX 6" 150mm f contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Celestron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Celestron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Celestron product will considerably shorten its lifespan!
|
Product description - Celestron Advanced VX Schmidt Cassegrain Product Overview
- Celestron Advanced VX Refractor Product Overview

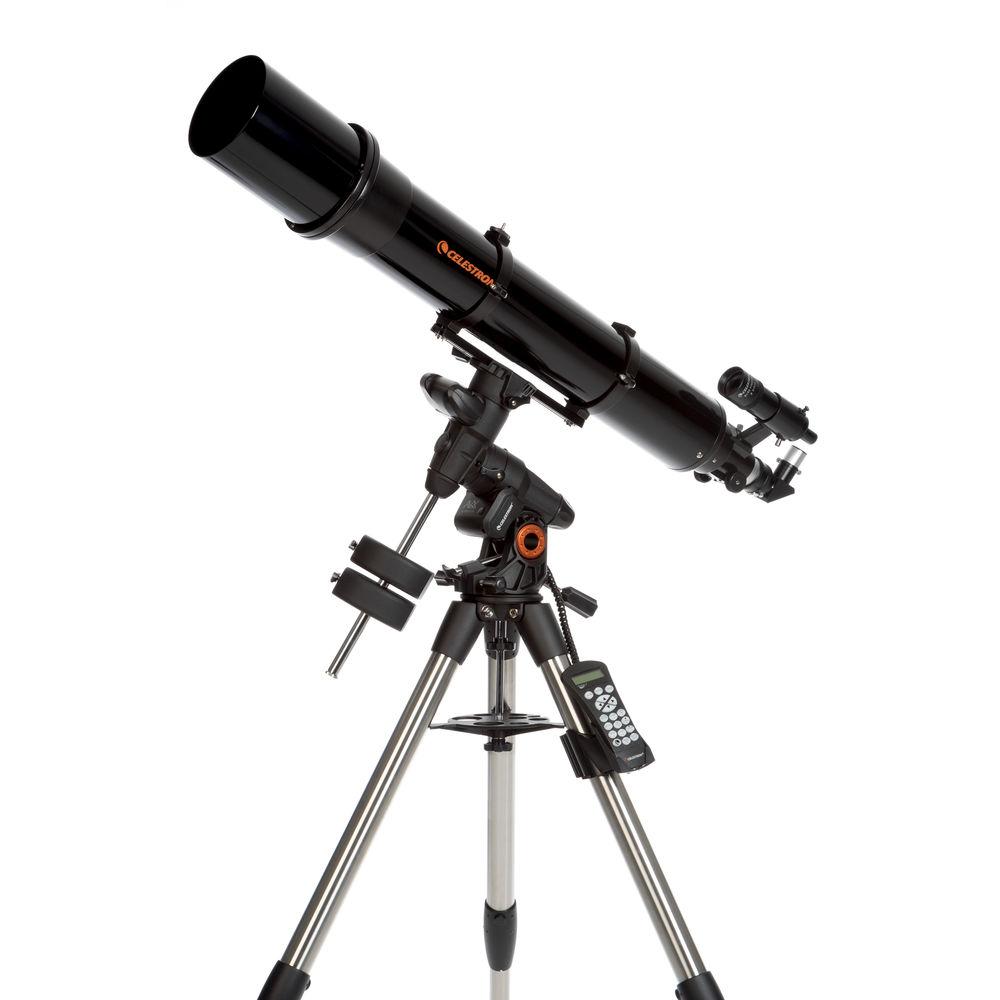

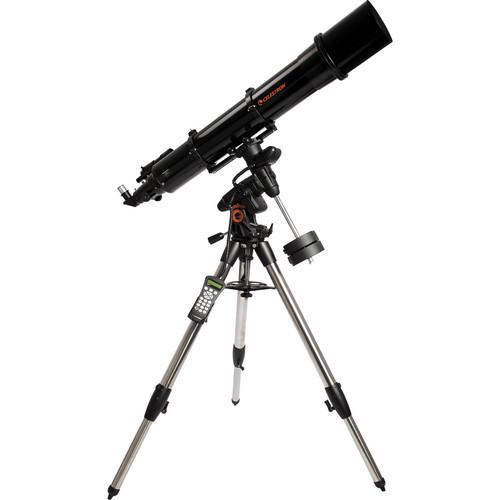

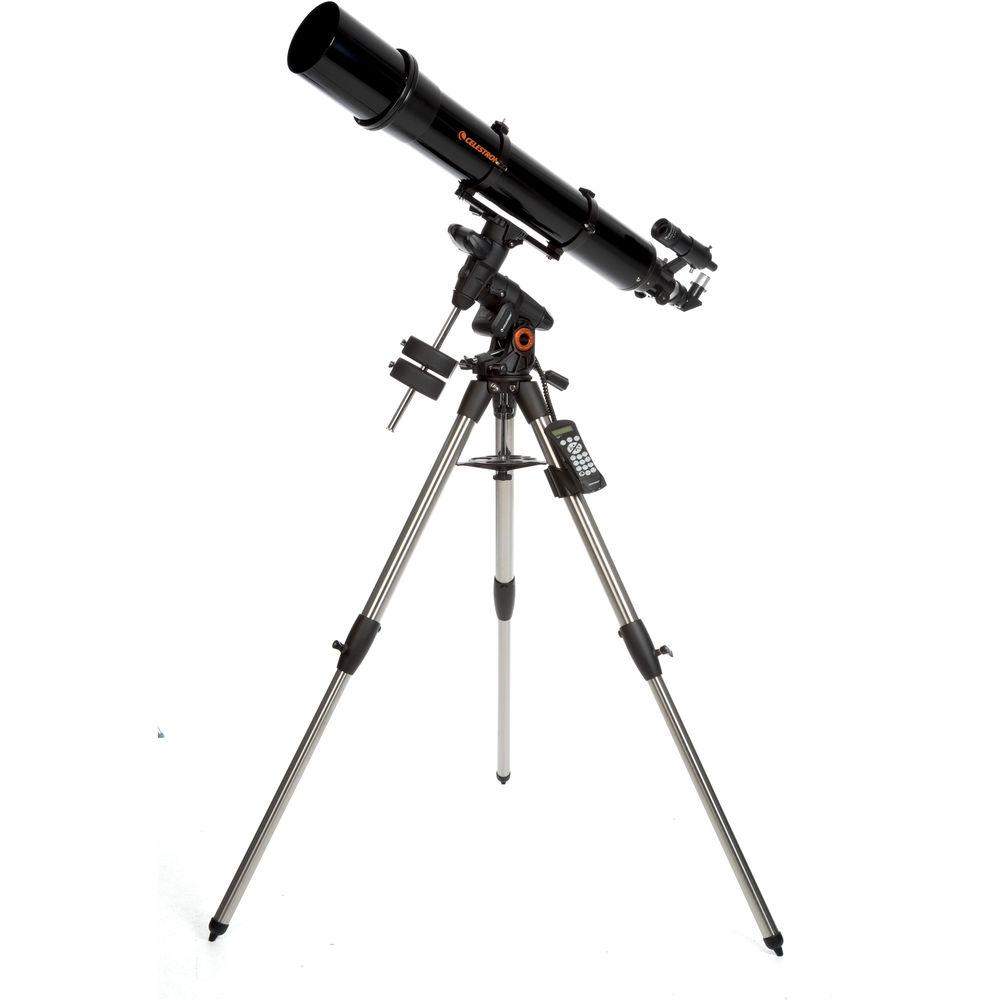

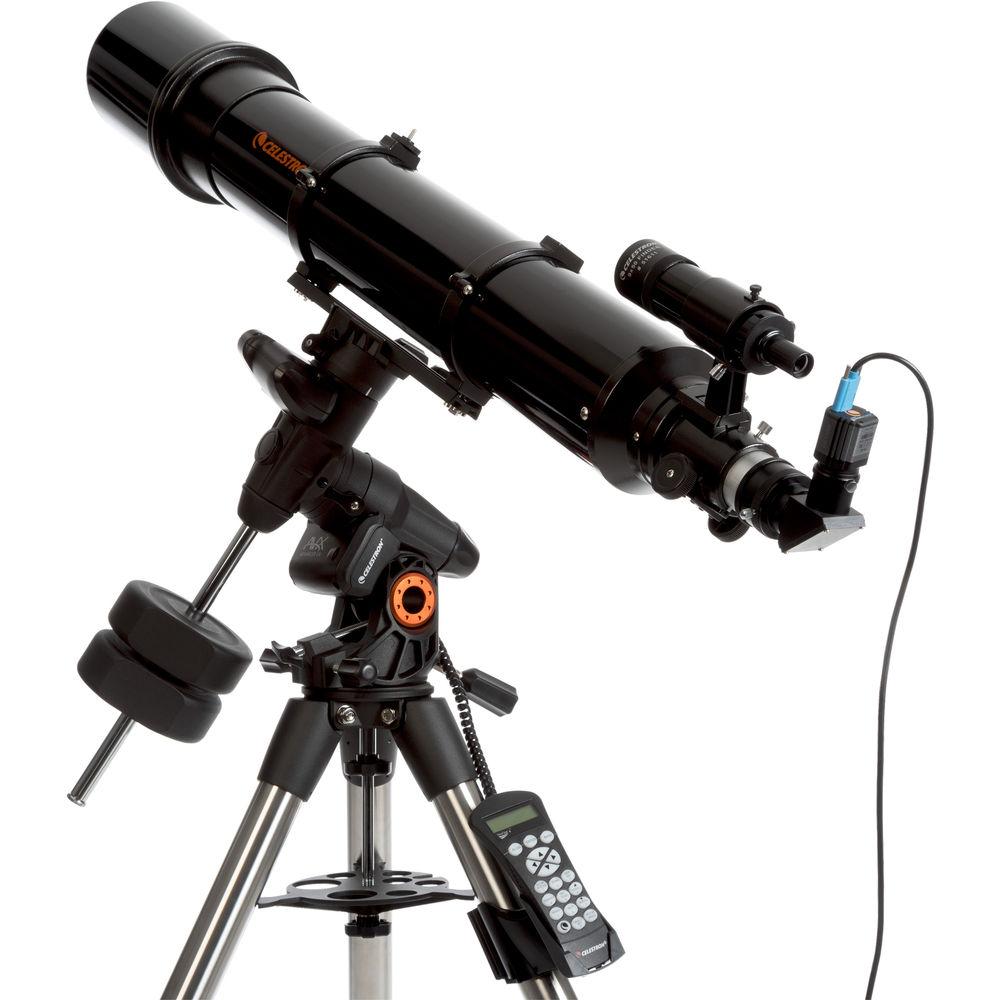

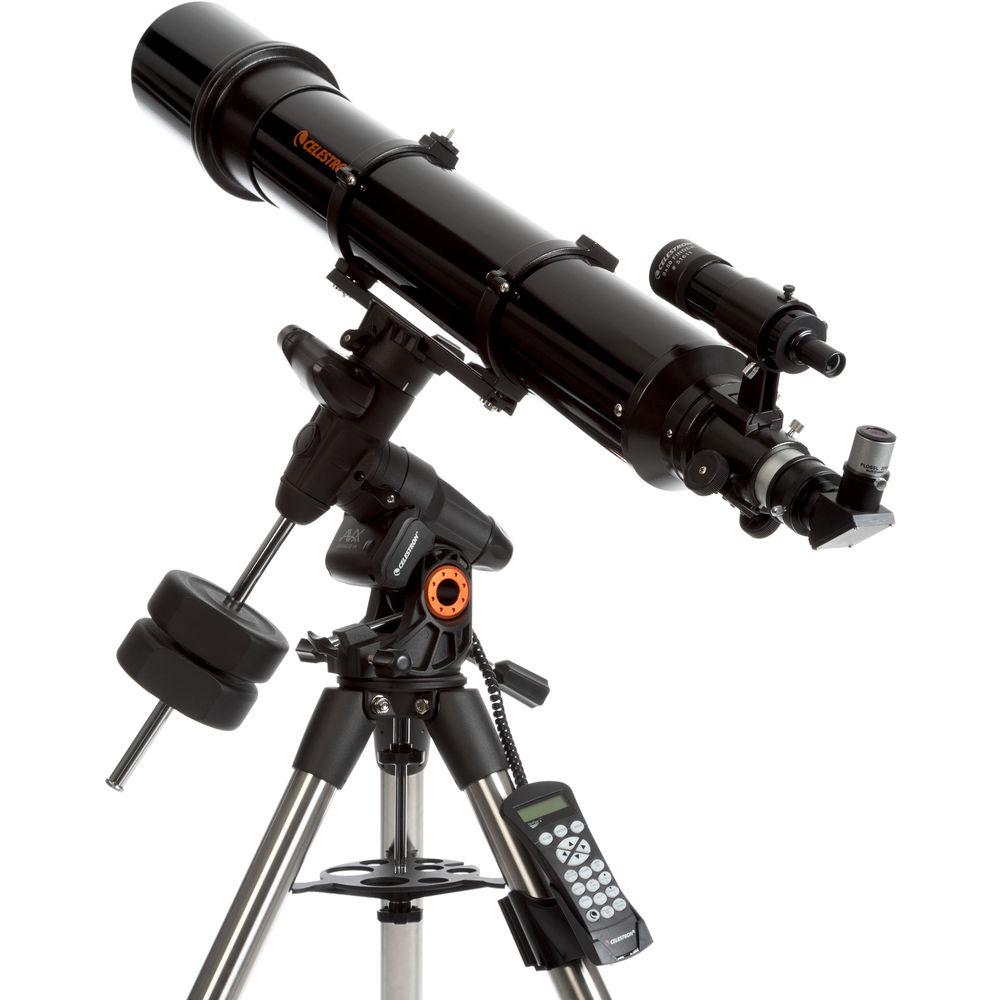

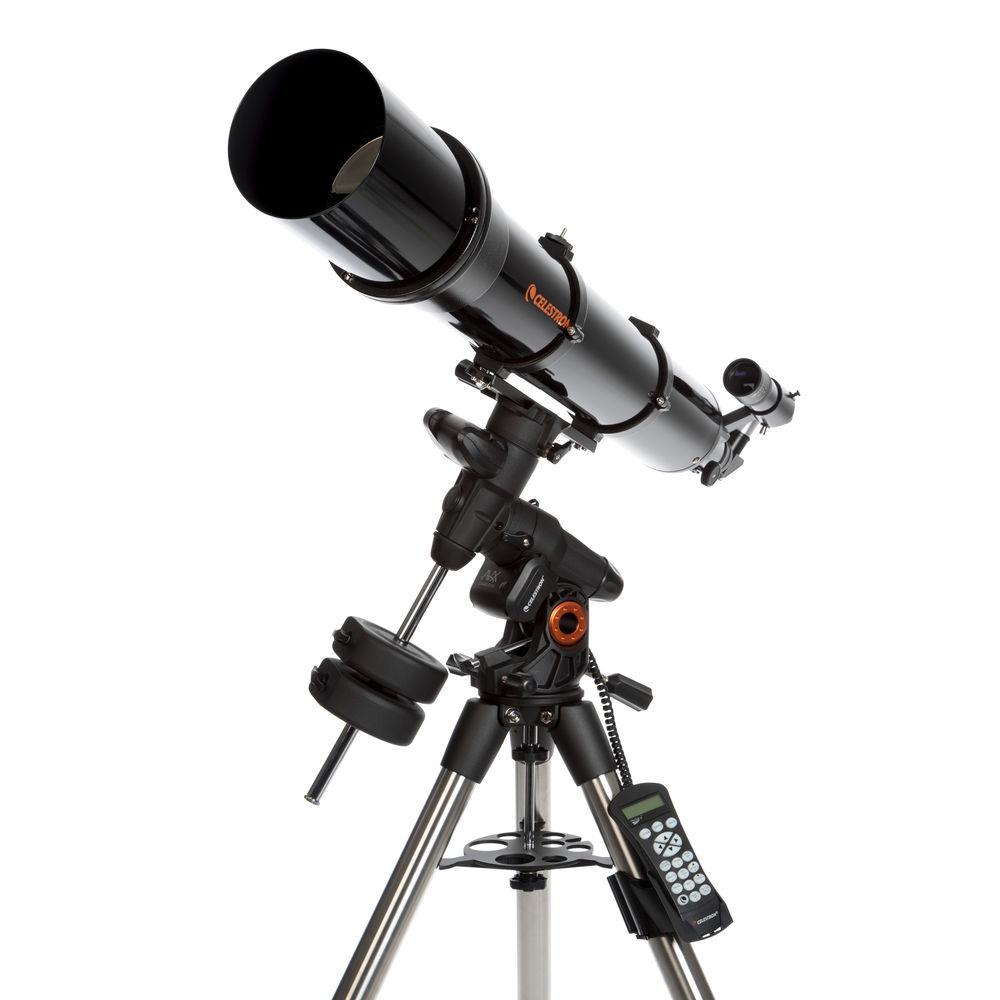

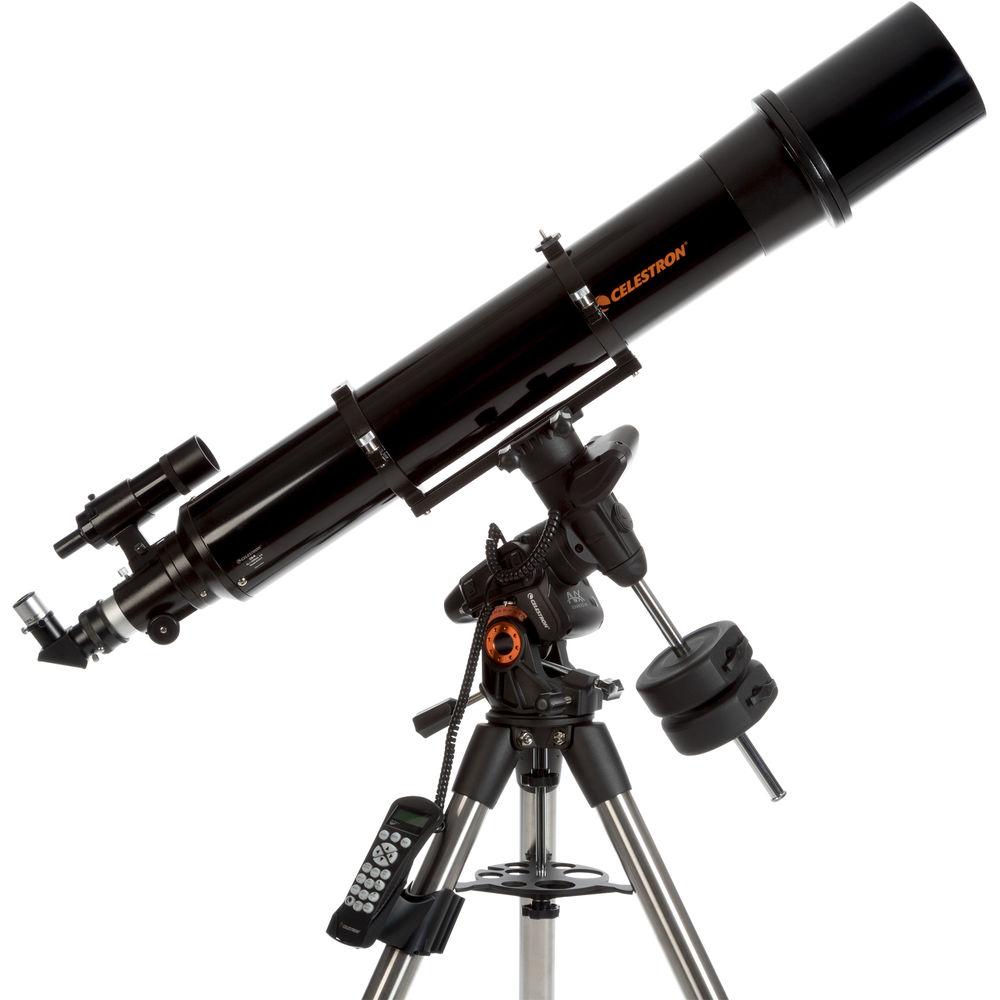

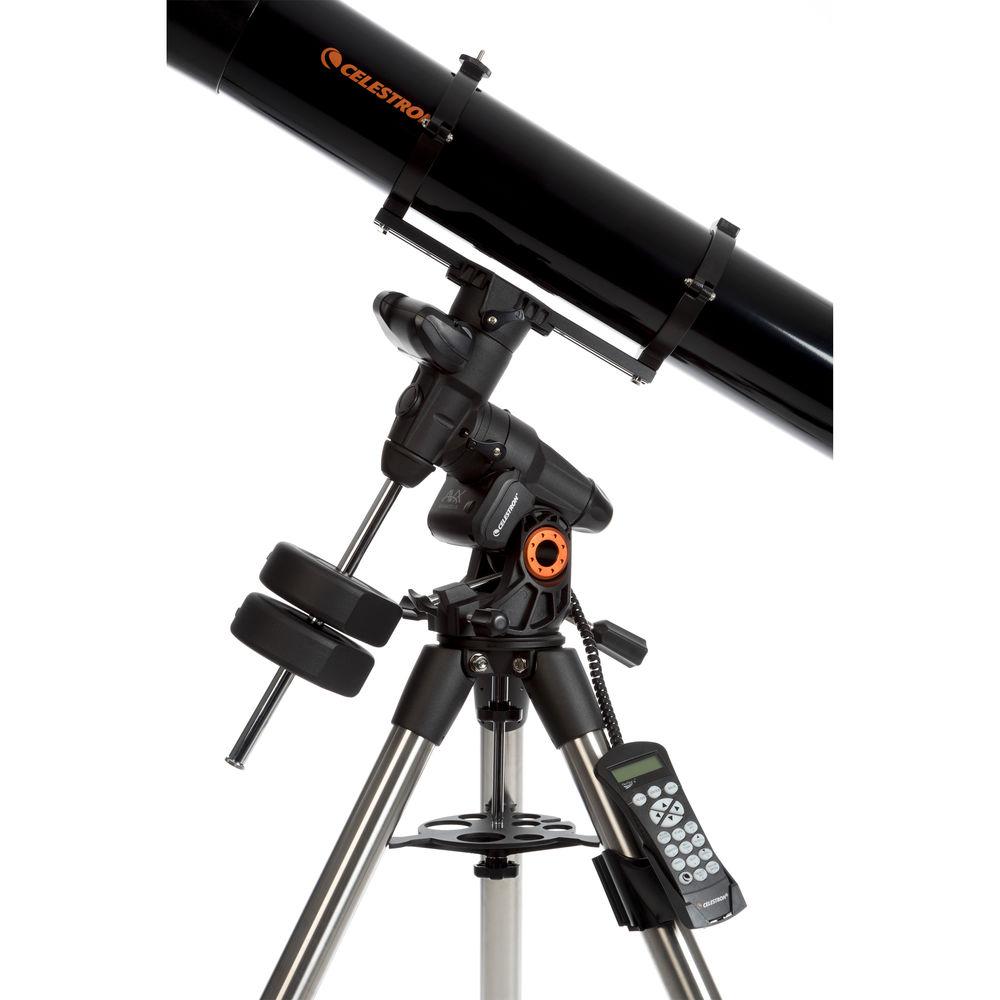

Celestron paired a GoTo mount with a large-aperture OTA to produce this Advanced VX 6" 150mm f/8 Go-To Refractor Telescope. Pairing the fully motorized and computer-controlled mount with a refractor scope produces an observation platform optimized for astroimaging. Its optical tube features a 6" (150mm) aperture to draw in copious amounts of light — even light from distant deep space objects like binary stars, galaxies, and nebulae. Its moderately fast f/8 focal ratio allows for shorter exposure times than slower scopes, which means more images can be captured for later stacking in post. A large-drawtube 2" focuser allows the use of larger wide-field eyepieces or large imaging sensor cameras to be used without vignetting, and an included reducer adapter lets users install smaller 1.25" accessories like the included eyepiece or diagonal.The OTA attaches to the motorized equatorial mount. Outfitted with dual-axis low-cog DC servo motors and digital encoders, the mount head moves and tracks objects with high-precision and almost no vibrations to ensure clear views. Its wide 7 - 77° latitude range and head design allows it to track low in the sky if it's set up on a hill or deck, and will clear the motors to avoid having to perform a meridian flip during long observation or imaging sessions. Guiding the mount is the NexStar+ computer hand controller. Packed with more than 40,000 objects, it has multiple alignment procedures to get users observing faster, with multiple automatic tracking rates to accurately follow fast-moving close objects like the Moon and planets and slower deep space celestial bodies. With features such as user-defined objects, customizable guided tours, and expanded info on over 500 objects in its database even novice users can quickly learn about the Universe. - Optical Tube Assembly
-
- 150mm (6") aperture
- Moderate f/8 focal ratio
- Long 1200mm focal length
- Refractor-style optical path
- Fully coated optics increase light transmission, and improves contrast and color rendition
- Resolution: Rayleigh: 0.93 arcsec; Dawes Limit: 0.77 arcsec
- Sturdy rack-and-pinion focuser
- 2" focuser drawtube helps to eliminate vignetting when using wide-field eyepieces for visual observations, or large imaging sensor cameras for astrophotography
- Dovetail plate for easy attachment to mount head
- NexStar+ Hand Controller
-
- 4-line, 18-character LCD display
- Pre-loaded 40,000 object database
- Intuitive menu-driven user interface
- Nine selectable slew speeds: 2x, 4x, 8x, 16x, 32x, 0.3°/sec, 1.0°/sec, 2°/sec, 4°/sec
- Multiple alignment procedures: 2-Star All-Star Polar Align, Quick Align, 1-Star Align, Last Alignment, Solar System Align
- Precise All-Star Polar Alignment with 2-Star alignment mode eliminates the need for conventional and time-consuming Polar Alignment
- Sky Tour mode: Identifies the best objects in the sky based on the current date, time, and location, and automatically slews to those objects
- Multiple tracking rates: Sidereal, Solar, and Lunar
- Permanent periodic error correction (PPEC) allows users to program out tracking errors for more accurate tracking over time
- Backlash compensation trains out play in drive gears for more accurate tracking
- Use in the Northern or Southern hemispheres
- LED-backlit interface buttons
- RS-232 serial communication port for remote PC control
- Dedicated Autoguider communication port
- Selectable languages: English, French, German, Italian, Spanish
- Flash updateable operating system and database via the Internet
Database:- Solar system: Includes the Moon, sun, and planets
- Star catalogs: Lists of all the brightest stars, binary stars, variable stars, constellations and selected asterism
- Deep sky: Galaxies, Nebulae and Clusters, the complete Messier and select NGC objects, alphabetical list of all deep sky objects by their common name
- 100 user-defined objects for customization
- Enhanced information on more 200 objects including coordinates, history, and mythology
- Mount and Tripod
-
Advanced VX German Equatorial Mount:- 30 lb payload capacity
- Dovetail saddle for easy attachment of OTA
- Dual-axis low cog DC servo motors with encoders provide smooth, low-vibration movement
- 7 - 77° latitude range for tracking passed meridian without requiring a meridian flip to avoid hitting counterweights or motors
- Includes 12" counterweight bar with one 12 lb counterweights
- Runs on 12 VDC car/vehicle power supply
Tripod:- Stainless steel legs
- 2" diameter upper legs
- 44 - 64" height adjustment range

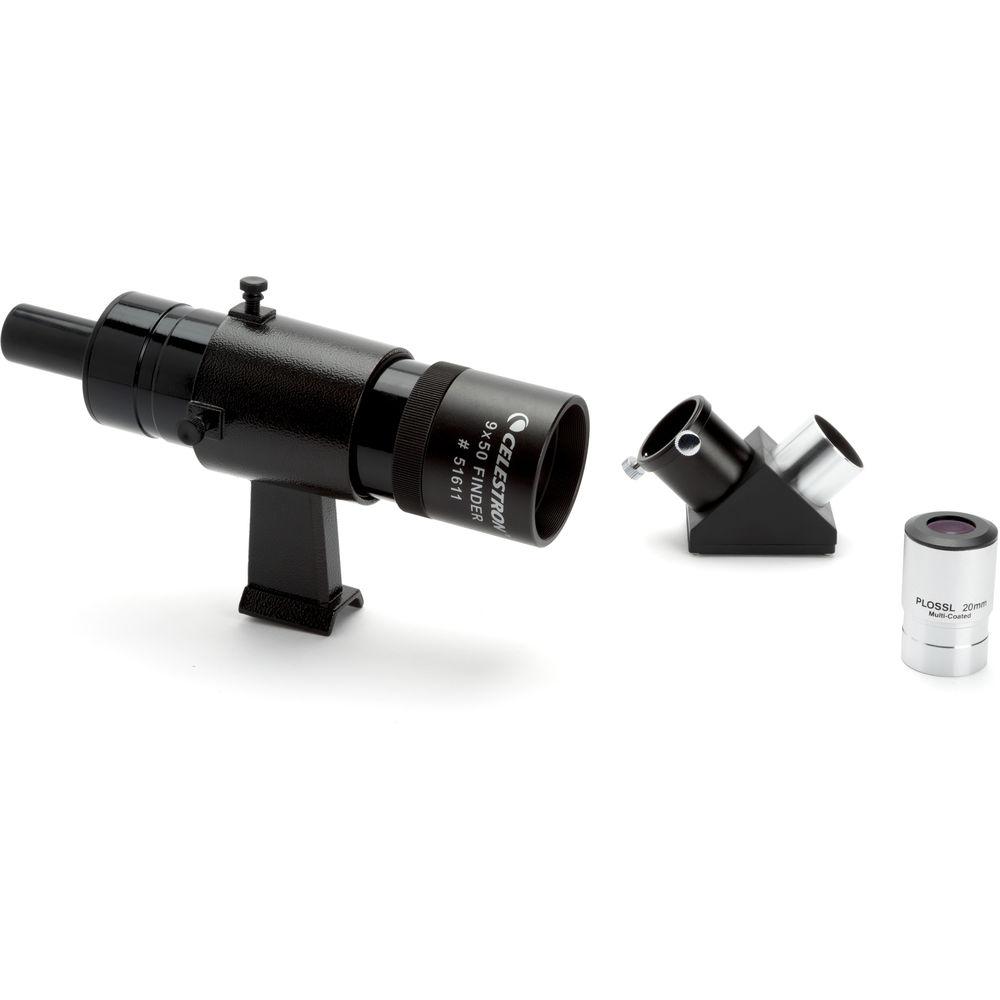

- Included Accessories
-
Reducer adapter:- 2 - 1.25" enables the use of smaller eyepieces and accessories in the drawtube
Eyepiece:- 20mm focal length produces 60x magnification
- 1.25" barrel diameter
- Accepts most astronomical eyepiece filters
- Fold-down rubber eyecup prevents peripheral light interference
Diagonal- 90° angle puts user's head in a comfortable viewing position when the scope is aimed straight, nearly straight, or upward
- Star diagonal corrects image horizontal, but reversed vertically
9x50 Finderscope- Relatively low 9x magnification provides a wide field of view for fast manual acquisition of subjects, and easy star-hopping navigation
UPC: 050234220200 In the Box Celestron Advanced VX 6" 150mm f/8 Go-To Refractor Telescope Advanced VX GoTo German Equatorial Mount 9x50 Finderscope 90° Star Diagonal 2"-to-1.25" Reducer Adapter 20mm Eyepiece Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Celestron Advanced VX 6" 150mm f 8 Go-To Refractor Telescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCelestron Advanced VX Specs | | | Optical Design | Refractor | | Aperture | 150 mm / 5.9" | | Focal Length | 1200 mm | | Focal Ratio | f/8 | | Resolution | 0.93 Arcsec (Rayleigh)
0.77 Arcsec (Dawes) | | Finderscope | Yes | | | | Type | Motorized; German Equatorial | | Payload Capacity | 30 lb / 13.6 kg | | Altitude Adjustment | 7
Rating76% users recommend this product to others. And what about you?
This product has already been rated by 11 owners. Add your rating and experience with the product.
