User Manual for Celestron Advanced VX 8" f 10 EdgeHD Schmidt-Cassegrain GoTo EQ Telescope Click to enlarge the picture
Contents of the user manual for the Celestron Advanced VX 8" f 10
- Product category: Catadioptrics (Cassegrains) Celestron
- Brand: Celestron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Celestron Catadioptrics (Cassegrains)
 |
User manual for the Celestron Advanced VX 8" f 10 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Celestron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Celestron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Celestron product will considerably shorten its lifespan!
|

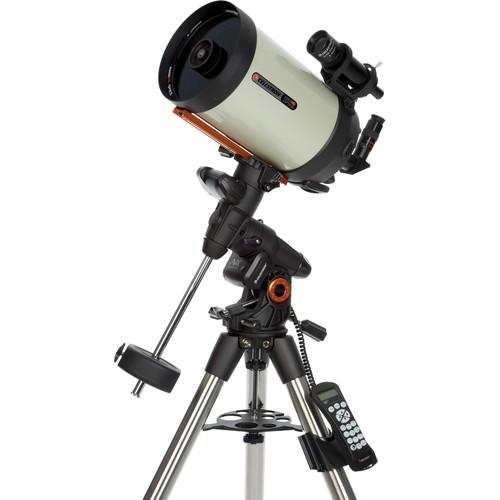

Product description Powerful yet portable, the Celestron Advanced VX 8" f/10 EdgeHD GoTo EQ Telescope provides users with a complete astronomical observation platform for the Moon, planets, galaxies, nebulae, and thousands of other near- and deep-sky objects. Included here is a large-aperture EdgeHD Schmidt-Cassegrain optical tube assembly (OTA), the iconic NexStar+ GoTo computer hand controller with a 40,000+ object database and alignment assistance, the solid Advanced VX motorized mount, plus an assortment of accessories to get you set up and observing right out of the box. - EdgeHD CG-5 8" f/10 Aplanatic Schmidt-Cassegrain Telescope (OTA Only)
- Celestron Advanced VX Schmidt Cassegrain Product Overview
- Celestron Advanced VX Edge HD Product Overview
Engineered to deliver sharp and clear distortion-free views, the Celestron EdgeHD CG-5 8" f/10 Aplanatic Schmidt-Cassegrain Telescope is an ideal choice for observation, astrophotography, and imaging objects within or beyond our solar system. It features an aplanatic Schmidt-Cassegrain optical system consisting of a corrector plate, a spherical primary mirror, and a secondary mirror along with a set of field-flattening lenses integrated into the baffle tube. Complementing the EdgeHD system is the proprietary StarBright XLT optical coating system, which improves light transmission and reflectivity across the entire visual spectrum. The combination of EdgeHD and StarBright XLT produces bright and clear high-resolution images with true color rendition across the entire field of view without distortion, aberrations, or off-axis comas.Optimized for imaging, the internal focusing system features mirror support clutches to ensure proper alignment and mirror locks to avoid accidental defocusing during long-exposure astrophotography. The optical tube is outfitted with a standard 1.25" visual back to make it easier to find eyepieces, accessories, and imaging gear. For visual observations, a 1.25" star diagonal is included along with a 40mm Plössl eyepiece that yields 51x magnification. The EdgeHD 8" is offered here without a mount or tripod for users who already have a reliable support system and are looking to upgrade or add to their existing gear, but comes with a standard-sized CG-5 dovetail plate that is compatible with Vixen-style saddles. - Optical Tube
-
- 8" (203.2mm) aperture
- f/10 focal ratio
- 2032mm effective focal length
- Aplanatic Schmidt-Cassegrain optical design
- EdgeHD field-flattener aplanatic design eliminates spherical aberration, field curvature, and off-axis star coma to improve resolution, sharpness, and clarity across the entire field of view, especially at the edges
- Diffraction-limited SCHOTT glass reduces internal light loss to improve color, clarity, and sharpness
- StarBright XLT optical coatings
- Flexible tension clutches hold the primary mirror in place to reduce image shift without putting any force or pressure on the mirror assembly, keeping subjects centered
- Internal mirror locks prevent accidental adjustment to focus—important during long-exposure astrophotography
- Integrated 95-micron mesh filter allows hot air to be released from behind the primary mirror without dust getting in, to prevent mirror distortion due to uneven surface temperatures
- Resolution: 0.69 arcsec (Rayleigh); 0.57 arcsec (Dawes)
- Secondary mirror obstruction: 2.7" (69mm); 34% by diameter; 11% by area
- StarBright XLT System
-
- Maximizes light transmission through optical path
- Improves color rendition, contrast, sharpness, resolution, and brightness
- Broadband system provides flat wavelength transmission across the entire visual spectrum
- Multi-layer mirror coatings with layers of aluminum, SiO2 (quartz), and TiO2 (titanium dioxide)
- Multi-layer anti-reflective corrector plate coatings with layers of MgF2 (magnesium fluoride) and HfO2 (hafnium dioxide); hafnium has a wider band-pass than the commonly used titanium
- High-transmission water white glass corrector plate limits light loss due to internal absorption
- Mounting
-
- OTA only; mount and tripod required for proper use
- Standard CG-5 (Vixen-style) dovetail plate
- Included Accessories
- Visual Back:
- Standard Schmidt-Cassegrain telescope (SCT) threads
- 1.25" eyepiece/accessory holder
- Use for prime focus or projection astrophotography with optional adapters
Eyepiece:- Plössl lens configuration
- 1.25"-diameter barrel
- Accepts most 1.25" eyepiece filters
- 40mm focal length yields 51x power
Diagonal:- 90° angle puts head in comfortable viewing position
- Threaded for direct connection to OTA without the need for the visual back
- 1.25" eyepiece/accessory holder
- Star diagonal corrects image horizontally, but not vertically
Finderscope:- Low 9x magnification preserves wide field of view to more easily find alignment or guide stars
- Large 50mm aperture helps to see dimmer objects and stars for easier star-hopping navigation
UPC: 050234103190 - Advanced VX GoTo German Equatorial Mount Engineered and optimized for astrophotography with mid-sized optical tube assemblies (OTAs), the Celestron Advanced VX GoTo German Equatorial Mount delivers the performance required for clear images through the use of dual-axis low-cog DC servo motors and backlash compensation. Added to this are encoders on the motors and Permanent Periodic Error Correction (PPEC), which help to improve positioning and tracking precision and ensure your target object stays centered for long-exposure photography techniques. Supporting the mount is a large 2" stainless steel tripod that has a wide stance for stability on most terrain and a center tray that holds 1.25" and 2" eyepieces and accessories and acts as a leg lock to further stabilize while helping to minimize vibrations.The brain of the system is the NexStar+ computer controller, which is equipped with a database of over 40,000 objects, including the planets, stars, nebulae, galaxies, and the complete Messier catalog; it can also be programmed with up 100 custom user-defined objects with filters to create custom object lists. Its intuitive menu-driven user interface makes observing the heavens fast and easy; features such as guided tours, extended information on 200 popular objects, and multiple alignment options make the NexStar+ controller an invaluable tool to new users and experienced stargazers alike.
- Advanced VX Mount
-
- 30-pound payload capacity
- Dual-axis low-cog DC servo motors
- Dual motor encoders improve tracking and location accuracy with reduced vibrations
- 7-77° latitude range
- Uninterrupted tracking below meridian to enable observation from a raised location such as a balcony or hilltop
- Integrated 12" counterweight bar with one 12-pound counterweight
- Vixen-style CG-5 dovetail saddle
- NexStar+ Hand Controller
-
- 40,000+ object database
- 100 user-defined programmable celestial or terrestrial objects
- Enhanced information on over 200 objects
- Nine slew speeds: 4°/sec, 2°/sec, 1°/sec, 0.3°/sec, 32x, 16x, 8x, 4x, 2x
- Three tracking rates: Sidereal, Solar, Lunar
- Multiple alignment procedures: Two-star, One-star, Solar system, Quick-align, Last-align
- Sky Tour Mode: System seeks out the best objects for the date and time and automatically slews to them
- Identify Mode: Use to identify an unknown object in the field of view, or to find other celestial objects that are close to where the user is viewing
- Anti-backlash compensation: Trains out the intrinsic play between gears for more precise slewing and tracking
- Permanent Periodic Error Correction (PPEC): System learns its internal tracking errors and improves over time for more precise tracking, requiring fewer corrections
- Built-in instructions guide you through the alignment procedures
- 4-line, 18-character LCD display with a 19-button fiber-optic backlit LED keypad
- RS-232 comm port
- Supports English, French, Italian, German, and Spanish
- Database details:
- Solar system: Seven planets, Moon, Sun, and Pluto
- Custom lists of all the brightest stars, double stars, variable stars, and asterisms
- Custom lists of galaxies, nebulae, and clusters, as well as the complete Messier catalog and select NGC objects
- Tripod
-
- Tubular stainless steel legs
- 2" leg diameter
- 44-64" height-adjustment range
- Center tray holds 1.25 and 2" eyepieces and locks legs in place for greater stability and vibration reduction
- Removable hand controller holder can be moved to avoid cord wrap during long observation sessions
- Weight: 18 pounds
UPC: 050234915199 In the Box Bundle Items EdgeHD CG-5 8" f/10 Aplanatic Schmidt-Cassegrain Telescope (OTA Only) crequuybyvctayetfces - 1.25" 40mm Plössl Eyepiece
Advanced VX GoTo German Equatorial Mount - Stainless Steel Tripod with Tray
- 12 VDC Car/Vehicle Power Cord
Table of Contents
|
Upload User Manual
Have you got an user manual for the Celestron Advanced VX 8" f 10 EdgeHD Schmidt-Cassegrain GoTo EQ Telescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - EdgeHD CG-5 8" f/10 Aplanatic Schmidt-Cassegrain Telescope (OTA Only)
| Optical Design | Aplanatic Schmidt-Cassegrain | | Aperture | 8.0" / 203.2mm | | Focal Length | 2032mm | | Focal Ratio | f/10 | | Eyepiece Barrel Diameter | 1.25" | | Diagonal | 90° star
1.25" snout and eyepiece holder | | Finderscope | 9x50 | | Tripod | None | | Mount Type | CG-5 dovetail plate
Compatible with Vixen-style saddles | | Power Source | None | | Optical Tube Length | 17.0" / 43.2 cm | | Weight | 14.0 lb / 6.4 kg | | | | Box Dimensions (LxWxH) | 25.0 x 15.0 x 14.0" | - Advanced VX GoTo German Equatorial Mount
| Mount Type | German equatorial | | Load Capacity | 30 lb / 13.6 kg | | Motor | Dual-axis DC servo with encoders | | GoTo Capability | NexStar+ hand controller | | Altitude / Latitude Adjustment | 7 - 77° | | Polar Axis Scope | None | | Mount | CG-5, Vixen-style, dovetail saddle | | Includes Tripod/Pier | Adjustable-height tripod
2" tubular stainless steel legs
Adjustment range: 44.0 - 64.0" / 111.8 - 162.6 cm
Weight: 18.0 lb / 8.2 kg | | Counterweight | 1 x 12.0 lb / 5.4 kg | | Power Source | 12 VDC, 3.5 A car/vehicle plug | | Weight | Head: 17.0 lb / 7.7 kg
Tripod: 18.0 lb / 8.2 kg | | | | Box Dimensions (LxWxH) | 38.0 x 26.0 x 12.0" |
