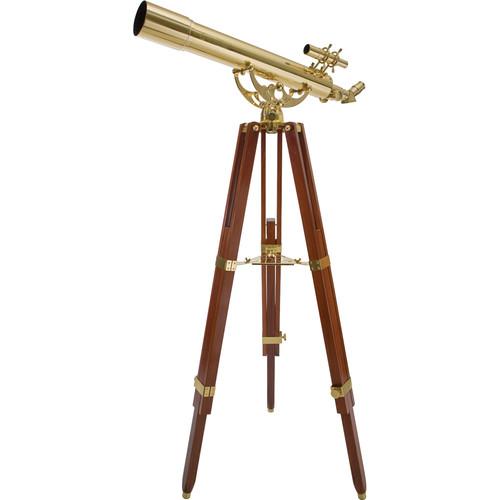

User Manual for Celestron Ambassador 80AZ 80mm f 10 Refractor Brass Telescope Click to enlarge the picture
Contents of the user manual for the Celestron Ambassador 80AZ 80mm f 10
- Product category: Refractors Celestron
- Brand: Celestron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Celestron Refractors
|
User manual for the Celestron Ambassador 80AZ 80mm f 10 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Celestron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Celestron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Celestron product will considerably shorten its lifespan!
|
Product description Harkening back to the days when sailing ships ruled the waves, Celestron's Ambassador 80AZ 80mm f/10 Refractor Brass Telescope is the largest offering in the Ambassador line of decorative optics and designed with distinctive vintage nautical styling, and modern glass and coatings that are the hallmarks of the series. Built with a polished brass optical tube, mount and accessories, and an elegant mahogany tripod, this telescope is a certain conversation-starter and will become the centerpiece of any room or space.The telescope comes with a 32x eyepiece that fits into a 45° erect-image diagonal that corrects the view for terrestrial use and puts the user's head in a comfortable viewing position whether they are observing an arriving sailor or a celestial body. Complementing the eyepiece and diagonal is an erect-image finderscope. The eyepiece, diagonal, finderscope, and the finderscope bracket have a matching polished brass finish to accentuate the overall aesthetics of the scope's styling. A manual cradle-style alt-az mount is simple to use and makes finding and tracking objects easy with locks on both axes to fix the scope on a stationary subject. Its beautiful mahogany tripod features a brass accessory tray and details, and adjusts in height from 39-62" so just about anyone can use it standing or sitting. - Optical Tube
-
- Polished brass finish presents a refined, vintage, and elegant style
- Large 80mm aperture
- f/10 focal ratio
- 800mm focal length
- Refractor-style optical configuration
- Anti-reflection fully coated optics
- Resolution: 1.74 arcsec, Rayleigh; 1.45 arcsec, Dawes
- 100' (31m) close focus distance
- 1.25" rack-and-pinion focuser
- Mount and Tripod
-
Mount:- Polished brass finish to match optical tube and accessories
- Manual cradle-style alt-azimuth
- Altitude and azimuth locks to fix the position
Tripod:- Mahogany legs with brass details
- Matching polished brass accessory tray accentuates the mount and scope
- Height, fully extended: 62.0"
- Height, lowered completely: 39.0"
- Footprint, fully extended: 34.0 x 29.0"
- Footprint, fully lowered: 21.0 x 19.0"
- Included Accessories
-
Eyepiece:- 1.25" diameter barrel
- 32x polished brass
- 45° apparent field of view
- 74' field of view at 1000 yards
Diagonal:- 45° angle puts head in comfortable viewing position
- Erect-image corrects view horizontally and vertically for terrestrial use
- Polished brass finish
Finderscope:- 6x magnification provides a wide field of view to find subjects
- 30mm aperture ensures bright views to find distant objects
- Erect-image for terrestrial use
- Polished brass finish with matching bracket.
UPC: 050234210348 In the Box Celestron Ambassador 80AZ 80mm f/10 Refractor Brass Telescope 25mm Eyepiece 45° Erecting Diagonal Objective Lens Cap Eyepiece Cap Focuser Cap Finderscope Eyepiece Cap Finderscope with Bracket Tripod with Tray Limited 2-Year Warranty User Manual PDF 8.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Celestron Ambassador 80AZ 80mm f 10 Refractor Brass Telescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCelestron Ambassador 80 AZ Specs | | | Optical Design | Achromatic Refractor | | Focal Length | 800 mm | | Focal Ratio | f/10 | | Eyepiece Barrel Diameter | 1.25" | | Finderscope | Yes | | | | Type | Alt-Azimuth | | GoTo Capability | No | | | | Package Weight | 37.0 lb | | Box Dimensions (LxWxH) | 49.0 x 15.0 x 12.0" |
