User Manual for Celestron AstroMaster 114EQ 114mm f 8.8 Reflector Telescope Click to enlarge the picture
Contents of the user manual for the Celestron AstroMaster 114EQ 114mm f 8.8
- Product category: Reflectors Celestron
- Brand: Celestron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Celestron Reflectors
|
User manual for the Celestron AstroMaster 114EQ 114mm f 8.8 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Celestron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Celestron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Celestron product will considerably shorten its lifespan!
|

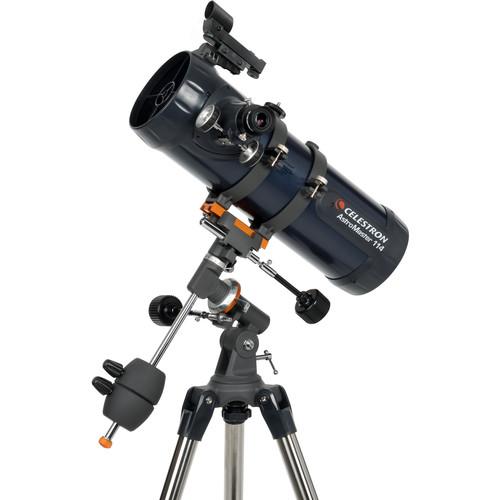

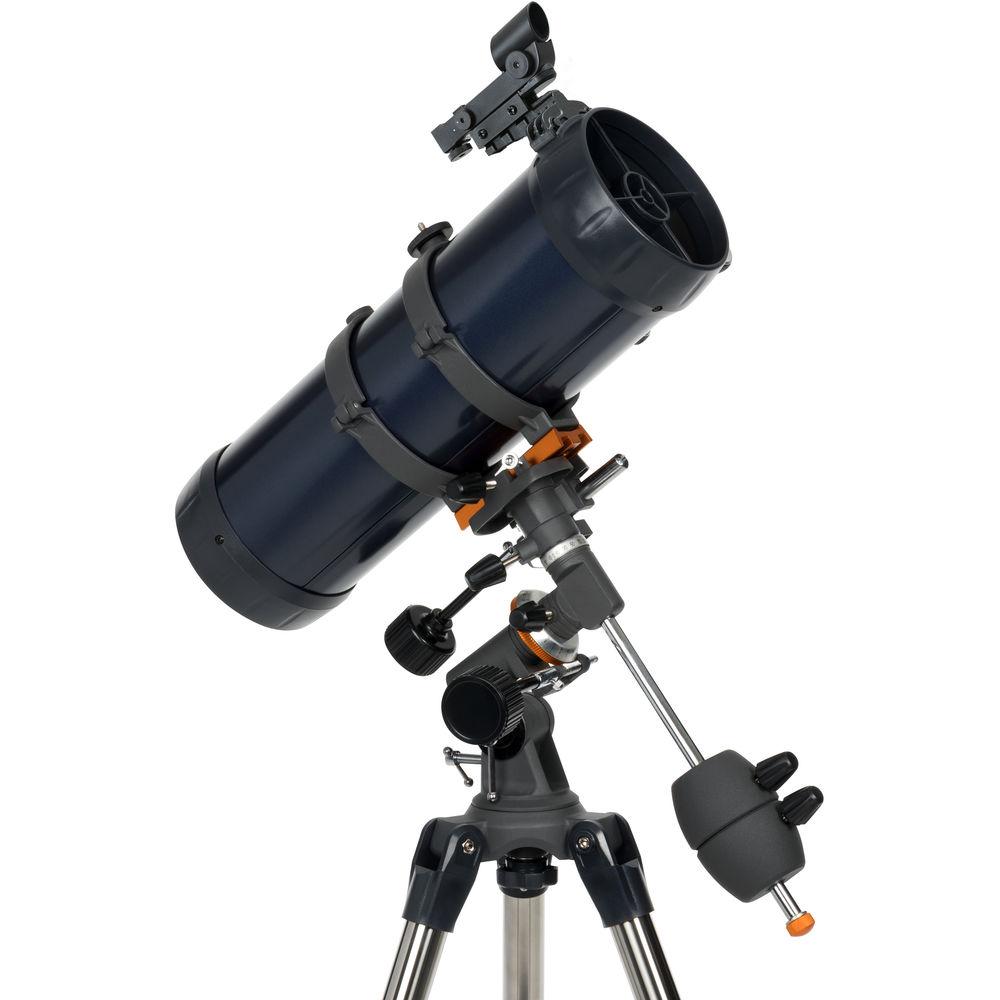

Product description Ideal for near and deep-sky observation, Celestron's AstroMaster 114EQ 114mm f/8.8 Reflector Telescope features a long focal length and a large parabolic mirror that produce detailed images of the Moon, clear views of the planets, and the ability to resolve distant objects such as nebulae and galaxies. The scope is outfitted with a 1.25 rack-and-pinion focuser and two eyepieces to get new users started, and an unmagnified red-dot finder to help set-up, align and navigate easier.The included manual equatorial mount features slow-motion control cables make it easy to track objects, even when wearing gloves, while also minimizing vibrations caused by handling the mount with your hands — as well as clearly visible indicators on the Right Ascension and Declination axes. An adjustable-height aluminum tripod rounds out the rig with a tray for accessories such as eyepieces, filters, and lights. - Optical Tube
-
- 114mm aperture
- f/8.8 focal ratio
- 1000mm focal length
- Highly-reflective aluminum-coated mirrors improve light transmission, color rendition, and contrast
- Resolution: 1.22 arcsec, Rayleigh; 1.02 arc sec, Dawes
- Secondary mirror obstruction: 31% by diameter, 10% by area
- 1.25" rack-and-pinion focuser
- Mount and Tripod
-

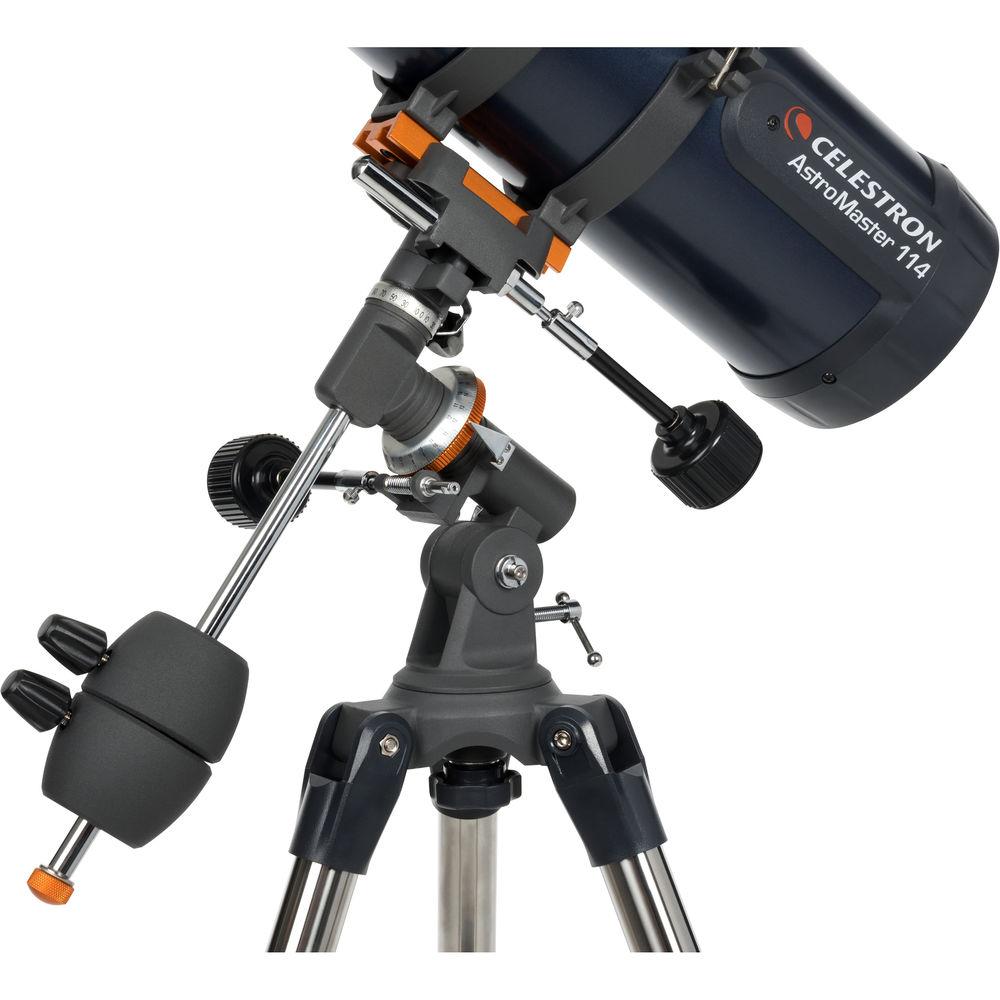

CG-2 Mount:- Manual German equatorial
- Dual slow-motion control cables enable fine adjustments with reduced vibrations
- Altitude adjustment screws locks setting
- Etched Right Ascension and Declination scales
- Removable counterweight bar
- 2.6-pound counterweights (2 x) to properly balance OTA and accessories for smooth movement
- Dovetail plate enables fast assembly and break-down

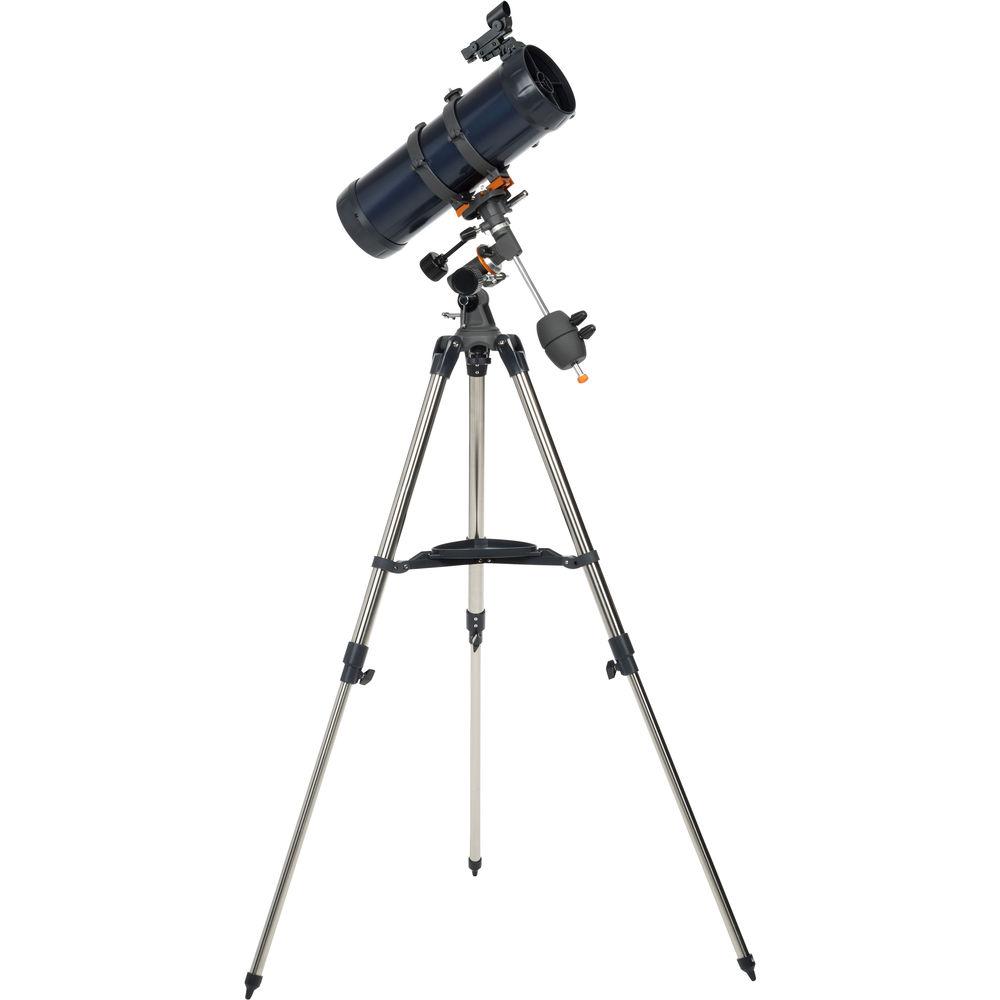

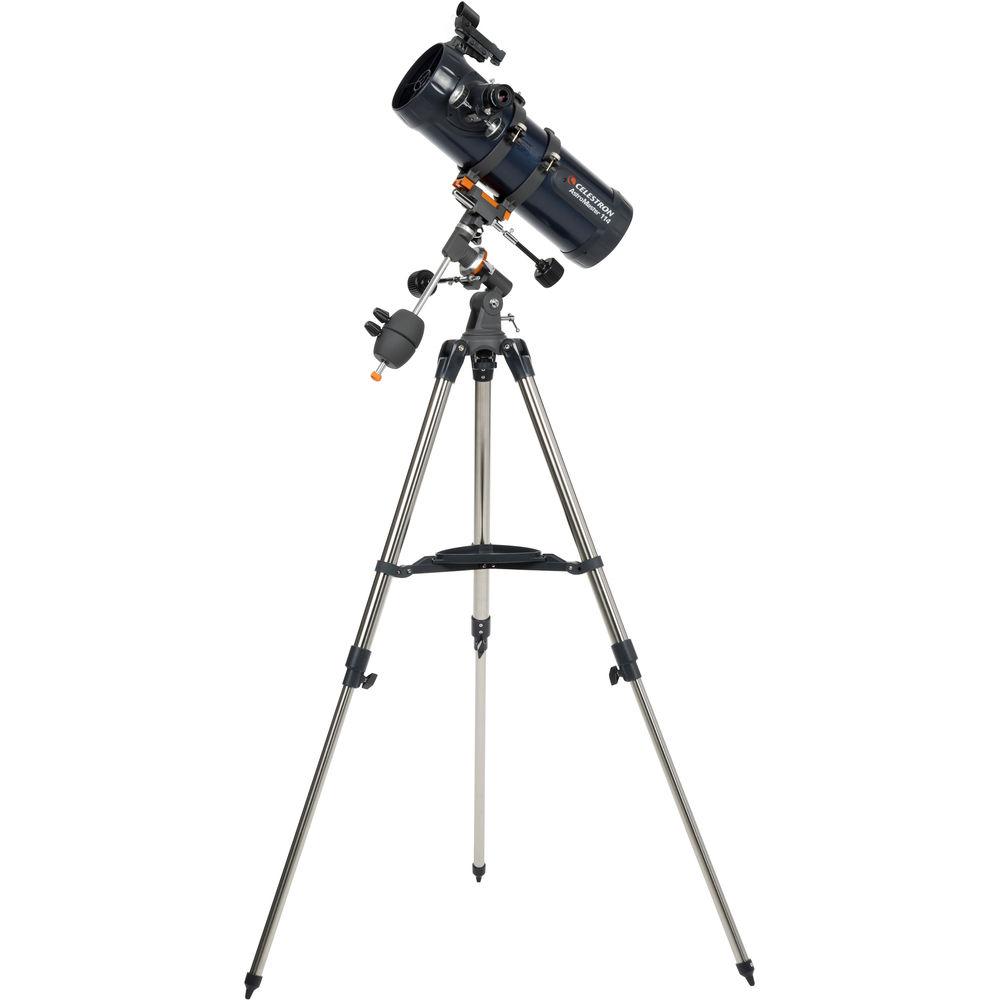

Tripod:- Adjustable-height
- 1.25" diameter stainless steel legs
- Tray to hold eyepieces, lights, and accessories
- Spiked feet add stability on uneven/soft ground
- Included Accessories
-

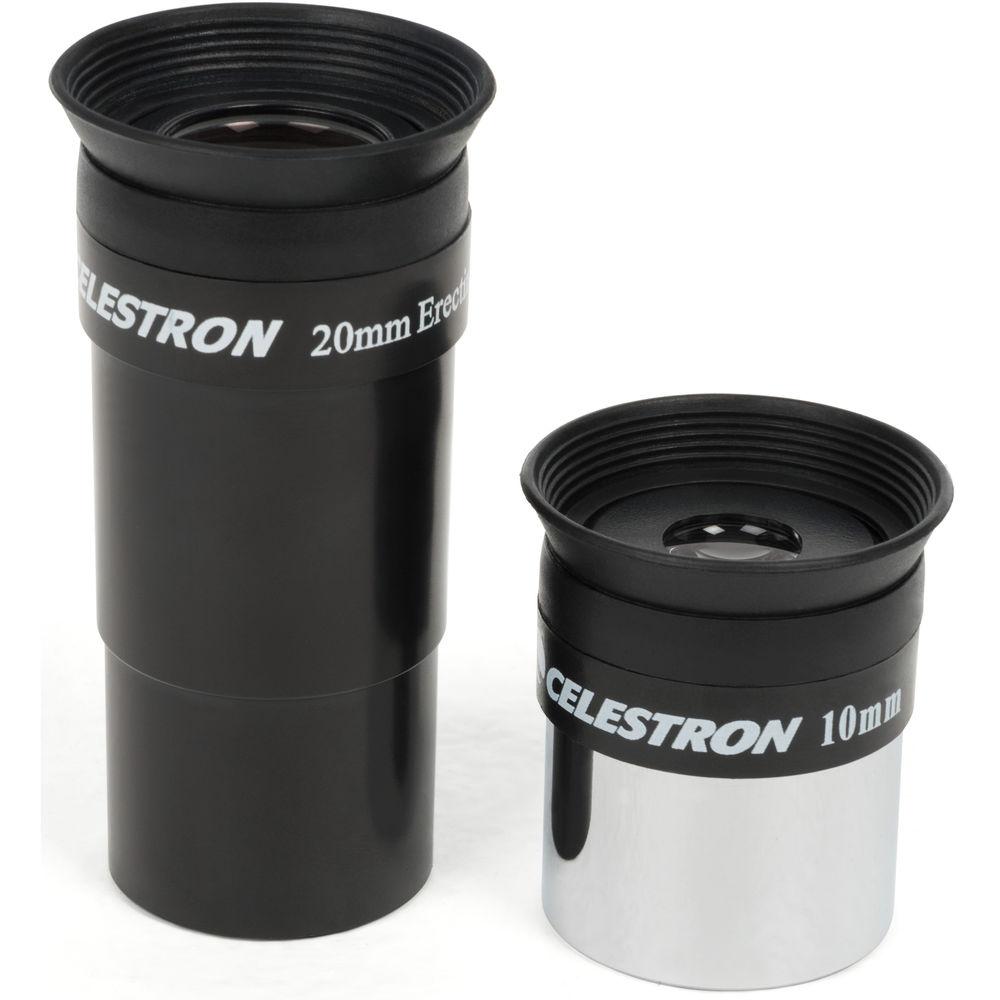

Eyepieces:- 1.25" diameter barrel
- Accepts most 1.25" astronomical filters
- 10mm focal length produces 100x
- 20mm focal length produces 50x
SkyPointer Finder:- Unmagnified to make finding objects easier and star-hopping navigation faster
- Illuminated red center aiming dot is easy to see without affecting night-adjusted vision
UPC: 050234310420 In the Box Celestron AstroMaster 114EQ 114mm f/8.8 Reflector Telescope 20mm Eyepiece 10mm Eyepiece StarPointer Finder Equatorial Head 2 x Slow-Motion Cables Adjustable-Height Tripod Counterweight Bar 2 x 2.6-pound Counterweights "The Sky" Level 1 CD-ROM Limited 2-Year Warranty User Manual PDF 10.9mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Celestron AstroMaster 114EQ 114mm f 8.8 Reflector Telescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCelestron AstroMaster 114 EQ Specs Optical Design | Newtonian reflector | Aperture | 114 mm | Focal Length | 1000mm | Focal Ratio | f/8.8 | Eyepiece Barrel Diameter | 1.25" | Diagonal | None | Finderscope | StarPointer | Tripod | Stainless steel Adjustable height 1.25" diameter legs | Mount Type | Manual equatorial | Power Source | None | Counterweights | 2 x 2.6 lb / 1.2 kg | Optical Tube Dimensions | 18.0" / 45.7 cm | Weight | 17.0 lb / 7.7 kg, assembled | | Package Weight | 29.75 lb | Box Dimensions (LxWxH) | 32.0 x 17.0 x 11.0" |
