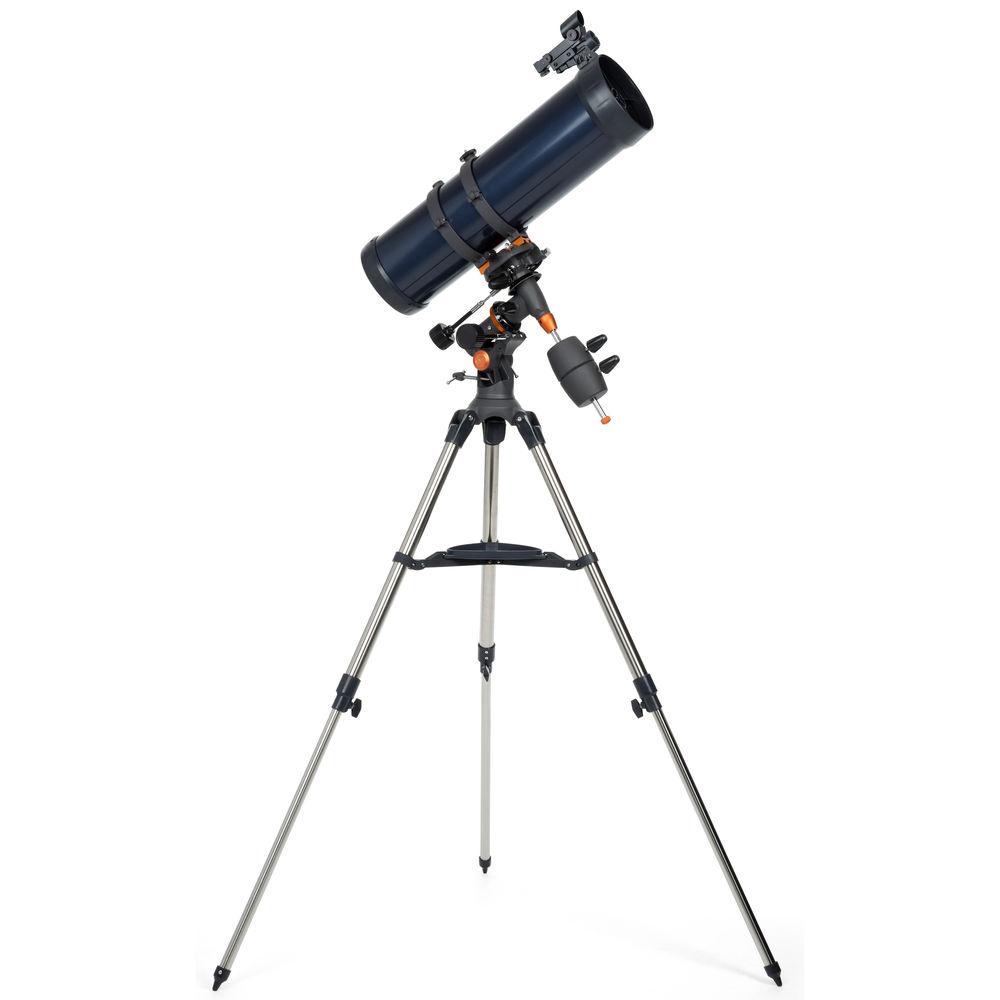

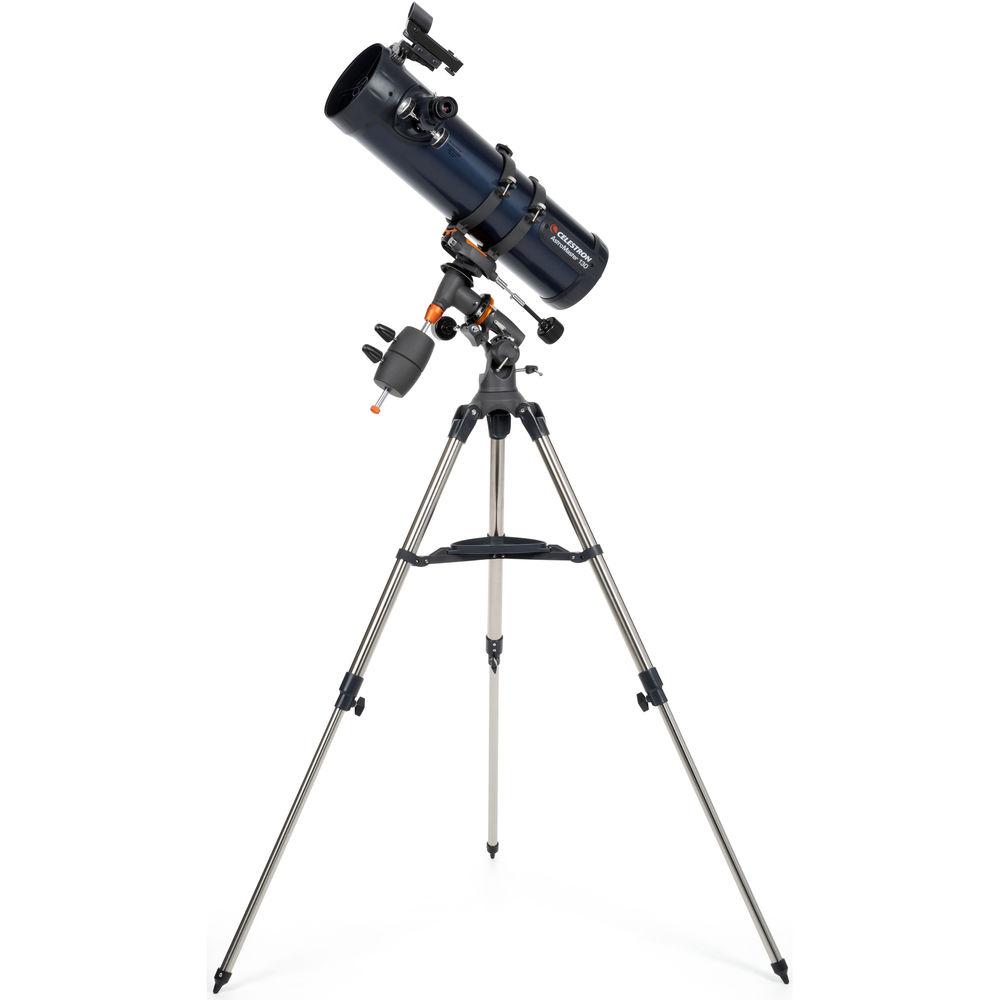

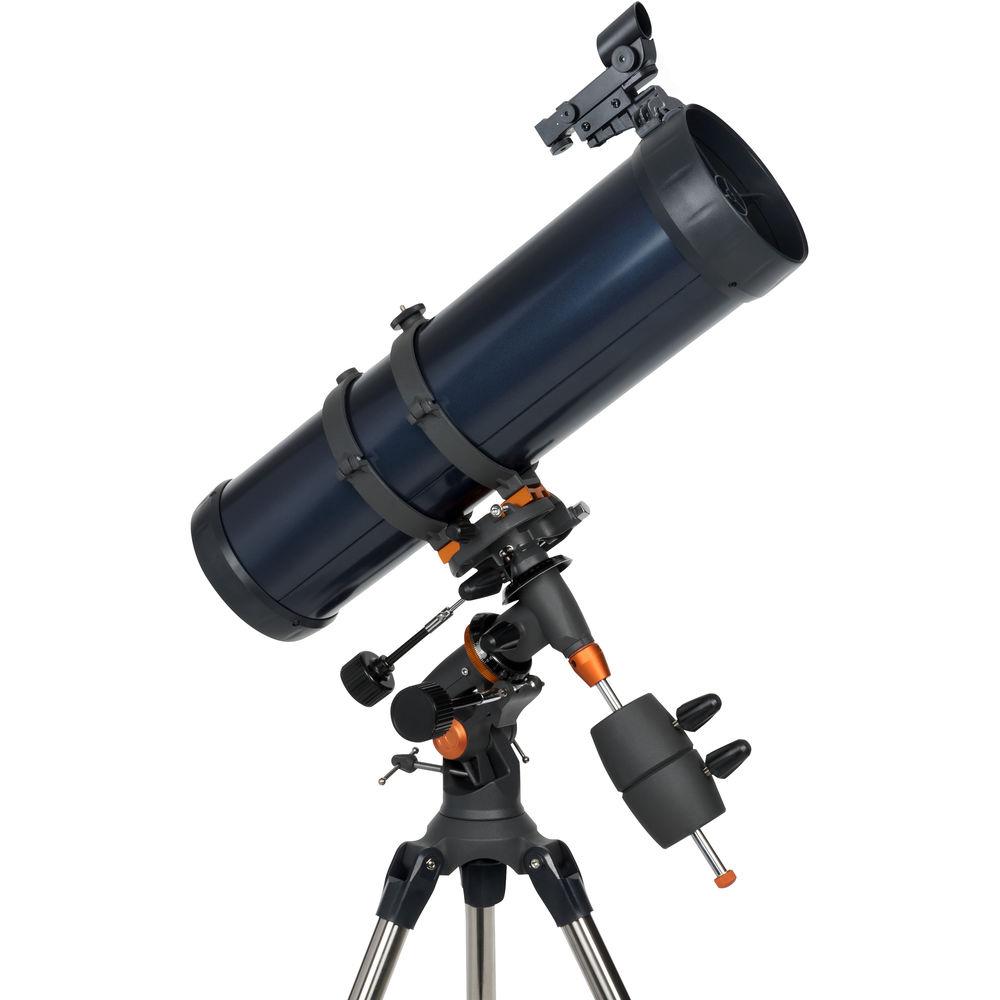

Product description Designed for near and deep-sky observation with a fast focal ratio for astrophotography/imaging, Celestron's AstroMaster 130EQ 130mm f/5 Reflector Telescope features a 650mm focal length and an oversized parabolic mirror that produce detailed images of the Moon, clear views of the planets, and the ability to resolve distant objects such as nebulae and galaxies.The scope is outfitted with a 1.25 rack-and-pinion focuser and two eyepieces to get new users started: a 10mm that yields 65x power and a 20mm for a 32.5x magnification. The 20mm eyepiece integrates an erecting system to correct images horizontally and vertically to allow easy terrestrial use. An unmagnified red-dot finder is also included to help set-up, align and navigate easier.The included manual equatorial mount features slow-motion control cables make it easy to track objects even when wearing gloves, while also minimizing vibrations caused by handling the mount with your hands; and clearly visible indicators on the Right Ascension and Declination axes. An adjustable-height aluminum tripod rounds out the rig with a tray for accessories such as eyepieces, filters, and lights. - Optical Tube
-
- Large 130mm aperture
- Fast f/5 focal ratio
- 650mm focal length
- Highly-reflective aluminum-coated mirrors improve light transmission, color rendition, and contrast
- Resolution: 1.07 arcsec, Rayleigh; 0.89 arcsec, Dawes
- Secondary mirror obstruction: 31% by diameter, 10% by area
- 1.25" rack-and-pinion focuser
- Mount and Tripod
-

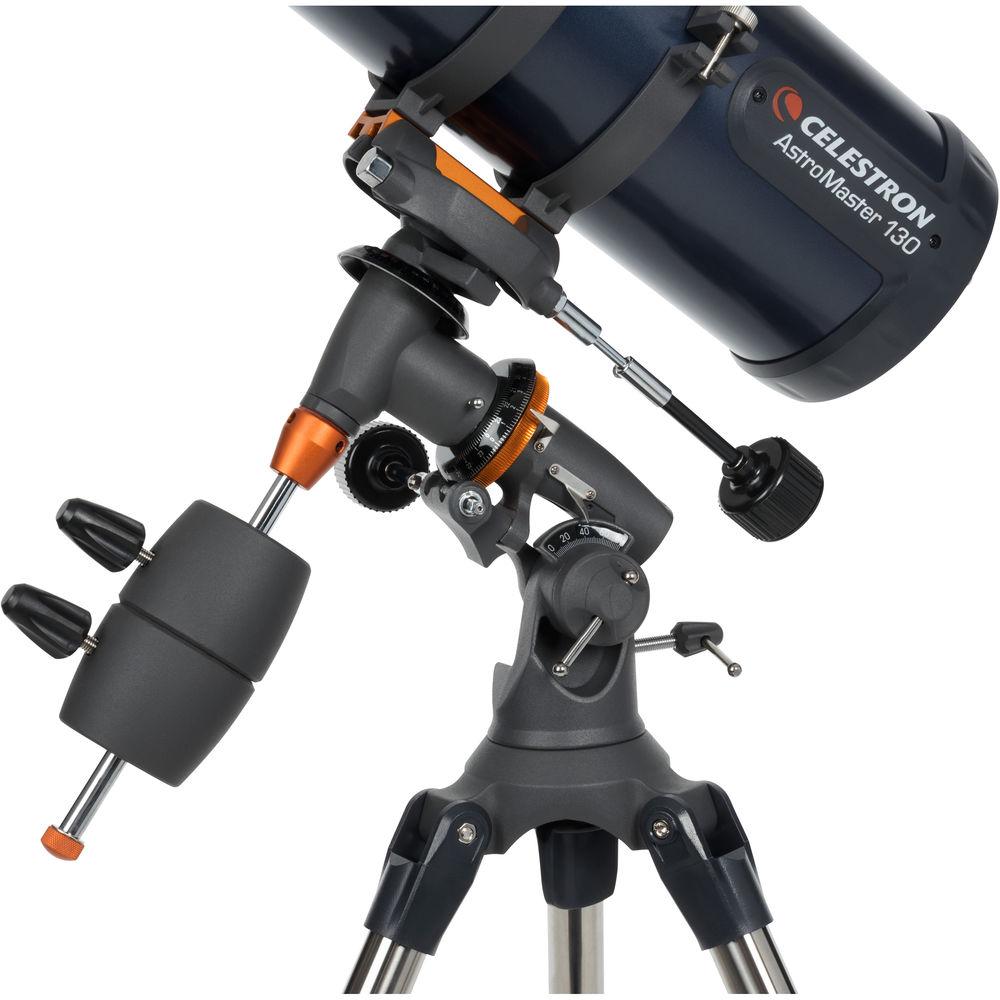

CG-3 Mount:- Manual German equatorial
- Dual slow-motion control cables enable fine adjustments with reduced vibrations
- Altitude adjustment screws locks setting
- Etched Right Ascension and Declination scales
- Removable counterweight bar
- Two 4.8-pound counterweights to properly balance OTA and accessories for smooth movement
- Dovetail plate enables fast assembly and break-down
Tripod:- Adjustable-height
- 1.25" diameter stainless steel legs
- Tray to hold eyepieces, lights, and accessories
- Spiked feet add stability on uneven/soft ground
- Included Accessories
-

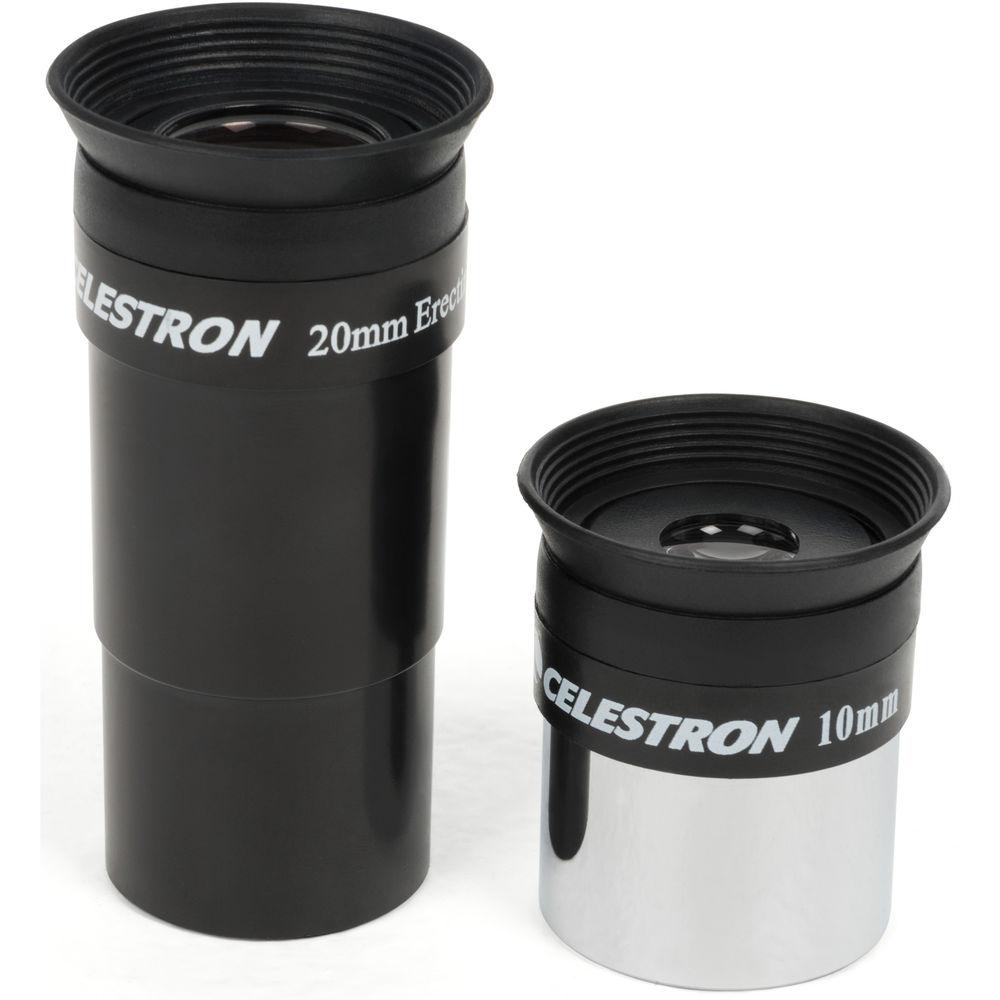

Eyepieces:- 1.25" diameter barrel
- Accepts most 1.25" astronomical filters
- 10mm focal length produces 65x
- 20mm focal length produces 32.5x
- 20mm eyepiece has integrated prism to correct image horizontally and vertically for terrestrial use
SkyPointer Finder:- Unmagnified to make finding objects easier and star-hopping navigation faster
- Illuminated red center aiming dot is easy to see without affecting night-adjusted vision
UPC: 050234310451 In the Box Celestron AstroMaster 130EQ 130mm f/5 Reflector Telescope 20mm Erect-Image Eyepiece 10mm Eyepiece Star Pointer Finder Equatorial Head 2 x Slow-Motion Cables Adjustable-Height Tripod Counterweight Bar 2 x 4.8-Pound Counterweights "The Sky" Level 1 CD-ROM Limited 2-Year Warranty User Manual PDF 9.5mb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Celestron AstroMaster 130EQ 130mm f 5 Reflector Telescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCelestron AstroMaster 130 EQ Specs | Optical Design | Newtonian reflector | | Aperture | 130 mm | | Focal Length | 650mm | | Focal Ratio | f/5 | | Eyepiece Barrel Diameter | 1.25" | | Diagonal | None | | Finderscope | Star pointer | | Tripod | Stainless steel
Adjustable height
1.25" diameter legs | | Mount Type | Manual equatorial | | Power Source | None | | Counterweights | 2 x 4.8 lb / 2.2 kg | | Optical Tube Dimensions | 24.0" / 61.0 cm | | Weight | 28.0 lb / 12.7 kg, assembled | | | | Package Weight | 38.6 lb | | Box Dimensions (LxWxH) | 35.0 x 18.5 x 10.0" |
