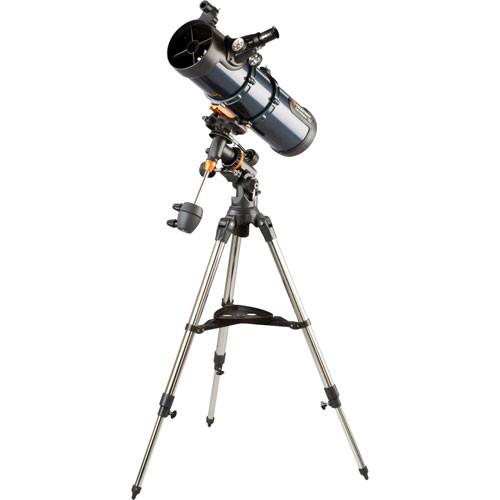

User Manual for Celestron AstroMaster 130EQ-MD 130mm f 5 Reflector Telescope Click to enlarge the picture
Contents of the user manual for the Celestron AstroMaster 130EQ-MD 130mm f 5
- Product category: Reflectors Celestron
- Brand: Celestron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Celestron Reflectors
|
User manual for the Celestron AstroMaster 130EQ-MD 130mm f 5 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Celestron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Celestron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Celestron product will considerably shorten its lifespan!
|
Product description Designed to observe and track near and deep-sky objects with a fast focal ratio for astrophotography/imaging, Celestron's AstroMaster 130EQ-MD 130mm f/5 Reflector Telescope features a 650mm focal length and an oversized parabolic mirror that produce detailed images of the Moon, clear views of the planets, and the ability to resolve distant objects such as nebulae and galaxies.The scope is outfitted with a 1.25 rack-and-pinion focuser and two eyepieces to get new users started: a 10mm that yields 65x power and a 20mm for a 32.5x magnification. The 20mm eyepiece integrates an erecting system to correct images horizontally and vertically to allow easy terrestrial use. An unmagnified red-dot finder is also included to help set-up, align and navigate easier.Its manual equatorial mount features a variable-speed Right Ascension motor drive system capable of working in both the Northern and Southern hemispheres, with variable speed to accurately track fast-moving objects like the Moon and slower deep-sky objects like galaxies and nebulae. For alignment and easy navigation, dual slow-motion control cables are provided; and clearly visible indicators on the Right Ascension and Declination axes. An adjustable-height aluminum tripod rounds out the rig with a tray for accessories such as eyepieces, filters, and lights. - Optical Tube
-
- Large 130mm aperture
- Fast f/5 focal ratio
- 650mm focal length
- Highly-reflective aluminum-coated mirrors improve light transmission, color rendition, and contrast
- Resolution: 1.07 arcsec, Rayleigh; 0.89 arcsec, Dawes
- Secondary mirror obstruction: 31% by diameter, 10% by area
- 1.25" rack-and-pinion focuser
- Mount and Tripod
-
CG-3 Mount:- Manual German equatorial
- Variable-speed Right Ascension motor drive accurately tracks near and deep sky objects, with proper polar alignment
- Dual slow-motion control cables enable fine adjustments with reduced vibrations
- Altitude adjustment screws locks setting
- Etched Right Ascension and Declination scales
- Removable counterweight bar
- Two 4.8-pound counterweights to properly balance OTA and accessories for smooth movement
- Dovetail plate enables fast assembly and break-down
Tripod:- Adjustable-height
- 1.25" diameter stainless steel legs
- Tray to hold eyepieces, lights, and accessories
- Spiked feet add stability on uneven/soft ground
- Included Accessories
-
Eyepieces:- 1.25" diameter barrel
- Accepts most 1.25" astronomical filters
- 10mm focal length produces 65x
- 20mm focal length produces 32.5x
- 20mm eyepiece has integrated prism to correct image horizontally and vertically for terrestrial use
SkyPointer Finder:- Unmagnified to make finding objects easier and star-hopping navigation faster
- Illuminated red center aiming dot is easy to see without affecting night-adjusted vision
UPC: 050234310512 In the Box Celestron AstroMaster 130EQ-MD 130mm f/5 Reflector Telescope Astromaster Motor Drive 20mm Erect-Image Eyepiece 10mm Eyepiece Star Pointer Finder Equatorial Head 2 x Slow-Motion Cables Adjustable-Height Tripod Counterweight Bar 2 x 4.8-pound Counterweights "The Sky" Level 1 CD-ROM Limited 2-Year Warranty User Manual PDF 9.5mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Celestron AstroMaster 130EQ-MD 130mm f 5 Reflector Telescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCelestron AstroMaster 130 EQ MD Specs | Optical Design | Newtonian reflector | | Aperture | 130 mm | | Focal Length | 650mm | | Focal Ratio | f/5 | | Eyepiece Barrel Diameter | 1.25" | | Diagonal | None | | Finderscope | Star pointer | | Tripod | Stainless steel
Adjustable height
1.25" diameter legs | | Mount Type | Manual equatorial with Right Ascension motor drive | | Power Source | 9v battery, for motor drive | | Counterweights | 2 x 4.8 lb / 2.2 kg | | Optical Tube Dimensions | 24.0" / 61.0 cm | | Weight | 28.0 lb / 12.7 kg, assembled | | | | Package Weight | 38.0 lb | | Box Dimensions (LxWxH) | 35.0 x 18.5 x 11.5" |
