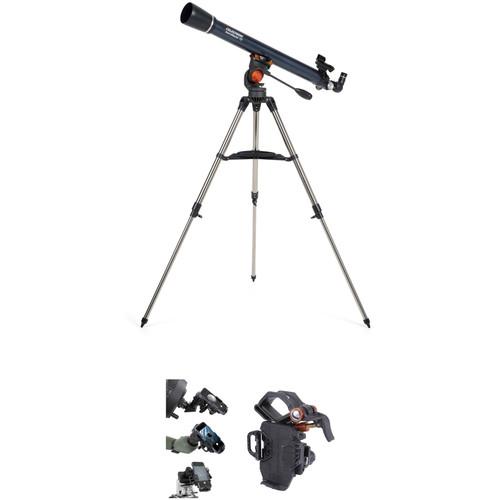

Celestron AstroMaster 70AZ 70mm f 13

User Manual for Celestron AstroMaster 70AZ 70mm f 13 Alt-Az Refractor Digiscoping Telescope Kit

• Product category: Refractors Celestron
• Brand: Celestron
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Celestron Refractors

Product description

• Celestron AstroMaster 70AZ 70mm f/13 Alt-Az Refractor Telescope
  • Astromaster AZ Series
  Celestron designed the AstroMaster 70AZ 70mm f/13 Alt-Az Refractor Telescope as a multi-function starter-scope that can be used for both astronomical and terrestrial viewing. Its medium aperture and long focal length allow it to draw in a generous amount of light with a high magnification potential to allow observation of the larger planets and the moon. The included 90° diagonal has an integrated erecting prism that corrects the view to enable the scope's use on land. Celestron includes two eyepieces for high and medium magnifications.The AstroMaster is outfitted with a manual alt-azimuth mount and to make finding and tracking objects easy, there is an altitude control handle and an azimuth lock. Supporting the mount and optical tube is a stainless-steel tripod with sturdy 1.25" diameter legs and an adjustable height from 24 to 41-inches. Its center accessory tray pulls double-duty as a convenient place to store eyepieces and smartphones while it locks the legs in place to improve stability and reduce vibrations.
  Optical Tube
  • • 70mm aperture
    • f/13 focal ratio
    • 900mm focal length
    • Anti-reflection fully coated optics improve light transmission, color rendition, and contrast
    • Resolution: Rayleigh: 1.99 arcsec; Dawes: 1.66 arcsec
    • Rack-and-pinion focuser with 1.25" drawtube
    • Dovetail plate allows OTA to be attached to mount quickly and without tools
  Mount and Tripod
  • Mount:
    • Manual alt-azimuth
    • Control handle helps to adjust altitude
    • Azimuth lock reduces vibration and additional movement
    • Dovetail saddle accepts OTA plate
    Tripod:
    • 1.25" stainless steel legs
    • Adjustable height from 24-41"
    • Accessory tray locks in-place for added stability and vibration reduction
    • Spiked feet provide additional stability on soft, rough, or uneven ground
  Eyepieces and Accessories
  • Eyepieces:
    • 1.25" diameter barrels accept most astronomical filters
    • 10mm produces 90x magnification
    • 20mm yields 45x power
    Diagonal:
    • 90° angle places user's head in a comfortable viewing position
    • Built-in erecting prism corrects view for terrestrial use as a conventional spotting scope
    • 1.25" barrel and eyepiece holder
    StarPointer Finderscope:
    • Unmagnified to provide an exceptionally wide field of view to make finding subjects fast and star-hopping navigation easy
    • Projects a center aiming dot that won't obscure the subject
    • Variable intensity center dot won't affect night-adjusted vision
  UPC: 050234210614
• Celestron NexYZ 3-Axis Universal Smartphone Adapter
  • Astromaster AZ Series
  Capture still images and videos with virtually any smartphone through virtually any optical device with Celestron's NexYZ 3-Axis Universal Smartphone Adapter. The design allows it to be used on spotting scope, binocular, and telescope eyepieces from 30mm to 60mm—including standard 1.25" and larger 2" telescope eyepieces. Celestron includes two rings that allow the adapter to be mounted on smaller optics, such as microscopes. The frame is made of sturdy and lightweight aluminum and the body of a polymer material that makes it able to support larger and heavier smartphones without failing. A clamping system holds the adapter securely on the eyepiece and locks in place, while an adjustment system allows for precise phone camera alignment on three X-Y-Z axes. UPC: 050234810555

• AstroMaster 70AZ 70mm f/13 Alt-Az Refractor Telescope rcwueybd
• 10mm Eyepiece
• 20mm Eyepiece
• 90° Erect-Image Diagonal
• StarPointer Finderscope
• Tripod and Accessory Tray
• "The Sky" Level 1 CD-ROM
• Limited 2-Year Warranty

• NexYZ 3-Axis Universal Smartphone Adapter

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Celestron AstroMaster 70AZ 70mm f/13 Alt-Az Refractor Telescope

  Optical Design	Achromatic Refractor
  Aperture	70 mm / 2.8"
  Focal Length	900 mm
  Focal Ratio	f/12.9
  Focuser	Rack-and-Pinion
  Eyepiece Barrel Diameter	1.25"
  Diagonal	90 Rating 80% users recommend this product to others. And what about you? This product has already been rated by 92 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
