User Manual for Celestron AstroMaster 70AZ 70mm f 13 Alt-Az Refractor Telescope Click to enlarge the picture
Contents of the user manual for the Celestron AstroMaster 70AZ 70mm f 13
- Product category: Refractors Celestron
- Brand: Celestron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Celestron Refractors
 |
User manual for the Celestron AstroMaster 70AZ 70mm f 13 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Celestron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Celestron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Celestron product will considerably shorten its lifespan!
|

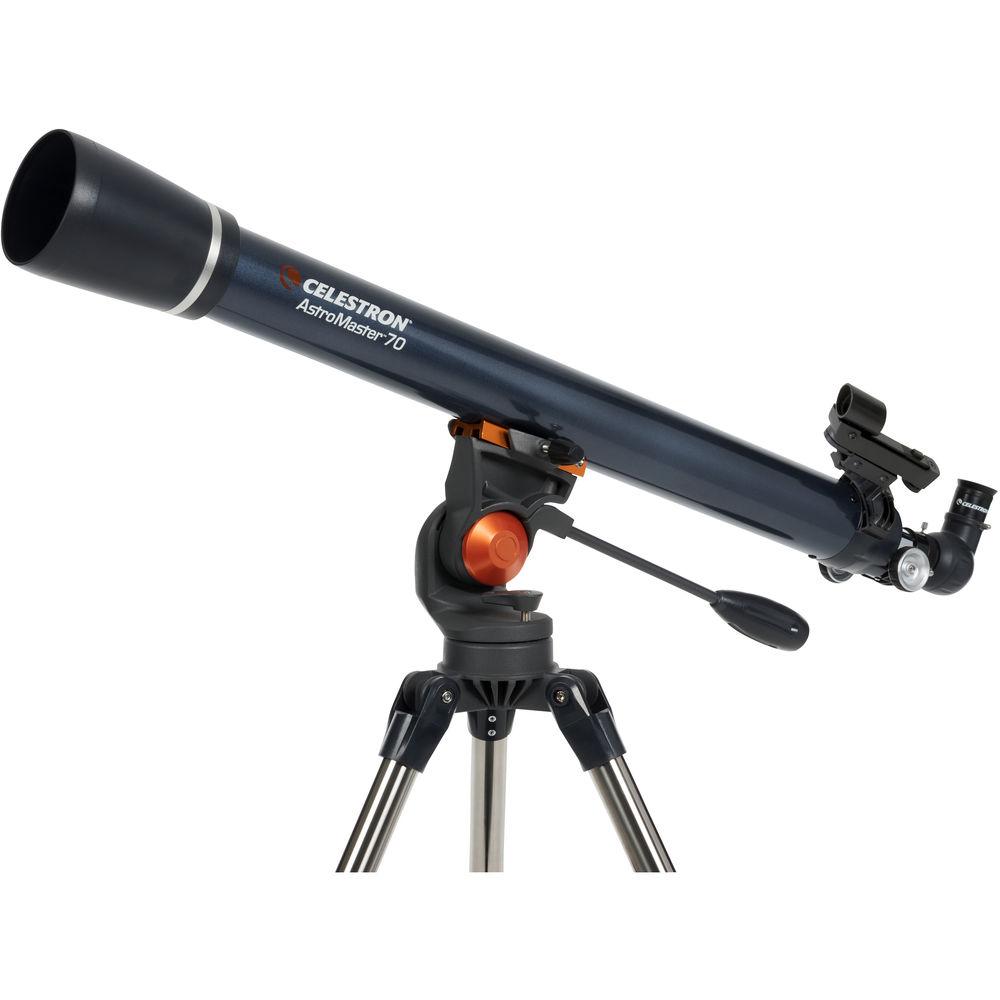

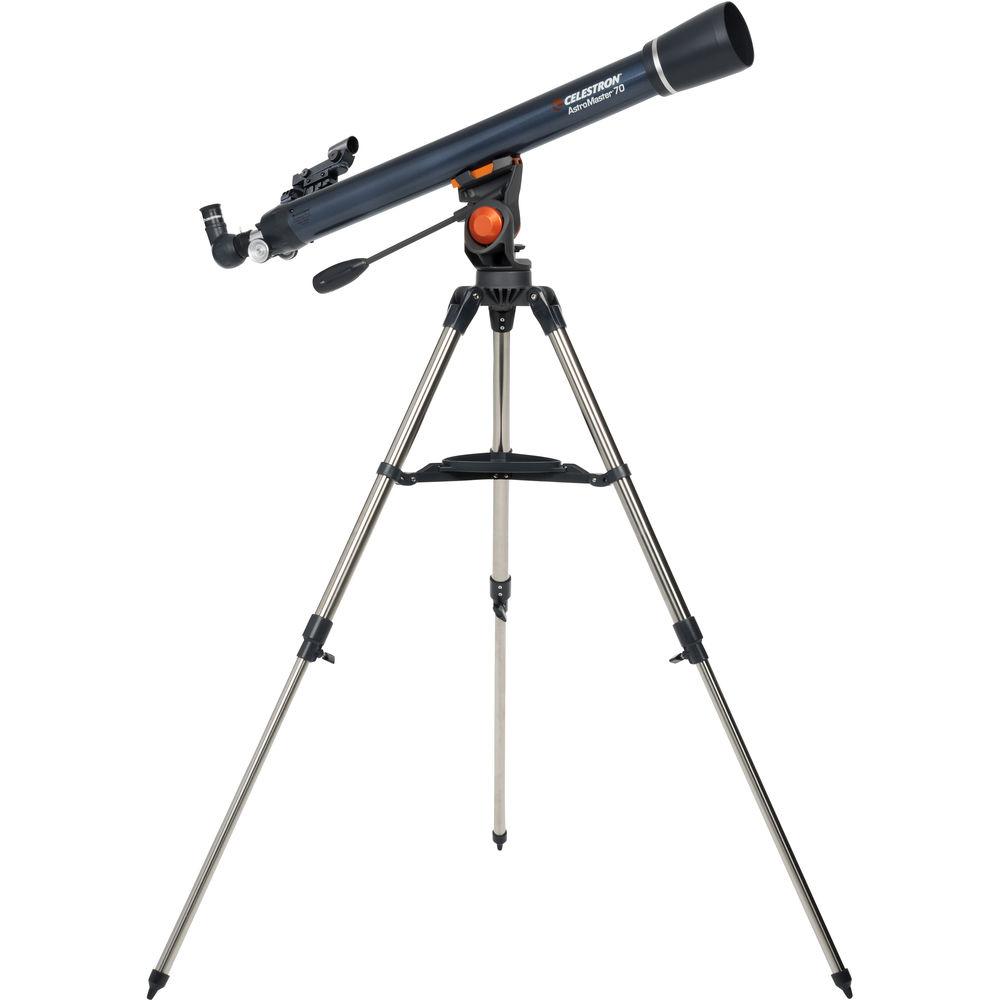

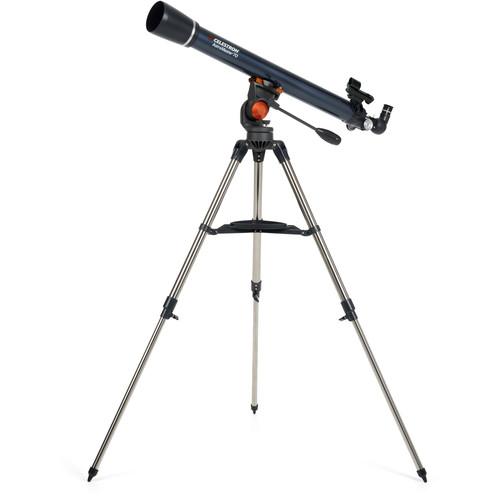

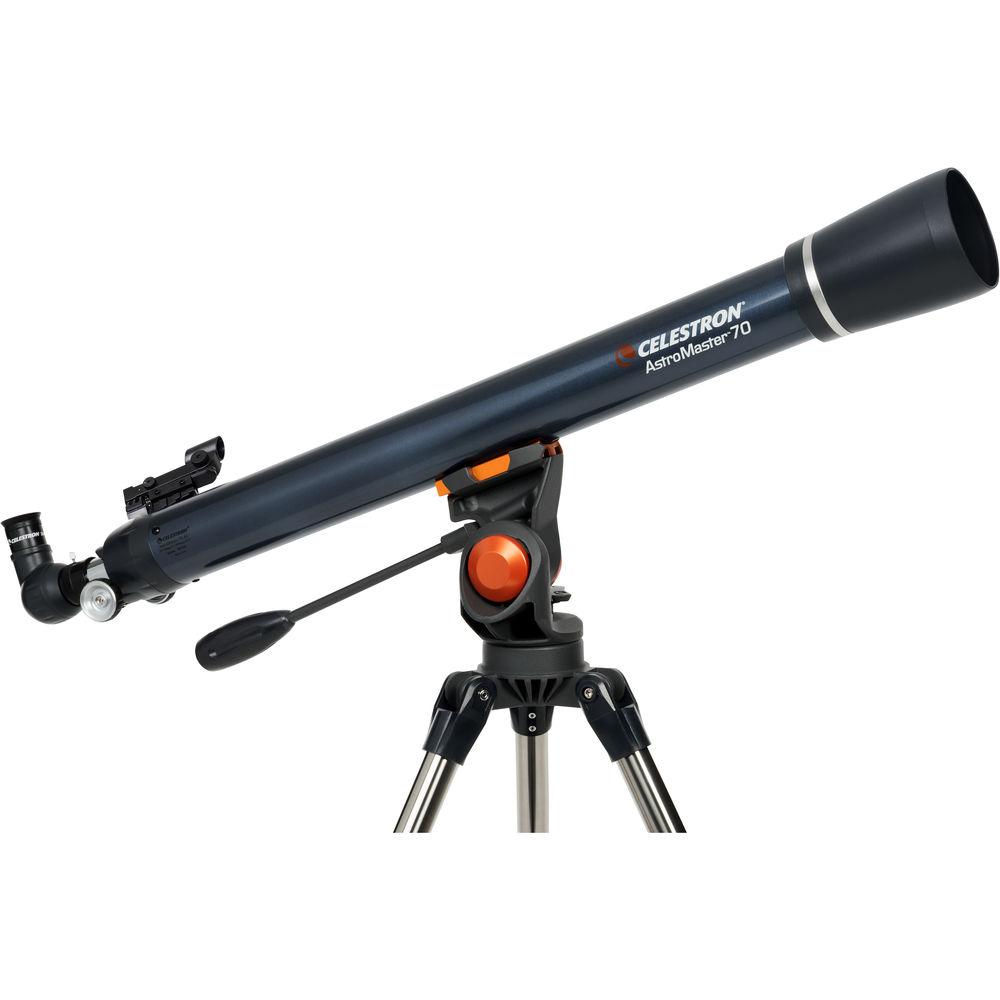

Product description Celestron designed the AstroMaster 70AZ 70mm f/13 Alt-Az Refractor Telescope as a multi-function starter-scope that can be used for both astronomical and terrestrial viewing. Its medium aperture and long focal length allow it to draw in a generous amount of light with a high magnification potential to allow observation of the larger planets and the moon. The included 90° diagonal has an integrated erecting prism that corrects the view to enable the scope's use on land. Celestron includes two eyepieces for high and medium magnifications.The AstroMaster is outfitted with a manual alt-azimuth mount and to make finding and tracking objects easy, there is an altitude control handle and an azimuth lock. Supporting the mount and optical tube is a stainless-steel tripod with sturdy 1.25" diameter legs and an adjustable height from 24 to 41-inches. Its center accessory tray pulls double-duty as a convenient place to store eyepieces and smartphones while it locks the legs in place to improve stability and reduce vibrations. - Optical Tube
-
- 70mm aperture
- f/13 focal ratio
- 900mm focal length
- Anti-reflection fully coated optics improve light transmission, color rendition, and contrast
- Resolution: Rayleigh: 1.99 arcsec; Dawes: 1.66 arcsec
- Rack-and-pinion focuser with 1.25" drawtube
- Dovetail plate allows OTA to be attached to mount quickly and without tools
- Mount and Tripod
-

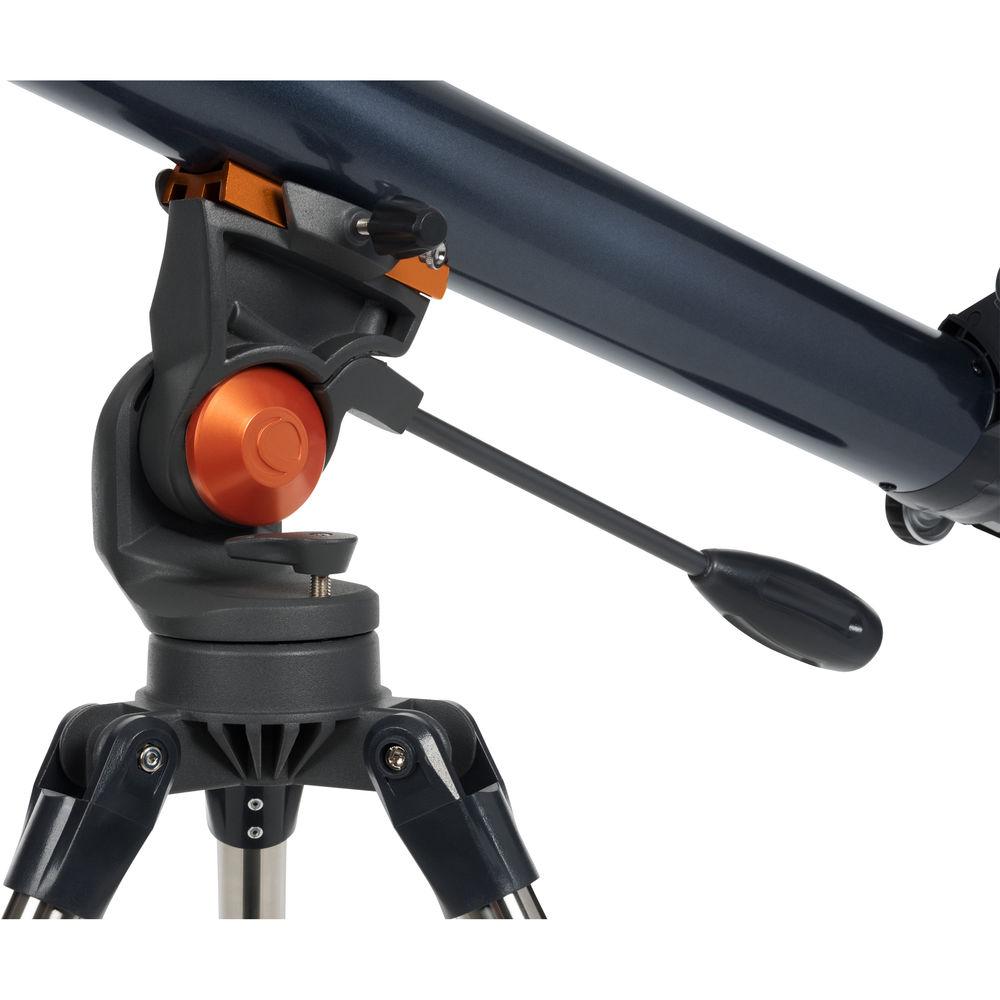

Mount:- Manual alt-azimuth
- Control handle helps to adjust altitude
- Azimuth lock reduces vibration and additional movement
- Dovetail saddle accepts OTA plate
Tripod:- 1.25" stainless steel legs
- Adjustable height from 24-41"
- Accessory tray locks in-place for added stability and vibration reduction
- Spiked feet provide additional stability on soft, rough, or uneven ground
- Eyepieces and Accessories
-
Eyepieces:- 1.25" diameter barrels accept most astronomical filters
- 10mm produces 90x magnification
- 20mm yields 45x power
Diagonal:- 90° angle places user's head in a comfortable viewing position
- Built-in erecting prism corrects view for terrestrial use as a conventional spotting scope
- 1.25" barrel and eyepiece holder
StarPointer Finderscope:- Unmagnified to provide an exceptionally wide field of view to make finding subjects fast and star-hopping navigation easy
- Projects a center aiming dot that won't obscure the subject
- Variable intensity center dot won't affect night-adjusted vision
UPC: 050234210614 In the Box Celestron AstroMaster 70AZ 70mm f/13 Alt-Az Refractor Telescope 10mm Eyepiece 20mm Eyepiece 90° Erect-Image Diagonal StarPointer Finderscope Tripod and Accessory Tray "The Sky" Level 1 CD-ROM Limited 2-Year Warranty User Manual PDF 2.2mbeawutwyyuqbbfurtesx Table of Contents
|
Upload User Manual
Have you got an user manual for the Celestron AstroMaster 70AZ 70mm f 13 Alt-Az Refractor Telescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCelestron AstroMaster 70 AZ Specs | | | Optical Design | Achromatic Refractor | | Focal Length | 900 mm | | Focal Ratio | f/12.9 | | Eyepiece Barrel Diameter | 1.25" | | | | Type | Alt-Azimuth | | GoTo Capability | No | | | | Material of Tripod | Stainless Steel | | | | Package Weight | 20.3 lb | | Box Dimensions (LxWxH) | 38.0 x 14.5 x 9.5" |
