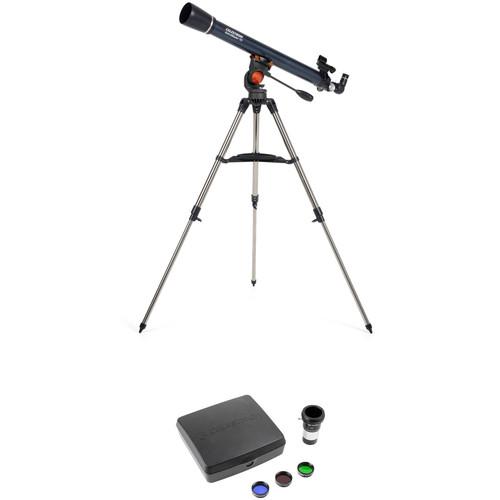

User Manual for Celestron AstroMaster 70AZ 70mm f 13 Alt-Az Refractor Telescope with Mars Observing Kit Click to enlarge the picture
Contents of the user manual for the Celestron AstroMaster 70AZ 70mm f 13
- Product category: Refractors Celestron
- Brand: Celestron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Celestron Refractors
|
User manual for the Celestron AstroMaster 70AZ 70mm f 13 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Celestron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Celestron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Celestron product will considerably shorten its lifespan!
|
Product description assembled this Celestron AstroMaster 70AZ 70mm f/13 Alt-Az Refractor Telescope with Mars Observing Kit to give new astronomers the tools they need to view Mars and other planets. The kit includes the telescope, manual mount, and a sturdy tripod, plus three planetary eyepiece filters, and a multi-function Barlow lens. - Celestron AstroMaster 70AZ 70mm f/13 Alt-Az Refractor Telescope Celestron designed the AstroMaster 70AZ 70mm f/13 Alt-Az Refractor Telescope as a multi-function starter-scope that can be used for both astronomical and terrestrial viewing. Its medium aperture and long focal length allow it to draw in a generous amount of light with a high magnification potential to allow observation of the larger planets and the moon. The included 90° diagonal has an integrated erecting prism that corrects the view to enable the scope's use on land. Celestron includes two eyepieces for high and medium magnifications.The AstroMaster is outfitted with a manual alt-azimuth mount and to make finding and tracking objects easy, there is an altitude control handle and an azimuth lock. Supporting the mount and optical tube is a stainless-steel tripod with sturdy 1.25" diameter legs and an adjustable height from 24 to 41-inches. Its center accessory tray pulls double-duty as a convenient place to store eyepieces and smartphones while it locks the legs in place to improve stability and reduce vibrations.
- Optical Tube
-
- 70mm aperture
- f/13 focal ratio
- 900mm focal length
- Anti-reflection fully coated optics improve light transmission, color rendition, and contrast
- Resolution: Rayleigh: 1.99 arcsec; Dawes: 1.66 arcsec
- Rack-and-pinion focuser with 1.25" drawtube
- Dovetail plate allows OTA to be attached to mount quickly and without tools
- Mount and Tripod
-
Mount:- Manual alt-azimuth
- Control handle helps to adjust altitude
- Azimuth lock reduces vibration and additional movement
- Dovetail saddle accepts OTA plate
Tripod:- 1.25" stainless steel legs
- Adjustable height from 24-41"
- Accessory tray locks in-place for added stability and vibration reduction
- Spiked feet provide additional stability on soft, rough, or uneven ground
- Eyepieces and Accessories
-
Eyepieces:- 1.25" diameter barrels accept most astronomical filters
- 10mm produces 90x magnification
- 20mm yields 45x power
Diagonal:- 90° angle places user's head in a comfortable viewing position
- Built-in erecting prism corrects view for terrestrial use as a conventional spotting scope
- 1.25" barrel and eyepiece holder
StarPointer Finderscope:- Unmagnified to provide an exceptionally wide field of view to make finding subjects fast and star-hopping navigation easy
- Projects a center aiming dot that won't obscure the subject
- Variable intensity center dot won't affect night-adjusted vision
UPC: 050234210614 - Celestron Mars Observing Telescope Accessory Kit (1.25") Celestron assembled this 1.25" Mars Observing Telescope Accessory Kit for the 2018 Mars Opposition, but the filters assembled can be used at any time to view and photograph other planets such as Saturn and Jupiter, as well as the moon. Also included with the filters is the universal Barlow lens. This versatile accessory effectively doubles the magnification of any eyepiece used in it without affecting the exit pupil or eye relief—allowing for high-power observations without the discomfort of using short focal length eyepieces. The Barlow has standard T-mount threads on the end that accept optional camera-specific T-rings to mount just about any DSLR for astrophotography. To safely store and transport the filters and Barlow, Celestron includes a hard plastic storage case.
- Eyepiece Filters
- #80A Blue:
- Helpful in studying surface features and polar caps
- Most popular for the study of detail on Jupiter and Saturn
- Enhances the contrast on Jupiter's cloud belts
- Enhances details of the Great Red Spot
- Brings out detail in Saturn's belts and polar features
- Also very useful for lunar observing
#56 Light Green:- Excellent for increased contrast of Martian polar caps, low clouds, and yellowish dust storms
- Increases the contrast of the red and blue regions in Jupiter's atmosphere and cloud belts
- Great for lunar observing
#25 Red:- Reduces light from blue and green areas, which darkens the maria and oases, while lightening the orange-hued desert region; sharpens the boundaries of yellow dust clouds
- Blocks the transmission of blue and green wavelengths
- Sharply defines the contrast between the cloud formations and the lighter-toned surface features on Jupiter
- Barlow Lens
-
- 1.25" eyepiece holder and barrel diameter
- Effectively doubles the magnification of any eyepiece used with it
- Threads on top accept optional standard camera-specific DSLR T-rings
UPC: 050234943123 In the Box - AstroMaster 70AZ 70mm f/13 Alt-Az Refractor Telescope cyqzratayfyexzudfuctbsrvcbb
- 10mm Eyepiece
- 20mm Eyepiece
- 90° Erect-Image Diagonal
- StarPointer Finderscope
- Tripod and Accessory Tray
- "The Sky" Level 1 CD-ROM
- Limited 2-Year Warranty
- Mars Observing Telescope Accessory Kit (1.25")
Table of Contents
|
Upload User Manual
Have you got an user manual for the Celestron AstroMaster 70AZ 70mm f 13 Alt-Az Refractor Telescope with Mars Observing Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Celestron AstroMaster 70AZ 70mm f/13 Alt-Az Refractor Telescope
| | | Optical Design | Achromatic Refractor | | Aperture | 70 mm / 2.8" | | Focal Length | 900 mm | | Focal Ratio | f/12.9 | | Focuser | Rack-and-Pinion | | Eyepiece Barrel Diameter | 1.25" | | Diagonal | 90
