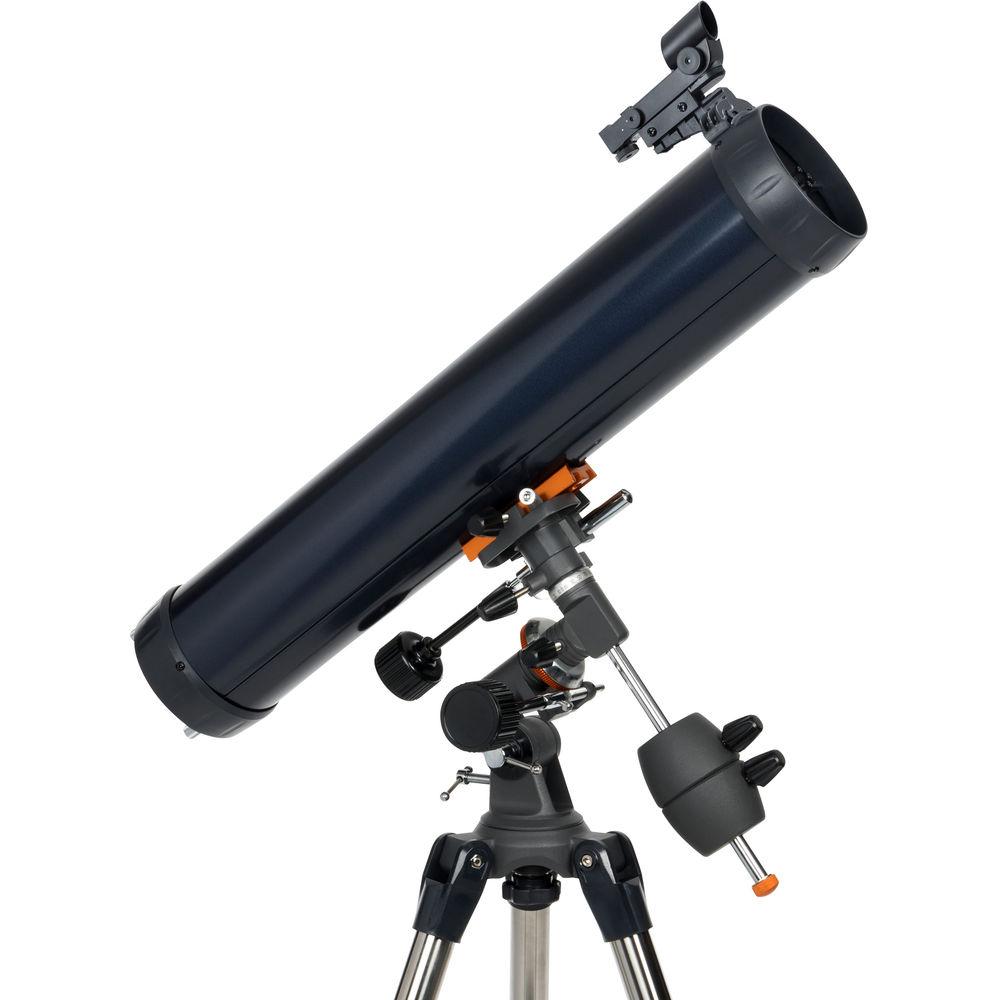

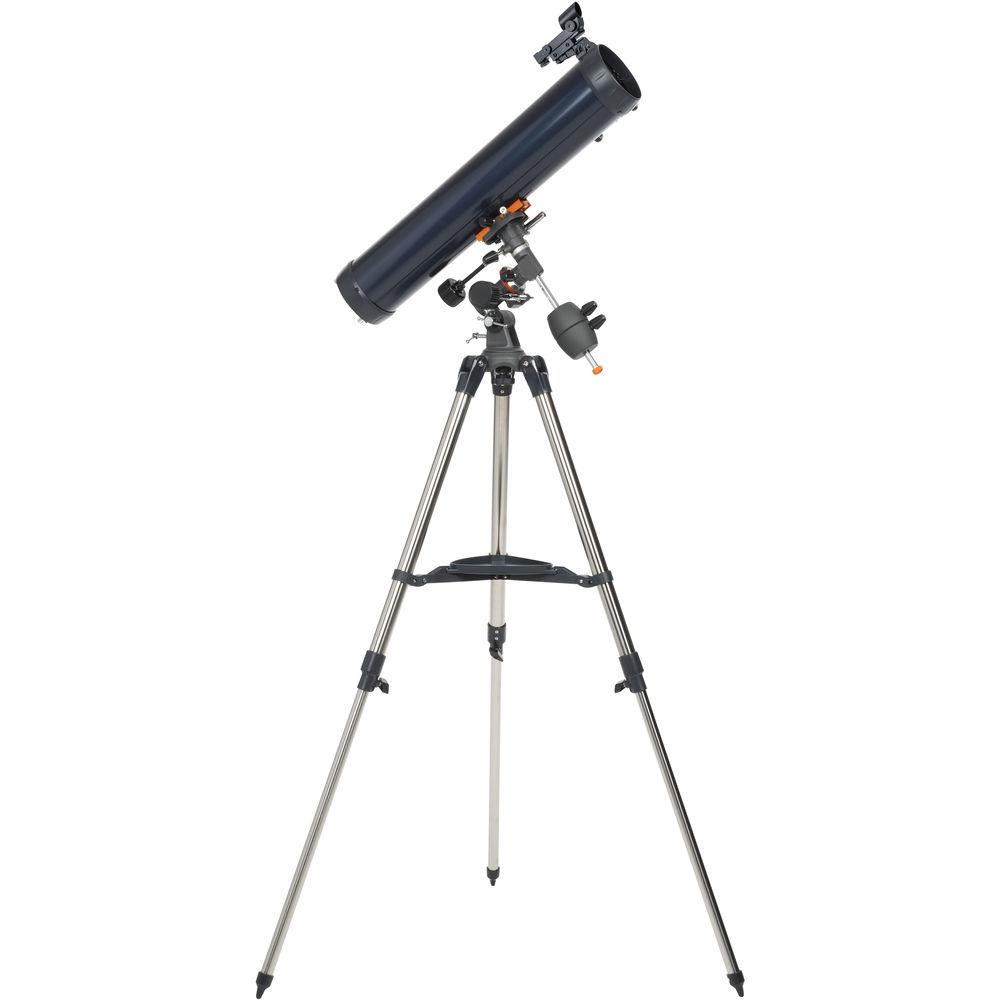

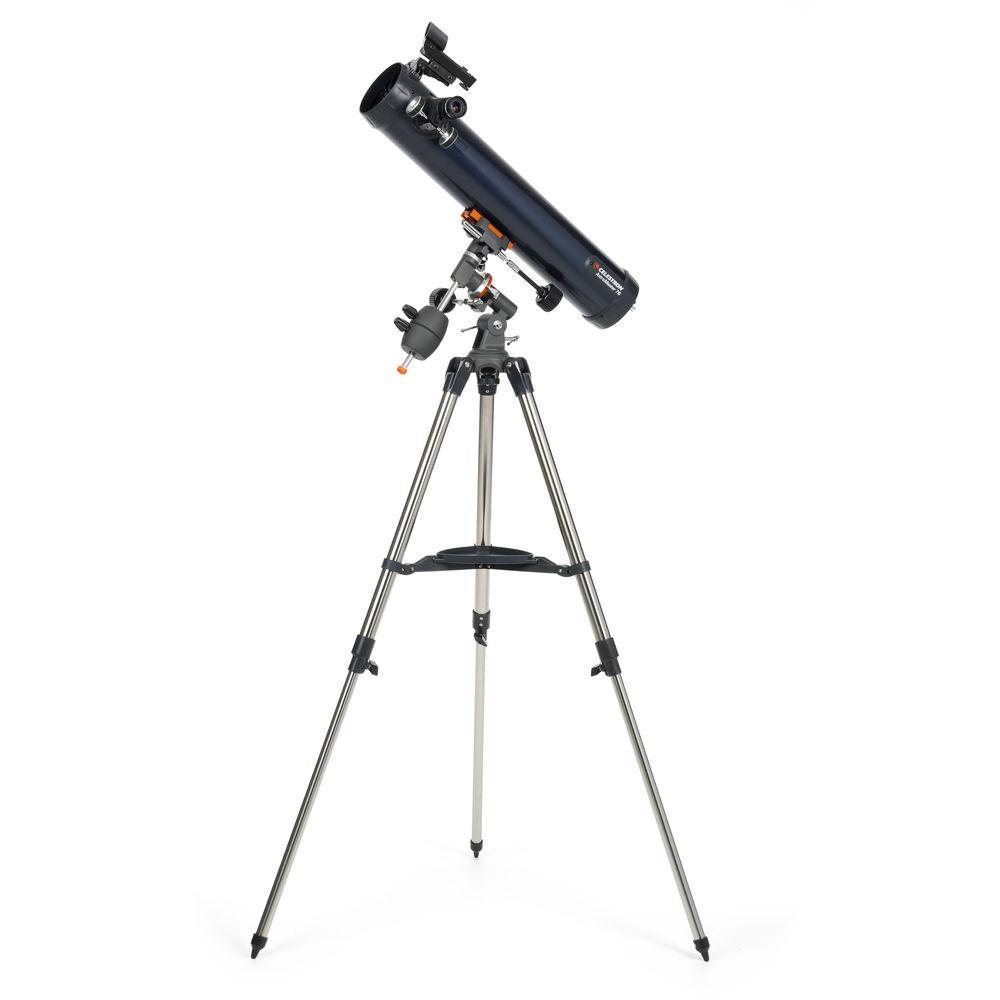

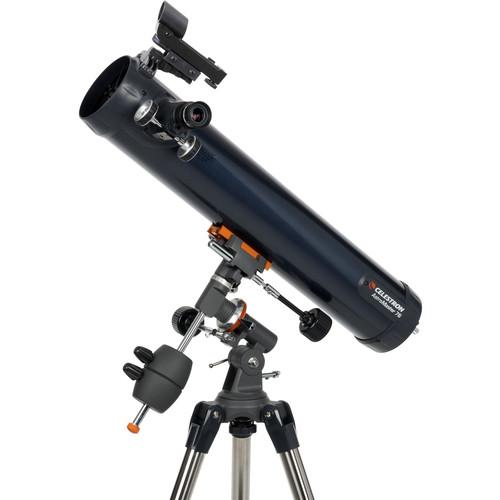

Product description Ideal for near and deep-sky observation, Celestron's AstroMaster 76EQ 76mm f/9.2 Reflector Telescope features a moderate focal length and a respectable-sized parabolic mirror that produce detailed images of the moon and clear views of the planets. The scope is outfitted with a 1.25 rack-and-pinion focuser and two eyepieces to get new users started, and an un-magnified red-dot finder to help set-up, align and navigate easier.The included manual equatorial mount features slow-motion control cables make it easy to track objects even when wearing gloves, while also minimizing vibrations caused by handling the mount with your hands; and clearly visible indicators on the Right Ascension and Declination axes. An adjustable-height aluminum tripod rounds out the rig with a tray for accessories such as eyepieces, filters, and lights. - Optical Tube
-
- 76mm aperture
- f/9.2 focal ratio
- 700mm focal length
- Highly-reflective aluminum-coated mirrors improve light transmission, color rendition, and contrast
- Resolution: 1.83 arcsec, Rayleigh; 1.53 arcsec, Dawes
- Secondary mirror obstruction: 25% by diameter, 6% by area
- 1.25" rack-and-pinion focuser
- Mount and Tripod
-

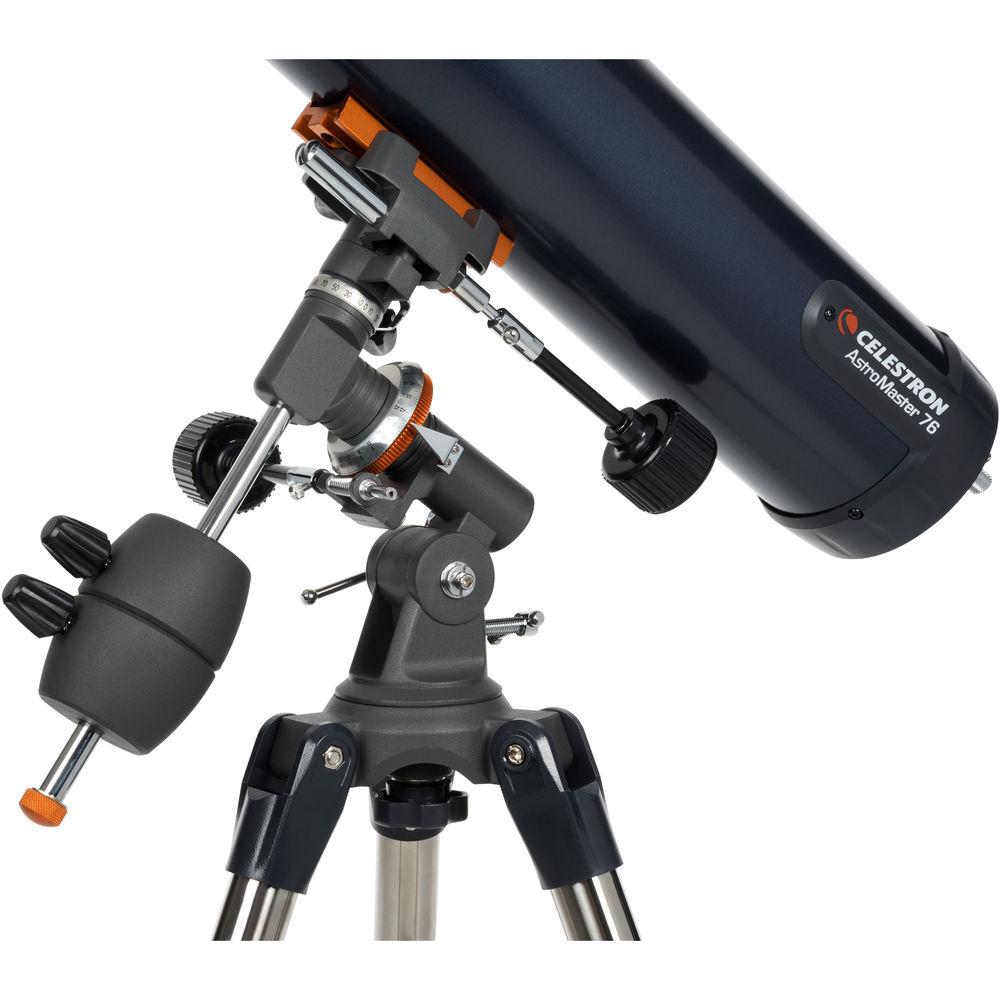

CG-2 Mount:- Manual German equatorial
- Dual slow-motion control cables enable fine adjustments with reduced vibrations
- Altitude adjustment screws locks setting
- Etched Right Ascension and Declination scales
- Removable counterweight bar
- Two 2.6-pound counterweights to properly balance OTA and accessories for smooth movement
- Dovetail plate enables fast assembly and break-down
Tripod:- Adjustable-height
- 1.25" diameter stainless steel legs
- Tray to hold eyepieces, lights, and accessories
- Spiked feet add stability on uneven/soft ground
- Included Accessories
-

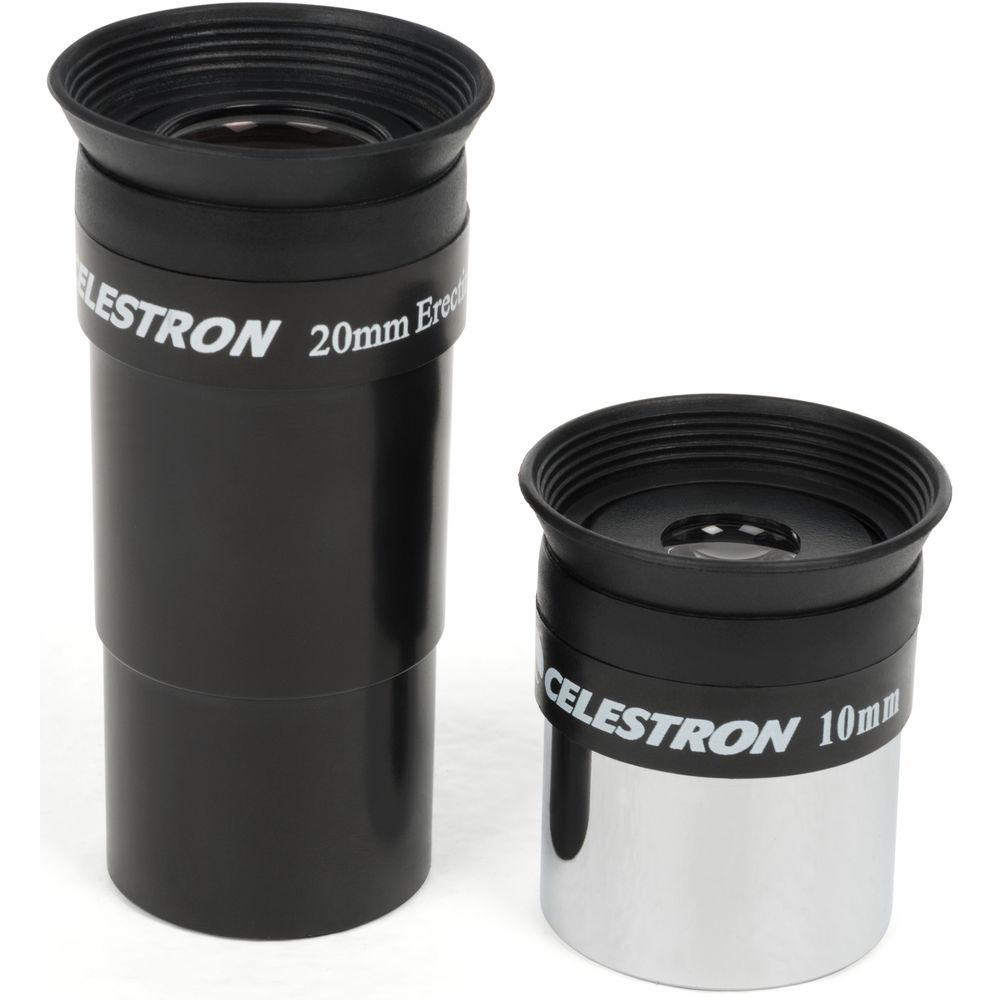

Eyepieces:- 1.25" diameter barrel
- Accepts most 1.25" astronomical filters
- 10mm focal length produces 70x
- 20mm focal length produces 35x
SkyPointer Finder:- Unmagnified to make finding objects easier and star-hopping navigation faster
- Illuminated red center aiming dot is easy to see without affecting night-adjusted vision
UPC: 050234310352 In the Box Celestron AstroMaster 76EQ 76mm f/9.2 Reflector Telescope 20mm Eyepiece 10mm Eyepiece Star Pointer Finder Equatorial Head 2 x Slow-Motion Cables Adjustable-Height Tripod Counterweight Bar 2 x 2.6-pound Counterweights "The Sky" Level 1 CD-ROM Limited 2-Year Warranty More from Manufacturer eawutwyyuqbbfurtesx Table of Contents
|
Upload User Manual
Have you got an user manual for the Celestron AstroMaster 76EQ 76mm f 9.2 Reflector Telescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCelestron AstroMaster 76 Specs | Optical Design | Newtonian reflector | | Aperture | 76 mm | | Focal Length | 700mm | | Focal Ratio | f/9.2 | | Eyepiece Barrel Diameter | 1.25" | | Diagonal | None | | Finderscope | StarPointer | | Tripod | Stainless steel
Adjustable height
1.25" diameter legs | | Mount Type | Manual equatorial | | Power Source | None | | Counterweights | 2 x 2.6 lb / 1.2 kg | | Optical Tube Dimensions | 26.0" / 66.0 cm | | Weight | 16.0 lb / 7.3 kg, assembled | | | | Package Weight | 24.8 lb | | Box Dimensions (LxWxH) | 35.0 x 16.0 x 10.0" |
