User Manual for Celestron AstroMaster 90EQ 90mm f 11 Refractor Telescope Click to enlarge the picture
Contents of the user manual for the Celestron AstroMaster 90EQ 90mm f 11
- Product category: Refractors Celestron
- Brand: Celestron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Celestron Refractors
|
User manual for the Celestron AstroMaster 90EQ 90mm f 11 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Celestron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Celestron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Celestron product will considerably shorten its lifespan!
|

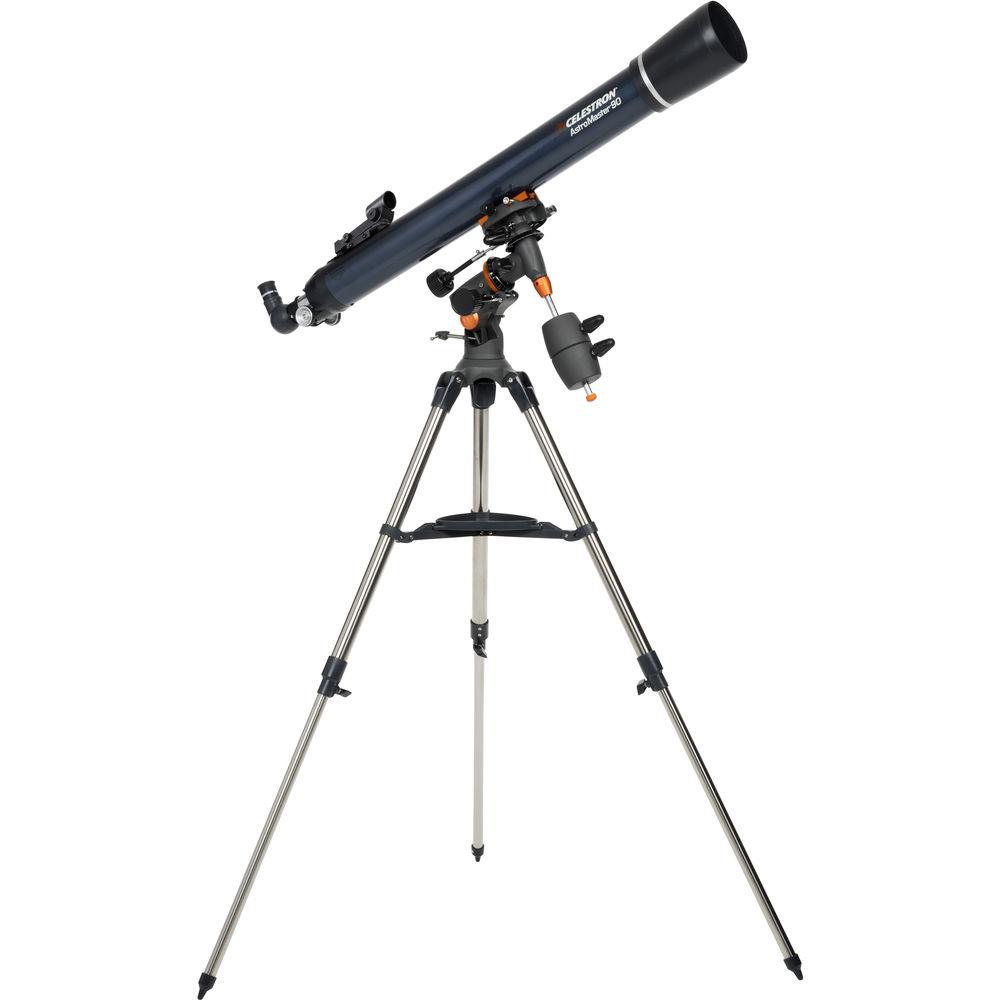

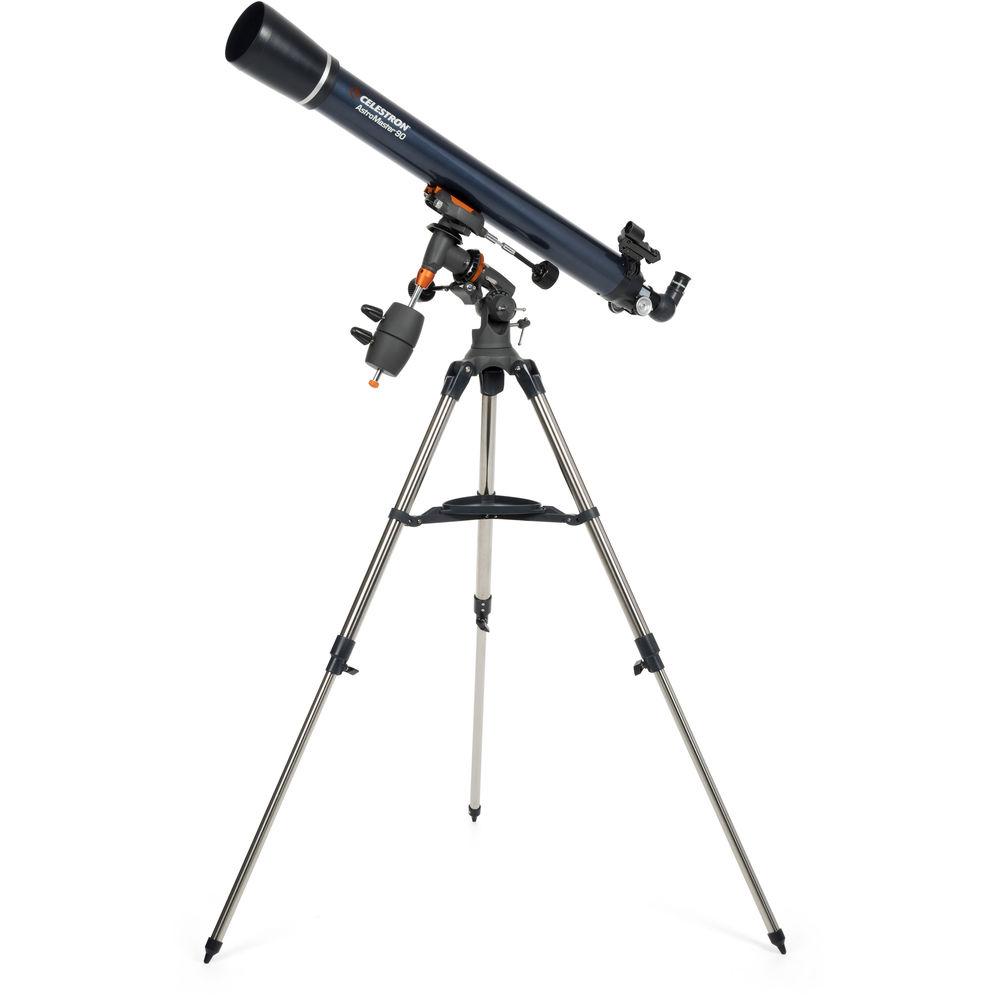

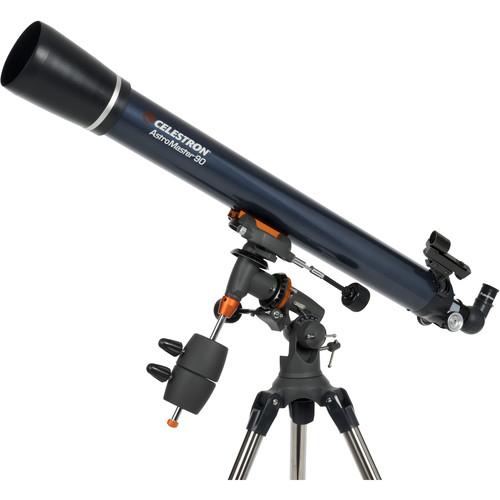

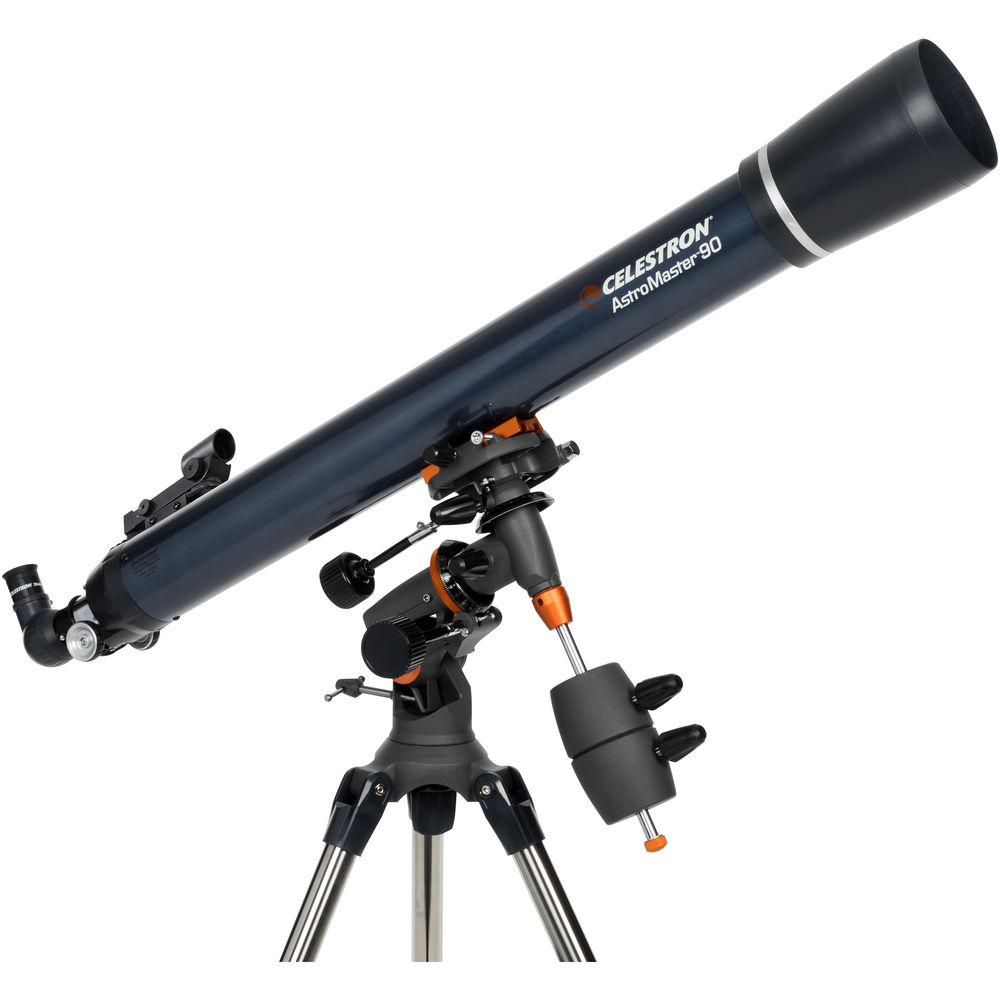

Product description Designed as a capable and portable starter-scope, the Celestron AstroMaster 90EQ 90mm f/11 Refractor Telescope is a complete observational platform for making detailed observations of the Moon, viewing planets, or comet-hunting. Its manual equatorial mount, when properly polar aligned, can easily track objects using the slow-motion cables with reduced vibrations, and easy-to-read setting circles aid in speeding up celestial navigation to known coordinates. The entire rig assembles and breaks down without the need for tools, so users can set up fast and get observing sooner.This version of the AstroMaster comes with two eyepieces that yield a range of magnifications, and a 90° diagonal that sports an integrated erecting prism to correct images and allow the scope to be used as a conventional spotting scope for terrestrial use. The diagonal also places the user's head in a more comfortable position especially when the OTA is pointed at or near the zenith. An adjustable-height stainless steel tripod supports the mount and optical tube, and comes with a center tray that conveniently holds accessories while improving stability and reducing vibrations. - Optical Tube
-
- 90mm aperture
- f/11 focal ratio
- 1000mm focal length
- Refractor-style optical path
- Fully multi-coated optics improve light transmission, color rendition, and contrast
- Resolution: 1.55 arcsec (Rayleigh); 1.29 arcsec (Dawes)
- 1.25" rack-and-pinion focuser
- Dovetail mounting plate
- Mount and Tripod
-

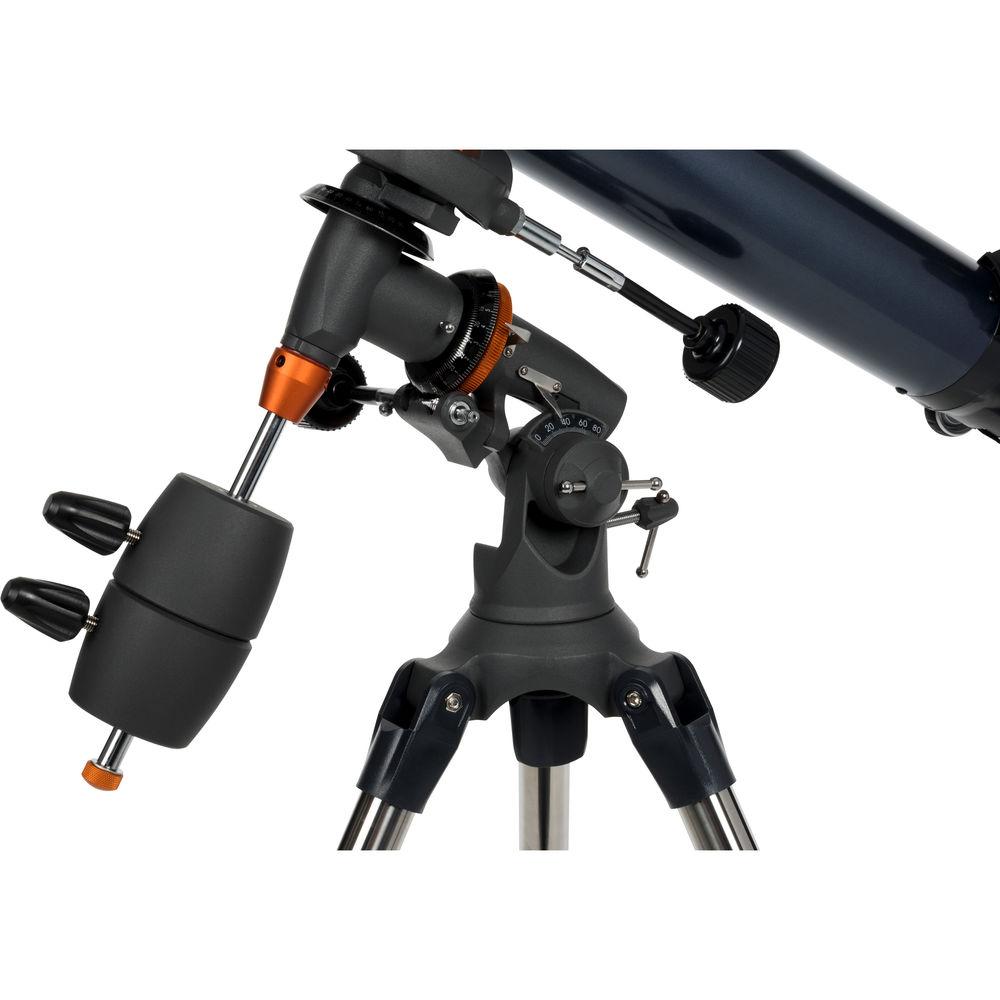

Mount:- Manual equatorial
- Locking altitude adjustment screw
- Etched declination dial
- Dual-axis slow motion cables enables precise adjustments with reduced vibrations
- Two counterweights and counterweight bar allows proper balancing
- Dovetail saddle accepts OTA mounting plate and allows for precise balancing
Tripod:- 1.25" tubular stainless steel legs
- Adjustable height to accommodate a variety of users and observing positions
- Spiked feet to provide stability in rough or soft terrain
- Center tray adds stability and vibration-reduction
- Included Accessories
-

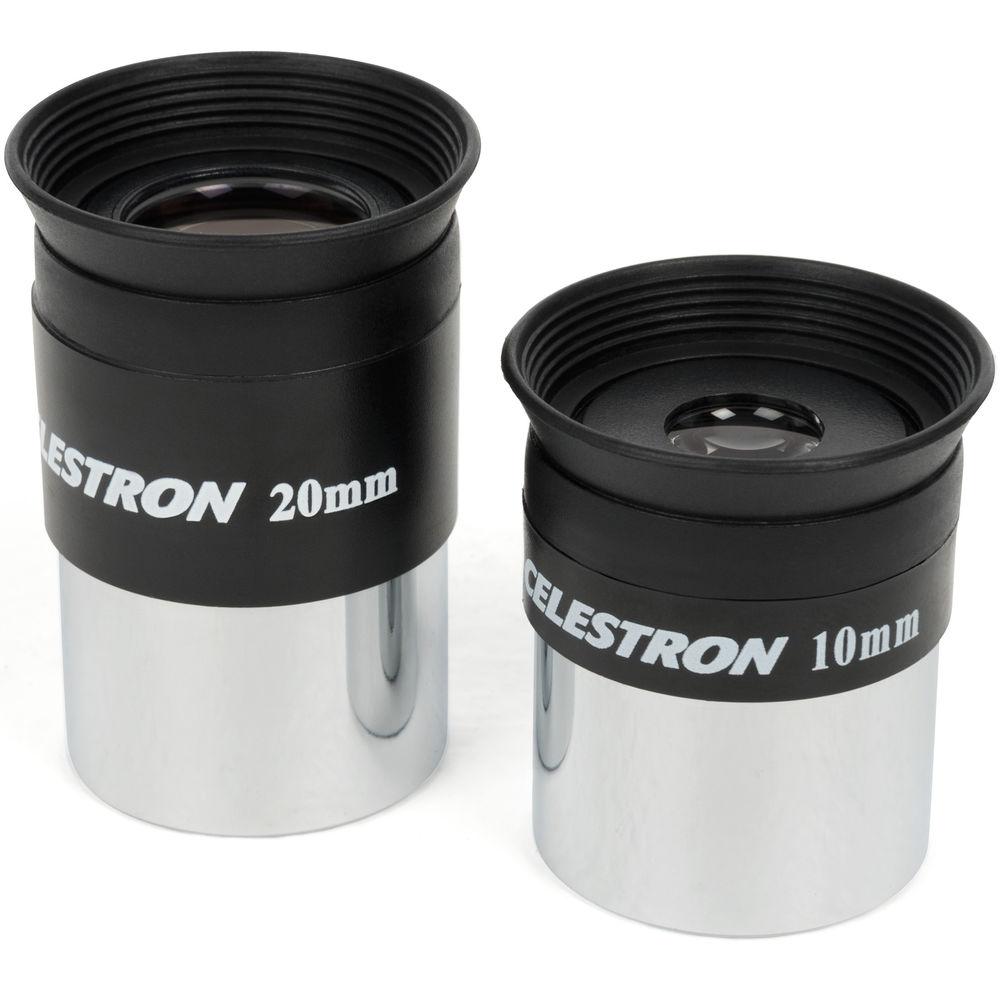

Eyepieces:- 1.25" diameter barrel
- Accepts most astronomical eyepiece filters
- 10mm focal length produces 100x magnification
- 20mm focal length yields 50x power
Diagonal:- 90° angle places head in comfortable viewing position, especially when aimed at or near the zenith
- Integrated erecting prism corrects image for terrestrial viewing as a conventional spotting scope
- 1.25" snout and eyepiece holder fits and accepts the most common sized focusers and accessories
Finder:- Permanently-mounted in-place
- Unmagnified view ensures easy alignment and fast star-hopping navigation
- Red illuminated center aiming dot is easy to see without obstructing small or dim objects
UPC: 050234210645 In the Box Celestron AstroMaster 90EQ 90mm f/11 Refractor Telescope StarPointer Finderscope 10mm Eyepiece 20mm Eyepiece 90° Erect-Image Diagonal 2 x Counterweights Counterweight Shaft Tripod and Accessory Tray Limited 2-Year Warranty User Manual PDF 9.5mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Celestron AstroMaster 90EQ 90mm f 11 Refractor Telescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCelestron AstroMaster 90 EQ Specs | Optical Design | Achromatic Refractor | Focal Length | 1000 mm | Focal Ratio | f/11.1 | Eyepiece Barrel Diameter | 1.25" | | Type | German Equatorial | GoTo Capability | No | | Material of Tripod | Stainless Steel | | Package Weight | 33.0 lb | Box Dimensions (LxWxH) | 43.2 x 15.0 x 10.0" |
