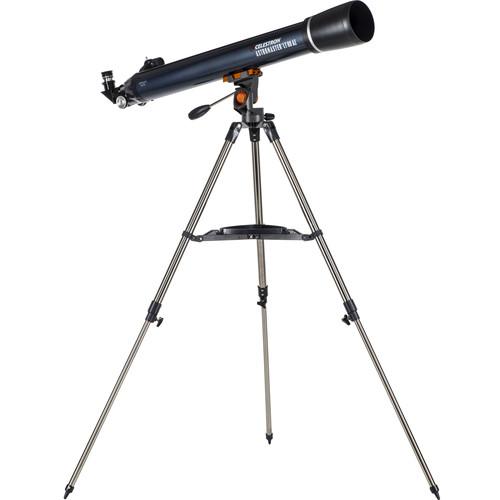

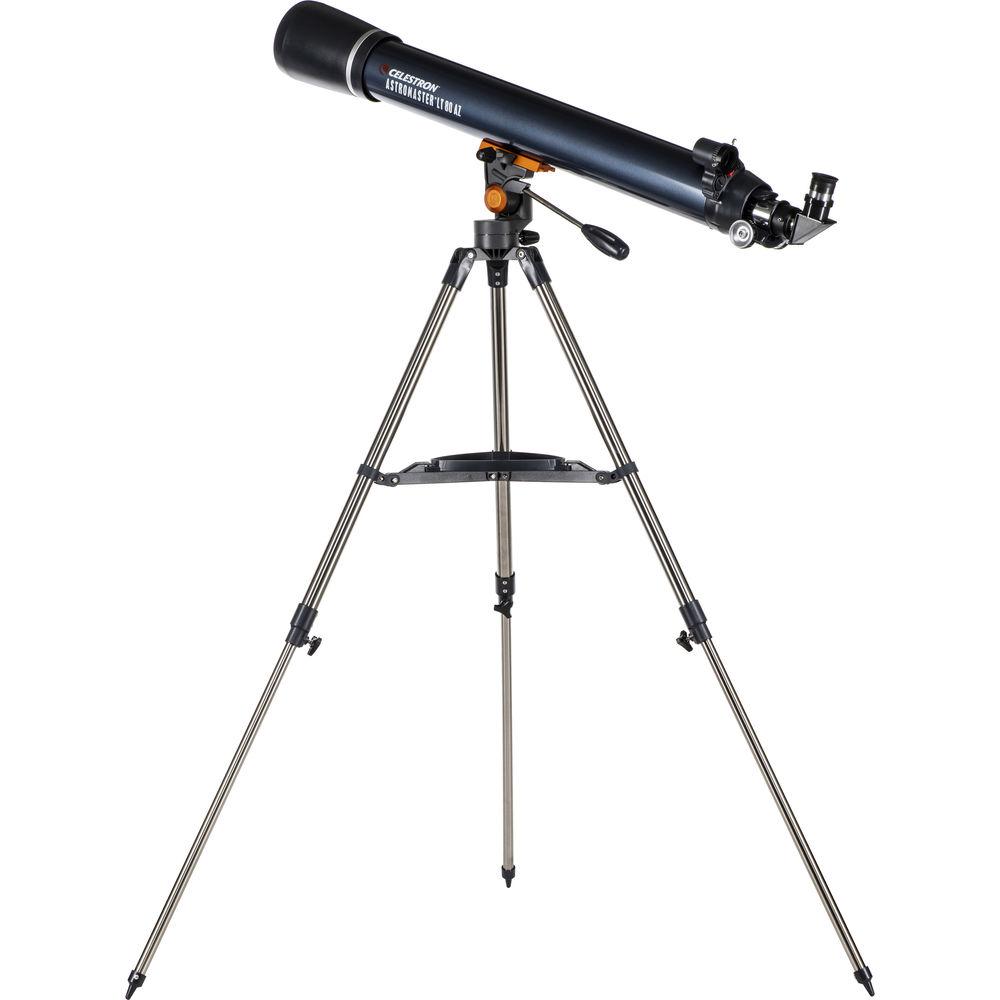

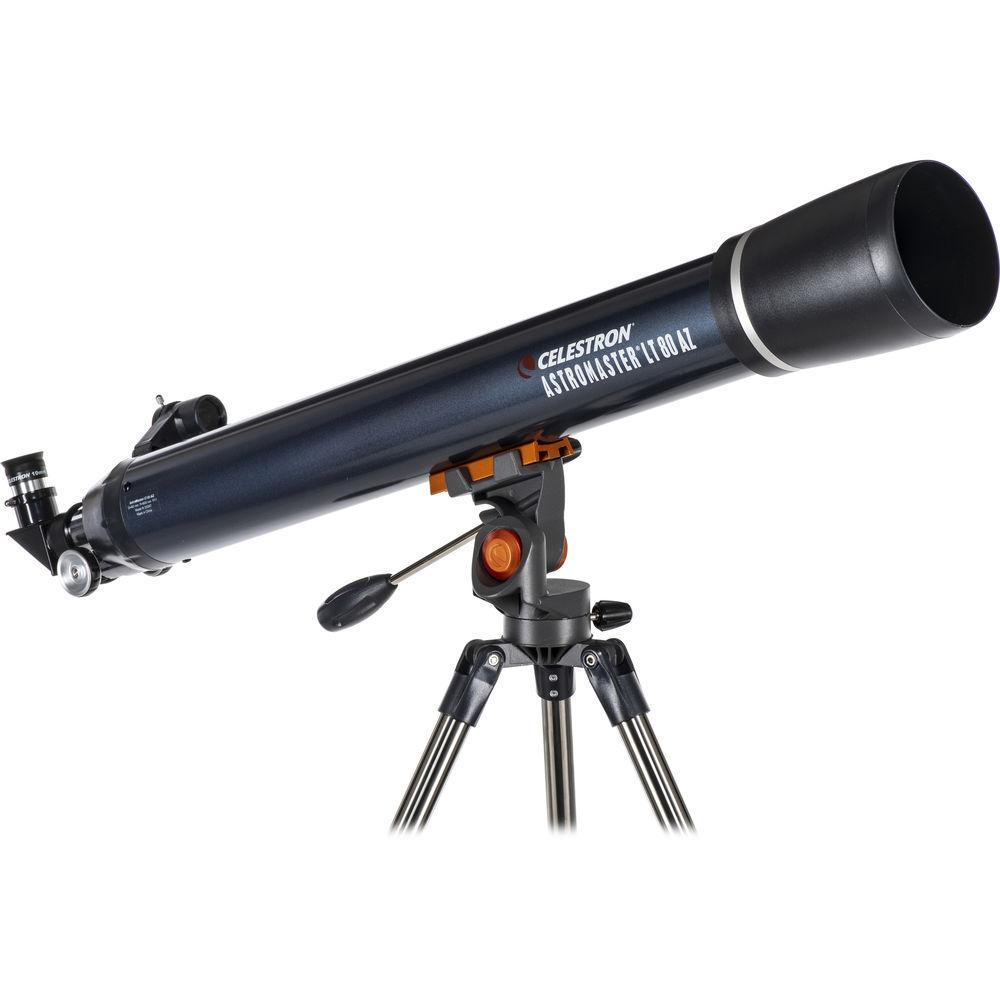

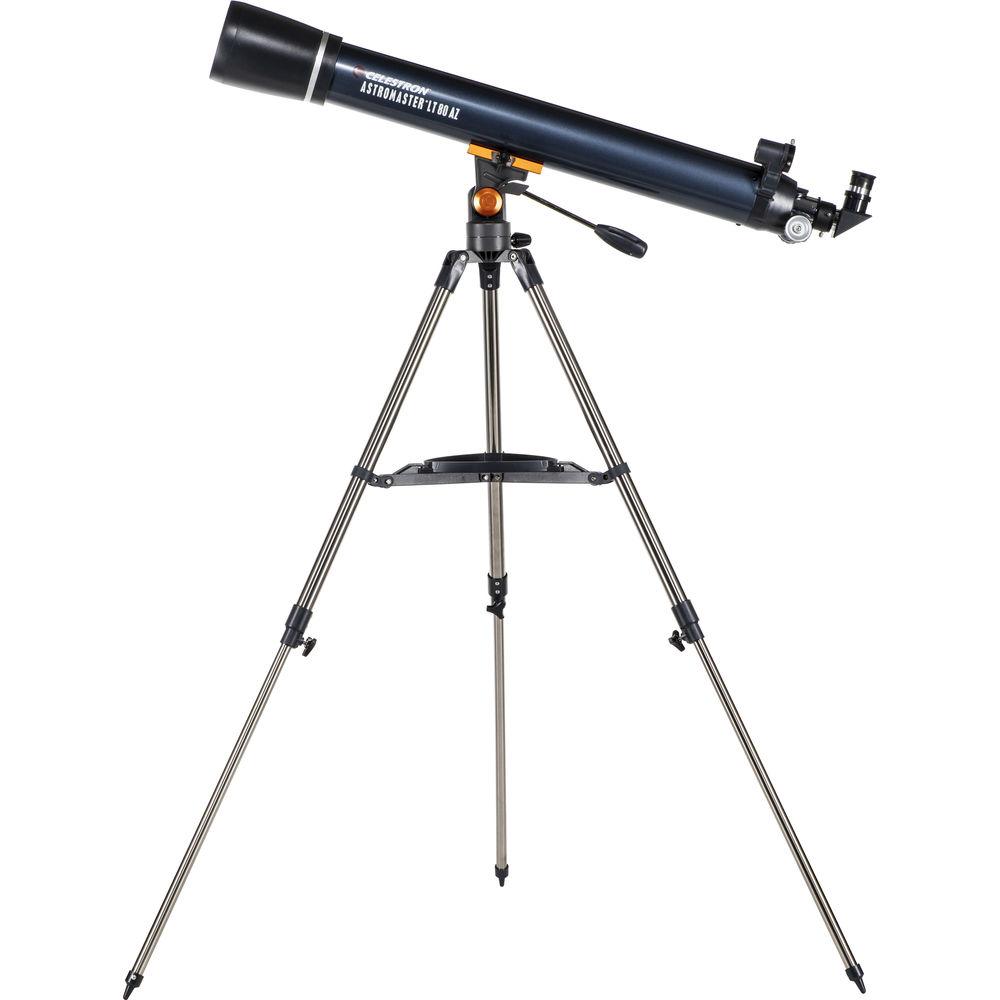

Product description The AstroMaster LT 80AZ 80mm f/11 Alt-Az Refractor Telescope from Celestron is ideal for beginners or as a simple grab-and-go option for intermediates to observe Mars and other planets or the moon. It has a long focal length, and thus high magnification potential, and is intended to give users a complete rig that is easy to set up and use. Its manual alt-azimuth mount helps to reduce overall weight without sacrificing stability, and a control handle makes finding and tracking objects easier while reducing vibrations. Two eyepieces produce 36x and 90x magnifications, and a 90° erect-image prism not only puts the eyepieces in a comfortable viewing position but corrects the view to allow this astronomical scope to be used as a terrestrial spotting scope. An adjustable-height stainless steel tripod provides a stable platform for observing. - Performance
-
- 80mm aperture
- f/11 focal ratio
- 900mm focal length
- Refractor-style optical configuration
- Fully coated anti-reflection optics increase light transmission, and improve contrast and color rendition
- Resolution: Rayleigh: 1.74 arcsec; Dawes Limit: 1.45 arcsec
- 1.25" rack-and-pinion focuser is compatible with a wide variety of eyepieces and accessories
- Dovetail plate for easy attachment to mount head
- Mount and Tripod
- Mount:
- Manual alt-azimuth
- Control handle reduces vibrations and makes tracking easier
- Easy-to-assemble dovetail saddle allows mounting and removing the OTA fast and without tools

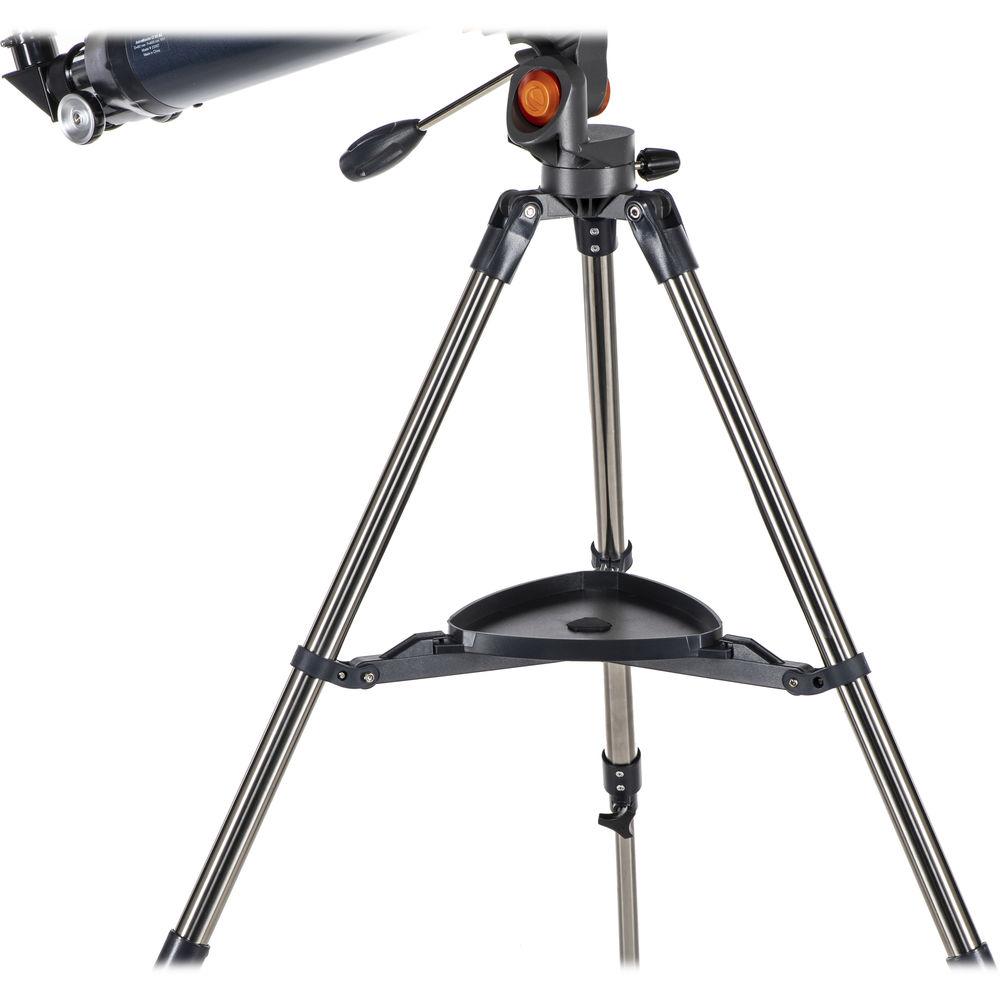

Tripod:- Stainless steel
- 1.25" diameter legs
- Adjustable height to accommodate a wide variety of users and viewing positions
- Two leg sections with convenient locking thumb screws
- Accessory tray holds items such as eyepieces, filters, and flashlights
- Spiked feet offer improved stability on soft ground
- Included Accessories
- Eyepieces:
- 1.25" barrel diameter
- Fold-down rubber eyecup conforms to eye socket to block peripheral light from interfering with views
- Accepts most eyepiece filters
- 25mm eyepiece produces 36x power
- 10mm eyepiece produces 90x power
Diagonal:- 90° angle puts head in comfortable position whether standing or sitting
- Erecting prism corrects image orientation for terrestrial use
StarPointer Finderscope:- Large unmagnified window provides a wide field of view for fast subject acquisition and easier star-hopping navigation
- Dual circle reticle won't obscure small objects
- Adjustable intensity helps to preserve night-adjusted vision
UPC: 050234722063 In the Box Celestron AstroMaster LT 80AZ 80mm f/11 Alt-Az Refractor Telescope Manual Alt-Az Mount 1.25" Steel Tripod with Accessory Tray 90° Erect-Image Prism 25mm Eyepiece 10mm Eyepiece Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Celestron AstroMaster LT 80AZ 80mm f 11 Alt-Az Refractor Telescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCelestron AstroMaster LT 80AZ Specs | | | Optical Design | Refractor | | Aperture | 80 mm / 3.1" | | Focal Length | 900 mm | | Focal Ratio | f/11 | | Resolution | 1.74 Arcsec (Rayleigh)
1.45 Arcsec (Dawes) | | Focuser | Single-Speed Rack-and-Pinion | | Eyepiece Barrel Diameter | 1.25" | | Diagonal | 90
