Celestron C90 Mak Spotting Scope

Search your instruction manual in PDF to download

User Manual for Celestron C90 Mak Spotting Scope

Click to enlarge the picture
Celestron C90 Mak Spotting Scope Contents of the user manual for the Celestron C90 Mak Spotting Scope
  • Product category: Spotting Scopes Celestron
  • Brand: Celestron
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Celestron Spotting Scopes

Celestron C90 Mak Spotting Scope Celestron C90 Mak Spotting Scope Celestron C90 Mak Spotting Scope Celestron C90 Mak Spotting Scope Celestron C90 Mak Spotting Scope Celestron C90 Mak Spotting Scope Celestron C90 Mak Spotting Scope Celestron C90 Mak Spotting Scope Celestron C90 Mak Spotting Scope
User manual for the Celestron C90 Mak Spotting Scope contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Celestron product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Celestron user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Celestron product will considerably shorten its lifespan!



Product description

A Guide to Birding with Spotting Scopes Read More
  • Celestron Maksutov Cassegrain Spotting Scope Product Overview

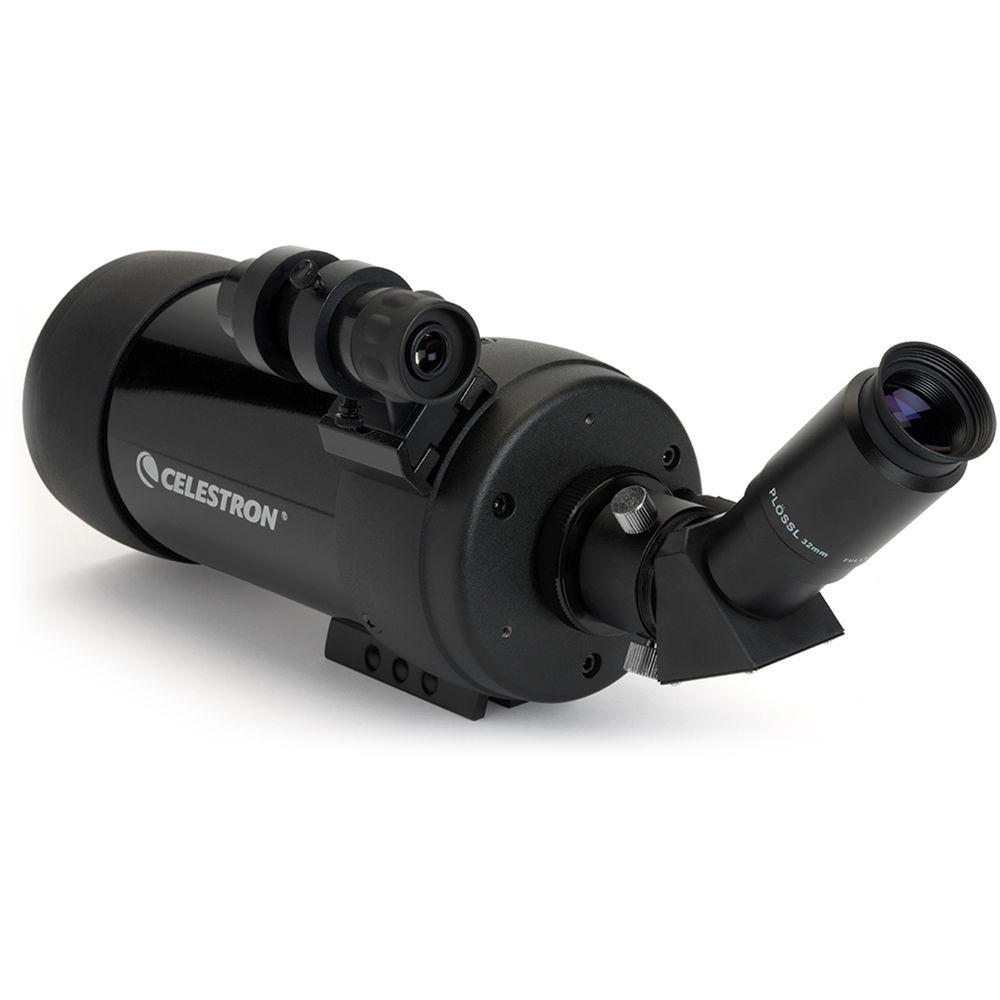

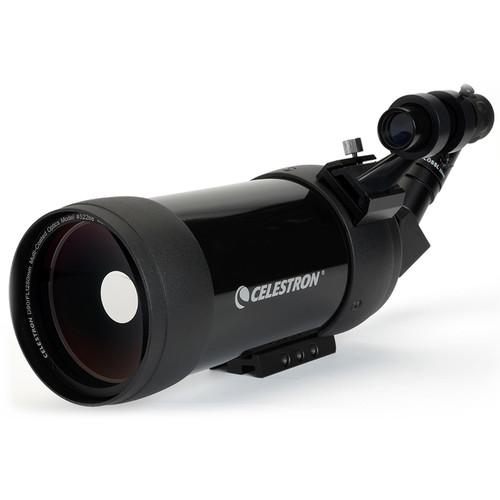

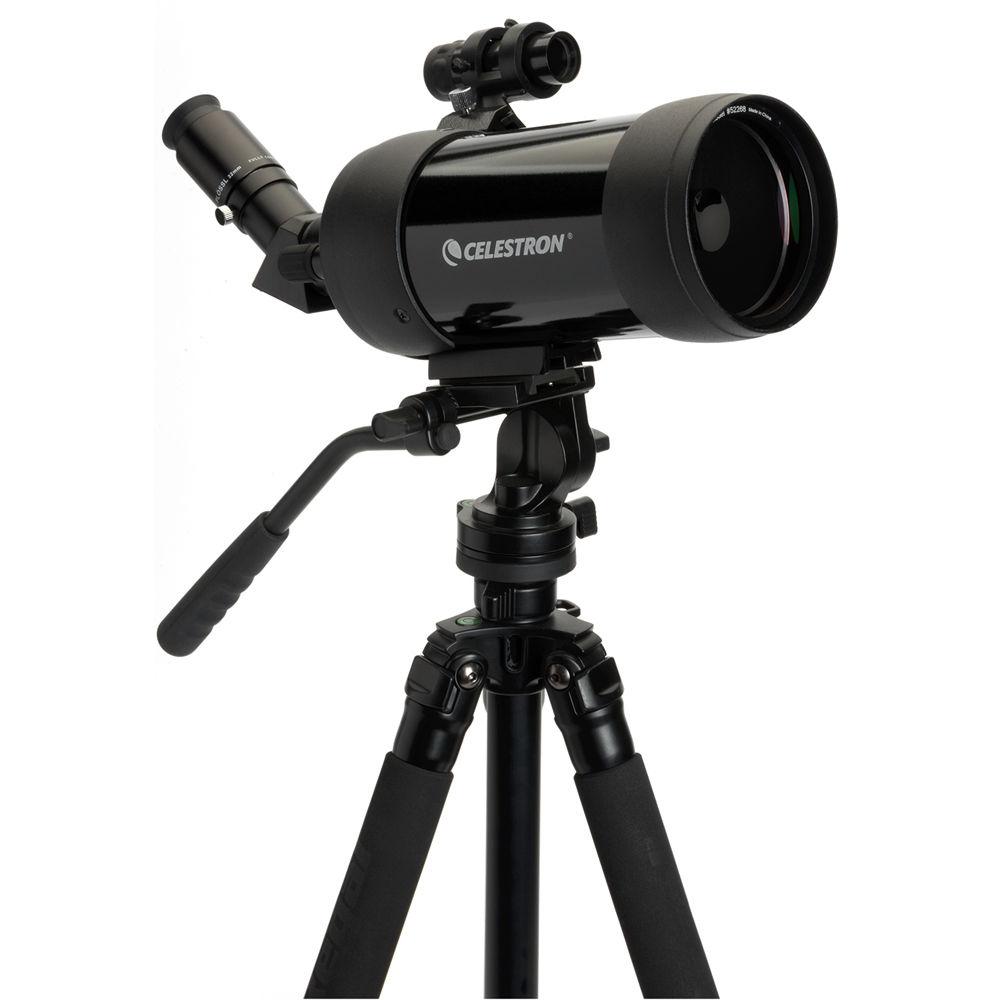

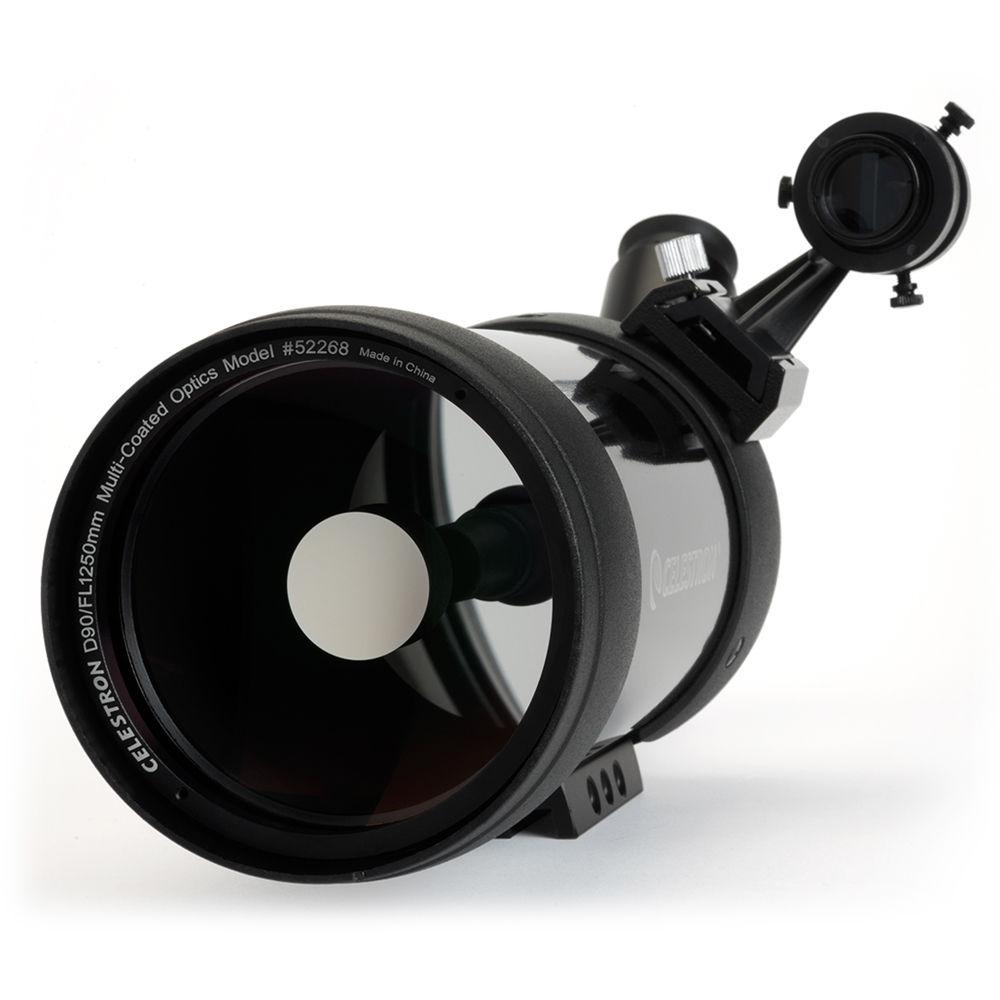

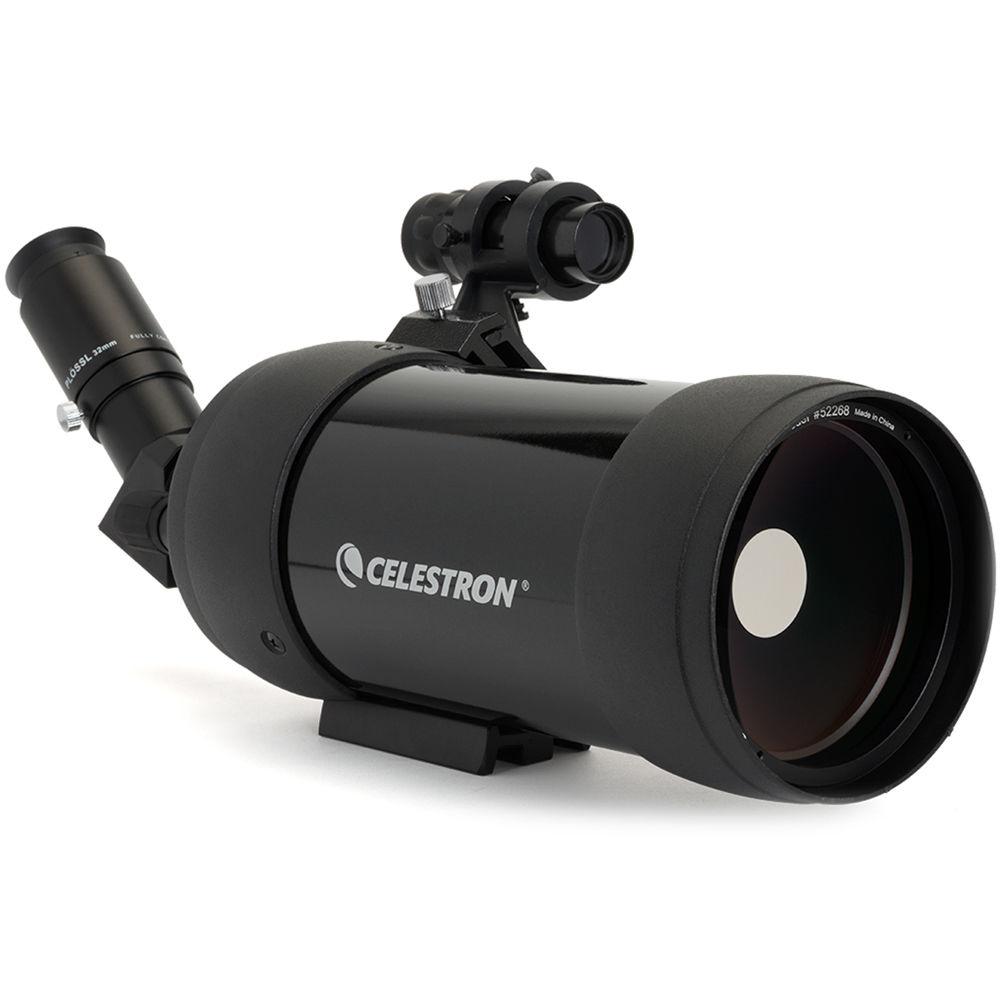

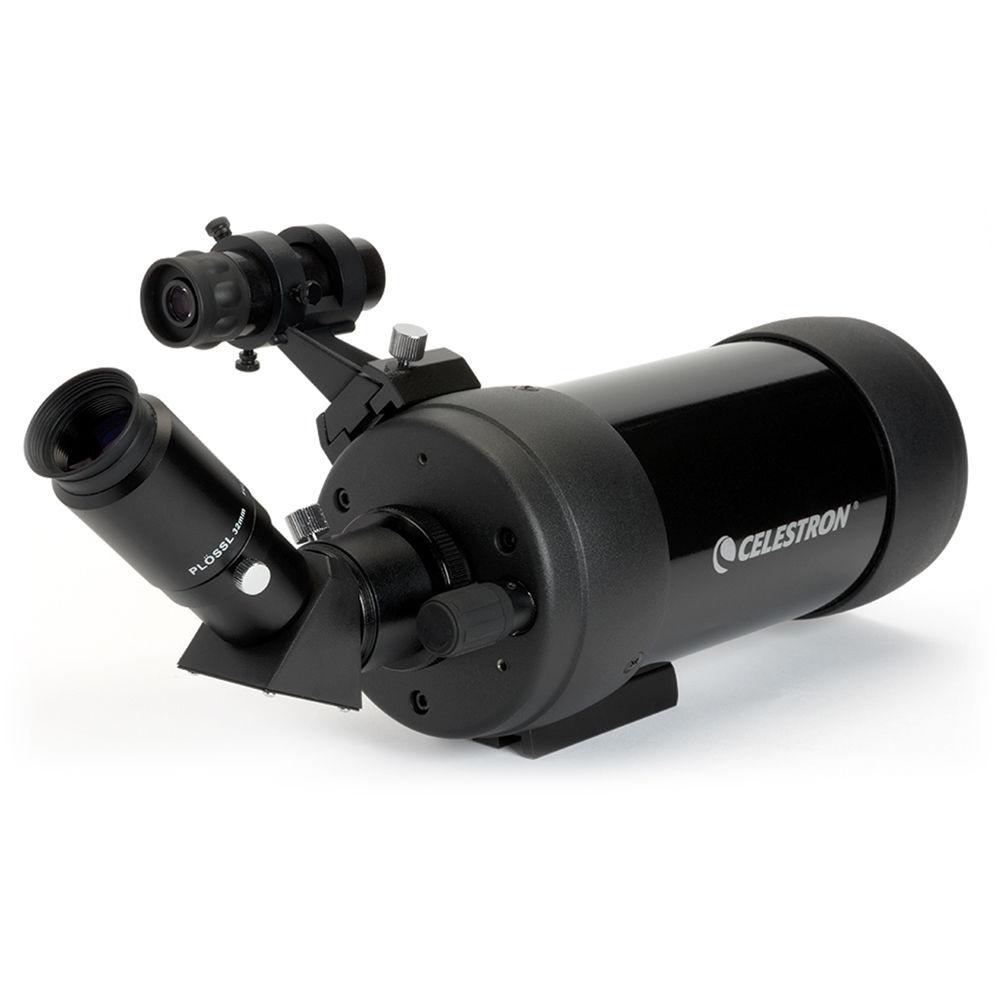

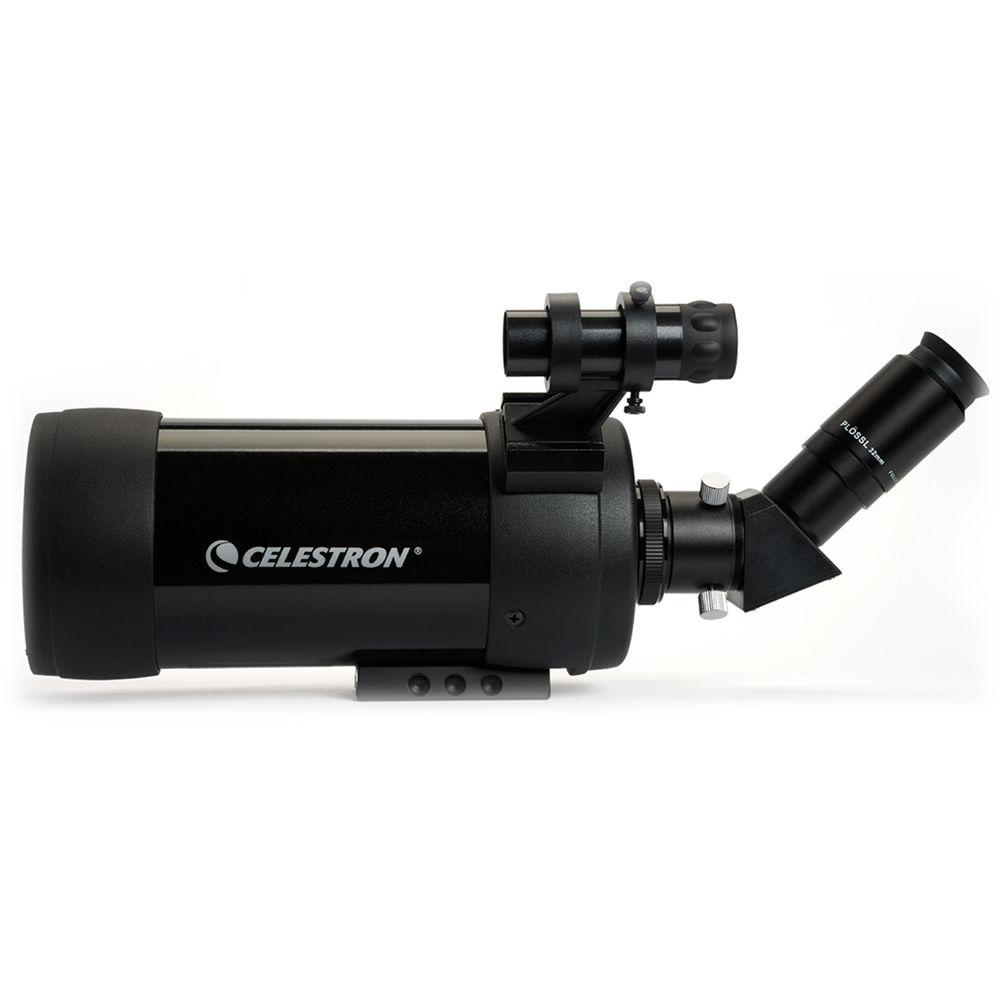

The compact and highly portable C90 Mak Spotting Scope from Celestron is a powerful spotting scope with a Maksutov-Cassegrain optical path, a 32mm eyepiece, and an erect-image 45° diagonal that also corrects the view laterally. Because the finderscope and the diagonal both provide corrected images, the C90 is an excellent choice for terrestrial as well as astronomy viewing.The 32mm Plossl eyepiece provides the user with a remarkable 39x magnification. Higher levels of magnification and wider fields of view can be experienced by substituting the included eyepiece with an appropriate 1.25" astronomy ocular.The C90 comes with an erect image 8x21 finderscope that provides a wider field of view to aid the viewer in locating subjects and targets easily. The finderscope mounts conveniently to the side of the C90's optical tube assembly and removes easily for storage and transport.The entire system is tripod adaptable—the C90 is equipped with a standard threaded tripod mount that's stable and secure. The rear of the C90 features built-in T-mount threads for mounting an SLR camera, using a user-supplied camera-specific T-ring, for astrophotography or digiscoping applications.
    Performance Details
    • Multi-coated optics
    • Focal Length: 1250mm, f/13.89
    • 32mm 1.25" Plossl eyepiece: 39x magnification

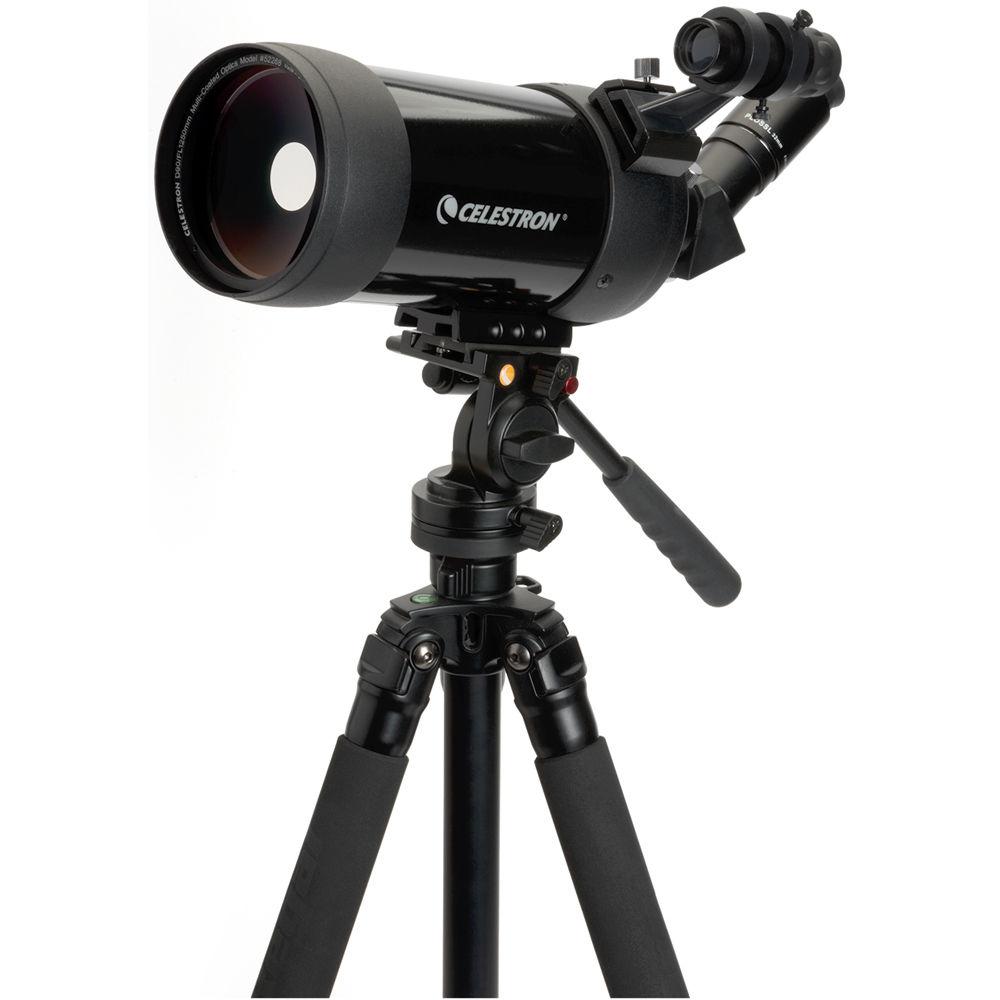

    • Integral standard 1/4"-20 threaded tripod mount
    • Built-in T-adapter threading for use with SLR cameras
    • 8x21 erect-image finderscope for rapid subject location
    • Compact and portable Maksutov-Cassegrain optical design
    • 45° erect-image diagonal for terrestrial and astronomical applications

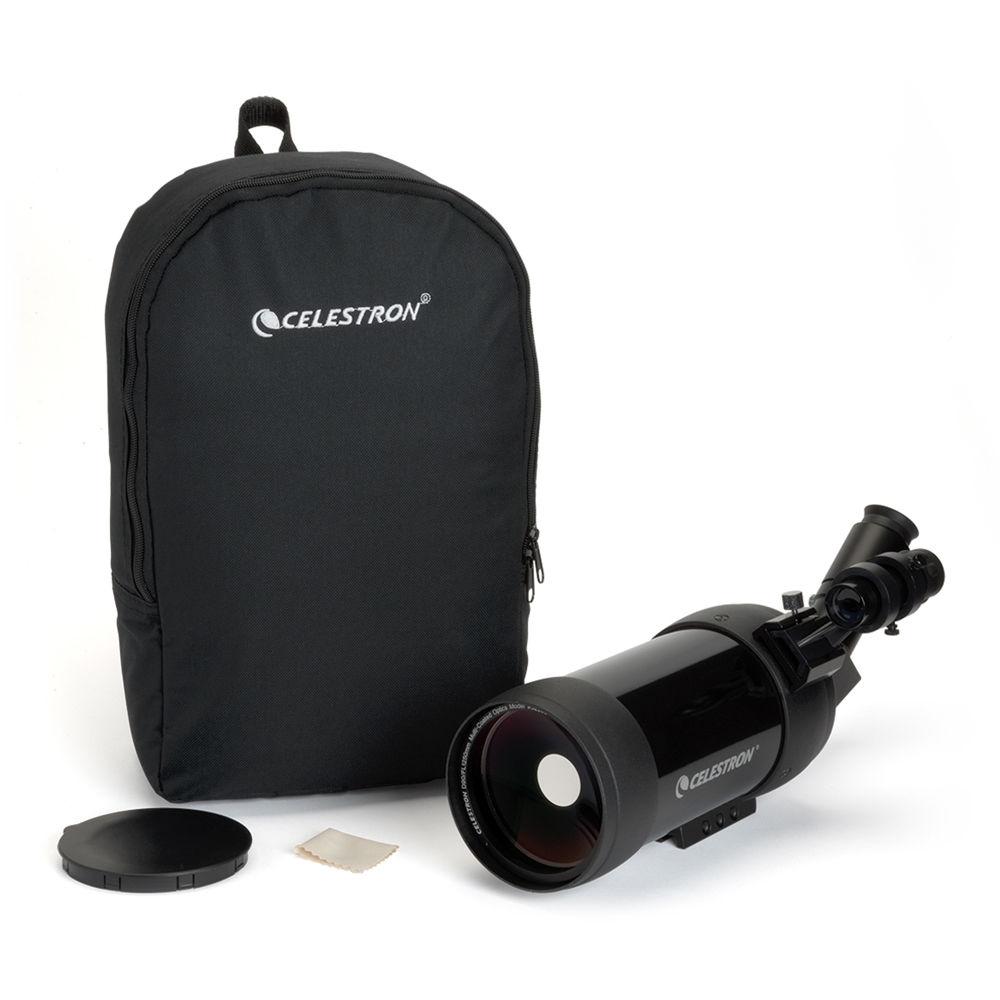

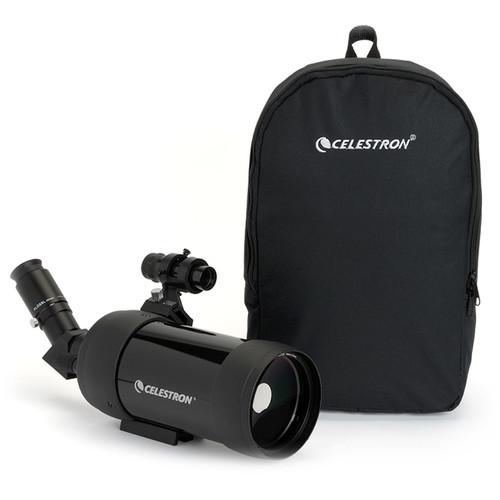

UPC: 050234522687 In the Box Celestron C90 Mak Spotting Scope
  • Nylon Backpack
  • Objective Cap
  • Limited Lifetime Warranty
  • User Manual PDF 2.9mb Table of Contents




    Upload User Manual

    Have you got an user manual for the Celestron C90 Mak Spotting Scope in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Celestron C90 Specs

    Viewing Angle Angled
    Magnification 39x
    Objective Lens Diameter 90 mm
    Field of View 68.0' @ 1000 yd / 20.7 m @ 1000 m
    Minimum Focus Distance 15.0' / 4.6 m
    Exit Pupil Diameter 39x: 2.3 mm
    Eye Relief 20.0 mm
    Dimensions L: 16.0" / L: 41.0 cm (with Eyepiece)
    Weight 5.0 lb / 2.3 kg
    Package Weight 6.73 lb
    Box Dimensions (LxWxH) 15.8 x 9.65 x 6.6"
