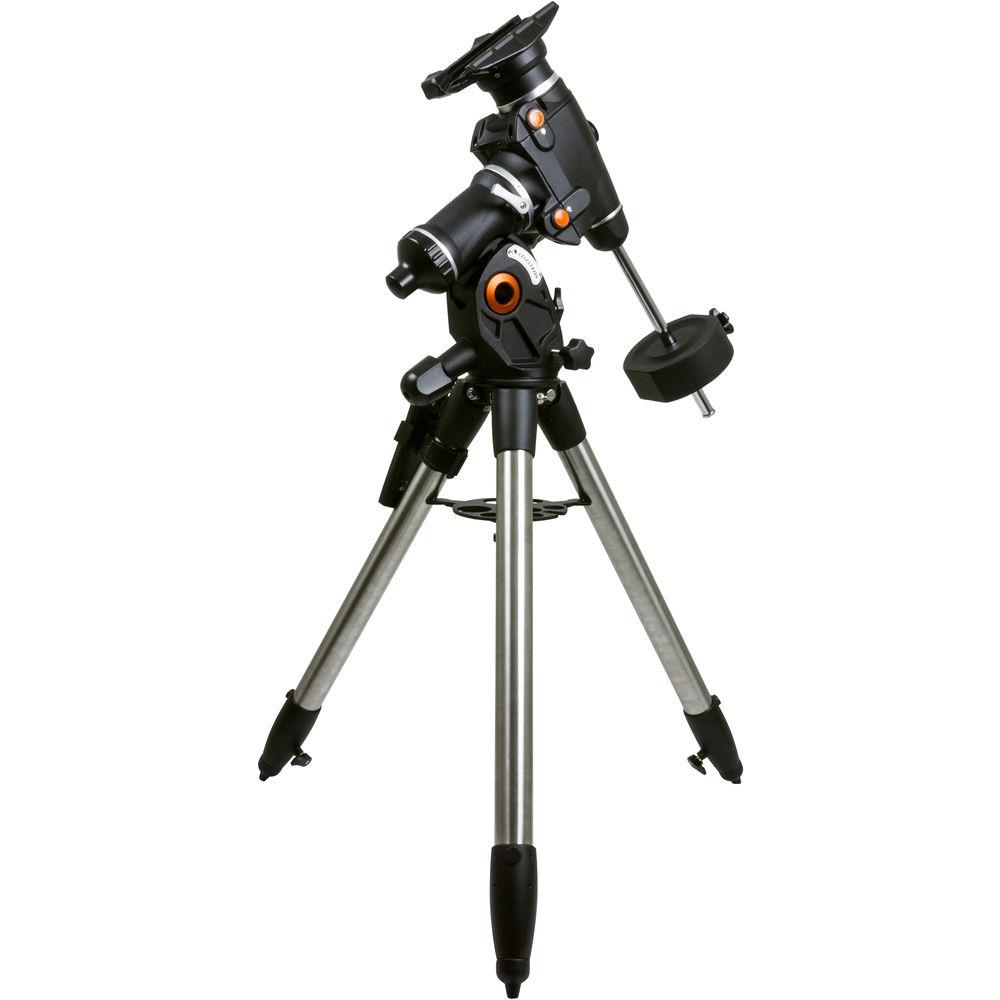

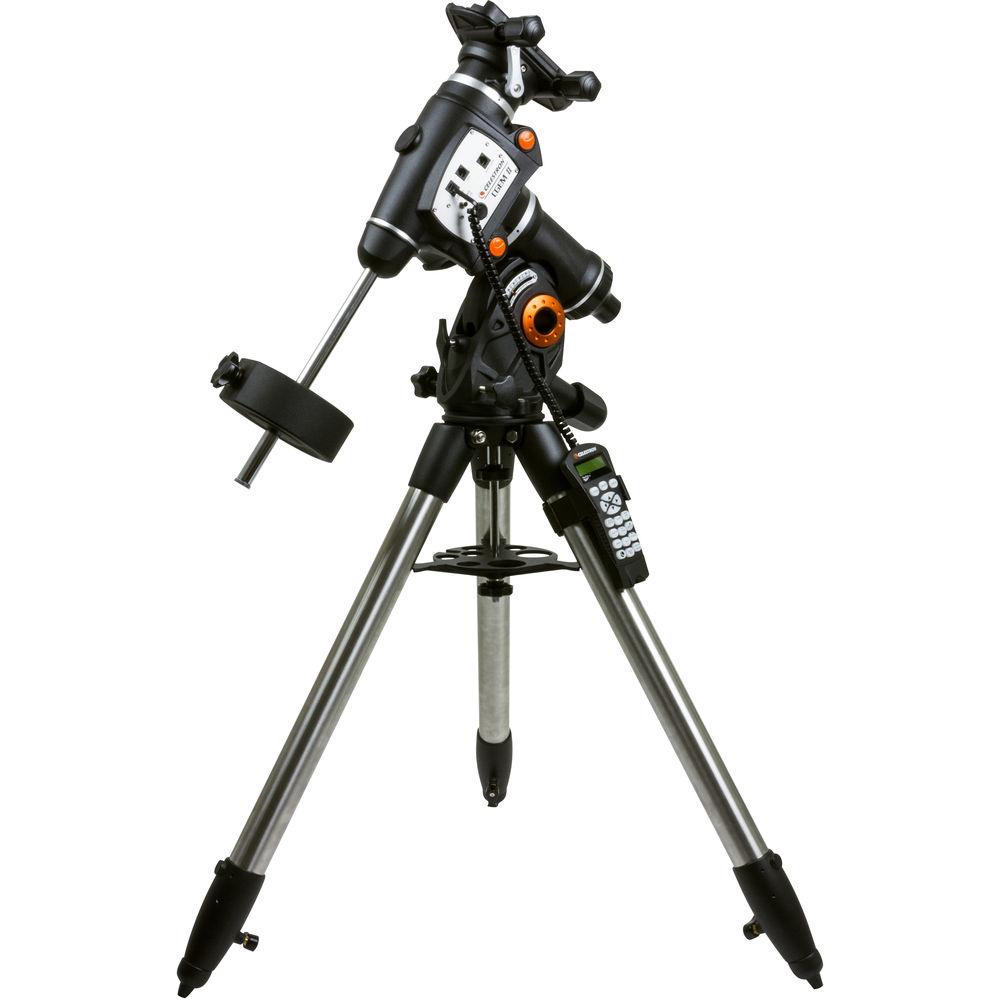

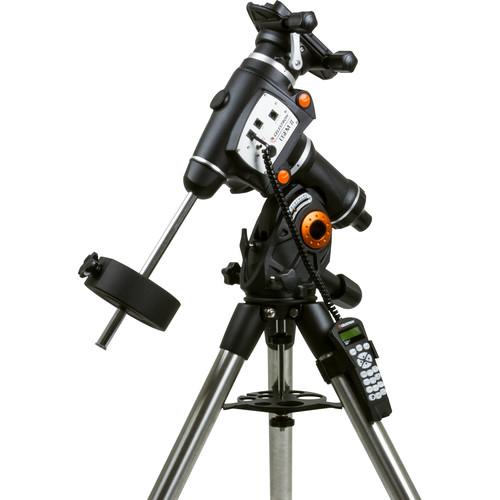

User Manual for Celestron CGEM II GoTo EQ Mount with Tripod Click to enlarge the picture
Contents of the user manual for the Celestron CGEM II GoTo EQ Mount
- Product category: Mounts Celestron
- Brand: Celestron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Celestron Mounts
 |
User manual for the Celestron CGEM II GoTo EQ Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Celestron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Celestron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Celestron product will considerably shorten its lifespan!
|
Product description Celestron updates their venerable and versatile mid-level mount with the CGEM II GoTo EQ Mount. Engineered to carry a 40-pound payload and high-torque dual DC servo motors, it is able to smoothly and accurately slew and track heavier optical tube assemblies (OTAs) and rigs up to an 11" Schmidt-Cassegrain. Its Vixen/Losmandy dual dovetail saddle makes the mount compatible with most plates used today. Celestron also improves its usage by adding compatibility with their SkySync GPS unit for a higher level of precision during setup and alignment. To provide a stable platform for the mount and your OTA, a heavy-duty stainless steel tripod is included that sports large 2" legs and an accessory tray that doubles as a stabilizer.The brain of the CGEM II is the NexStar+ computer controller. Equipped with a database of 40,000 objects, including the planets, stars, nebulae, galaxies, and the complete Messier catalog, it can also be programmed with up 100 custom user-defined objects with filters added for custom object lists. Its intuitive menu-driven user interface provides the power to observe the heavens with nine slew speeds and three tracking rates, plus anti-backlash compensation and Permanent Periodic Error Correction (PPEC) for smoother movements in the motors and improved tracking over time. Features such as guided tours, extended information on 200 popular objects, and multiple alignment options make the NexStar+ controller easy to use and invaluable to new users and experienced stargazers. - Mount
-
- German equatorial mount
- 40-pound payload capacity
- 15-70° latitude adjustment range
- Dual-axis low-cog DC servo motors with optical encoders for smooth tracking and quiet operation
- High-torque motors provide smooth tracking and slewing for heavy OTAs
- Autoguider port for making corrections while astroimaging

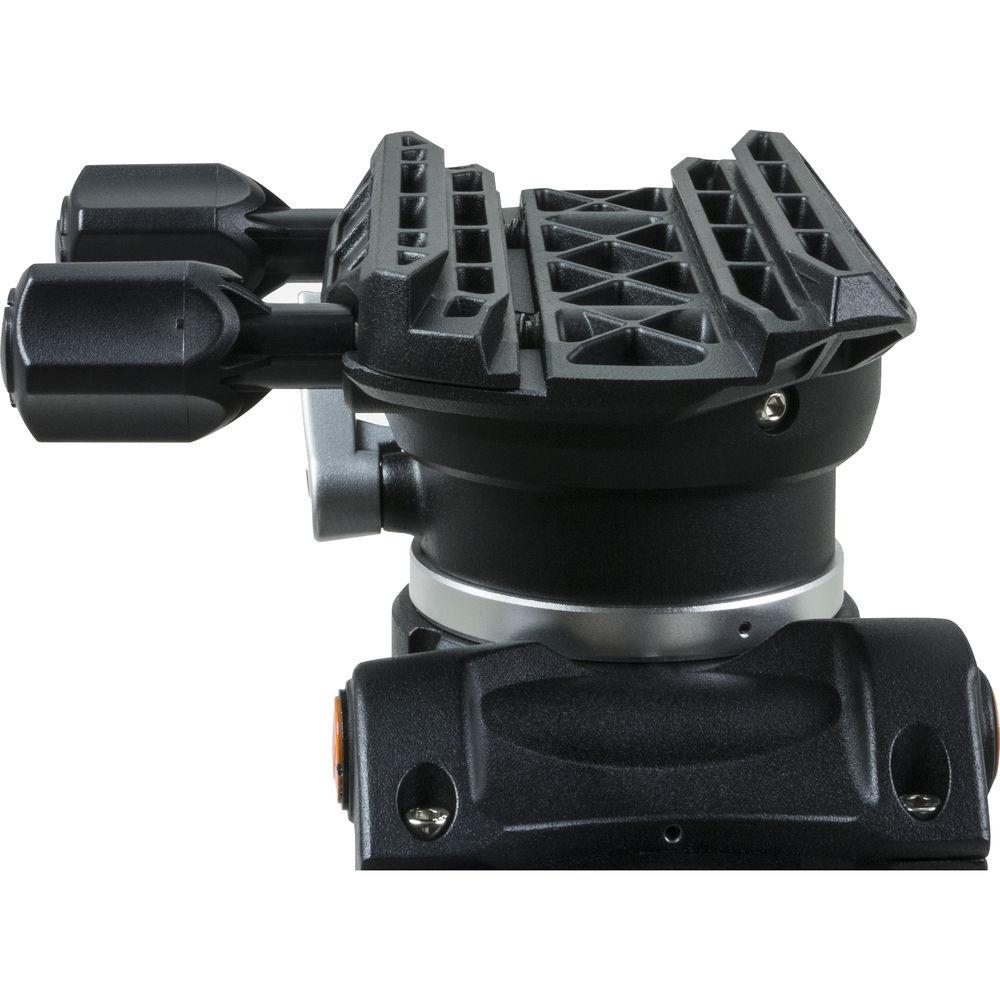

- Dual Vixen/Losmandy dovetail saddle, compatible with CG-5 and CGE bars
- Long clutch levers make tightening and loosening of clutches easier for manual movement
- Internal cables/wires for snag-free operation
- GPS-compatible with optional SkySync unit
- Runs on included 12 VDC, 3.2A car/vehicle power supply

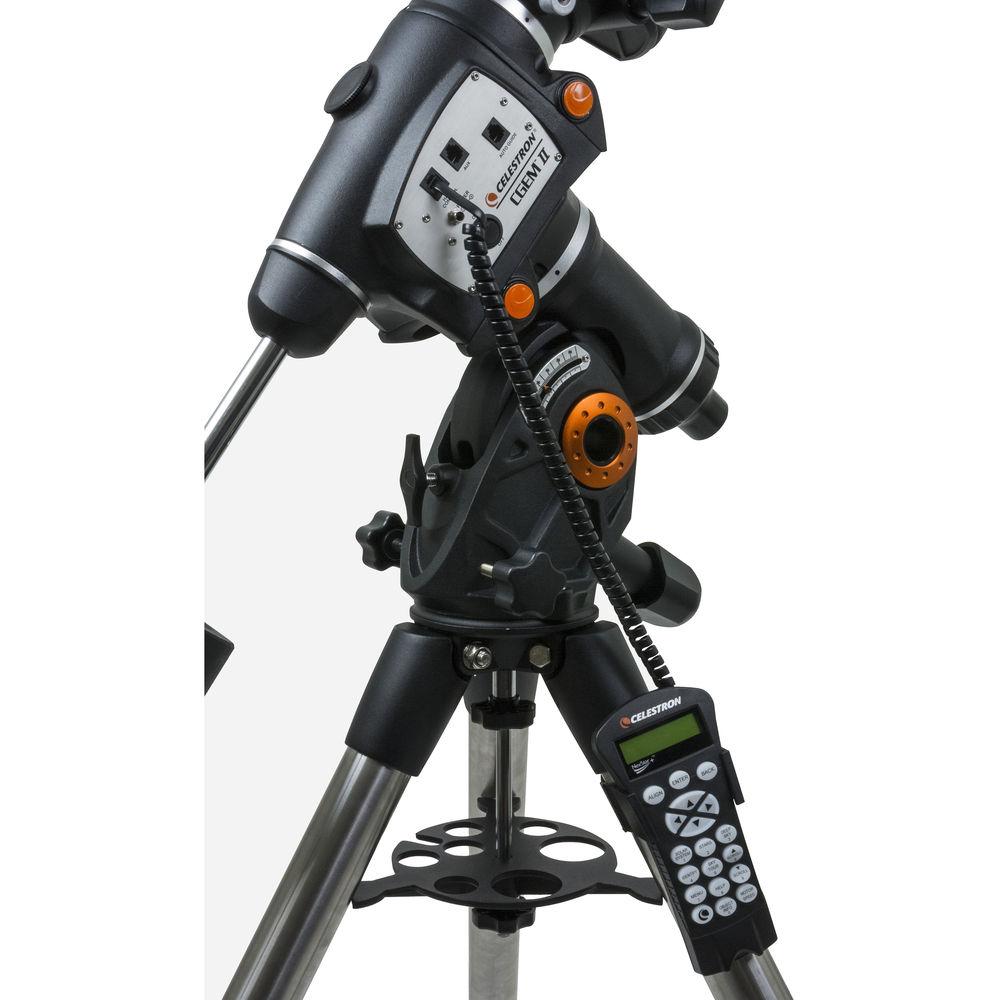

- NexStar+ Hand Controller
-
- Features:
- Intuitive menu-driven user interface
- Nine Slew Speeds: 2x, 4x, 8x, 16x, 32x, 0.3°/sec, 1.0°/sec, 2°/sec, 4°/sec
- Multiple Tracking Rates: Sidereal, Lunar, and Solar
- Anti-Backlash Correction: Trains out intrinsic play in gears for smoother movement and tracking
- Permanent Periodic Error Correction (PPEC): Improves tracking precision for long-exposure astrophotography and imaging
- Database:
- 40,000-object database
- 100 user-defined objects for customization
- Filters for creating custom object lists
- Solar system: All seven planets plus the Moon, Sun, and Pluto
- Custom lists of all the brightest stars, double stars, variable stars, and asterisms
- Custom lists of all the best galaxies, nebulae, and clusters as well as the complete Messier catalog and select NGC objects
- Functions
- Alignment options: One- or Two-star, Solar system, Quick, and Last
- Sky Tour: Based on location, date, and time, the system shows the best objects in the sky and automatically slews to them
- Object Info: Provides useful information about the selected object such as magnitude and constellation; includes extended information about 200 popular objects
- Physical characteristics:
- 2-line, 16-character LCD window with red backlighting for comfortable viewing without affecting night-adjusted vision
- 19 function keys, backlit in red
- Micro-USB port: Connect to a computer, for use with software programs for point-and-click slewing capability and updating firmware via PC
- Tripod
-
- Stainless steel legs
- Heavy-duty 2" diameter
- Graduated markings on lower section for height repeatability
- Accessory/eyepiece holder tray that doubles as leg spreader/lock
- Weight: 20 pounds
UPC: 050234915236 In the Box Celestron CGEM II GoTo EQ Mount with Tripod NexStar+ AZ Hand Controller tfsryaxqwxfw 17 lb Counterweight for the CGEM EQ Mount Stainless Steel Tripod Counterweight Shaft NexRemote Software DVD 12VDC Car/Vehicle Power Adapter Limited Two-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Celestron CGEM II GoTo EQ Mount with Tripod in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCelestron 91523 Specs | Mount Type | Equatorial | | Load Capacity | 40.0 lb / 18.1 kg | | Motor | Dual-axis low-cog DC servo | | GO-TO Capability | Yes, NexStar+ hand controller | | Latitude Adjustment Range | 15 - 70° | | Polar Axis Scope | None | | Includes Tripod/Pier | Adjustable-height stainless steel
2"-diameter legs | | Power Source | 12 VDC, 3.2 amps | | Weight | Mount: 40.0 lb / 18.1 kg
Tripod: 20.0 lb / 9.1 kg
Total: 77.0 lb / 34.9 kg | | | | Package Weight | 90.5 lb | | Box Dimensions (LxWxH) | 42.5 x 19.8 x 13.1" |
