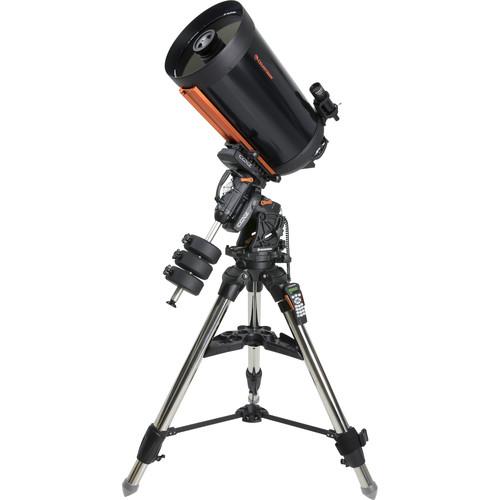

User Manual for Celestron CGX-L Equatorial 1400 14" f 11 Schmidt-Cassegrain GoTo Telescope

• Product category: Catadioptrics (Cassegrains) Celestron
• Brand: Celestron
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Celestron Catadioptrics (Cassegrains)

Product description

• C14-AF XLT 14" f/11 Schmidt-Cassegrain Telescope (OTA Only, CGE Dovetail)
  • CGX-L German Equatorial Mount - Product Tour
  Outfitted with an oversized aperture, long effective focal length, and their proprietary StarBright XLT optical coatings, the Celestron C14-AF XLT 14" f/11 Schmidt-Cassegrain Telescope provides high power and portability. The coating system consists of anti-reflection coatings on the corrector plate, highly reflective index mirror coatings, and low-absorption/high-transmission glass components to ensure that the maximum amount of light is gathered and transmitted to your eye. This system ensures bright and clear high-contrast images with accurate color rendition across the entire visual spectrum without visible distortion at the edges. Celestron includes a standard-thread 2" visual back and reducer adapter to accept eyepieces and accessories such as the 1.25" 40mm eyepiece and 2" 90° diagonal supplied with the optical tube assembly (OTA). This OTA is offered here without a mount or tripod for users who already have a support system. Just ensure the mount's payload capacity exceeds 45 pounds to safely carry the weight and that the mount has a Losmandy-style saddle to match the OTA's CGE mounting plate.
  Optical Tube
  • • 14" (355.6mm) aperture
    • f/11 focal ratio
    • 3910mm effective focal length
    • Schmidt-Cassegrain design optical path
    • StarBright XLT optical coatings
    • Resolution: 0.39 arcsec (Rayleigh); 0.33 arcsec (Dawes)
    • Secondary mirror obstruction: 4.5" (114 mm); 32% by diameter; 10% by area
  StarBright XLT System
  • • Maximizes light transmission through optical path
    • Improves color rendition, contrast, sharpness, resolution, and brightness
    • Broadband system provides flat wavelength transmission across the entire visual spectrum
    • Multi-layer mirror coatings with layers of aluminum, SiO2 (quartz), and TiO2 (titanium dioxide)
    • Multi-layer anti-reflective corrector plate coatings with layers of MgF2 (magnesium fluoride) and HfO2 (hafnium dioxide); hafnium has a wider band-pass than the commonly used titanium
    • High-transmission water white glass corrector plate limits light loss due to internal absorption
  Mounting
  • • Optical tube only—mount and tripod required for proper use
    • Supplied with CGE dovetail plate, which is compatible with Losmandy-style saddles
    • Mount must have a payload capacity of over 45 pounds to safely support the OTA
  Included Accessories
  • • Visual back:
    • Standard threads for Schmidt-Cassegrain telescope optical tubes
    • 2" holder accepts 2" eyepieces and accessories
    • Eyepiece:
    • 1.25"-diameter barrel
    • Accepts most 1.25" astronomical filters
    • 40mm focal length produces 98x magnification
    • Diagonal:
    • 2"-diameter barrel
    • 90° angle places head in comfortable viewing position when scope is aimed at or near the zenith
    • Star diagonal corrects view horizontally, but not vertically
    • Includes 2"-to-1.25" reducer adapter to allow use of smaller 1.25" eyepieces and accessories
    • Finderscope:
    • 9x magnification
    • 50mm aperture
    • Mounting bracket included
• CGX-L GoTo EQ Mount with Tripod With an upgraded payload capacity, tripod, and internal gears, the Celestron CGX-L GoTo EQ Mount improves on their venerable CGX platform to provide users with a heavy-duty research-quality mount for larger optical tube assemblies (OTAs), accessories, and imaging rigs. Engineered to carry a 75 lb payload, and outfitted with high-torque motors and a heavy-duty belt-drive system to improve tracking stability and reduce backlash, it is able to smoothly and accurately track near- and deep-sky objects for extended periods of time.The Vixen/Losmandy dual dovetail saddle has also been lengthened to 10.6" to improve stability and offer greater security for larger OTAs. To provide a solid platform for the mount and your OTA, a heavy-duty stainless steel tripod is included, sporting massive 2.75"-diameter legs, an accessory tray that doubles as a stabilizer, and an adjustment range from 35.75" to 52.75". The minimum height has been lowered almost a foot versus the earlier CGX model to accommodate a wider range of users and different observation positions.The brain of the CGX-L is the venerable NexStar+ computer controller. Equipped with a database of 40,000 objects, including the planets, stars, nebulae, galaxies, and the complete Messier catalog, it can also be programmed with up 200 custom user-defined objects with filters added for custom object lists. Its intuitive menu-driven user interface gives you the power to observe the heavens with nine slew speeds, three tracking rates, anti-backlash compensation, and Permanent Periodic Error Correction (PPEC) for smoother movements in the motors and improved tracking over time. Features such as guided tours, extended information on 200 popular objects, and multiple alignment options make the NexStar+ controller easy to use and invaluable to both new users and experienced stargazers.
  Mount Head
  • • German equatorial mount
    • Lower profile head design provides improved stability and portability
    • Head can be set on the tripod in three different positions to optimize the center of balance over the tripod or to provide more clearance when needed at lower latitudes
    • 75 lb payload capacity, excluding counterweights
    • 3-65° latitude adjustment range
    • 20° of additional tracking past the meridian allows for longer observation time when viewing from a rise or hill
    • Two autoguider ports provide greater cable management to avoid wire wrap
    • 10.6" (27cm) Vixen/Losmandy dovetail saddle, compatible with CG-5 and CGE bars
    • Long clutch levers make tightening and loosening of clutches easier for manual movement
    • Strong 1.25" (31.5mm) stainless steel counterweight shaft to handle additional counterweight load
    • Includes one 22 lb counterweight
    • Home sensors allow the mount to always start in the index position regardless of orientation before a power reset
    • Internal cabling reduces snags and other hazards
    • Stationary latitude knob and linkage system that reduces the amount of friction during polar alignment
    • Power input and lower accessory ports remain stationary while the mount slews to avoid snags
    • Integrated handles for easy transport and setup/breakdown
    • "Real Time Clock" keeps time and site information saved when power is disconnected
    • On/Off rocker switch with red LED
  Motors and Drives
  • • Dual-axis servo motors with optical encoders for smooth tracking and quiet operation
    • High-torque motors provide smooth tracking and slewing for heavy OTAs and accessories
    • Internal belt-drive system provides smooth, vibration-free tracking while minimizing backlash
    • Spring-loaded brass worm wheel and stainless steel worm gear reduce friction and improve gear meshing
    • Limit sensors automatically shut off slewing or tracking before reaching the hard stop fail safe
    • Internal hard stops for both axes prevent cable tension and tripod strike
    • Autoguider capable for making corrections while astroimaging
    • Large 144mm-diameter worm wheels to better and more accurately drive heavier loads
    • Low-friction Teflon bearings on azimuth adjustment to make adjustments easy under full load
    • USB 2.0 port to connect directly to PC with PWI software
    • Threaded power input barrel connector eliminates accidental disconnection
    • Runs on included 12 VDC, 4A car/vehicle power supply
  NexStar+ Hand Controller
  • • Features:
    • Intuitive menu-driven user interface
    • PWI telescope control software features multi-point mount modeling for extremely precise pointing accuracy
    • Nine slew speeds: 1/2x, 1x, 4x, 8x, 16x, 64x (0.3°/sec), 1.0°/sec, 2°/sec, 3°/sec
    • Multiple tracking rates: Sidereal, Lunar, and Solar
    • Anti-backlash correction trains out intrinsic play in gears for smoother movement and tracking
    • Permanent Periodic Error Correction (PPEC): Improves tracking precision for long-exposure astrophotography and imaging
    • Database:
    • 40,000-object database
    • 200 user-defined objects for customization
    • Filters for creating custom object lists
    • Solar system: All seven planets plus the Moon, Sun, and Pluto
    • Custom lists of all the brightest stars, double stars, variable stars, and asterisms
    • Custom lists of all the best galaxies, nebulae, and clusters
    • Complete Messier catalog
    • Select NGC objects
    • Functions
    • "All-Star Polar Alignment" software allows quick and precise polar alignment without extra polar alignment accessories, apps, or other assistance
    • Additional alignment options: One- or Two-star, Solar system, Quick, and Last
    • Sky Tour: Based on location, date, and time, the system shows the best objects in the sky and automatically slews to them
    • Object info: Provides useful information about the selected object such as magnitude and constellation; includes extended information about 200 popular objects
    • Physical characteristics:
    • 2-line, 18-character LCD window with red backlighting for comfortable viewing without affecting night-adjusted vision
    • 19 function keys, backlit in red
    • Mini USB port: Connect to a computer for use with software programs for point-and-click slewing capability and updating firmware via PC
  Tripod
  • • Stainless steel legs
    • Adjustable height from 35.75" to 52.75"
    • Large 2.75"-diameter leg sections provide stability and vibration reduction
    • Legs can be collapsed with accessory tray installed for faster setup and transport
    • Hand controller holster attaches with a hook-and-loop strap so it can be moved from leg to leg and avoid wire wrap
    • Accessory tray holds 1.25 and 2" eyepieces with a smartphone stand
    • Tray doubles as upper leg spreader/lock
    • Lower leg spreader provides additional stability
    • Weight: 46.2 lbs
  UPC: 050234915311
• CGE PRO Counterweight - 22 lb This 22 lb/9.9 kg CGE PRO Counterweight from Celestron is designed specifically for use with their CGE PRO telescope mount. UPC: 050234941877

• 40mm Eyepiece

• 2" 90° Diagonal

• 2-1.25" Reducer Adapter

• SCT Visual Back

• 9x50mm Finderscope

• Universal Mounting Plate, CGE

• Limited 2-Year Warranty

• NexStar+ Hand Control (EQ)

• CGE PRO Counterweight - 22 lb

• CGX-L Equatorial Head

• Stainless Steel Tripod

• Accessory Tray

• Counterweight Shaft

• 8mm Allen Wrench

• 3 x 8mm Hex-Head Screw

• Hand Control Holster

• 12 VDC Car/Vehicle Power Adapter

• Limited 2-Year Warranty

• Limited 1 Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• C14-AF XLT 14" f/11 Schmidt-Cassegrain Telescope (OTA Only, CGE Dovetail)

  Optical Design	Schmidt-Cassegrain
  Aperture	14" / 356mm
  Focal Length	3910mm
  Focal Ratio	f/11
  Eyepiece Barrel Diameter	2" 1.25" with included reducer adapter
  Diagonal	90° star 2" barrel
  Finderscope	9x50 mm
  Tripod	None
  Mount Type	CGE dovetail plate
  Power Source	None
  Optical Tube Length	31.0" / 78.7 cm
  Weight	45.0 lbs / 20.4 kg

• CGX-L GoTo EQ Mount with Tripod

  Mount Type	Equatorial
  Load Capacity	75.0 lb / 34.0 kg, excluding counterweight
  Motor	Dual-axis servo motors Heavy-duty belt-drive system Digital optical encoders
  GoTo Capability	Yes, NexStar+ hand controller
  Latitude Adjustment Range	3 - 65°
  Polar Axis Scope	None
  Tripod	Adjustable height from 35.75 - 52.75" / 90.8 - 134.0 cm Stainless steel Leg diameter: 2.75" / 7.0 cm
  Power Source	12 VDC, 3 A
  Weight	Mount head: 52.6 lb / 23.9 kg Tripod: 46.2 lb / 21.0 kg

  Box Dimensions (LxWxH)	51.0 x 38.0 x 21.0"

• CGE PRO Counterweight - 22 lb

  Box Dimensions (LxWxH)	10.4 x 9.6 x 5.6"
