Product description - Celestron CPC Deluxe HD Telescope - Product Overview

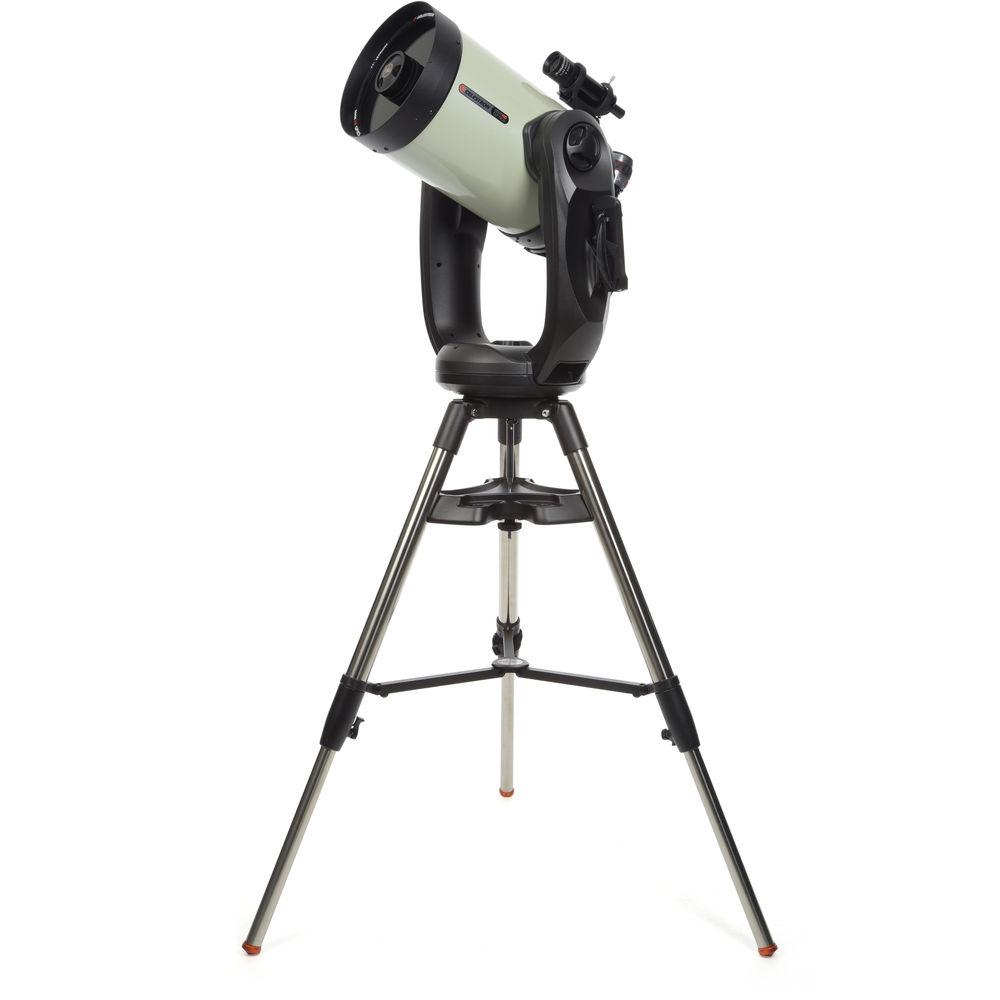

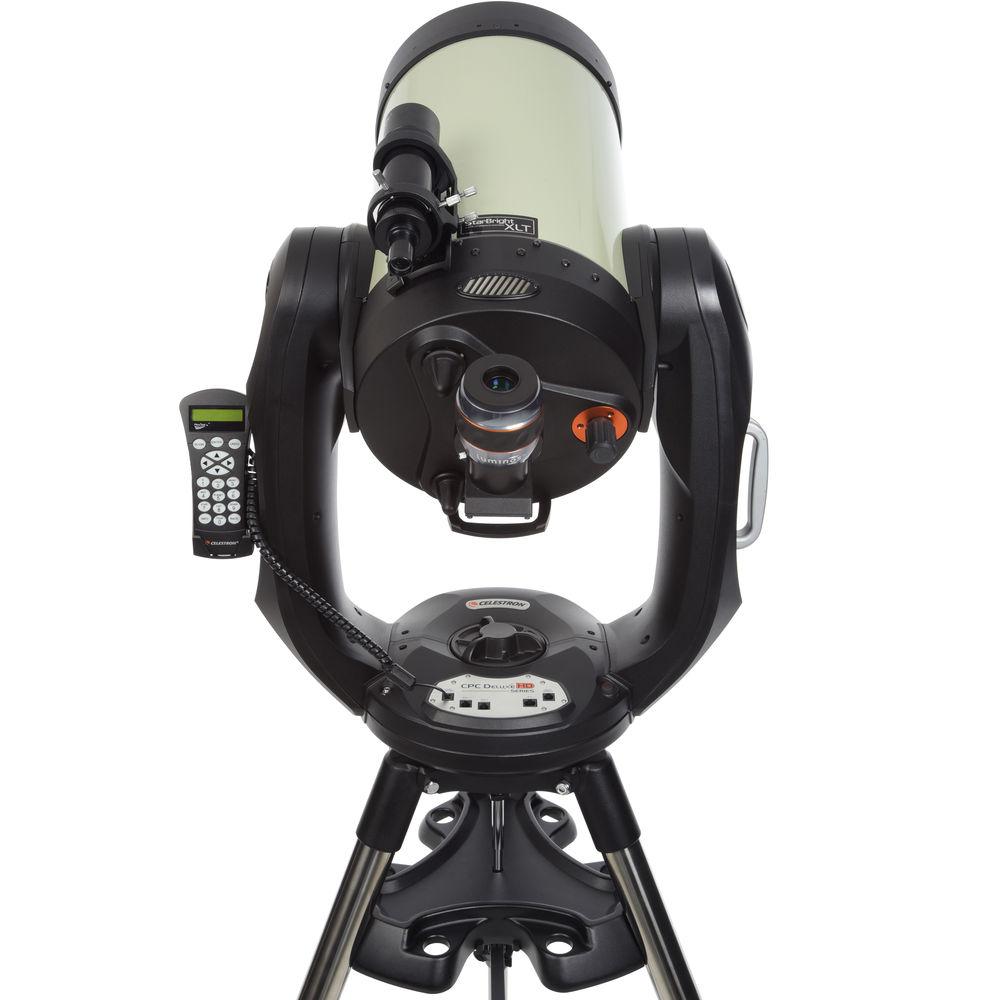

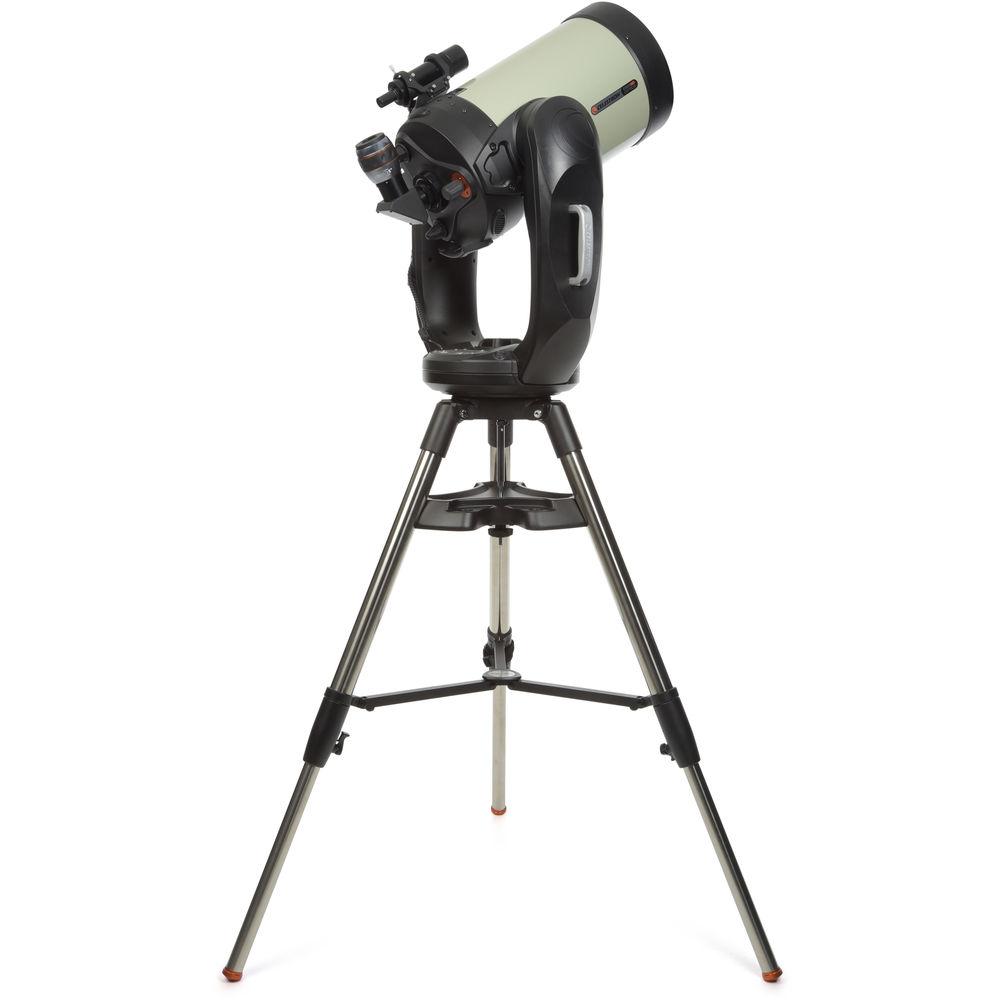

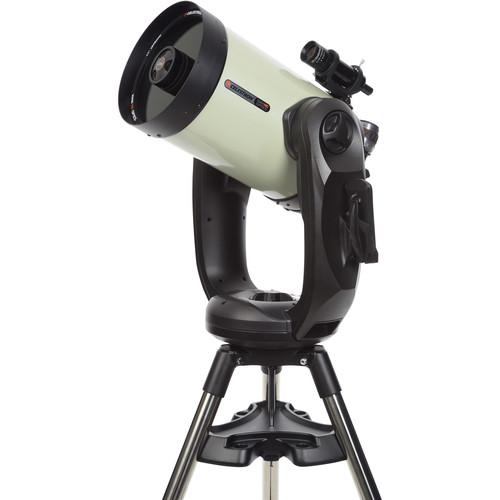

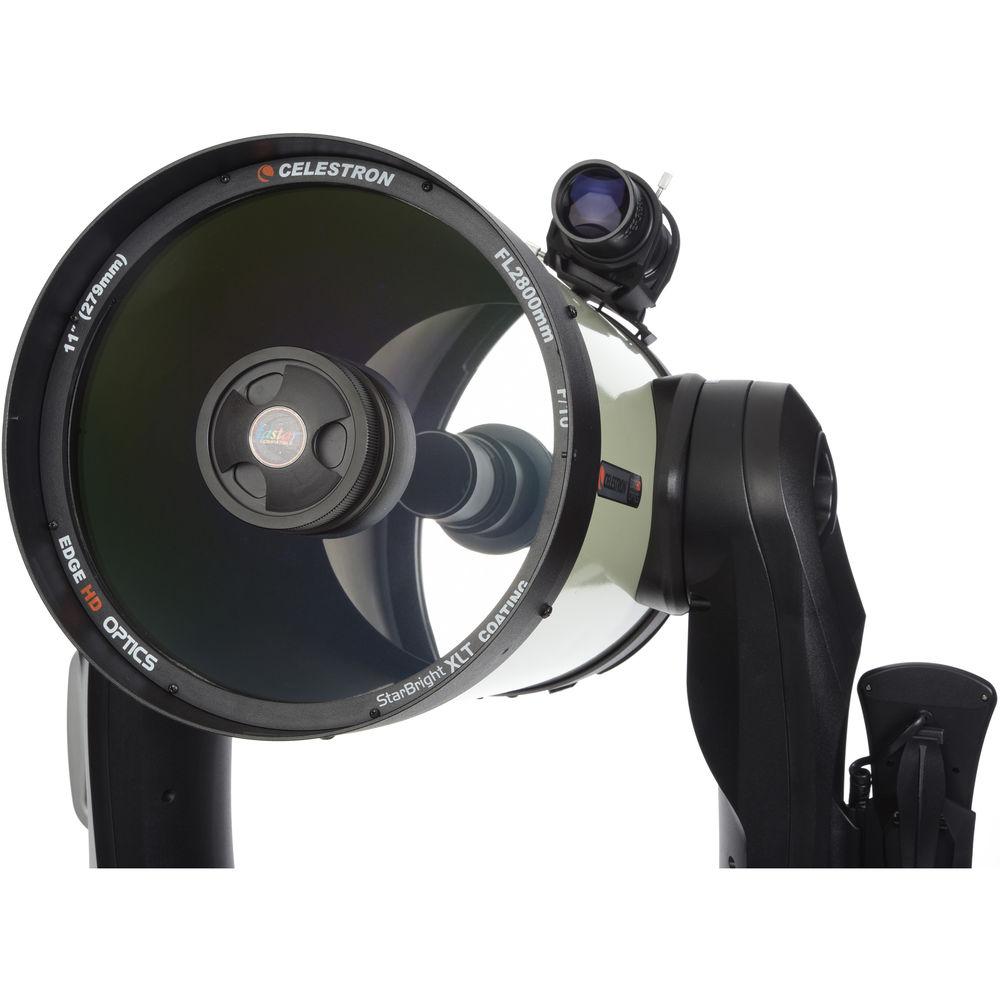

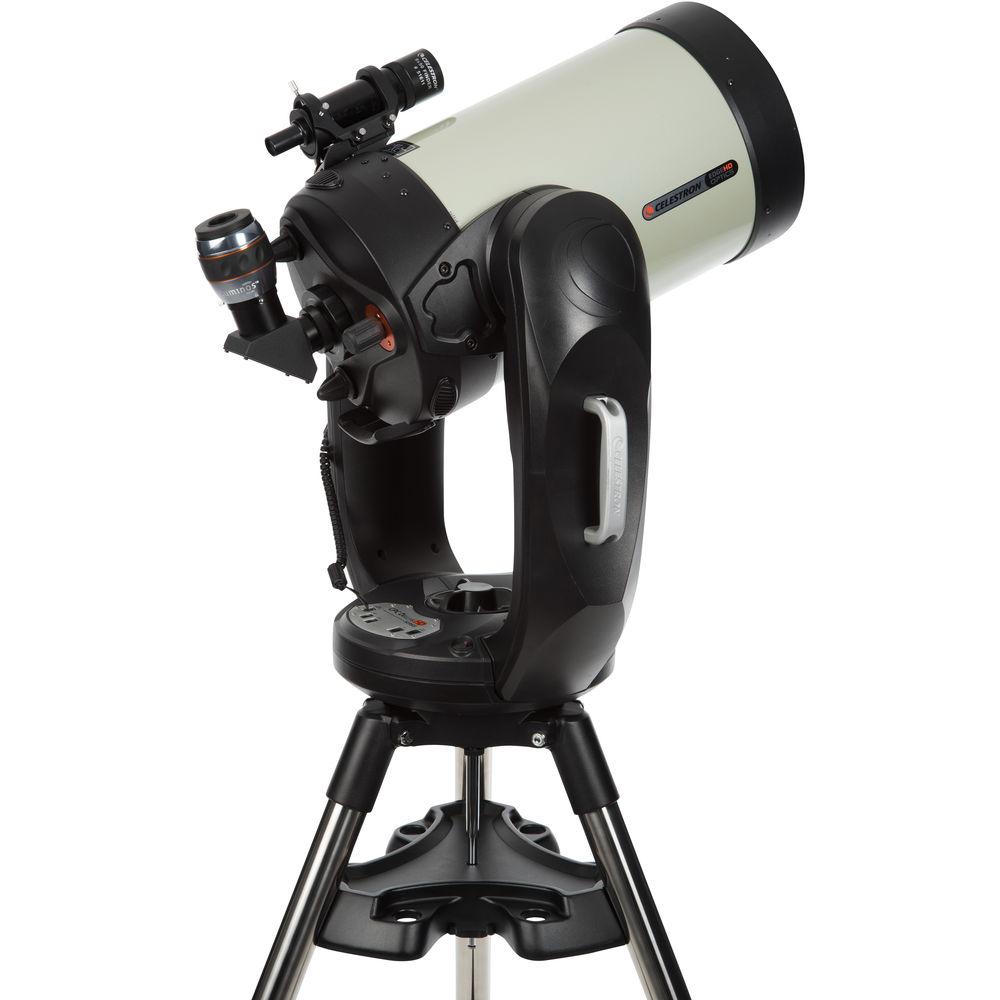

The Celestron CPC Deluxe 1100 HD 11" f/10 Edge HD Aplanatic Cassegrain GoTo Telescope is the flagship model in the CPC Deluxe line, and improves the power and capabilities over the 8" and 9.25" models with the largest aperture and longest focal length. This complete observational platform is ideal for deep-space visual exploration and astrophotography. Optically, it features the proprietary aplanatic catadioptric-style Edge HD optical system consisting of a corrector plate, a spherical primary mirror, and a secondary mirror along with a set of field-flattening lenses integrated into the baffle tube. Complementing the EdgeHD system is the proprietary StarBright XLT optical coating system that improves light transmission and reflectivity across the entire visual spectrum. The combination of EdgeHD and StarBright XLT produces bright and clear high-resolution images with true color rendition across the entire field of view without distortion, aberrations, or off-axis comas.Optimized for imaging, the internal focusing system features mirror support clutches to ensure proper alignment and mirror locks to avoid accidental defocusing during long-exposure astrophotography, and the optical tube is outfitted with a 2" visual back to use larger eyepieces and accessories. 2" eyepieces typically have wider fields of view and longer eye reliefs than similar 1.25" versions for more comfortable viewing, and the larger back ensures full coverage of today's imaging sensors to avoid vignetting. A reducer adapter is also included to enable the use of the more common 1.25" eyepieces, accessories, and imaging gear. For visual observations, a 2" star diagonal is included along with a 23mm Plössl eyepiece that yields 122x magnification. The motorized dual-fork mount has dual-axis servo motors that provide precision movements and an integrated 48-channel GPS receiver that sends information to the hand controller and requires limited input from the user. The heavy-duty stainless steel tripod helps limit vibrations to ensure clear resolution during observation or imaging sessions.The brain of the entire system is the NexStar computer controller. Equipped with a database of over 40,000 objects, including the planets, stars, nebulae, galaxies, and the complete Messier catalog, it can also be programmed with up to 99 custom user-defined objects, with filters added for custom object lists. Its intuitive menu-driven user interface provides the power to observe the heavens with nine slew speeds and three tracking rates, plus anti-backlash compensation and Permanent Periodic Error Correction (PPEC) for smoother movements in the motors and improved tracking over time. Features such as guided tours, extended information on 200 popular objects, and multiple alignment options make the NexStar controller easy to use and invaluable to new users and experienced stargazers. - Optical Tube
-
- 11" (280mm) aperture
- f/10 focal ratio
- 2800mm effective focal length
- EdgeHD catadioptric optical system employs an aplanatic field-flattener design that eliminates spherical aberration, field curvature, and off-axis star coma to improve resolution, sharpness, and clarity across the entire field of view—especially at the edges
- Fine-annealed Pyrex glass reduces internal light loss to improve color, clarity, and sharpness
- StarBright XLT optical coatings
- Flexible tension clutches hold the primary mirror in place to reduce image shift without putting any force or pressure on the mirror assembly, keeping subjects centered
- Internal mirror locks prevent accidental adjustment to focus—important during long-exposure astrophotography
- Internal focusing mechanism
- Resolution: 0.5 arcsec (Rayleigh); 0.41 arcsec (Dawes)
- Secondary mirror obstruction: 3.75" (95mm); 34% by diameter; 12% by area
- StarBright XLT System
-
- Maximizes light transmission through optical path
- Improves color rendition, contrast, sharpness, resolution, and brightness
- Broadband system provides flat wavelength transmission across the entire visual spectrum
- Multi-layer mirror coatings with layers of aluminum, SiO2 (quartz), and TiO2 (titanium dioxide)
- Multi-layer anti-reflective corrector plate coatings with layers of MgF2 (magnesium fluoride) and HfO2 (hafnium dioxide); hafnium has a wider band-pass than the commonly used titanium
- High-transmission water white glass corrector plate limits light loss due to internal absorption

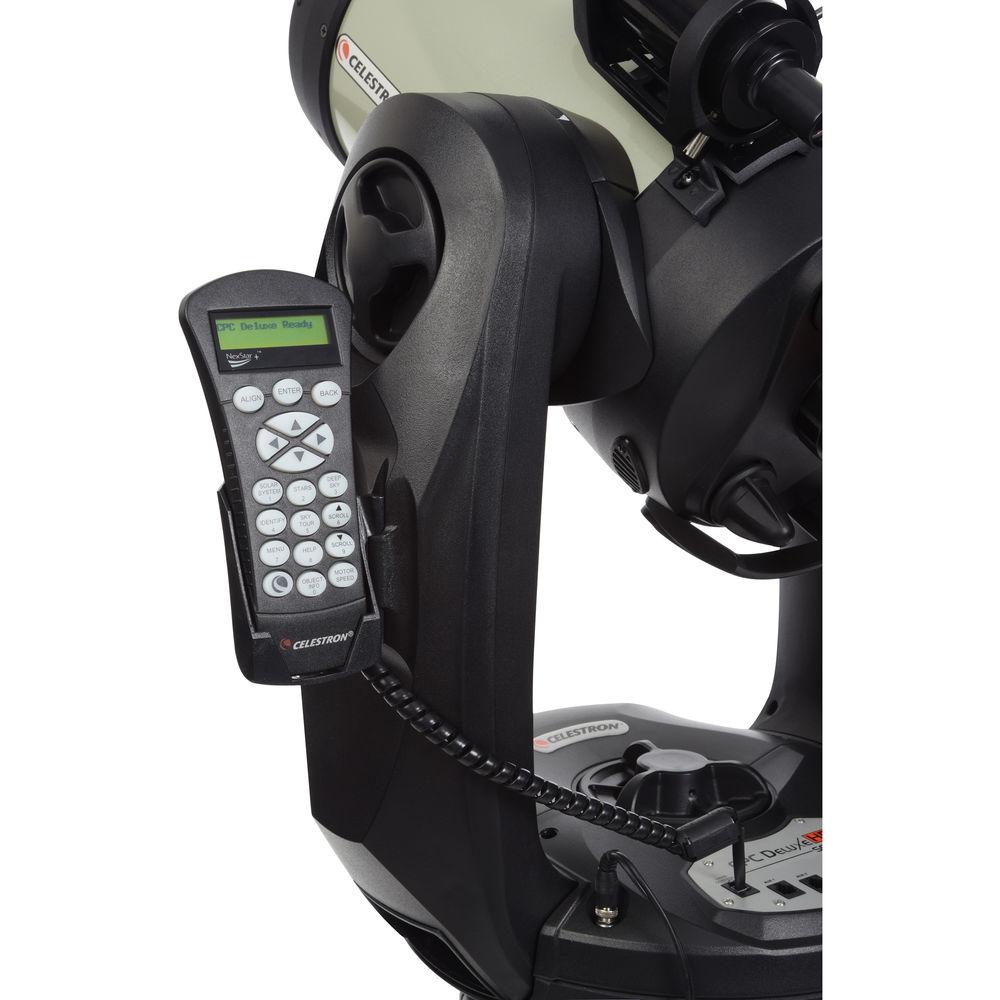

- NexStar Hand Controller
-
- 40,000+ object database
- 99 user-defined programmable celestial or terrestrial objects
- Enhanced information on over 200 objects
- Nine slew speeds: 4°/sec, 2°/sec, 0.5°/sec, 64x, 16x, 8x, 4x, 1x, 0.5x
- Three tracking rates: Sidereal, Solar, Lunar
- Multiple alignment procedures: Sky Align, Auto Two-Star, Two-Star, Solar System, EQ North, and EQ South
- Tour Mode: System seeks out the best objects for the date and time and automatically slews to them
- Constellation Tour: Takes the user on a tour of the best objects within a specific constellation
- Identify Mode: Use to identify an unknown object in the field of view or to find other celestial objects that are close to where the user is viewing
- Anti-Backlash Compensation: Trains out the intrinsic play between gears for more precise slewing and tracking
- Periodic Error Correction (PEC): System learns its internal tracking errors and improves over time for more precise tracking, requiring fewer corrections
- Built-in instructions guide users through the alignment procedures
- Double line, 16-character LCD display with 19-button fiber-optic backlit LED keypad
- RS-232 communication port
- Database Details:
- Complete NGC Catalog: 7840 objects
- Complete Messier Catalog: 110 objects
- Complete IC Catalog: 5386 objects
- Complete Caldwell Catalog: 109 objects
- Abell galaxies: 2712
- Solar system objects including the Sun, Moon, and planets
- 20 of the most popular asterisms
- 25 select CCD imaging objects
- Select SAO stars, double stars, and variable stars
- CPC Mount and Tripod
-
- Mount:
- Dual-tine fork; cast aluminum
- Dual-axis DC servo motors with digital encoders to improve tracking and GoTo precision
- Motor resolution: 0.1406 arcsec
- R.A. axis: 5.78" 180-tooth brass gear; stainless steel worm gear
- 9.8" azimuth bearing
- Internal 48-channel GPS receiver sends date, time, location information to hand controller, requiring no input by user
- Altitude and azimuth locking knobs

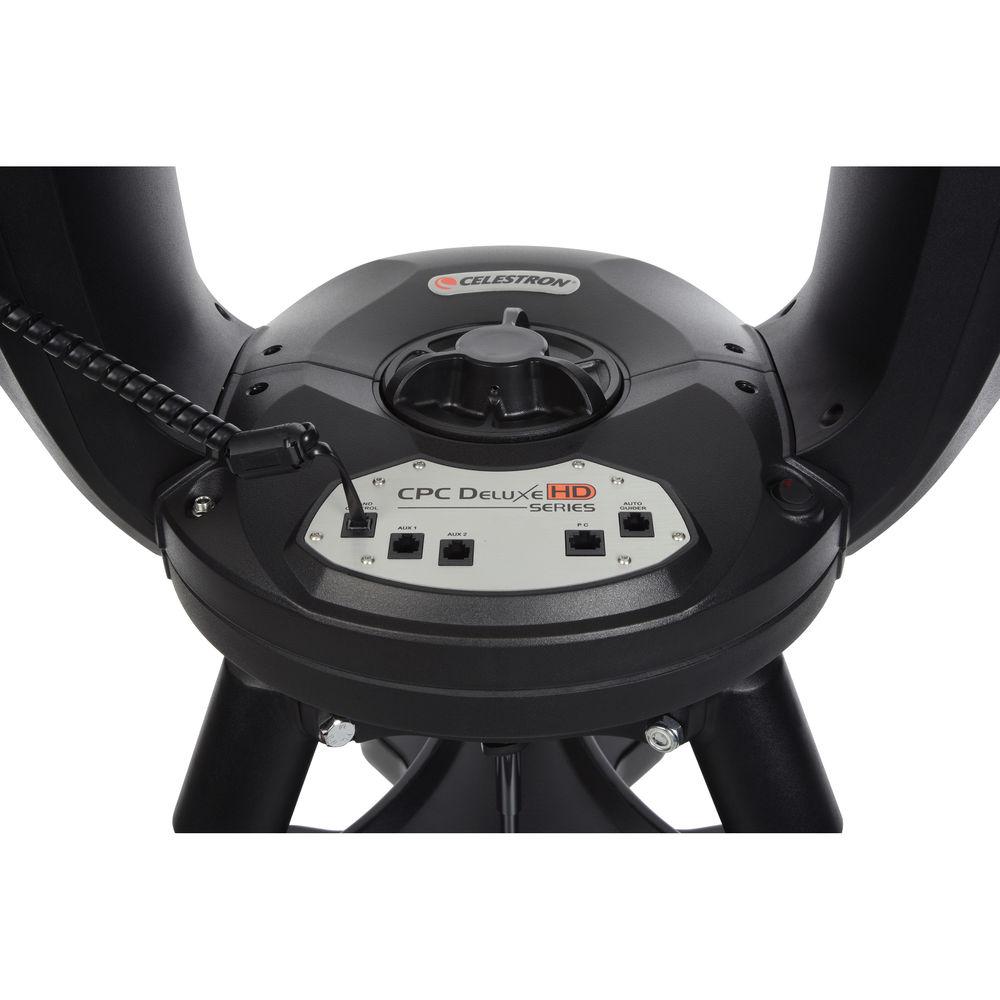

- Ports: Autoguider, two auxiliary ports, PC interface
- Detachable hand controller holder
- 9-15 VDC power requirement

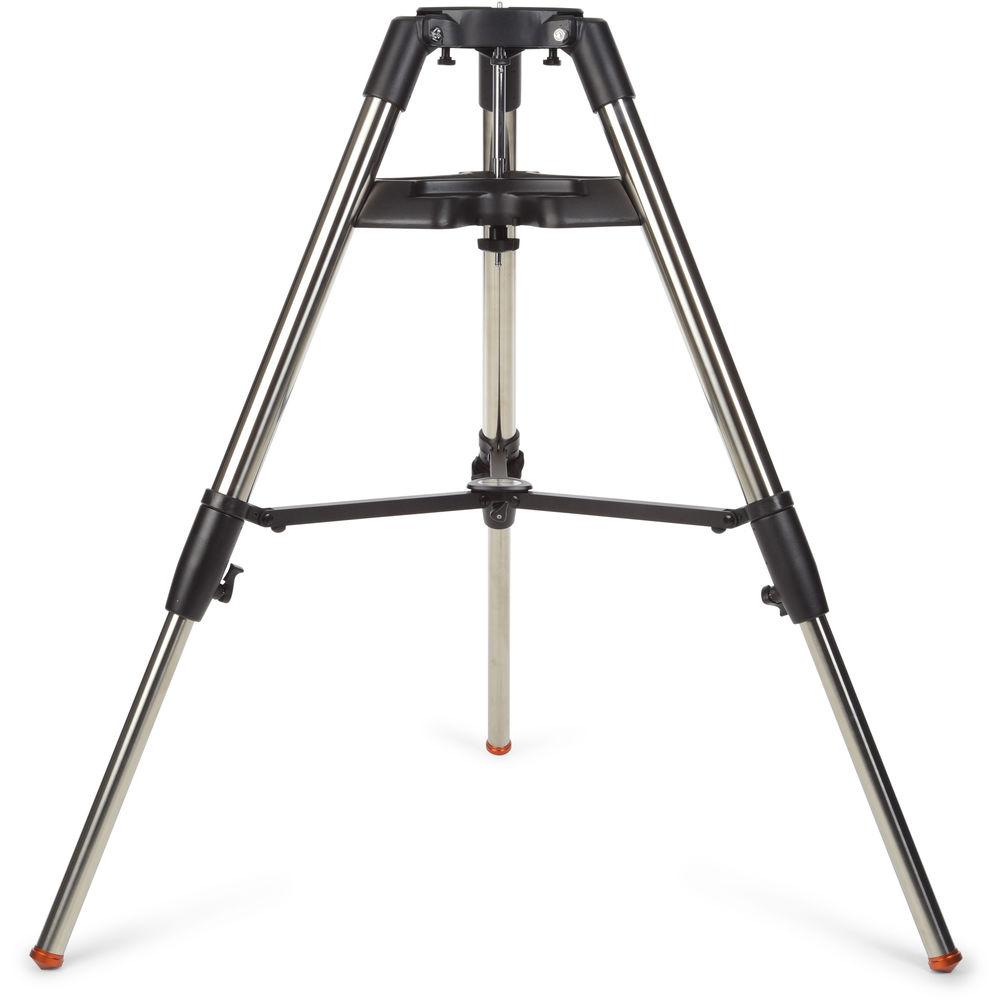

- Tripod:
- Adjustable height
- 2"-diameter stainless steel legs
- Accessory tray for holding eyepieces, filters, etc.
- Center support bracket locks legs in place to add stability and reduce vibrations
- Weight: 19 pounds

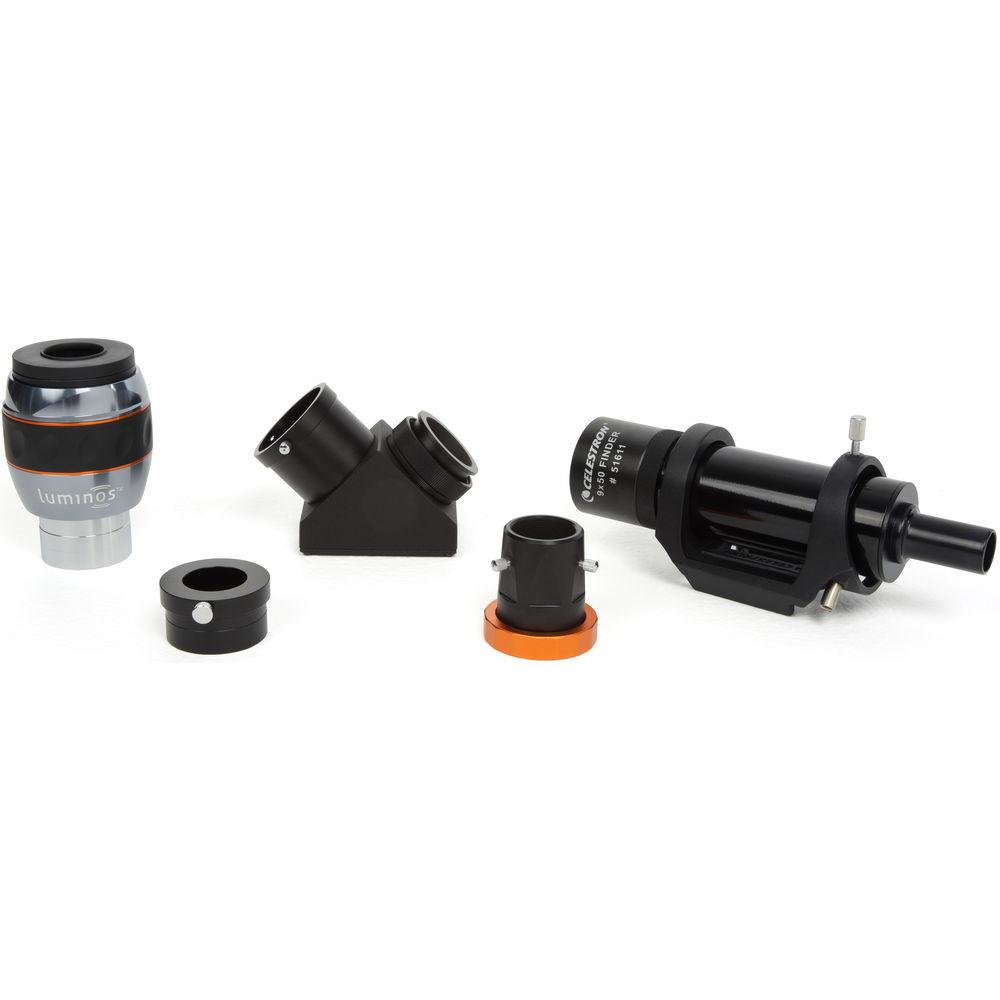

- Included Accessories
-
- Eyepiece:
- 2" barrel diameter
- Accepts most 2" astronomical filters
- 23mm focal length produces 122x power
- 35' field of view at 1000 yards
- 0.67° angle of view
- Diagonal:
- 90° angle places head in comfortable viewing position
- 2" snout and holder
- Star configuration corrects view horizontally but not vertically
- Reducer Adapter:
- 2"-to-1.25"
- Allows the use of smaller eyepieces and accessories with the included visual back and diagonal
- Finderscope:
- Low 9x magnification ensures a wide field of view for easier alignment
- 50mm objective allows users to see dimmer objects to have more alignment star choices
- Includes quick release bracket
- Power Adapter:
- 9-15 VDC
- Car/vehicle port plug
UPC: 050234110099 In the Box Celestron CPC Deluxe 1100 HD 11" f/10 Edge HD Aplanatic Cassegrain GoTo Telescope RS-232 Cable 1.25" Reducer Adapter 23mm Eyepiece 90° Diagonal 9x50 Finderscope Dual-Fork Arm Alt-Azimuth Mount Car Battery Adapter NexRemote Telescope Control Software Adjustable Stainless Steel Tripod w/ Accessory Tray Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Celestron CPC Deluxe 1100 HD 11" f 10 Edge HD Aplanatic Cassegrain GoTo Telescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCelestron CPC Deluxe HD Specs | | | Optical Design | Schmidt Cassegrain | | Aperture | 280 mm / 11" | | Focal Length | 2800 mm | | Focal Ratio | f/10 | | Eyepiece Barrel Diameter | 1.25", 2" | | Diagonal | Yes, 90
