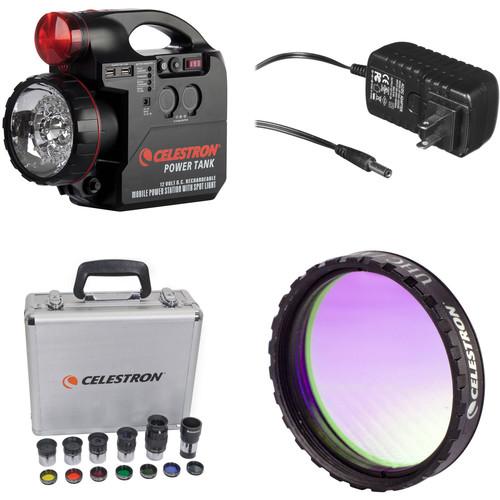

Celestron Deluxe Telescope 1.25" Observation and

User Manual for Celestron Deluxe Telescope 1.25" Observation and Power Accessory Kit

• Product category: Eyepieces Celestron
• Brand: Celestron
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Celestron Eyepieces

Product description

• Celestron PowerTank 7-Amp 12 VDC Power Supply Power your motorized/computer-controlled telescope with Celestron's PowerTank 7-Amp 12 VDC Power Supply. This versatile accessory features two 12VDC car/vehicle plugs to power the telescope and peripherals, plus two USB ports to charge small electronics such as phones or GPS sets. To help get you to your observation spot it is equipped with a powerful spot light, and when you're setting up, switch to the smaller flashlight. When it's time for observation, put the red lens cap on the flashlight to light your way without affect your night-adjusted vision. A built-in circuit breaker protects all your equipment and devices from damage.
  Power
  • • 7 amp hour capacity
    • Two 12VDC car/vehicle plugs with adapter cord
    • Two 5V USB ports to charge small electronics
  Lights
  • • Large white LED spotlight to navigate and set-up with tilt-head
    • Smaller flashlight for tasks
    • Red lens cap for flashlight to preserve night-adjusted vision
  Additional Features
  • • Built-in circuit breaker to protect electronics
    • 110-220VAC switchable universal power adapter included
    • Charging/battery-power LED indicators
  UPC: 050234187749
• Celestron AC to DC Power Adapter The Celestron AC to DC Power adapter has a standard 2-prong North American power plug on a ~6' cord on one end, and a 5.5mm circular DC output jack on a ~6 cord on the other side; in between is a transformer box.  The North American plug cord is detachable from the transformer; the cord with the 5.5mm DC plug point is permanently attached to the transformer.  Output of this unit is consistently 12 volts DC.This allows AC 120-240V, 50-60 Hz AC current supplies to power any of the Celestron telescopes with the 5.5mm DC input on their drive base, a long list of items which includes the Advanced, Celestar 8, CG9/11/14, CI700, CPC, CGE, NexStar i, NexStar SE, Celestron NexStar i, NexStar SE, Ultima 2000 series and others. UPC: 050234187787
• Celestron Eyepiece and Filter Kit (1.25") Celestron put together this 1.25" Eyepiece and Filter Kit to give users essential accessories for planetary observation. This kit includes five Plossl eyepieces that provide a wide range of magnifications on any given telescope, six of the most popular colored planetary filters to enhance the views, a Moon filter that reduces glare from the lunar surface while enhancing contrast, and a 2x Barlow lens which essentially doubles the magnification of any eyepiece used with it. An included hard aluminum carrying case protects the accessories while custom die-cut foam on the inside cushions them.
  Eyepieces
  • • 1.25" diameter barrels
    • Accepts most standard 1.25" eyepiece filters
    • Anti-reflection multi-coated optics improves light transmission, color rendition, and contrast
    • 52° apparent angle of view
    • 6mm offers highest magnification potential
    • 8mm produces a high magnification, but with a slightly longer eye relief than the 6mm
    • 13mm produces a comfortable mid-range magnification
    • 17mm offers a higher magnification potential than the 32mm without sacrificing brightness
    • 32mm has the lowest magnification potential with the longest eye relief and highest light transmittance
  Filters
  • • Fits standard 1.25" eyepieces
    #80A Blue:
    • Most popular for the study of detail on Jupiter and Saturn
    • Enhances the contrast on Jupiter's cloud belts
    • Enhances details of the Great Red Spot
    • Brings out detail in Saturn's belts and polar features
    • Also very useful for lunar observing
    #58 Green:
    • Rejects red and blue wavelengths
    • Increases the contrast on the lighter parts of the surface of Jupiter
    • Useful for enhancing the cloud belts and polar regions on Saturn
    • Increases the contrast in Mars polar ice caps
    • Increases the contrast of atmospheric features on Venus
    #56 Light Green:
    • Excellent for the observation of Martian polar ice caps and for the yellow tinted dust storms on the planet's surface
    • Increases the contrast of the red and blue regions in Jupiter's atmosphere and cloud belts
    • Great for lunar observing
    #25 Red:
    • Blocks the transmission of blue and green wavelengths
    • Sharply defines the contrast between the cloud formations and the lighter-toned surface features on Jupiter
    • Useful for definition of the Martian polar ice caps and maria
    #21 Orange:
    • Reduces transmission of blue and green wavelengths
    • Increases the contrast between these blue/green areas and red/yellow/orange areas
    • Sharpens the boundaries between these areas on the Martian surface
    • Sharpen the contrast in Jupiter's belts and to bring out the Great Red Spot
    • Slightly increases surface details on Saturn
    #12 Deep Yellow:
    • Enhances red and orange features on Jupiter and Saturn, while blocking blue and green wavelengths
    • Lightens the red and orange features on Mars, while reducing, or blocking, the transmission of blue and green areas - increasing the contrast between the two
    • Enhances the blue clouds in the Martian atmosphere
    Moon:
    • Makes viewing the Moon safe when at or near full phase
    • Reduces glare to bring out more surface detail and improve contrast
    • Also useful to bring out surface details on Venus
  Barlow Lens
  • • 1.25" diameter barrel and eyepiece holder
    • 2x magnification doubles the magnification of any eyepiece used
    • Increases magnification while preserving eyepiece's native eye relief for easier viewing at high magnifications
  Case
  • • Hard aluminum case with reinforced corners and edges
    • Dual latch-locks
    • Hinge carrying handle
    • Custom interior die-cut foam protects and cushions accessories
    • Extra room for additional accessories - simply pluck foam for a custom-fit space
  UPC: 050234943031
• Celestron Ultra High Contrast Light Pollution Reduction Filter (1.25") LPR (light pollution reduction) filters are designed to selectively reduce transmission of certain wavelengths of light, specifically those produced by artificial light.  These include mercury vapor, high & low pressure sodium vapor lights and the unwanted natural light caused by neutral oxygen emissions in our atmosphere.  The UHC LPR filter has improved contrast over the typical broadband filters, giving darker background skies and noticeably improved contrast of emission nebulae.  The advanced coatings enable and impressive 97% total transmission across the entire bandpass, with total blockage of prominent light pollution lines.  It is a perfect filter for viewing nebula from light polluted skies as well as for boosting the contrast of nebula from dark sky sites.
  • Multilayer, plasma-assisted and Ionbeam hardened dielectric coatings yield supreme durability
  UPC: 050234941235

• PowerTank 7-Amp 12 VDC Power Supply wbarttfcyuttzzybxvxeqfsyvcf
• 110V/220V Switchable Universal AC Adapter
• Cigarette Lighter Adapter
• Red Filter Cap
• Limited 2-Year Warranty

• AC to DC Power Adapter

• Eyepiece and Filter Kit (1.25")

• UHC (Ultra High Contrast) LPR Filter (1.25") - Reduces Transmission of Wavelengths of Artificially-Produced Light

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Celestron PowerTank 7-Amp 12 VDC Power Supply

  Capacity	7 Amp amp hr
  Inputs	1 x 15 VDC charging port
  Outputs	2 x USB ports, 5 V 1.5 A 2 x 12 VDC car/vehicle plugs LED spotlight LED flashlight
  Dimensions	Not specified by manufacturer
  Weight	7.0 lb / 3.2 kg

  Box Dimensions (LxWxH)	12.2 x 10.4 x 6.2"

• Celestron AC to DC Power Adapter

  Box Dimensions (LxWxH)	4.7 x 2.95 x 2.15"

• Celestron Eyepiece and Filter Kit (1.25")

  Box Dimensions (LxWxH)	12.8 x 11.55 x 5.2"

• Celestron Ultra High Contrast Light Pollution Reduction Filter (1.25")

  Box Dimensions (LxWxH)	3.15 x 2.85 x 0.85"
