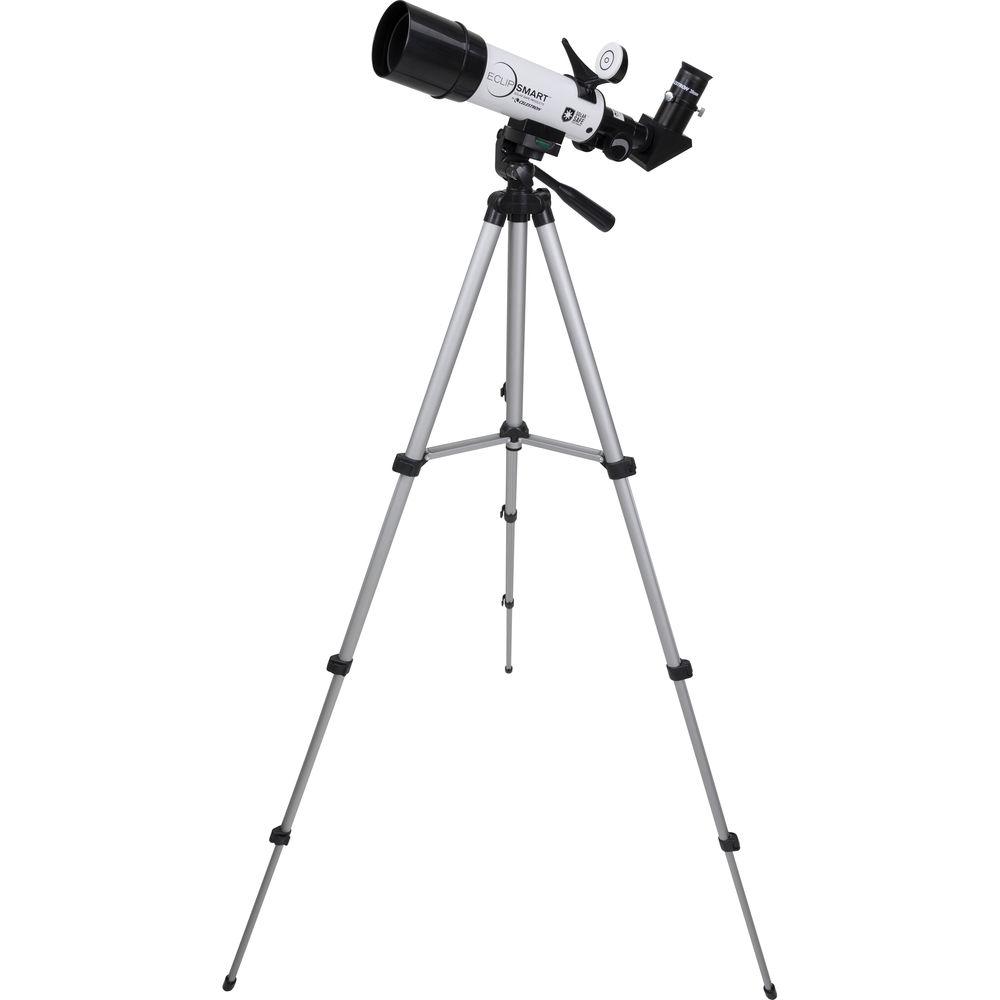

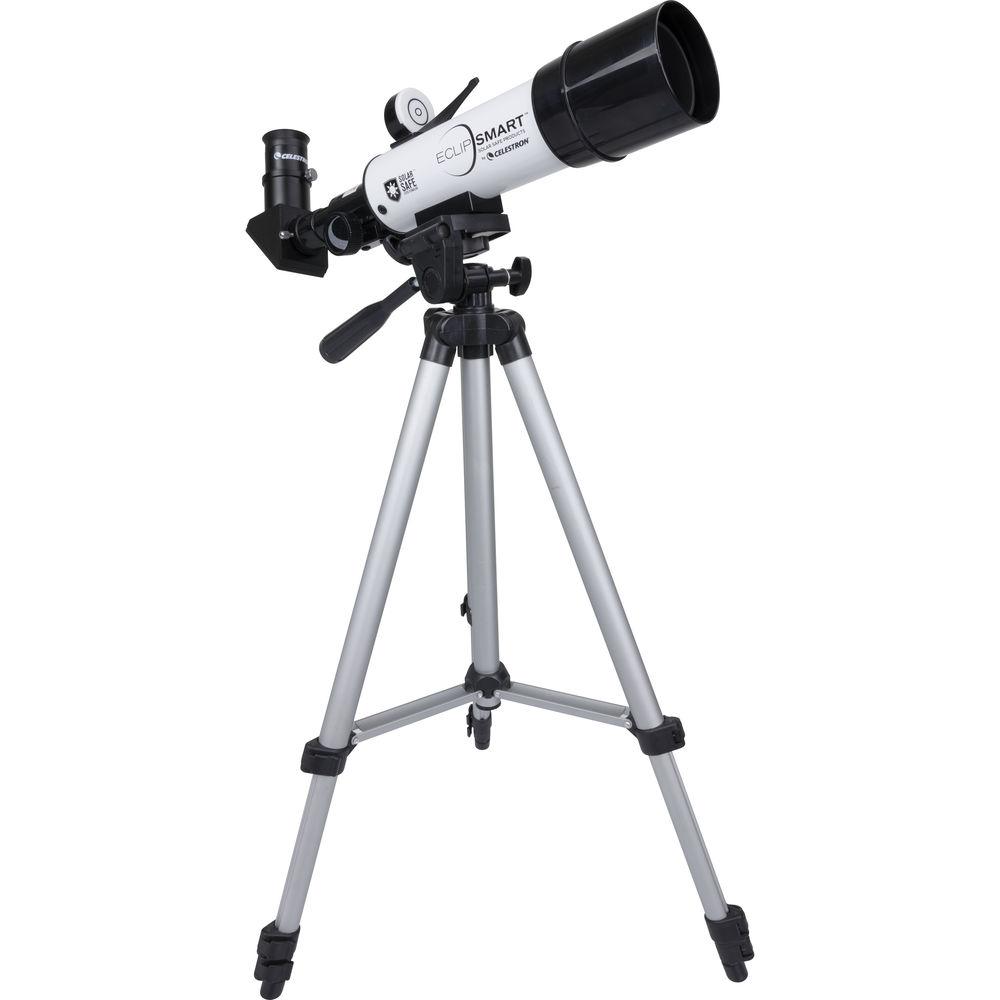

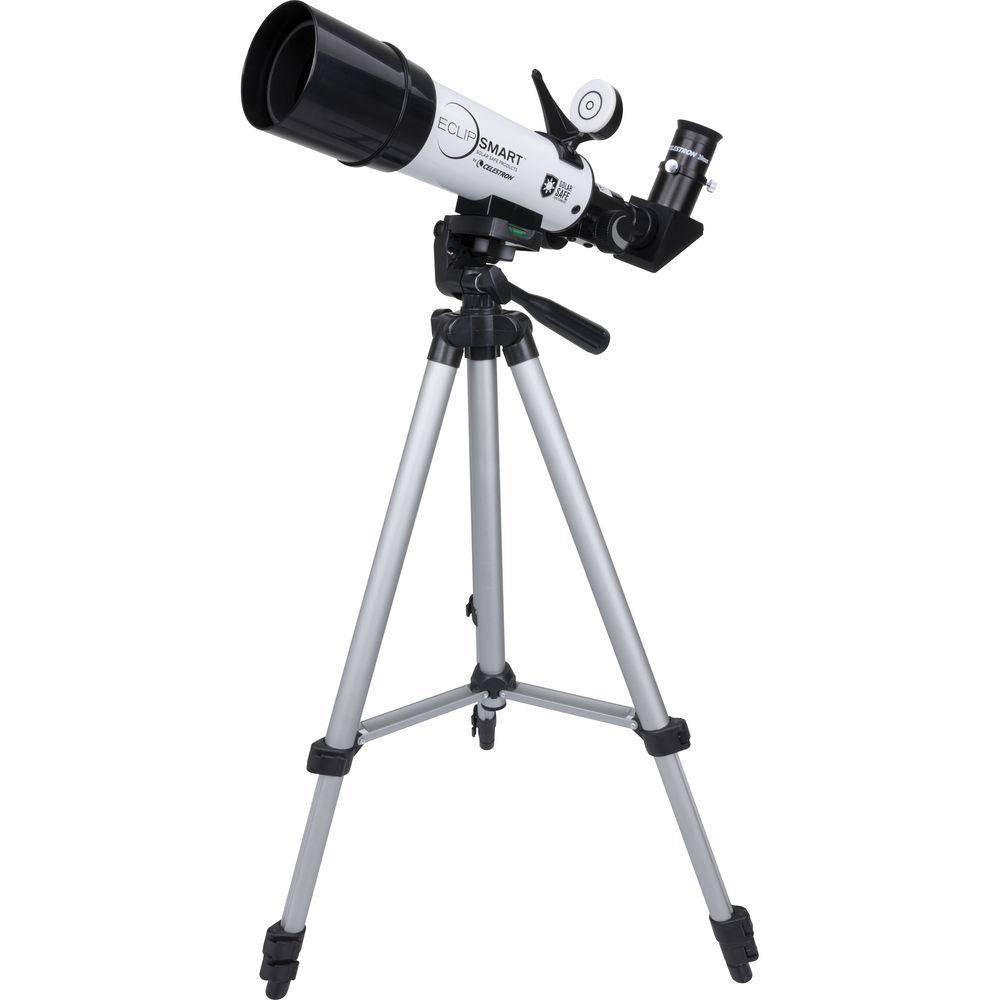

The Celestron EclipSmart 50 50mm f/7.2 Alt-Az Solar Telescope is a complete rig for eclipse or general solar viewing. It is outfitted with dual-lens, non-removable glass solar filters that carry multiple ISO certifications for direct solar observation, and reveal images of the Sun's surface in a natural and neutral tone. Included with the scope is a 20mm eyepiece that produces 18x magnification, an adjustable-height photo-style tripod with an extendable center column, a manual alt-az head with control handle, and a backpack that everything fits into with room for more accessories. - Performance
-
- Dual-lens, non-removable glass solar filters
- ISO 12312-2, EN 1836:2005 + A1:2007 (E), AS/NZS 1338.1:2012, compliant for filters for eye protectors and direct solar viewing
- 50mm objective lens
- f/7.2 focal ratio
- 360mm focal length
- Refractor-style optical path
- Fully coated optics for improved light transmission
- Resolution: 2.79 arc sec, Rayleigh; 2.32 arc sec, Dawes

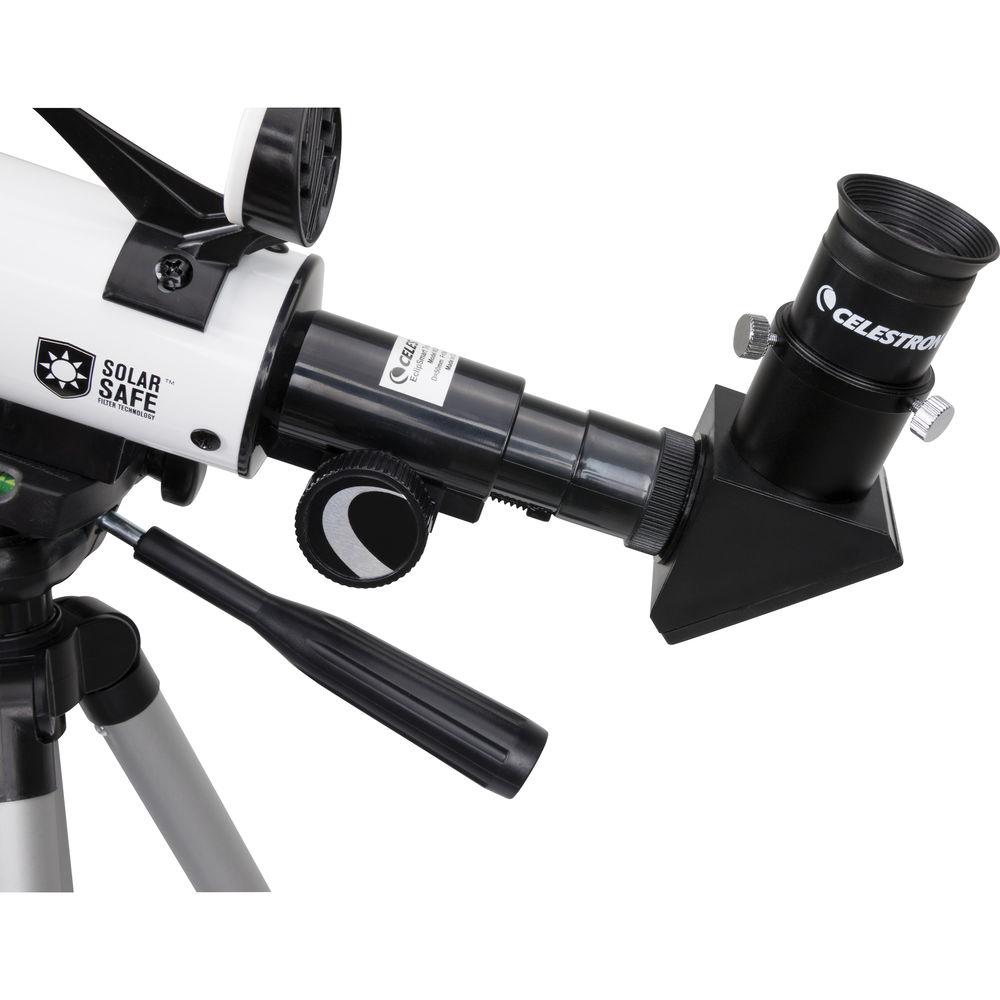

- Rack-and-pinion focuser with 1.25" drawtube
- Mount and Tripod
-
Mount:- Manual alt-az
- Control handle with twist-lock

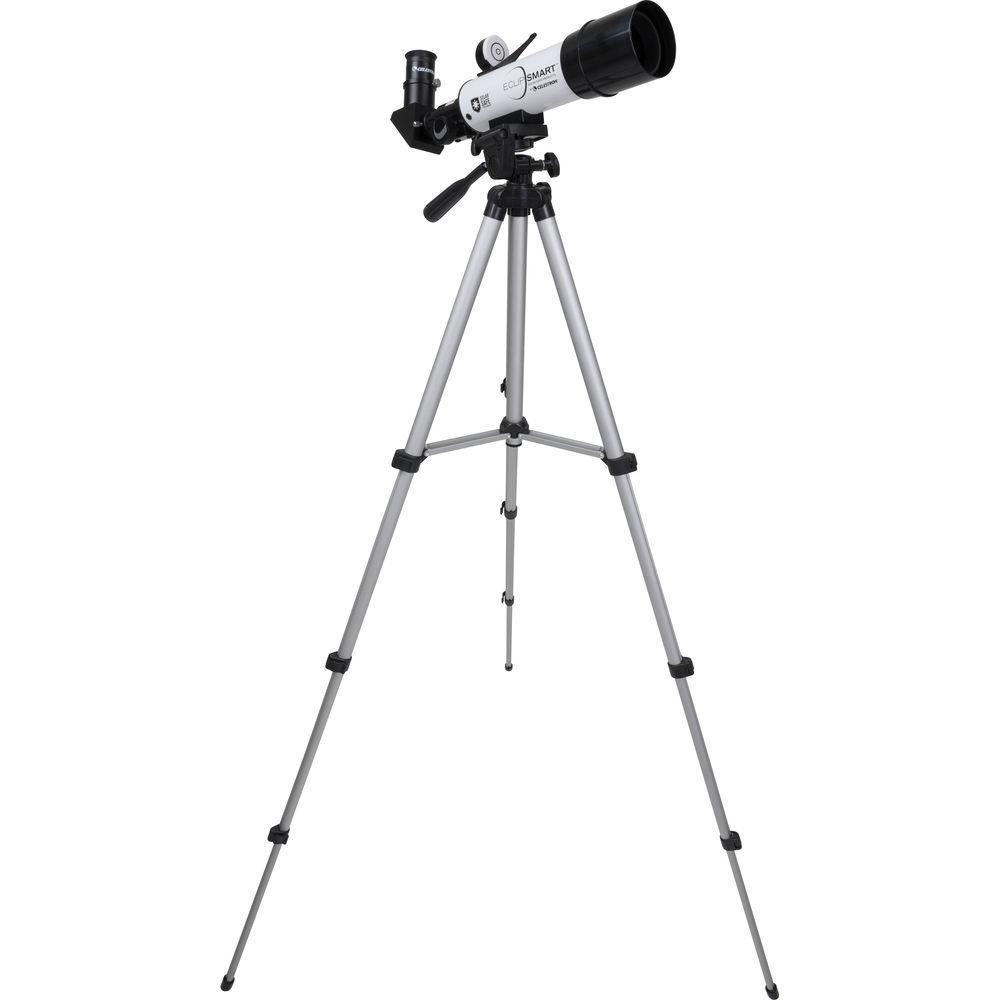

Tripod:- Four leg sections
- Easy snap locks per section
- Adjustable height from 16" to 43"
- Extendable 6" center column
- With legs and center column full extended max height to top of mount is 49"
- Included Accessories
-
- 20mm eyepiece yields 18x magnification

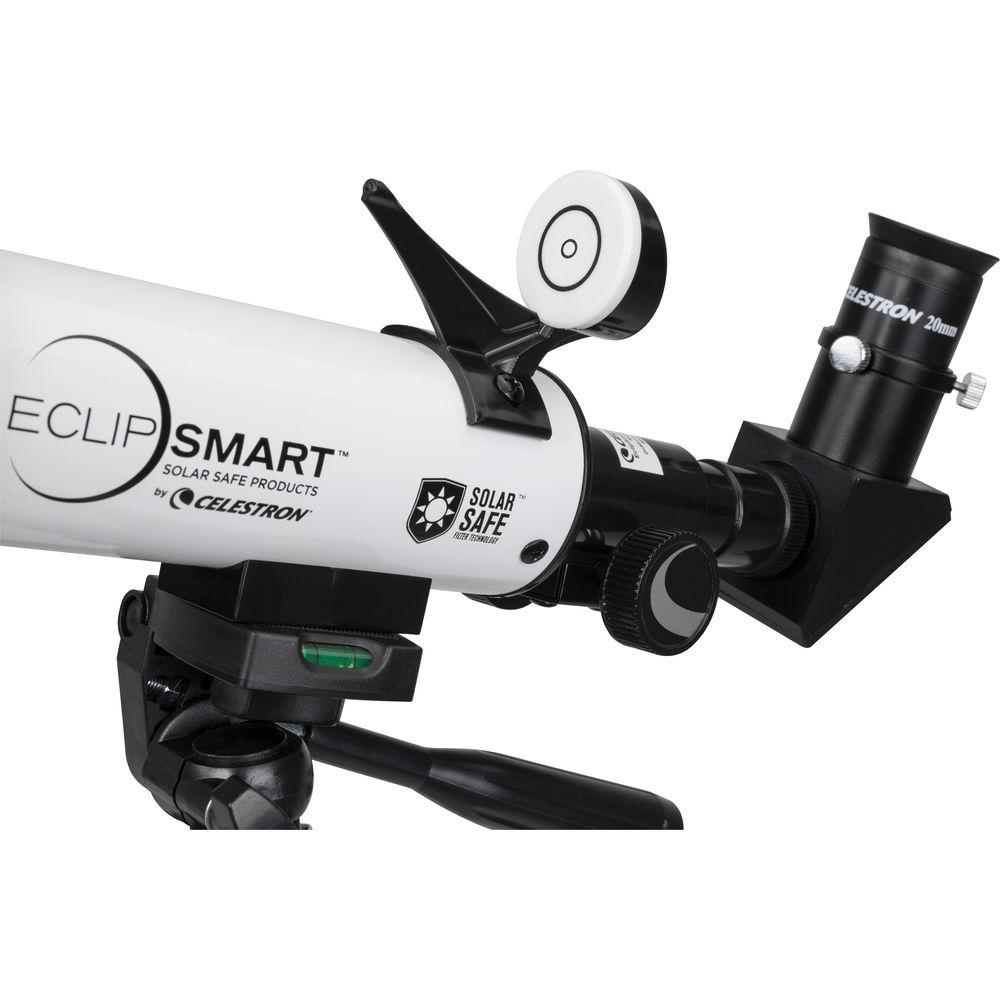

- 90° diagonal puts head in comfortable viewing position

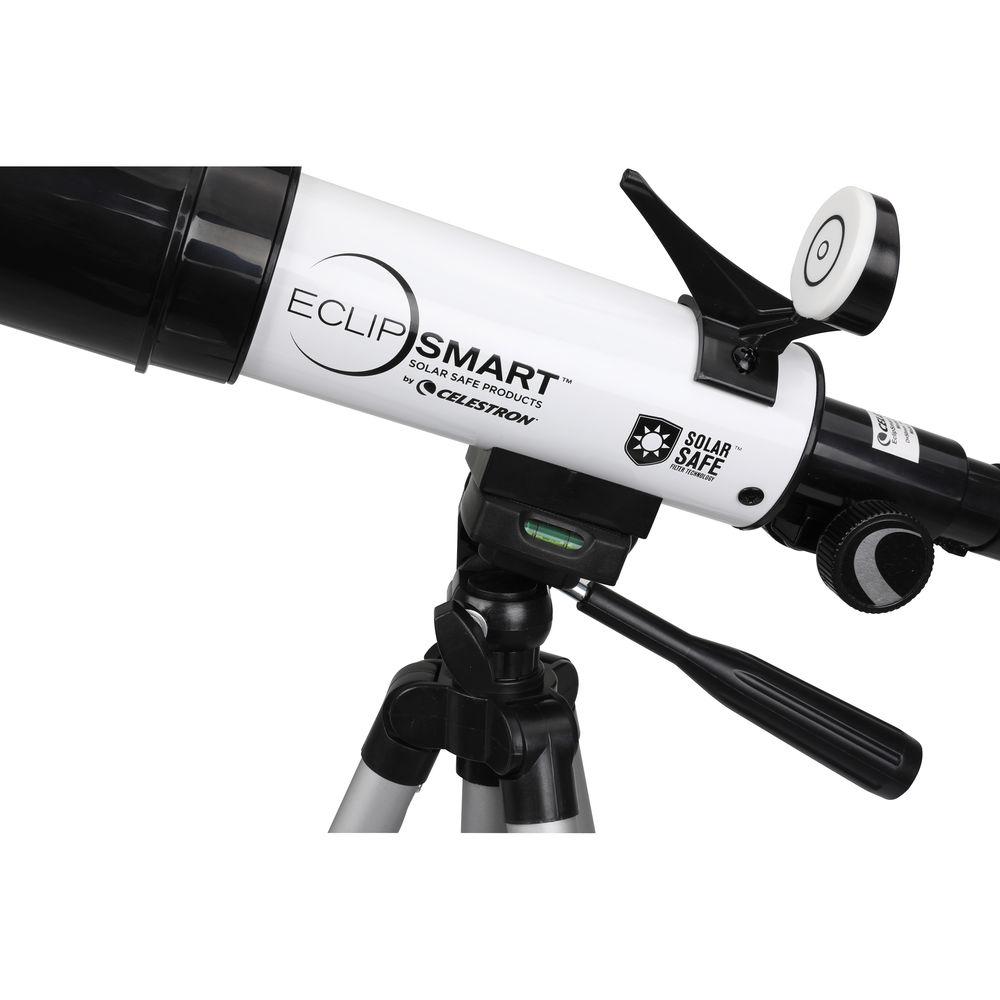

- Projection finder allows users to safely put the Sun in the telescope's field of view

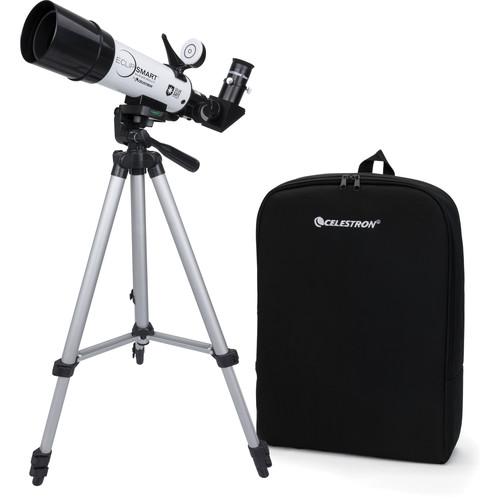

- Backpack holds optical tube, mount/tripod, and accessories for easy transportation and storage
UPC: 050234220606 In the Box Celestron EclipSmart 50 50mm f/7.2 Alt-Az Solar Telescope with Backpack Backpack Finderscope Aluminum Tripod 90° Diagonal 1.25" 20mm Eyepiece Limited 2-Year Warranty Solar and Solar Eclipse Viewing 101 Christopher Witt 12/14/2016 Mark Your Calendars: North American Solar Eclipse 2017 Todd Vorenkamp and Christopher Witt 08/19/2016 Table of Contents
|
Upload User Manual
Have you got an user manual for the Celestron EclipSmart 50 50mm f 7.2 Alt-Az Solar Telescope with Backpack in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCelestron 22060 Specs | Optical Design | Refractor | Aperture | 50 mm / 2" | Focal Length | 360 mm | Focal Ratio | f/7.2 | Focuser | Rack-and-Pinion | Eyepiece Barrel Diameter | 1.25" | Diagonal | 90
